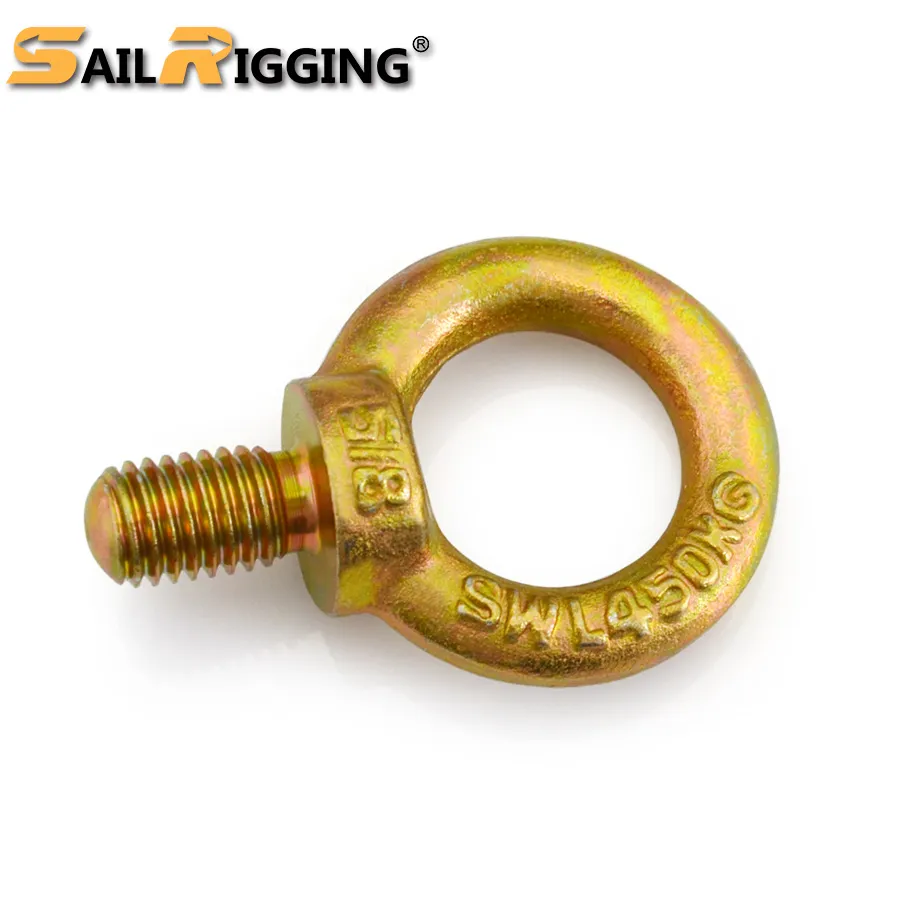

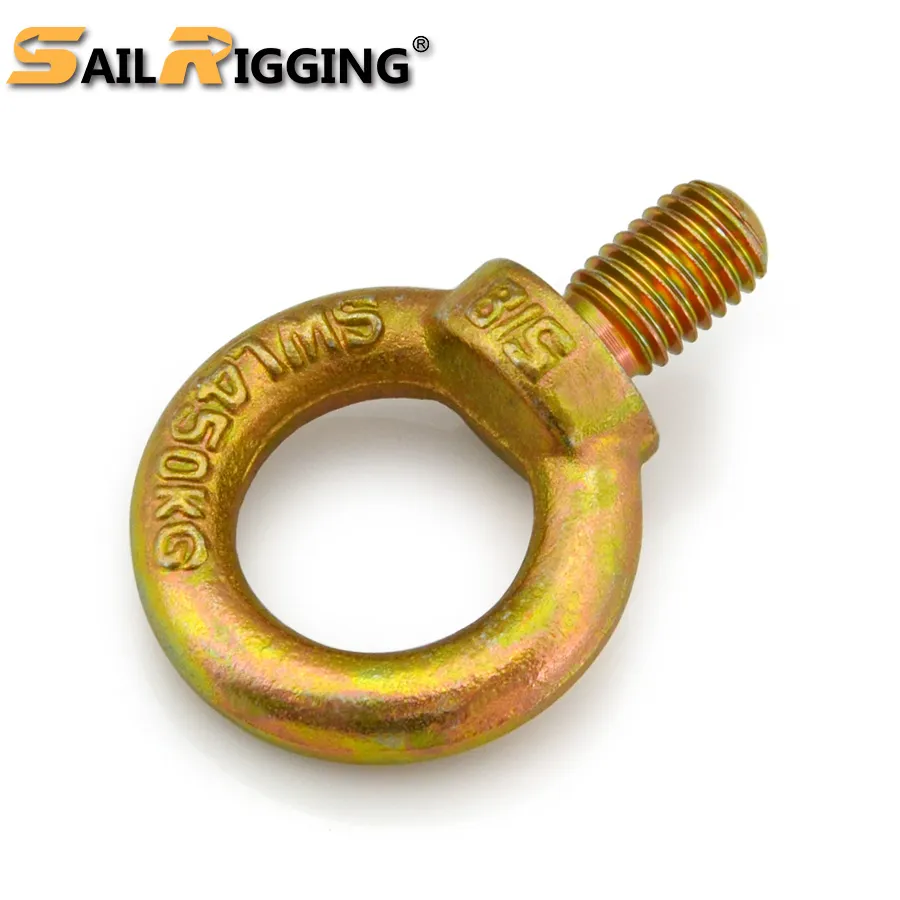

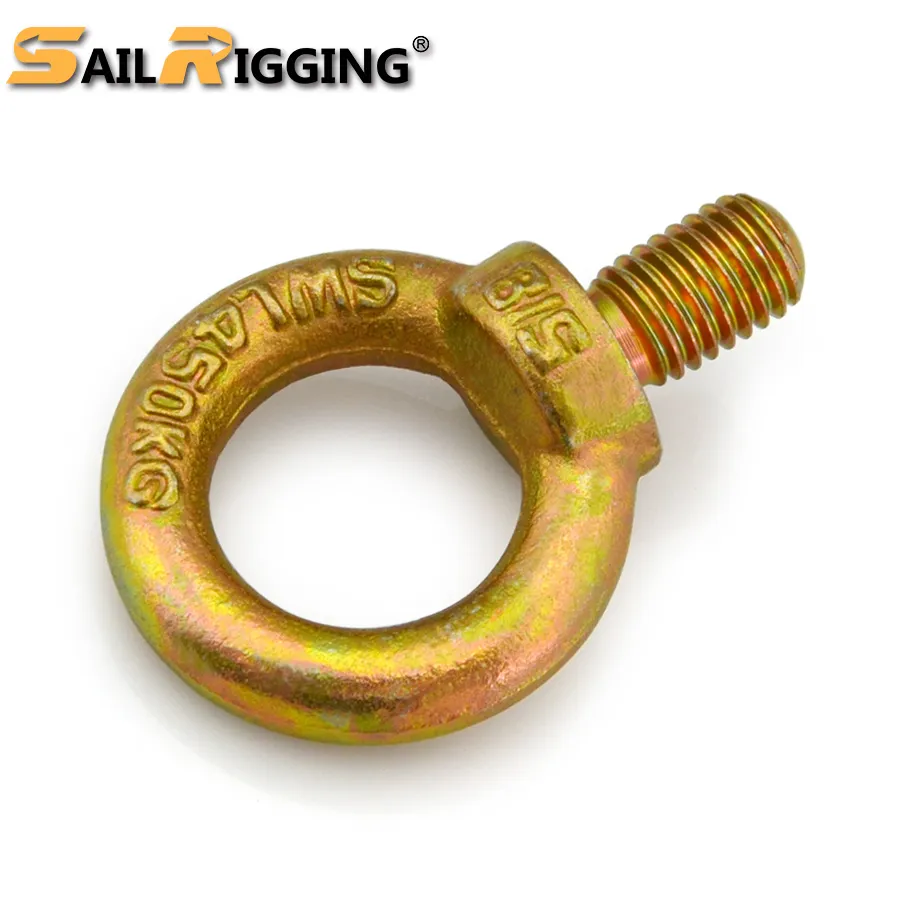

Yellow Zinc Drop Forged Lifting Eye Bolt JIS B1168
Basic Product Info.Name: M24 brass forged lifting eye bolt JIS11681) Standard: JIS B 1168 Eye Bolt2) Size: M8-M100, Customer design are available3) OEM Service offer4) Material: Q235, Carbon Steel; Stainless Steel are also available.5) Surface: Electro Galvanized; Hot Dipped Galvanized; Self-Color6......
Send Inquiry
Product Description
Basic Product Info.
Name: M24 brass forged lifting eye bolt JIS1168
1) Standard: JIS B 1168 Eye Bolt
2) Size: M8-M100, Customer design are available
3) OEM Service offer
4) Material: Q235, Carbon Steel; Stainless Steel are also available.
5) Surface: Electro Galvanized; Hot Dipped Galvanized; Self-Color
6) Special specifications and marks can be made according to customers requirments
7) Packing details: Gunny bags, carton then in pallet
Advantageous Service.
1. Customers' special need is welcomed, from mold to samples within 10 days.
2. With 10 years' exporting experience, all inquiries responded within 12 hours.
3. Exported to over 50 countries, products test reports provided on request.
4. ISO, CE Certificated, product quality strictly controlled by QC depart.
5. No MOQ limit, Timely delivery, High quality and competitive prices.
6. Our Creed: Better because of Specialization.
Our Main Products.
Our main product are Shackles, Turnbuckles, load binders, Hooks, Eye bolts and nuts, Wire rope clips, swivels, Connecting links, Stainless steel riggings etc.
Name: M24 brass forged lifting eye bolt JIS1168
1) Standard: JIS B 1168 Eye Bolt
2) Size: M8-M100, Customer design are available
3) OEM Service offer
4) Material: Q235, Carbon Steel; Stainless Steel are also available.
5) Surface: Electro Galvanized; Hot Dipped Galvanized; Self-Color
6) Special specifications and marks can be made according to customers requirments
7) Packing details: Gunny bags, carton then in pallet
Advantageous Service.
1. Customers' special need is welcomed, from mold to samples within 10 days.
2. With 10 years' exporting experience, all inquiries responded within 12 hours.
3. Exported to over 50 countries, products test reports provided on request.
4. ISO, CE Certificated, product quality strictly controlled by QC depart.
5. No MOQ limit, Timely delivery, High quality and competitive prices.
6. Our Creed: Better because of Specialization.
Our Main Products.
Our main product are Shackles, Turnbuckles, load binders, Hooks, Eye bolts and nuts, Wire rope clips, swivels, Connecting links, Stainless steel riggings etc.

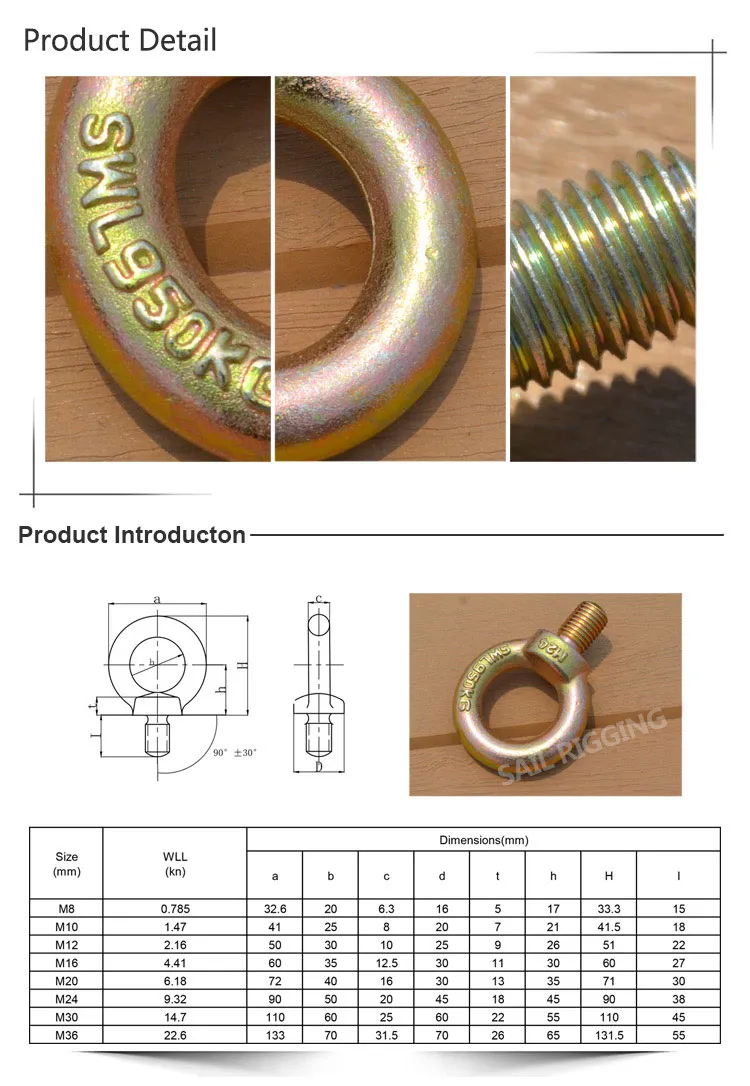

| Size | Dimension(in) | S.W.L. | Weight | ||||||
| MM | INCH | A | B | C | D | H | L | (Ton) | (lbs) |
| M8 | 5/16∪ | 1.28 | 0.79 | 0.25 | 0.63 | 1.31 | 0.59 | 0.08 | 0.09 |
| M10 | 3/8∪ | 1.61 | 0.98 | 0.31 | 0.79 | 1.63 | 0.71 | 0.15 | 0.15 |
| M12 | 1/2∪ | 1.97 | 1.18 | 0.39 | 0.98 | 2.01 | 0.87 | 0.22 | 0.31 |
| M16 | 5/8∪ | 2.36 | 1.38 | 0.49 | 1.18 | 2.36 | 1.06 | 0.45 | 0.57 |
| M20 | 3/4∪ | 2.83 | 1.57 | 0.63 | 1.38 | 2.8 | 1.18 | 0.63 | 0.95 |
| M22 | 7/8∪ | 3.15 | 1.73 | 0.71 | 1.57 | 3.11 | 1.38 | 0.79 | 1.23 |
| M24 | 1∪ | 3.54 | 1.97 | 0.79 | 1.77 | 3.54 | 1.5 | 0.95 | 1.87 |
| M30 | 1-1/4∪ | 4.33 | 2.36 | 0.98 | 2.36 | 4.33 | 1.77 | 1.5 | 3.74 |
| M36 | 1-1/2∪ | 5.24 | 2.76 | 1.24 | 2.76 | 5.18 | 2.17 | 2.3 | 6.61 |
| M42 | 1-3/4∪ | 5.94 | 3.15 | 1.4 | 3.15 | 5.93 | 2.56 | 3.4 | 9.91 |
| M48 | 2∪ | 6.69 | 3.54 | 1.57 | 3.54 | 6.69 | 2.76 | 4.5 | 14.76 |
| M64 | - | 8.27 | 4.33 | 1.97 | 4.33 | 8.27 | 3.54 | 9 | 24.89 |
| M80 | - | 10.47 | 5.51 | 2.48 | 5.12 | 10.35 | 4.13 | 15 | - |
| M90 | - | 11.89 | 6.3 | 2.8 | 5.91 | 11.85 | 4.72 | 18 | - |
| M100 | - | 13.39 | 7.09 | 3.15 | 6.69 | 13.98 | 5.12 | 20 | - |
