Qbh DIN315 Brass Copper Carbon Stainless Steel Square Rectangular Handle Butterfly Wing Nuts
Product DescriptionA Wing Nut enables easy tightening and removal by hand. Use wingnuts to secure an access panel,marine hardware or in other situations where handling a wrench is inconvenient. Use a zinc-platedstainless steel wing nut for exterior applications since their extra surface area makes t......
Send Inquiry
Product Description
A Wing Nut enables easy tightening and removal by hand. Use wingnuts to secure an access panel,
marine hardware or in other situations where handling a wrench is inconvenient. Use a zinc-plated
stainless steel wing nut for exterior applications since their extra surface area makes them vulnerable
to corrosion.

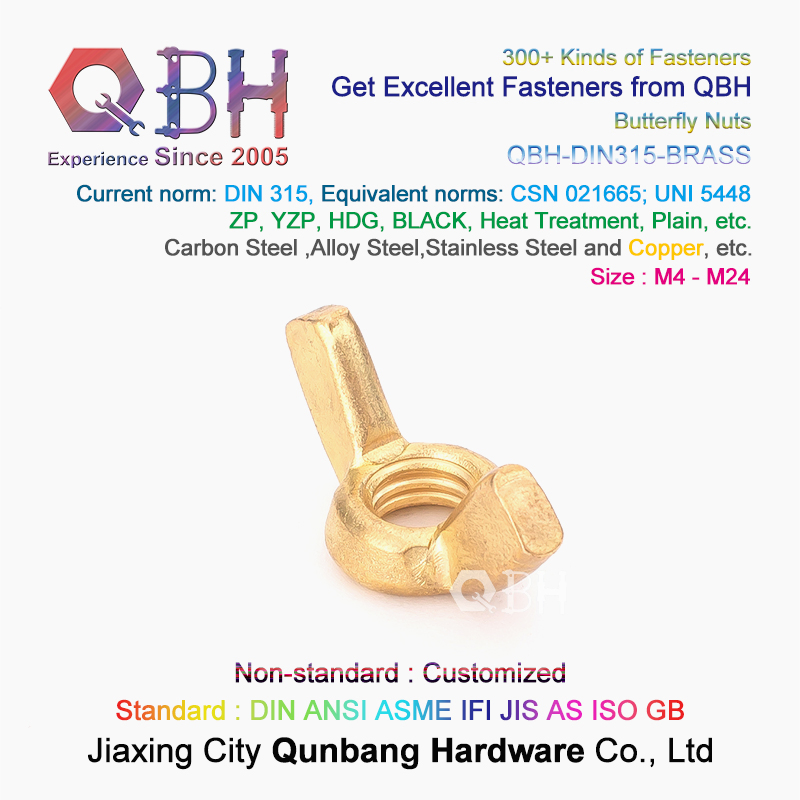

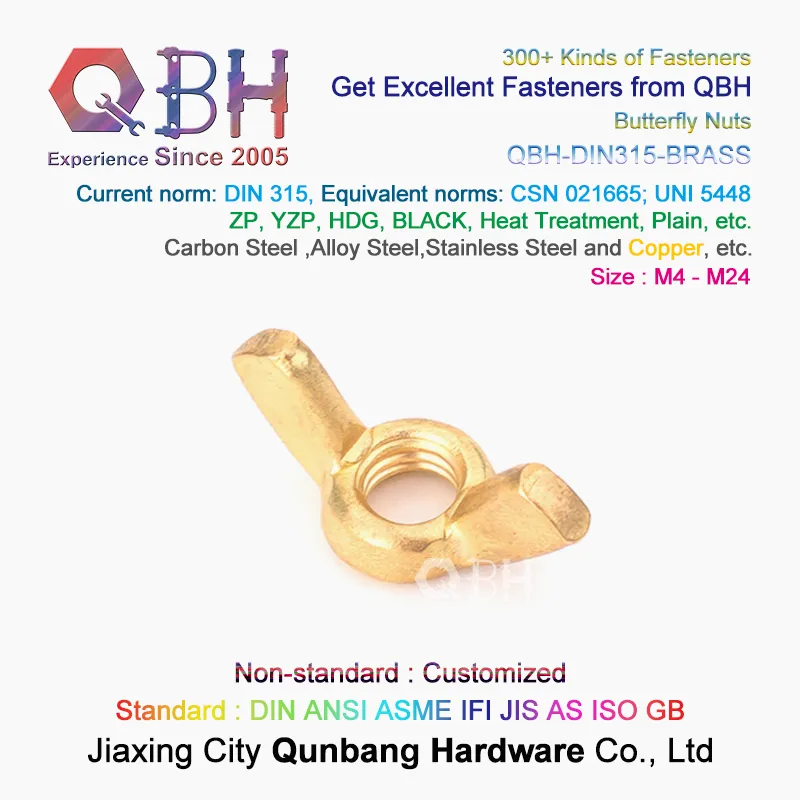

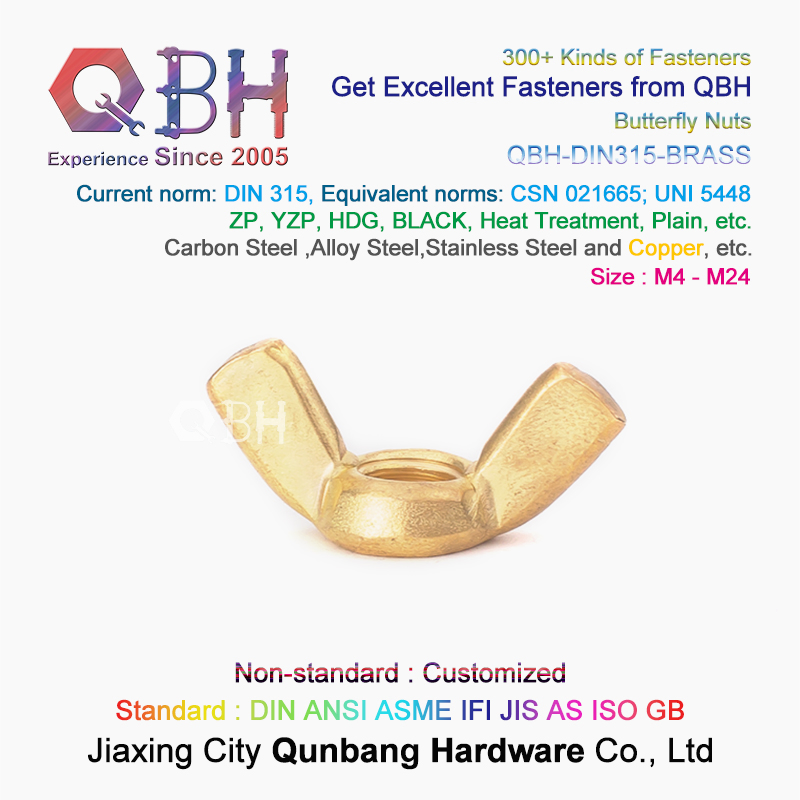

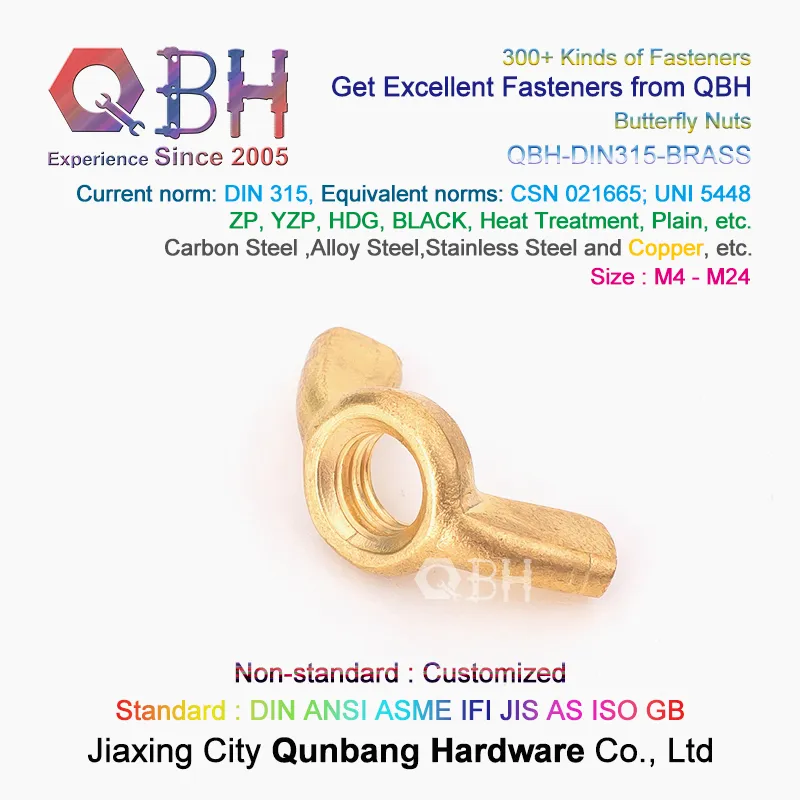

Metric DIN 315 Wing Nuts / Butterfly Nuts of the German Type have two rounded wing like projections.
This unique design makes it possible to use your thumb and forefinger to turn and tighten the nut rather
than a having to use a wrench or other tool thus ensuring easy rapid assembly and disassembly using
only fingers. DIN 315 wing nuts can be used for many applications where quick hand tensioning
and clamping is required. QBH company offers the following sizes for immediate delivery from stock:
Diameters ranging from M4 to M24 in steel and stainless steel A2 and A4.

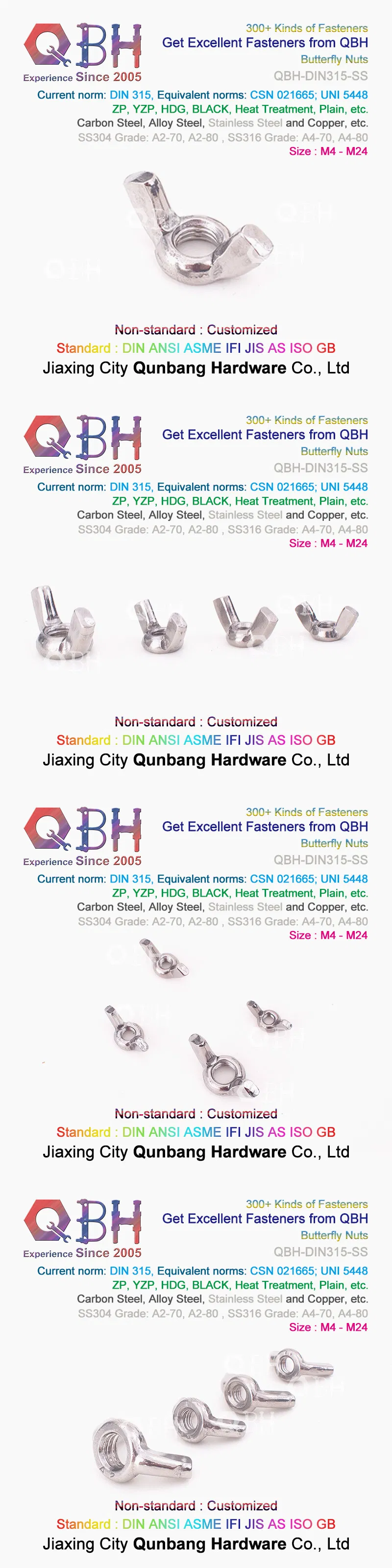

Stainless steel(SS304/SS316)
Made from 316 stainless steel, these wing nuts have excellent chemical resistance and can be used in saltwater
environments. The wings provide more leverage for greater torque while tightening than knurled-head thumb nuts.

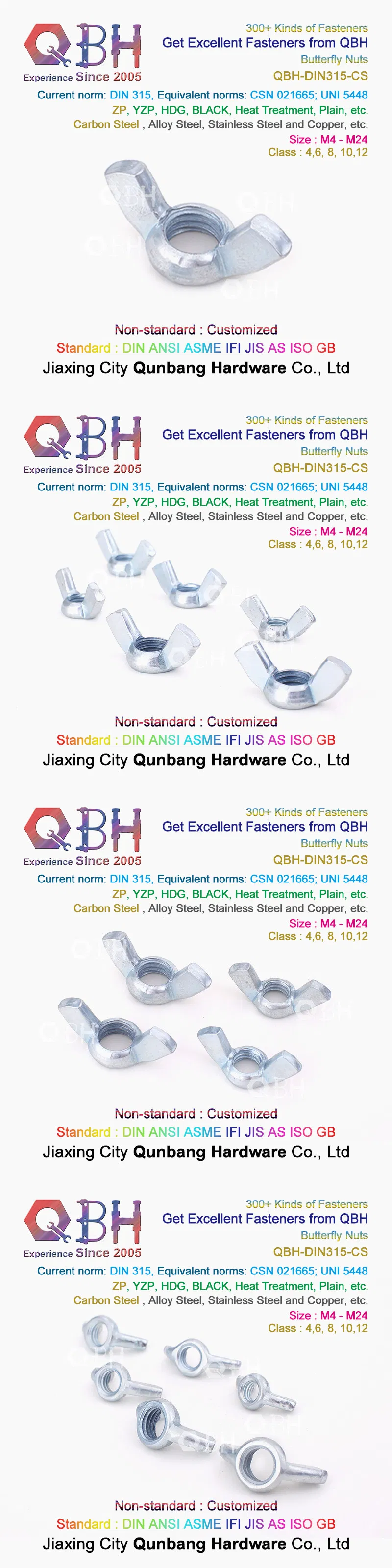

Carbon steel
Wings provide more leverage for greater torque while tightening than knurled-head thumb nuts. Zinc-plated wing nuts
are corrosion resistant in wet environment.
Brass
These wing nuts are corrosion resistant in wet environments, electrically conductive, and nonmagnetic.
The wings provide more leverage for greater torque while tightening than knurled-head thumb nuts.
The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may
differ from picture. Products are guaranteed to meet the specification to which they are manufactured.
Please email us with any questions.
| STYLE | Butterfly Wing Nuts |
| STANDARD | DIN315, DIN,ASTM/ANSI,JIS,EN,ISO,GB |
| Supplier | QBH |
| Model No. | QBH-DIN315-BRASS, QBH-DIN315-SS; QBH-DIN315-CS |
| SIZE | M4-M24 |
| FINIISH | PLAIN , ZP , YZP , BLACK , HDG , DACROMET , GEOMET , CHROME , NICKEL |
| CLASS | SS304 Grade: A2-70, A2-80 , SS316 Grade: A4-70, A4-80; Carbon Steel Class : 4,6,8,10,12 |
| MATERIAL | Stainless steel(SS304/SS316)/Carbon steel/Brass |
| PACKING | bulk/ boxes in cartons, bulk in polybags/ buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc. |
DIN 315 - Wing Nuts with Rectangular Wings (American version)
Current Norm: DIN 315
Equivalent norms: CSN 021665; UNI 5448;
| D1 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
| Item | QBH Metric DIN 315 Wing Nuts | |||||||||
| D2 max | 8 | 11 | 13 | 16 | 20 | 23 | 28 | 29 | 35 | 44 |
| E max | 20 | 26 | 33 | 39 | 51 | 65 | 72 | 73 | 90 | 110 |
| G max | 1.9 | 2.3 | 2.3 | 2.8 | 4.4 | 4.9 | 6 | 6.4 | 6.9 | 9.4 |
| H max | 10.5 | 13 | 17 | 20 | 25 | 33.5 | 36 | 37.5 | 46.5 | 56.5 |
| A | 8 | 10 | 12 | 16 | 20 | 23 | 23 | 28 | 36 | 45 |
| KG/MPCS | 2 | 3.5 | 5.9 | 8.7 | 14.8 | 37.8 | 75 | 86 | 161 | 260 |
Product Grade
A2-70 A2-80 A4-70 A4-80
QBH Metric DIN 315 Materials and Chemical compstition
| CHEMICAL COMPOSI(% ) | |||||||||
| Type | C | Si | Mn | P | S | Ni | Cr | Mo | Cu |
| ≤ | ≤ | ≤ | ≤ | ≤ | ≥ | ≥ | ≥ | ≈ | |
| Item | QBH Metric DIN 315 Wing Nuts | ||||||||
| 201Cu | 0.08 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 14.0-17.0 | 2.0-3.0 | |
| 201 | 0.15 | 1.00 | 8.50 | 0.06 | 0.03 | 3.50-5.50 | 16.0-18.0 | ||
| 202 | 0.15 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 17.0-19.0 | ||
| 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 5.00-8.00 | 16.0-18.0 | ||
| 302 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | ||
| XM7 (302HQ) | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.5 | 17.0-9.00 | 3.0-4.0 | |
| 303 | 0.15 | 1.00 | 2.00 | 0.20 | ≥0.15 | 8.00-10.0 | 17.0-19.0 | ≤0.60 | |
| 304 | 0.07 | 1.00 | 2.00 | 0.035 | 0.03 | 8.00-10.0 | 18.0-20.0 | ||
| 304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | 1.0-3.0 | |
| 304M | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.0 | 18.0-20.0 | ||
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (12Ni) | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (10Ni) | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 321 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00-13.0 | 17.0-19.0 | Ti≤5*C% | |
| 2520 | 0.08 | 1.00 | 2.00 | 0.035 | 0.03 | 19.0-22.0 | 24.0-26.0 | ||
QBH Metric DIN 315 Process Flow
Cold Forging
Annealing treatment(if need) -> Wiredrawing -> Clod Forging -> Tapping -> Make Heat Treatment (if need) -> Finish -> Packing
Product Grade
Class 6 Class 8 Class 10
Materials and Chemical compstition
| QBH FASTENER 1008 CHEMICAL COMPOSI % | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Al |
| 0.06 | 0.06 | 0.33 | 0.013 | 0.003 | 0.01 | 0 | 0.01 | 0.028 |
| QBH FASTENER 1035 CHEMICAL COMPOSI % | |||||||
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.34 | 0.13 | 0.73 | 0.012 | 0.002 | 0.02 | 0.01 | 0.02 |
| QBH FASTENER 1045 CHEMICAL COMPOSI % | |||||||
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.45 | 0.23 | 0.58 | 0.014 | 0.006 | 0.057 | 0.008 | 0.016 |
MECHANICAL PROPERTY
TESTING STANDARD:DIN267- 4 OR ISO898-2
| SIZE | QBH FASTENER CLASS | |||||||||||||||||
| 04 | 05 | |||||||||||||||||
| PROOF LOAD N/mm2 | HV | NUT | PROOF LOAD N/mm2 | HV | NUT | |||||||||||||
| > | ≤ | min | max | HEAT TREATMENT | TYPE | min | max | HEAT TREATMENT | TYPE | |||||||||
| / | M4 | 380 | 188 | 302 | NO | THIN NUT | 500 | 272 | 353 | YES | THIN NUT | |||||||
| M4 | M7 | |||||||||||||||||
| M7 | M10 | |||||||||||||||||
| M10 | M16 | |||||||||||||||||
| M16 | M39 | |||||||||||||||||
| SIZE | QBH FASTENER CLASS | |||||||||||||||||
| 4 | 5 | |||||||||||||||||
| PROOF LOAD N/mm2 | HV | NUT | PROOF LOAD N/mm2 | HV | NUT | |||||||||||||
| > | ≤ | min | max | HEAT TREATMENT | TYPE | min | max | HEAT TREATMENT | TYPE | |||||||||
| / | M4 | / | / | / | / | / | 520 | 130 | 302 | NO | 1 | |||||||
| M4 | M7 | 580 | ||||||||||||||||
| M7 | M10 | 590 | ||||||||||||||||
| M10 | M16 | 610 | ||||||||||||||||
| M16 | M39 | 510 | 117 | 302 | NO | 1 | 630 | 146 | ||||||||||
| SIZE | QBH FASTENER CLASS | |||||||||||||||||
| 6 | 8 | |||||||||||||||||
| PROOF LOAD N/mm2 | HV | NUT | PROOF LOAD N/mm2 | HV | NUT | |||||||||||||
| > | ≤ | min | max | HEAT TREATMENT | TYPE | min | max | HEAT TREATMENT | TYPE | |||||||||
| / | M4 | 600 | 150 | 302 | NO | 1 | 800 | 180 | 302 | NO | 1 | |||||||
| M4 | M7 | 670 | 855 | 200 | ||||||||||||||
| M7 | M10 | 680 | 870 | |||||||||||||||
| M10 | M16 | 700 | 880 | |||||||||||||||
| M16 | M39 | 720 | 170 | 920 | 233 | 353 | YES | |||||||||||
| SIZE | QBH FASTENER CLASS | |||||||||||||||||
| 8 | 9 | |||||||||||||||||
| PROOF LOAD N/mm2 | HV | NUT | PROOF LOAD N/mm2 | HV | NUT | |||||||||||||
| > | ≤ | min | max | HEAT TREATMENT | TYPE | min | max | HEAT TREATMENT | TYPE | |||||||||
| / | M4 | / | / | / | / | / | 900 | 170 | 302 | NO | 2 | |||||||
| M4 | M7 | 915 | 188 | |||||||||||||||
| M7 | M10 | 940 | ||||||||||||||||
| M10 | M16 | 950 | ||||||||||||||||
| M16 | M39 | 890 | 180 | 302 | NO | 2 | 920 | |||||||||||
| SIZE | QBH FASTENER CLASS | |||||||||||||||||
| 10 | 12 | |||||||||||||||||
| PROOF LOAD N/mm2 | HV | NUT | PROOF LOAD N/mm2 | HV | NUT | |||||||||||||
| > | ≤ | min | max | HEAT TREATMENT | TYPE | min | max | HEAT TREATMENT | TYPE | |||||||||
| / | M4 | 1040 | 272 | 353 | YES | 1 | 1140 | 295 | 353 | YES | 1 | |||||||
| M4 | M7 | 1040 | 1140 | |||||||||||||||
| M7 | M10 | 1040 | 1140 | |||||||||||||||
| M10 | M16 | 1050 | 1140 | |||||||||||||||
| M16 | M39 | 1060 | / | / | / | / | / | |||||||||||
| SIZE | QBH FASTENER CLASS |  | ||||||||||||||||
| 12 | ||||||||||||||||||
| PROOF LOAD N/mm2 | HV | NUT | ||||||||||||||||
| > | ≤ | min | max | HEAT TREATMENT | TYPE | |||||||||||||
| / | M4 | 1150 | 272 | 353 | YES | 2 | ||||||||||||
| M4 | M7 | 1150 | ||||||||||||||||
| M7 | M10 | 1160 | ||||||||||||||||
| M10 | M16 | 1190 | ||||||||||||||||
| M16 | M39 | 1200 | ||||||||||||||||
