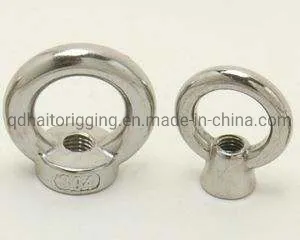

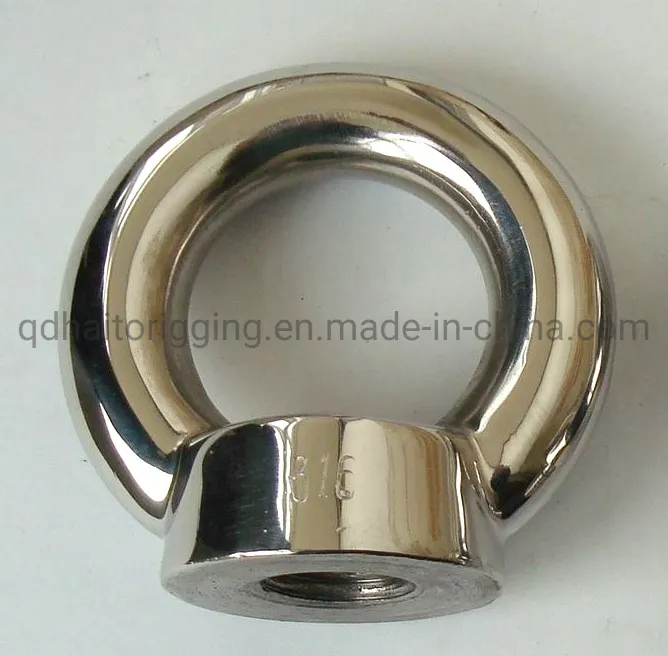

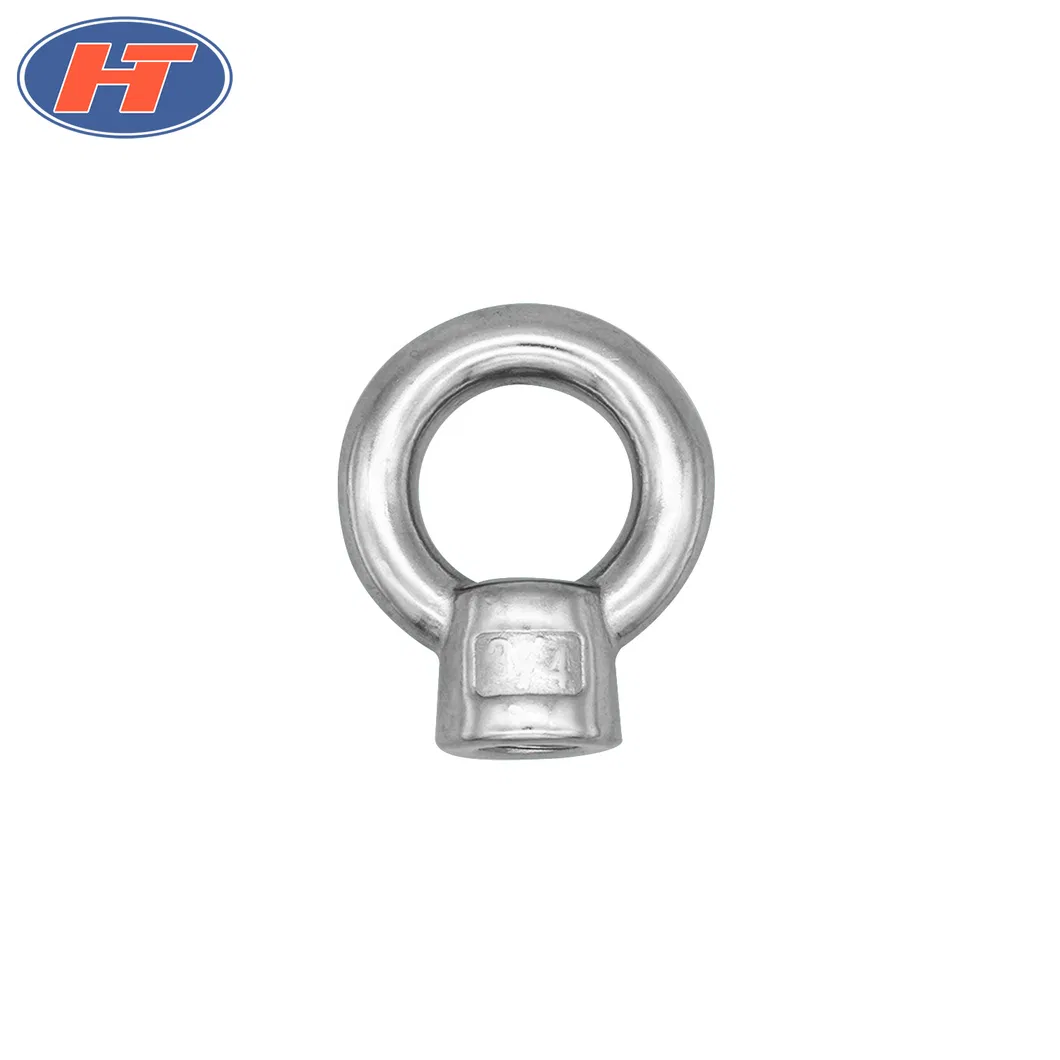

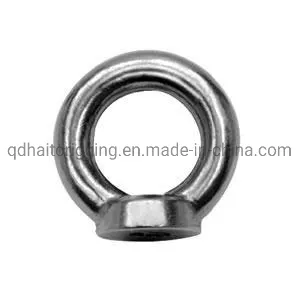

China High Quality Bright or Galvanized JIS 1168 Ring-Nut with Modern Technique

Product Description

Bright or Galvanized DIN 582 Ring-Nut with High Quality

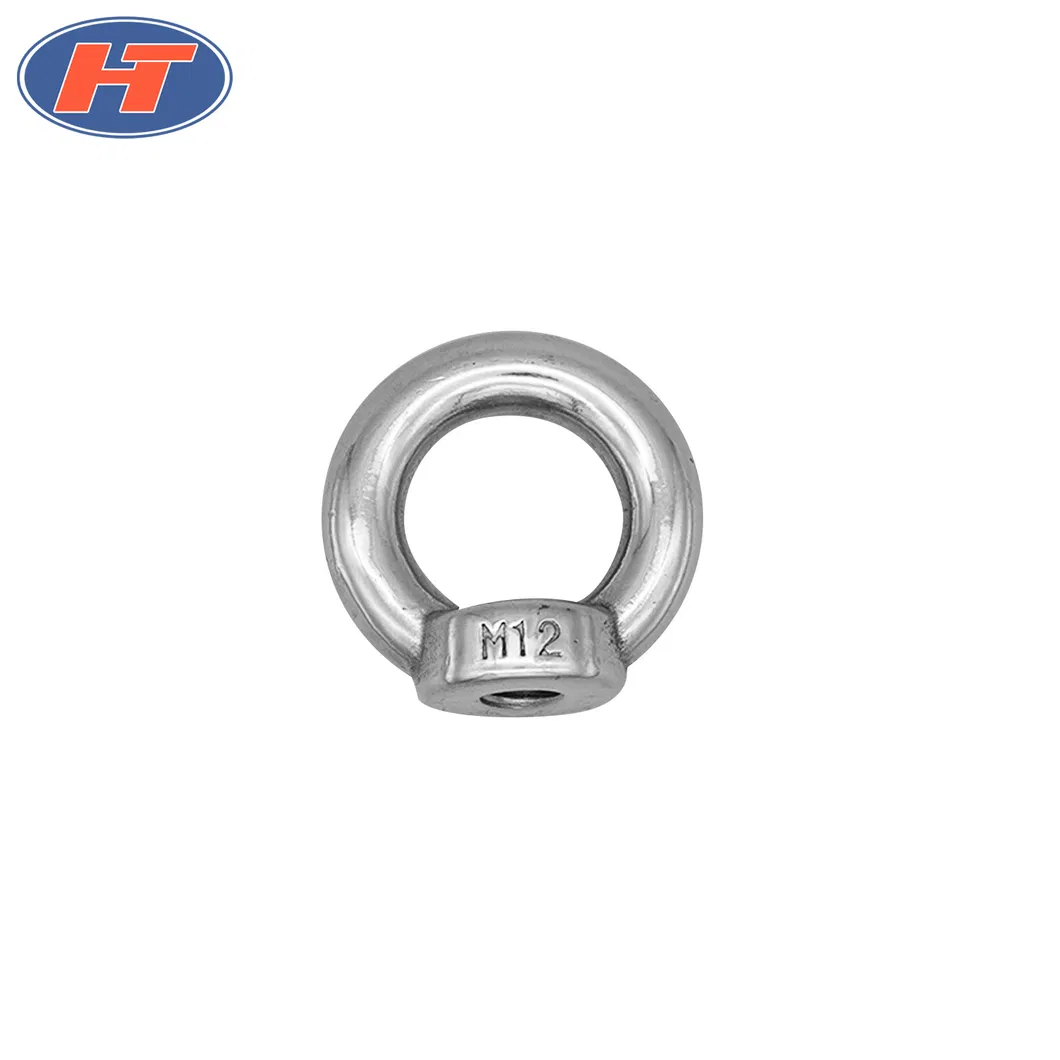

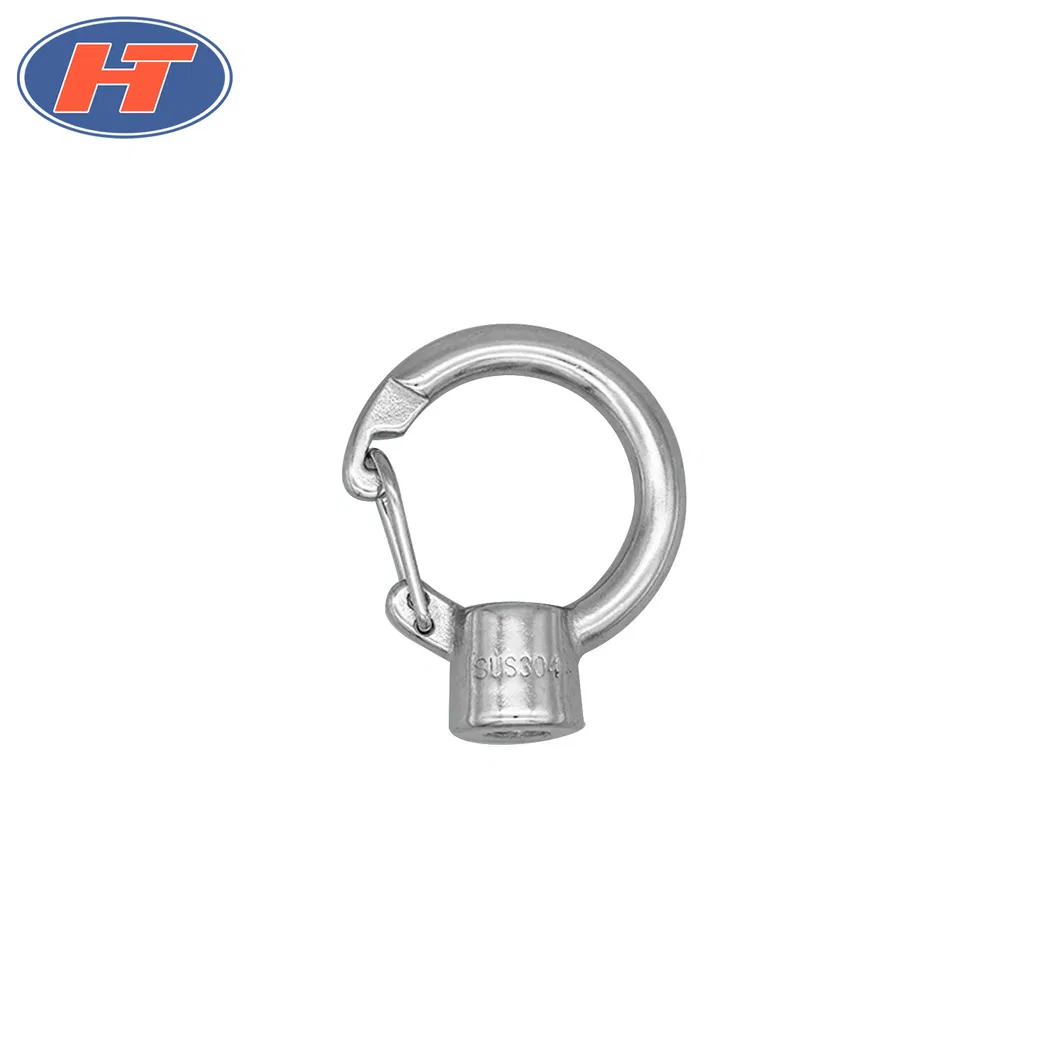

High Quality Bright or Galvanized JIS 1168 Ring-Nut with Modern Technique

SIZE	WLL	WLL	DIMENSIONS						Weight
d	t	t	d1	d2	d3	e	h	k	%kg
			mm	mm	mm	mm	mm	mm
M6*	-	-	20	36	20	8.5	18	8	4.9
M8*	0.14	0.095	20	36	20	8.5	18	8	5
M10*	0.23	0.17	25	45	25	10	22	10	9
M12	0.34	0.24	30	54	30	11	26	12	16
M16	0.7	0.5	35	63	35	13	30	14	24
M20	1.2	0.83	40	72	40	16	35	16	36
M22*	1.5	1.05	45	81	45	18	40	18	58
M24	1.8	1.27	50	90	50	20	45	20	72
M27*	2.5	1.65	50	90	50	20	45	20	70
M30	3.6	2.6	65	108	60	25	55	24	132
M33*	4.3	3.2	65	108	60	25	55	24	130
M36	5.1	3.7	75	126	70	30	65	28	208
M39*	6.1	4.3	75	126	70	30	65	28	202
M42	7	5	85	144	80	35	75	32	311
M45*	8	5.5	85	144	80	35	75	32	304
M48	8.6	6.1	100	166	90	40	85	38	502
M52*	9.9	7.3	100	166	90	40	85	38	495
M56	11.5	8.3	110	184	100	45	95	42	669
M64	16	11	120	206	110	50	105	48	930

Company Information:

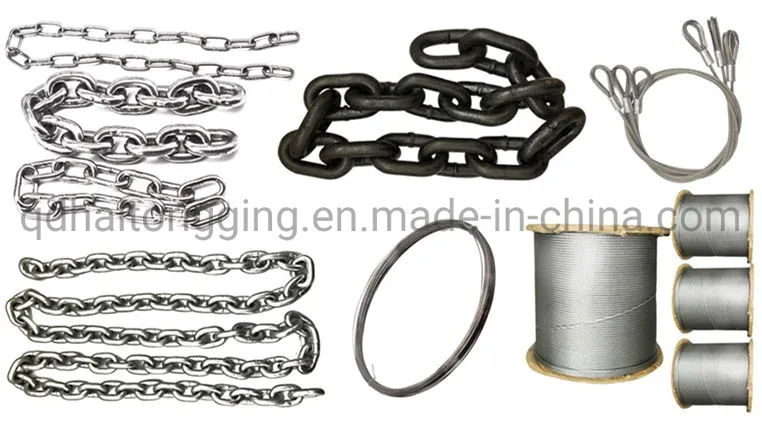

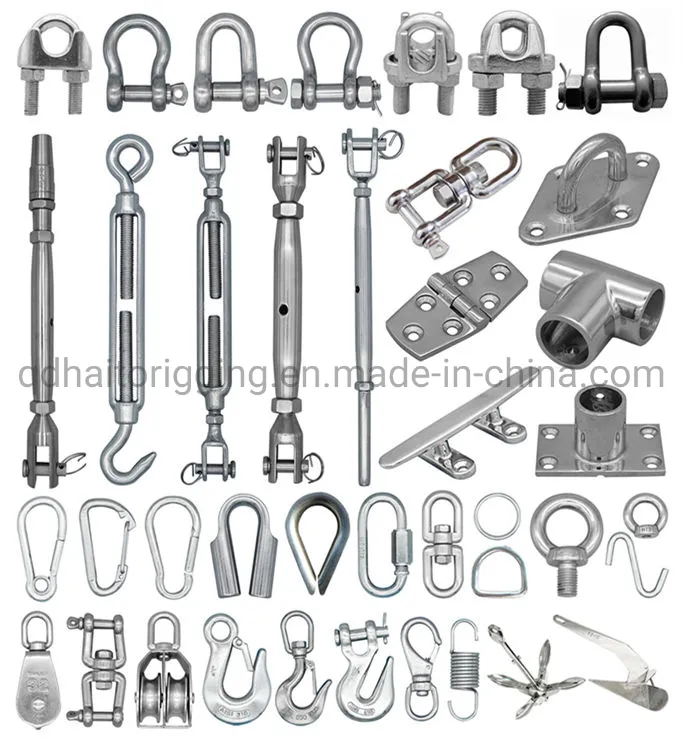

Qingdao Haito is a professional manufacturer which produces the following products: shackles, wire ropes,wire rope clips,turnbuckles,thimbles,swivel,snap hook, hooks, load binders,chains etc.

We have been in this line for 10 years. We sincerely hope to establish long and stable business cooperations with your company.

We confirm you good quality, best price, best service and punctual delivery time.

If you have any inquirys in our line, please feel free to contact us.
We will try all our best to support you.

FAQ

1. Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of Haito brand in the market now. For the details please contact with our overseas manager.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you have to pay for the freight.
4. Are the products tested before shipping?

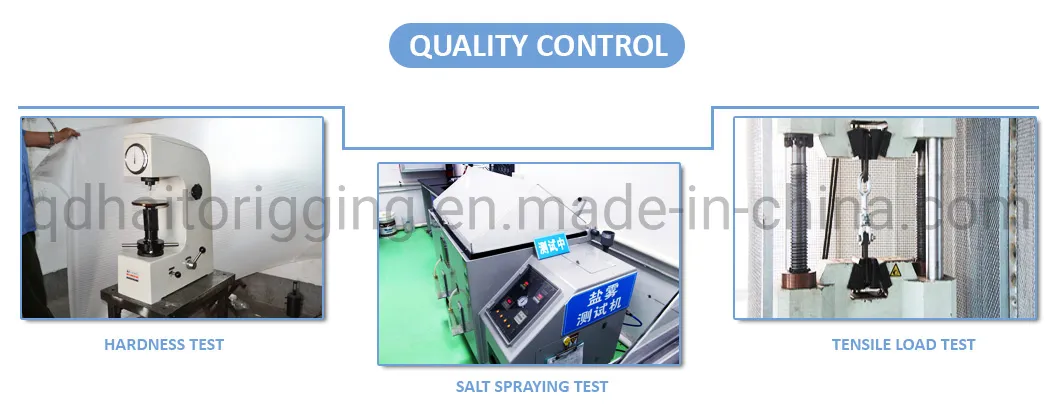

Yes, all of our products were qualified before shipping. We test every batch every day.
5. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Haito QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
6. How about the delivery time?
The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.
7. What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
