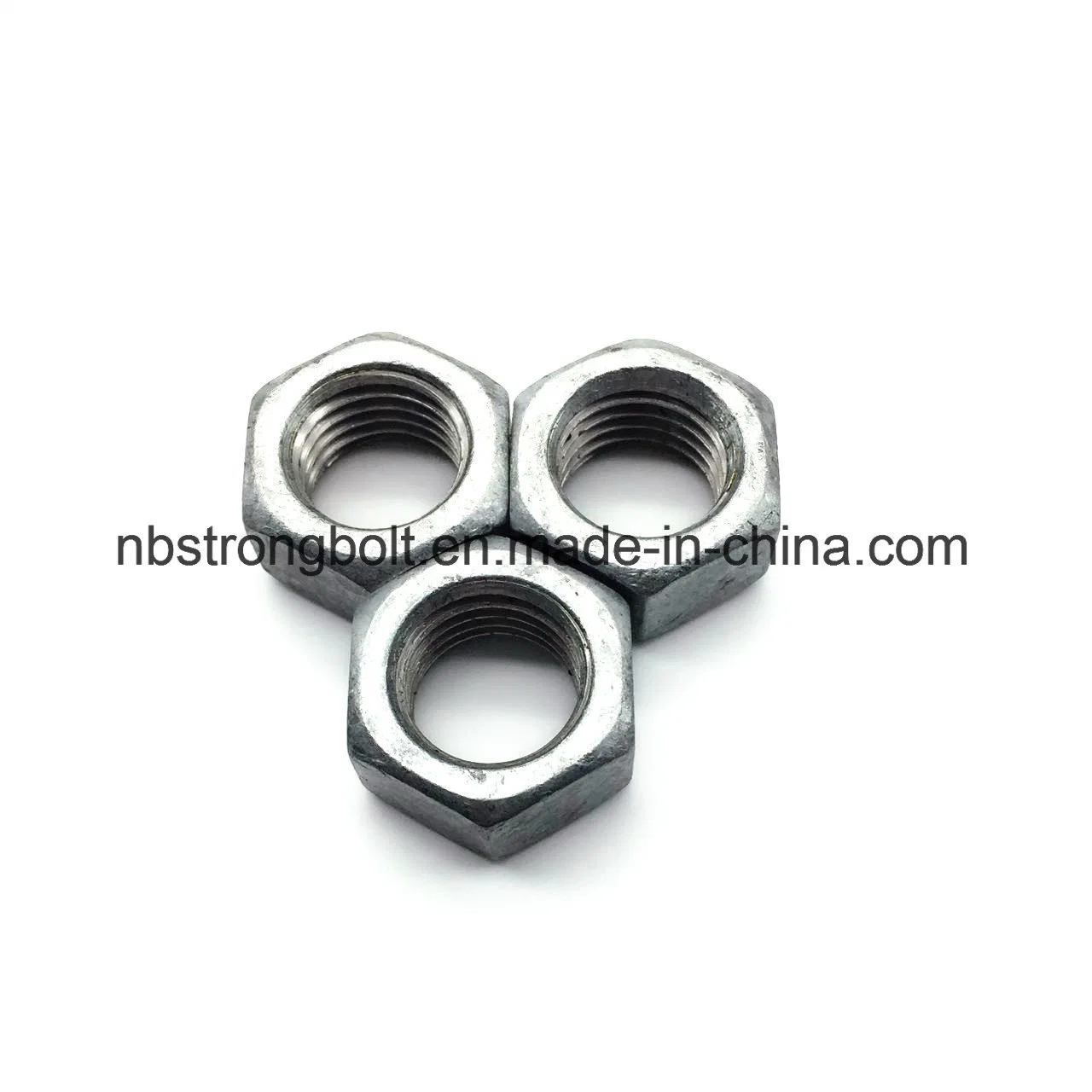

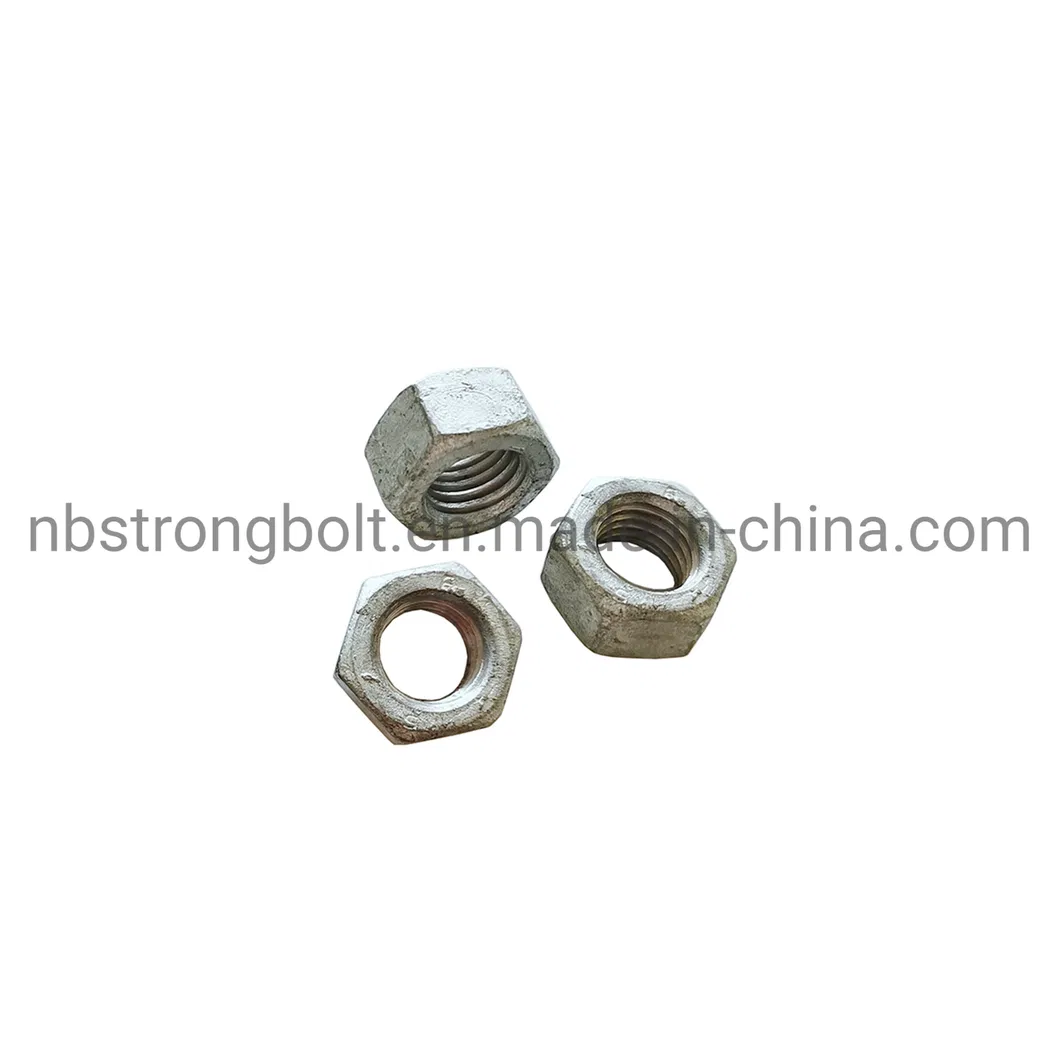

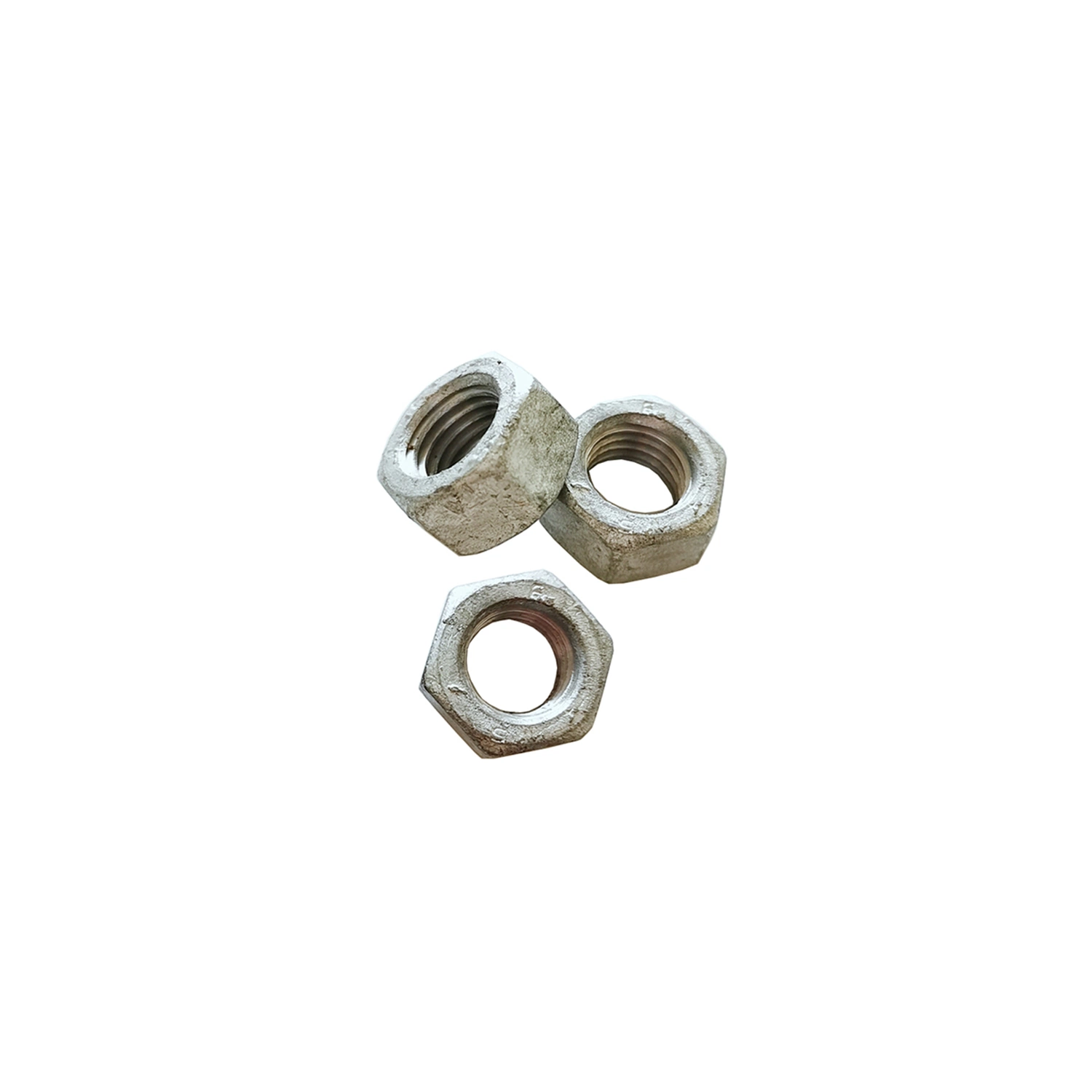

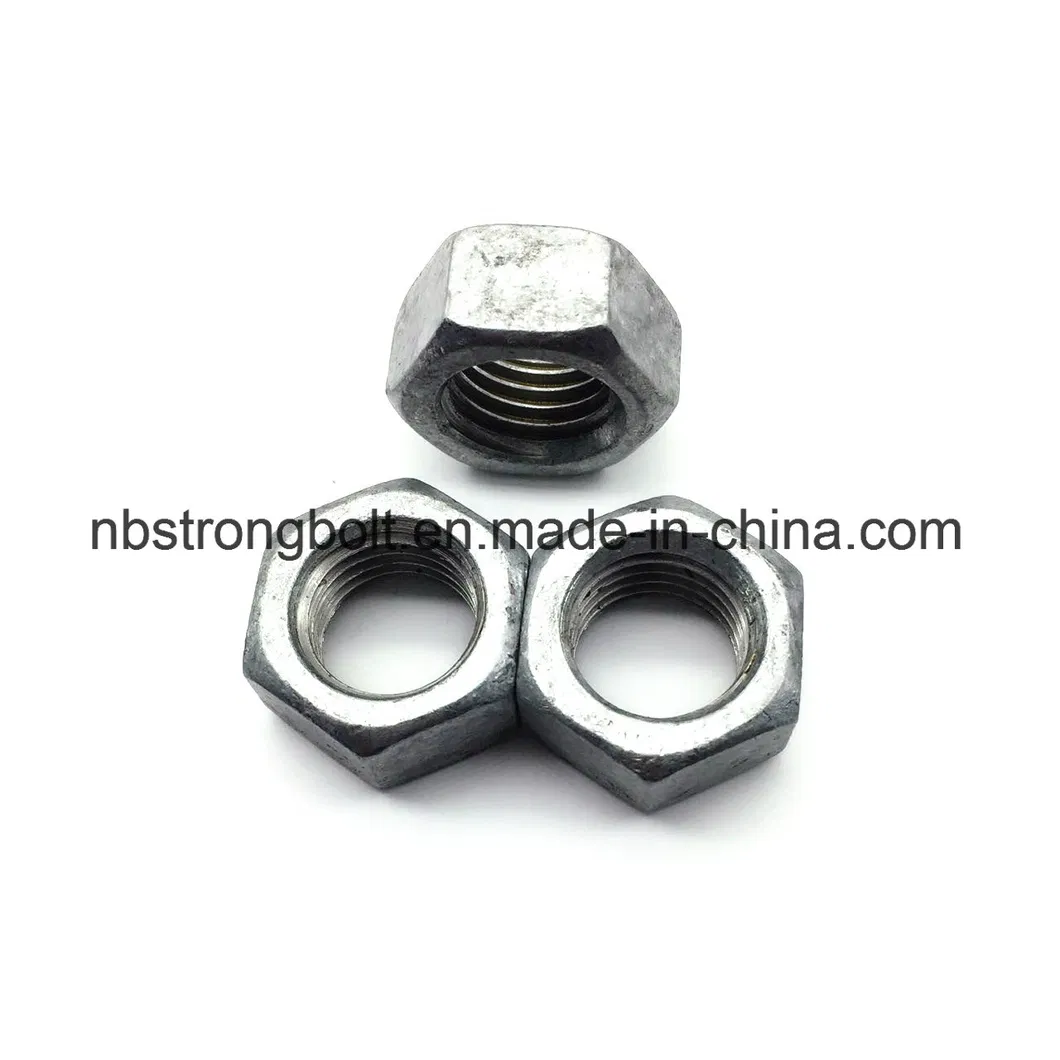

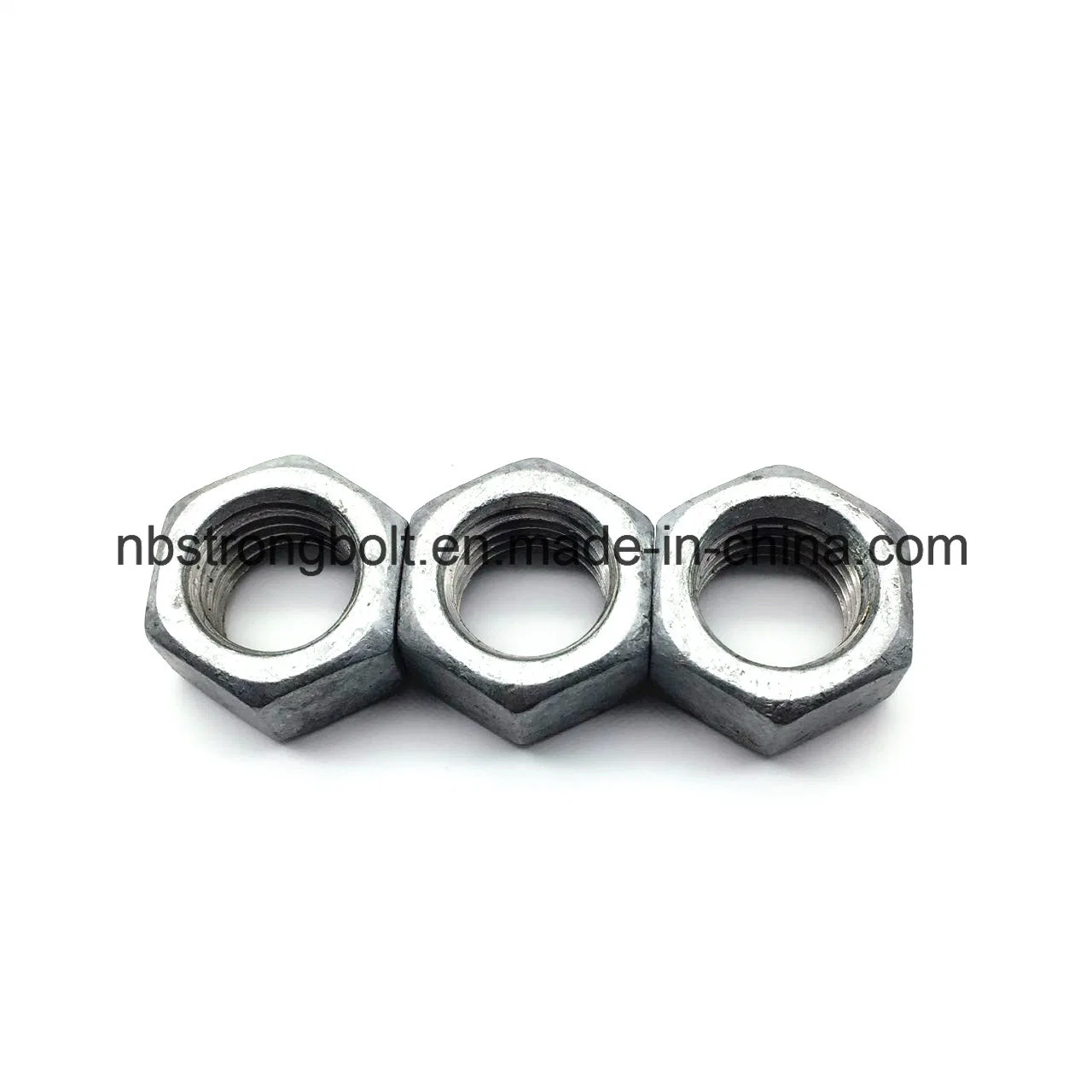

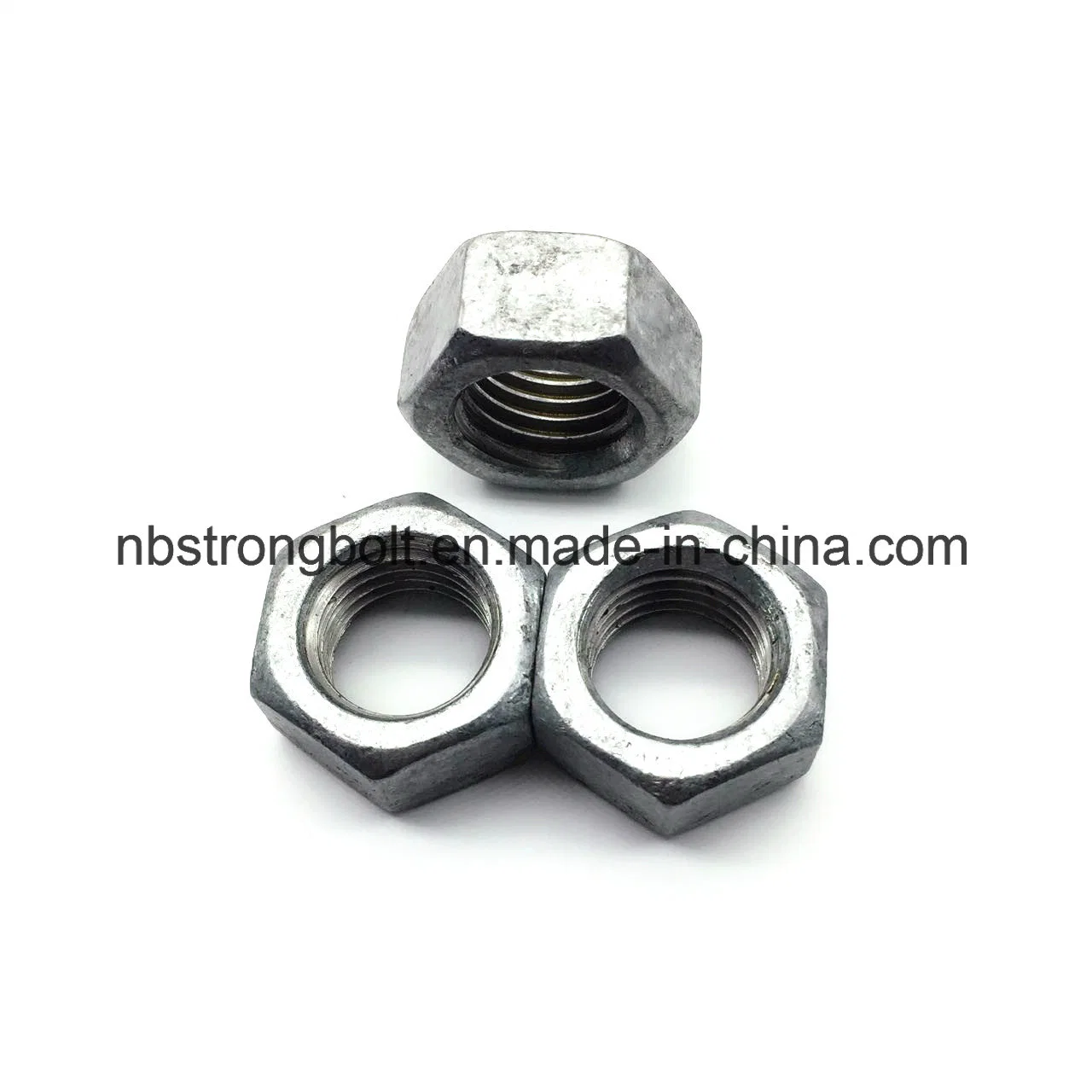

DIN934 Hex Nut Class 8 with HDG M39
SizeM5M6M8M10M12M14M16M18M20M22M24M27M30M33M36M39Pitch0.81.01.251.51.752.02.02.52.52.53.03.03.53.54.04.0e(min)8.7911.0514.3818.9021.1024.4926.7529.5632.9535.0339.5545.2050.8555.3760.7966.44mw(min)2.963.764.916.117.718.249.8411.4411.9213.5214.1616.5618.1619.7621.8223.52S(max)8.0010.0013.0017.0019.002......
Send Inquiry
Product Description
| Size | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| Pitch | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 |
| e(min) | 8.79 | 11.05 | 14.38 | 18.90 | 21.10 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.20 | 50.85 | 55.37 | 60.79 | 66.44 |
| mw(min) | 2.96 | 3.76 | 4.91 | 6.11 | 7.71 | 8.24 | 9.84 | 11.44 | 11.92 | 13.52 | 14.16 | 16.56 | 18.16 | 19.76 | 21.82 | 23.52 |
| S(max) | 8.00 | 10.00 | 13.00 | 17.00 | 19.00 | 22.00 | 24.00 | 27.00 | 30.00 | 32.00 | 36.00 | 41.00 | 46.00 | 50.00 | 55.00 | 60.00 |
| S(min) | 7.78 | 9.78 | 12.73 | 16.73 | 18.73 | 21.67 | 23.67 | 26.16 | 29.16 | 31.00 | 35.00 | 40.00 | 45.00 | 49.00 | 53.80 | 58.80 |
| m(max) | 4.00 | 5.00 | 6.50 | 8.00 | 10.00 | 11.00 | 13.00 | 15.00 | 16.00 | 18.00 | 19.00 | 22.00 | 24.00 | 26.00 | 29.00 | 31.00 |
| m(min) | 3.70 | 4.70 | 6.14 | 7.64 | 9.64 | 10.30 | 12.30 | 14.30 | 14.90 | 16.90 | 17.70 | 20.70 | 22.70 | 24.70 | 27.40 | 29.40 |
| Available Material | Carbon steel,Stainless steel,Duplex Stainless steel Brass,Copper,Plastic,Aluminum |
| Surface Treatment | Zinc Plated/Galvanized,Nickel Plated,HDG,Copper Plated,Anodized,Polishing. |
| Powder Coating | Geomet,Dacromet,Passivation,Electrophoesis, |
| Equipments | Cold forging Machine,Thread Rolling Machine,CNC Machine,Lather Machine,Grinding Machine,Milling Machine,Drilling Machine,Casting Machine |
| Processing Way | Cold Forging,Stamping,Rolling,Bending,Casting,Extrusion,Milling,Welding,Turning |
| Processing drawing Format | . jpg /. pdf / . dwg / . igs / . stp etc. |
| Trade Term | EXW, FOB, CIF, DDP, CFR,or as discussing |
| Payment Term | T/T,L/C,Western Uion |
| Packagement | Plastic Bag+Chipboard Carton +Plywood Pallet With Belt and Film |
