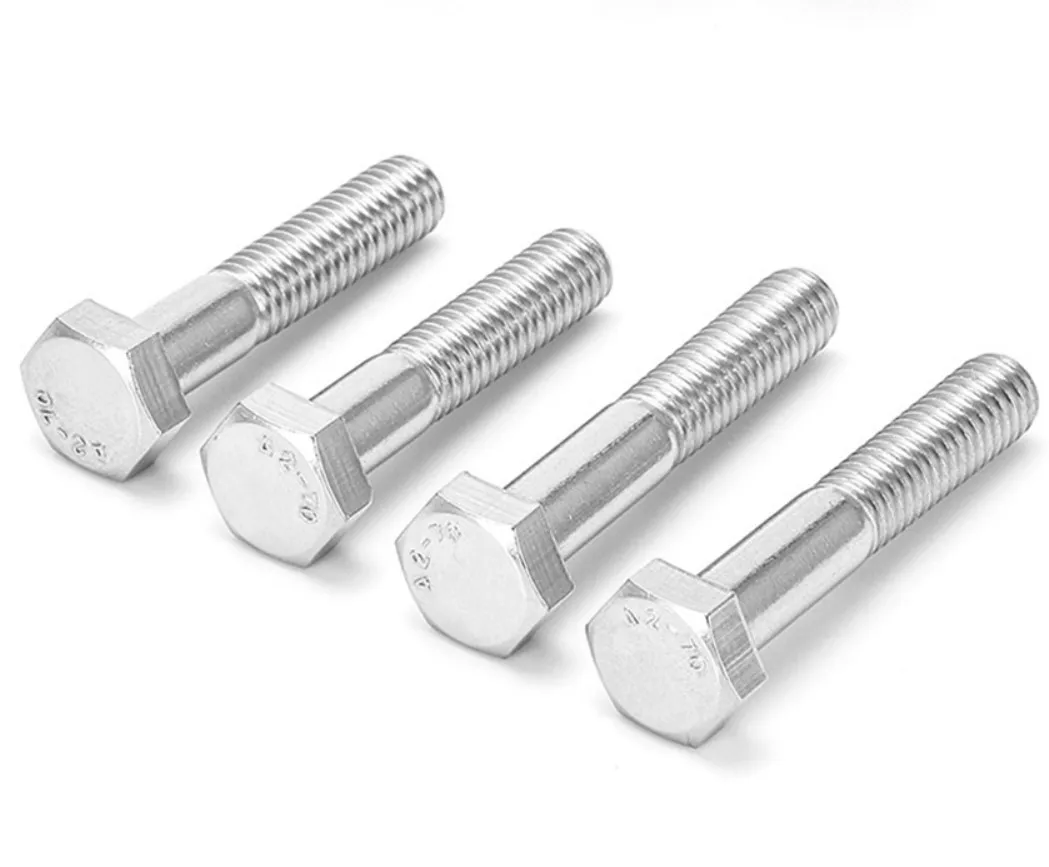

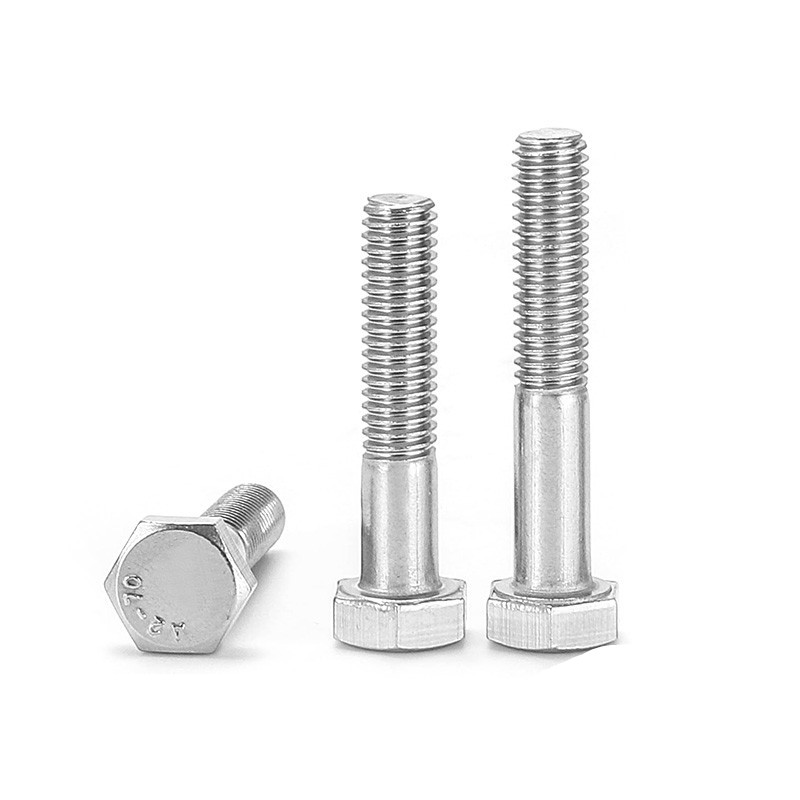

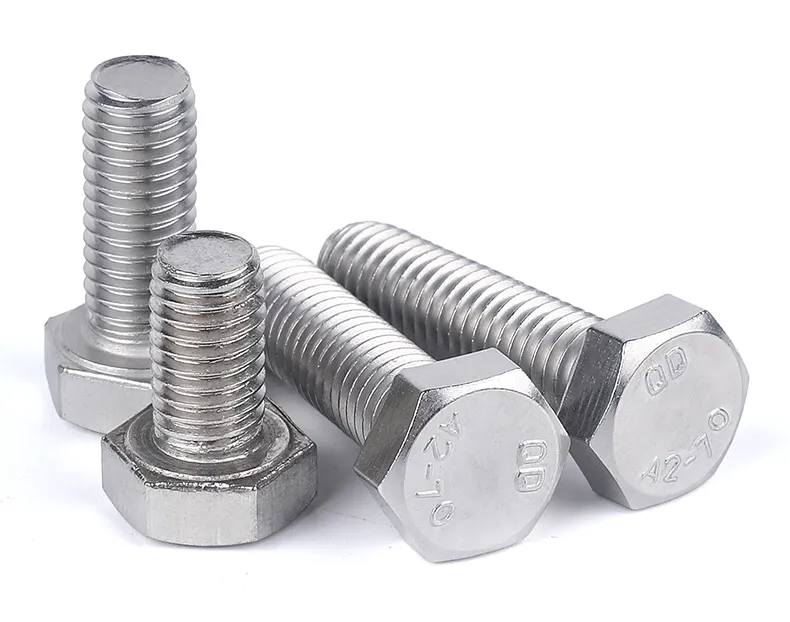

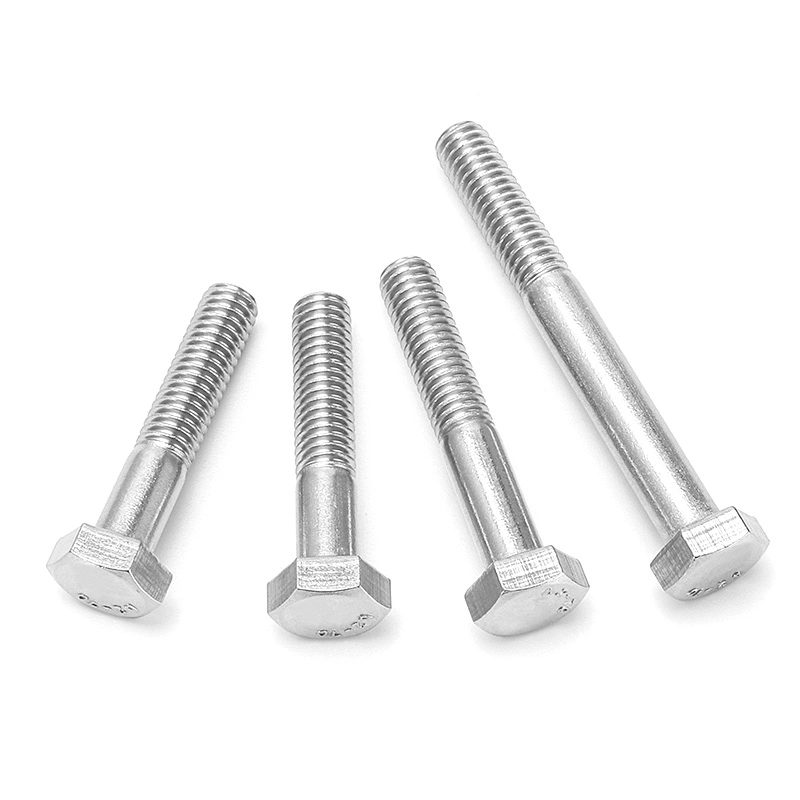

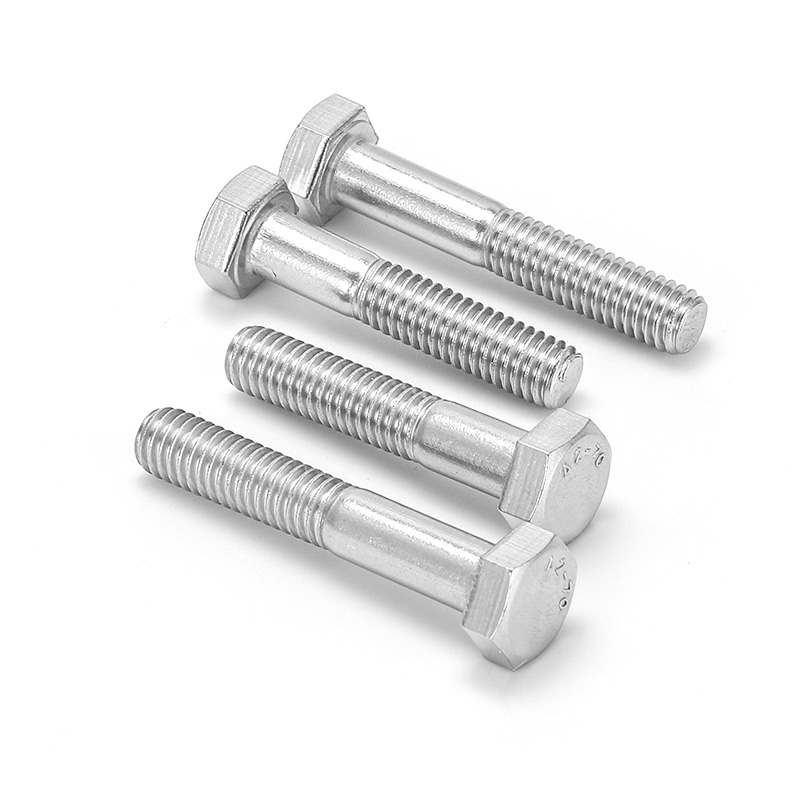

SUS304/316/316L M42, M45, M48, M52, M56, M60, M64, M72, M76, M80, M85, M90, M95, M100 Stainless Steel Hex Head Bolt
Product NameSUS304/316/316L M42, M45,M48,M52,M56,M60,M64,M72,M76,M80,M85,M90,M95,M100 Stainless steel hex head bolt Material:Stainless steel.18/8, SUS 304, SUS 316, A2, A4, 201,410, etc FinishedPolish ,passivationStandardANSI B18.2.1 / DIN931/DIN933/ISO4016/ISO4017, EtcDIN933Screw ThreadM1.6M2M2.5M3......
Send Inquiry
Product Description
| Product Name | SUS304/316/316L M42, M45,M48,M52,M56,M60,M64,M72,M76,M80,M85,M90,M95,M100 Stainless steel hex head bolt |
| Material: | Stainless steel.18/8, SUS 304, SUS 316, A2, A4, 201,410, etc |
| Finished | Polish ,passivation |
| Standard | ANSI B18.2.1 / DIN931/DIN933/ISO4016/ISO4017, Etc |

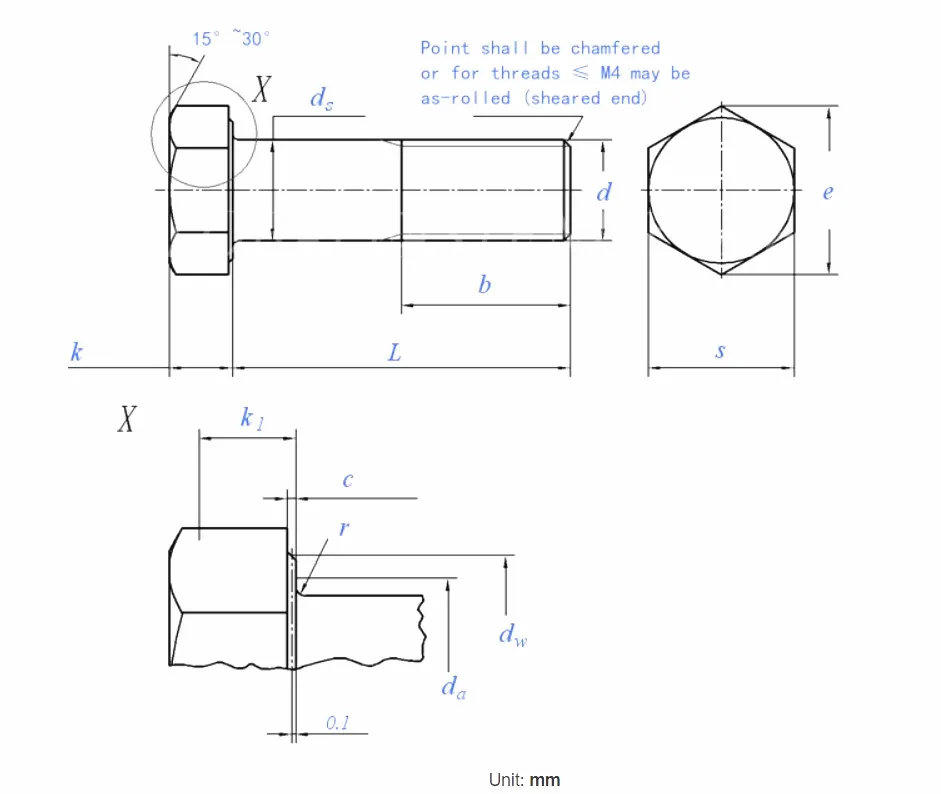

DIN933| Screw Thread | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | ||||
| d | ||||||||||||||||||
| P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | |||
| a | max | 1.05 | 1.2 | 1.35 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3 | 3.75 | 4.5 | 5.25 | 6 | 6 | |||
| c | min | 0.1 | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | |||
| max | 0.25 | 0.25 | 0.25 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | ||||
| da | max | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 7.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | |||
| dw | Grade A | min | 2.4 | 3.2 | 4.1 | 4.6 | 5.1 | 5.9 | 6.9 | 8.9 | 9.6 | 11.6 | 15.6 | 17.4 | 20.5 | 22.5 | ||
| Grade B | min | - | - | - | - | - | 5.7 | 6.7 | 8.7 | 9.4 | 11.4 | 15.4 | 17.2 | 20.1 | 22 | |||
| e | Grade A | min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | ||
| Grade B | min | - | - | - | - | - | 7.5 | 8.63 | 10.89 | 11.94 | 14.2 | 18.72 | 20.88 | 23.91 | 26.17 | |||
| k | Nominal Size | 1.1 | 1.4 | 1.7 | 2 | 2.4 | 2.8 | 3.5 | 4 | 4.8 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | |||
| Grade A | min | 0.98 | 1.28 | 1.58 | 1.88 | 2.28 | 2.68 | 3.35 | 3.85 | 4.65 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | |||
| max | 1.22 | 1.52 | 1.82 | 2.12 | 2.52 | 2.92 | 3.65 | 4.15 | 4.95 | 5.45 | 6.56 | 7.68 | 8.98 | 10.18 | ||||
| Grade B | min | - | - | - | - | - | 2.6 | 3.26 | 3.76 | 4.56 | 5.06 | 6.11 | 7.21 | 8.51 | 9.71 | |||
| max | - | - | - | - | - | 3 | 3.74 | 4.24 | 5.04 | 5.54 | 6.69 | 7.79 | 9.09 | 10.29 | ||||
| k1 | min | 0.7 | 0.9 | 1.1 | 1.3 | 1.6 | 1.9 | 2.28 | 2.63 | 3.19 | 3.54 | 4.28 | 5.05 | 5.96 | 6.8 | |||
| r | min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | |||
| s | max=nominal size | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | |||
| Grade A | min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | |||
| Grade B | min | - | - | - | - | - | 6.64 | 7.64 | 9.64 | 10.57 | 12.57 | 16.57 | 18.48 | 21.16 | 23.16 | |||
| k1 | min | 0.7 | 0.9 | 1.1 | 1.3 | 1.6 | 1.9 | 2.28 | 2.63 | 3.19 | 3.54 | 4.28 | ||||||
| r | min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 | ||||||
| s | max=nominal size | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | ||||||
| Grade A | min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | ||||||
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | ||||||
| Screw Thread | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | |||||||
| d | ||||||||||||||||||
| P | Thread Pitch | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | ||||||
| b | L≤125 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | 72 | 78 | 84 | ||||||
| 125 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | |||||||
| L>200 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | |||||||
| c | min | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | ||||||
| max | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | |||||||
| da | max | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | ||||||
| ds | max=nominal size | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | ||||||
| Grade A | min | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | - | - | - | - | - | ||||||
| Grade B | min | - | 15.57 | 17.57 | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 38.38 | ||||||
| dw | Grade A | min | 20.5 | 22.6 | 25.3 | 28.2 | 30 | 33.6 | - | - | - | - | - | |||||
| Grade B | min | - | 22 | 24.8 | 27.7 | 29.5 | 33.2 | 38 | 42.7 | 46.6 | 51.1 | 55.9 | ||||||
| e | Grade A | min | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 | 39.98 | - | - | - | - | - | |||||
| Grade B | min | - | 26.17 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | ||||||
| k | Nominal Size | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | ||||||
| Grade A | min | 8.62 | 9.82 | 11.28 | 12.28 | 13.78 | 14.78 | - | - | - | - | - | ||||||
| max | 8.98 | 10.18 | 11.72 | 12.72 | 14.22 | 15.22 | - | - | - | - | - | |||||||
| Grade B | min | - | 9.71 | 11.15 | 12.15 | 13.65 | 14.65 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | ||||||
| max | - | 10.29 | 11.85 | 12.85 | 14.35 | 15.35 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | |||||||
| k1 | min | 5.96 | 6.8 | 7.8 | 8.5 | 9.6 | 10.3 | 11.7 | 12.8 | 14.4 | 15.5 | 17.2 | ||||||
| r | min | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | ||||||
| s | max=nominal size | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | ||||||
| Grade A | min | 21.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 | - | - | - | - | - | ||||||
| Grade B | min | - | 23.16 | 26.16 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | ||||||
DIN931
| Screw Thread | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | ||||
| d | ||||||||||||||||
| P | Thread Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | |||
| b | L≤125 | 9 | 10 | 11 | 12 | 13 | 14 | 16 | 18 | 20 | 22 | 26 | 30 | |||
| 125 | - | - | - | - | - | - | 22 | 24 | 26 | 28 | 32 | 36 | ||||
| L>200 | - | - | - | - | - | - | - | - | - | - | 45 | 49 | ||||
| c | min | 0.1 | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |||
| max | 0.25 | 0.25 | 0.25 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | ||||
| da | max | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 7.8 | 9.2 | 11.2 | 13.7 | |||
| ds | max=nominal size | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | |||
| Grade A | min | 1.46 | 1.86 | 2.36 | 2.86 | 3.32 | 3.82 | 4.82 | 5.82 | 6.78 | 7.78 | 9.78 | 11.73 | |||
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | |||
| dw | Grade A | min | 2.4 | 3.2 | 4.1 | 4.6 | 5.1 | 5.9 | 6.9 | 8.9 | 9.8 | 11.6 | 15.6 | 17.4 | ||
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | |||
| e | Grade A | min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | ||
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | |||
| k | Nominal Size | 1.1 | 1.4 | 1.7 | 2 | 2.4 | 2.8 | 3.5 | 4 | 4.8 | 5.3 | 6.4 | 7.6 | |||
| Grade A | min | 0.98 | 1.28 | 1.58 | 1.88 | 2.28 | 2.68 | 3.35 | 3.85 | 4.65 | 5.15 | 6.22 | 7.32 | |||
| max | 1.22 | 1.52 | 1.82 | 2.12 | 2.52 | 2.92 | 3.65 | 4.15 | 4.95 | 5.45 | 6.58 | 7.68 | ||||
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | |||
| max | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| k1 | min | 0.7 | 0.9 | 1.1 | 1.3 | 1.6 | 1.9 | 2.28 | 2.63 | 3.19 | 3.54 | 4.28 | 5.05 | |||
| r | min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 | 0.6 | |||
| s | max=nominal size | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | |||
| Grade A | min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | |||
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | |||
| Length of Thread b | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| Screw Thread | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | |||||
| d | ||||||||||||||||
| P | Thread Pitch | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | ||||
| b | L≤125 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | 72 | 78 | 84 | ||||
| 125 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | |||||
| L>200 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | |||||
| c | min | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | ||||
| max | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | |||||
| da | max | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | ||||
| ds | max=nominal size | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | ||||
| Grade A | min | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | - | - | - | - | - | ||||
| Grade B | min | - | 15.57 | 17.57 | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 38.38 | ||||
| dw | Grade A | min | 20.5 | 22.6 | 25.3 | 28.2 | 30 | 33.6 | - | - | - | - | - | |||
| Grade B | min | - | 22 | 24.8 | 27.7 | 29.5 | 33.2 | 38 | 42.7 | 46.6 | 51.1 | 55.9 | ||||
| e | Grade A | min | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 | 39.98 | - | - | - | - | - | |||
| Grade B | min | - | 26.17 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | ||||
| k | Nominal Size | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | ||||
| Grade A | min | 8.62 | 9.82 | 11.28 | 12.28 | 13.78 | 14.78 | - | - | - | - | - | ||||
| max | 8.98 | 10.18 | 11.72 | 12.72 | 14.22 | 15.22 | - | - | - | - | - | |||||
| Grade B | min | - | 9.71 | 11.15 | 12.15 | 13.65 | 14.65 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | ||||
| max | - | 10.29 | 11.85 | 12.85 | 14.35 | 15.35 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | |||||
| k1 | min | 5.96 | 6.8 | 7.8 | 8.5 | 9.6 | 10.3 | 11.7 | 12.8 | 14.4 | 15.5 | 17.2 | ||||
| r | min | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | ||||
| s | max=nominal size | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | ||||
| Grade A | min | 21.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 | - | - | - | - | - | ||||
| Grade B | min | - | 23.16 | 26.16 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58 | ||||
| Screw Thread | (M68) | M72 | (M76) | M80 | M90 | M100 | M110 | M125 | M140 | M160 | ||||||
| d | ||||||||||||||||
| P | Pitch | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||
| b | 125 | 148 | 156 | 164 | 172 | 192 | - | - | - | - | - | |||||
| L>200 | 161 | 169 | 177 | 185 | 205 | 225 | 245 | 275 | 305 | 345 | ||||||
| c | min | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | |||||
| max | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| da | max | 75 | 79 | 83 | 87 | 97 | 107 | 117 | 132 | 147 | 167 | |||||
| ds | max=nominal size | 68 | 72 | 76 | 88 | 90 | 100 | 110 | 125 | 140 | 160 | |||||
| min | 67.26 | 71.26 | 75.26 | 79.26 | 89.13 | 99.13 | 109.13 | 124 | 139 | 159 | ||||||
| dw | min | 92.9 | 97.7 | 102.1 | 106.9 | 121.1 | 135.4 | 144.9 | 168.6 | 185.6 | 214.1 | |||||
| e | min | 110.51 | 116.16 | 121.81 | 127.46 | 144.08 | 161.02 | 172.32 | 200.57 | 220.8 | 254.7 | |||||
| k | Nominal Size | 43 | 45 | 48 | 50 | 57 | 63 | 69 | 79 | 88 | 100 | |||||
| min | 42.5 | 44.5 | 47.5 | 49.5 | 56.4 | 62.4 | 68.4 | 78.4 | 87.3 | 99.3 | ||||||
| max | 43.5 | 45.5 | 48.5 | 50.5 | 57.6 | 63.6 | 69.6 | 79.6 | 88.7 | 100.7 | ||||||
| k1 | min | 29.8 | 31.2 | 33.2 | 34.6 | 40.3 | 43.7 | 47.9 | 54.9 | 61.1 | 69.5 | |||||
| r | min | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |||||
| s | max=nominal size | 100 | 105 | 110 | 115 | 130 | 145 | 155 | 180 | 200 | 230 | |||||
| min | 97.8 | 102.8 | 107.8 | 112.8 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225 | ||||||
