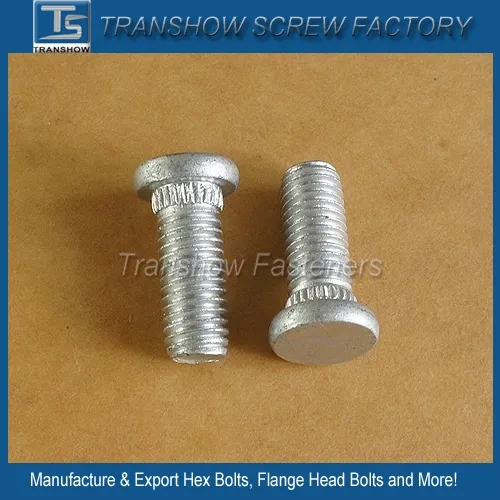

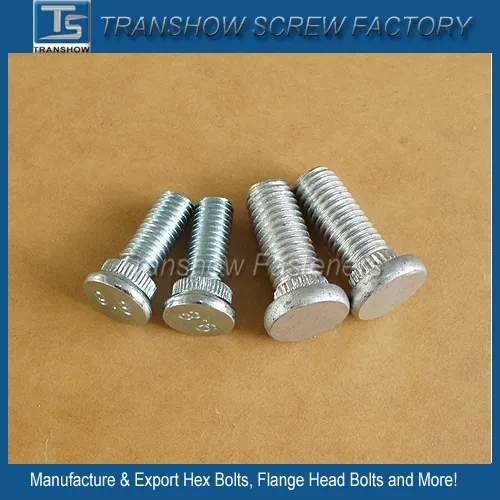

High Quality Ruspert Wheel Stud

Auto Accessories Lug Bolt
Truck Base Lock Bolts
Wheel Lock Bolts
Fine thread M10-1.25
Dacromet Coating

Available Size: M10-1.25, M10-1.5
M12-1.5, M12-1.75
M14-1.5
M16-1.5
Length from 30mm to 80mm

Flat head dia 22mm
Head thickness 7mm
Knurled neck 16mm diameter

High strength for wheel or other lock device use
Heated and hardend
Fine thread 2A
Surface finish can be Ruspert or Dacromet coating
High performance, high quality
DIN metric size grade 10.9 and 12.9
ANSI B18.5 Inch Size SAE Grade 8


Wheel Bolts & Nuts, Lug Nuts, Studs
Wheel bolts or studs, lug nuts and wheel nuts are fine threaded fasteners that hold on the wheels to the vehicle hub, or secure a wheel on a vehicle. For most of the automobiles, trucks, lorries, and others when utilizing rubber tires.
Wheel bolts usually made of alloy steel with a high strength performance. For example, alloy steels, middle carbon steels, 35CrMo. The finished bolts or nuts are tempered and quenched with a mMechanical properties meet DIN Class 10.9 or 12.9, SAE J429 Grade 8.
We produce regular size M10, M12 and M16 wheel bolts, with mostly dacromate coated or ruspert finished while black oxide and zinc plated also available.


Transhow Fasteners, manufacture various bolts, hex bolts, round head bolts, square head bolts,
T head bolts, dog head bolts and other customized bolts, special use bolts.
Metric standard bolts as DIN, EN, ISO, GB, JIS, AS, UNI, etc.
Inch standard bolts as ASME/ANSI, ASTM/SAE/IFI, BS, etc.
Material used for producing the bolt could be carbon steel, alloy steel, stainless steel and brass.
Headed bolts for size below M24 (or 1 inch) generally Cold forged and bigger sizes will be hot forged.
For various corrosion resistant and strength purpose, our bolts could be further treated such as heating, black oxide, zinc coating, hot dipper galvanizing, black zinc coating, brass coating, nickle and chrome plating, dacomate, etc. Interested buyers please contact us now!


Structure Bolts & Heavy Hex Bolts, High Strength Bolts
High strength heavy hex structure bolts are designed for steel-to-steel structural connections in varius buildings, highway and railway, bridge contructions. Structure bolts usually accompanied with heavy hex nuts. Material used for heavy hex bolts and nuts are generally middle carbon steel, alloy steel. Finished bolts and nuts are usually black oxide, hot dipper galvanized. Please find our below standard supplies:
DIN 6914 High-strength hexagon head bolts with large widths across flats for structural steel bolting
DIN 7990 Steel hexagon head bolts for structural steel bolting for supply with hexagon nuts
ISO 7411 ISO 7412 Hexagon bolts for high-strength structural bolting with large width across flats
EN 14399 Hexagon head bolts for steel structure
ASTM A193, A194, A307, A320, A325, A354, A490 heavy hex bolts and structure bolts.
BS 1769 Hexagon nuts Heavy style, BS 4395 High strength bolts with large hexagon head
