China Shear Connector /Shear Stud /Welding Stud M13*90

Product Description

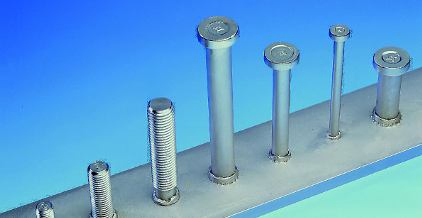

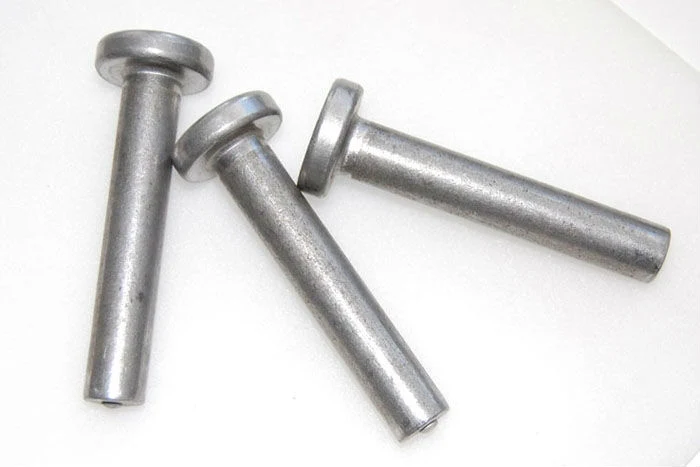

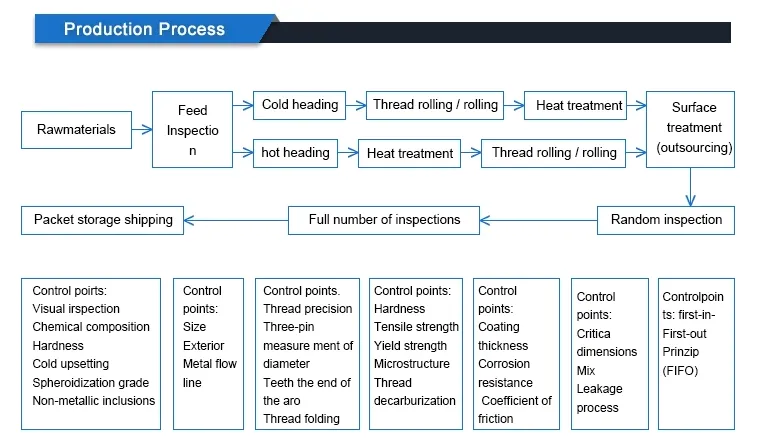

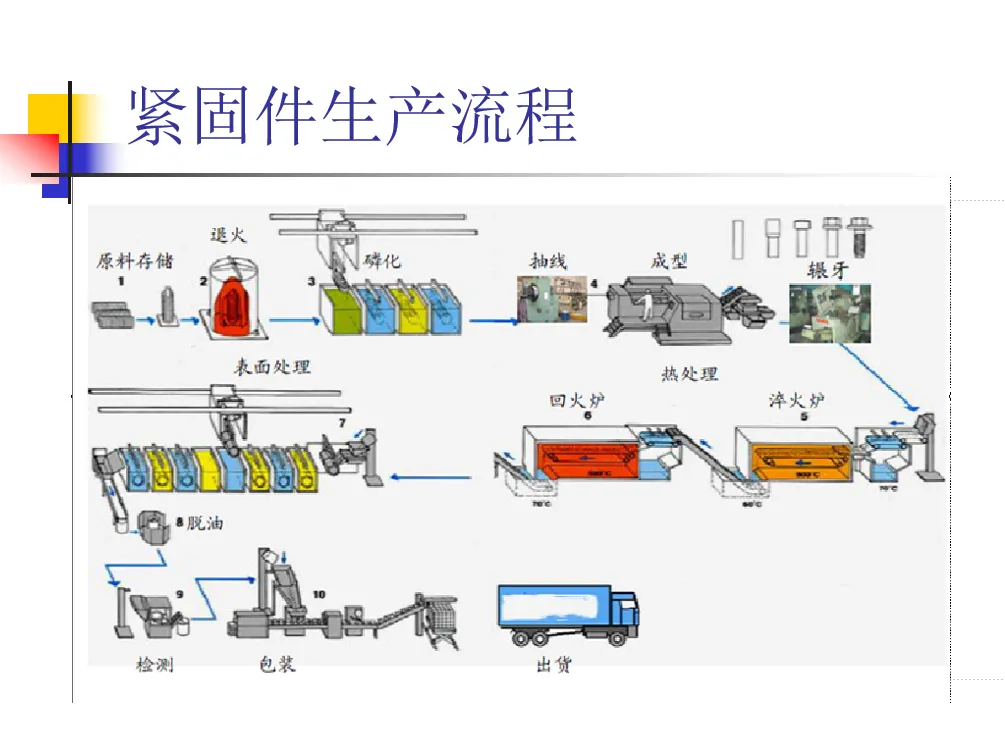

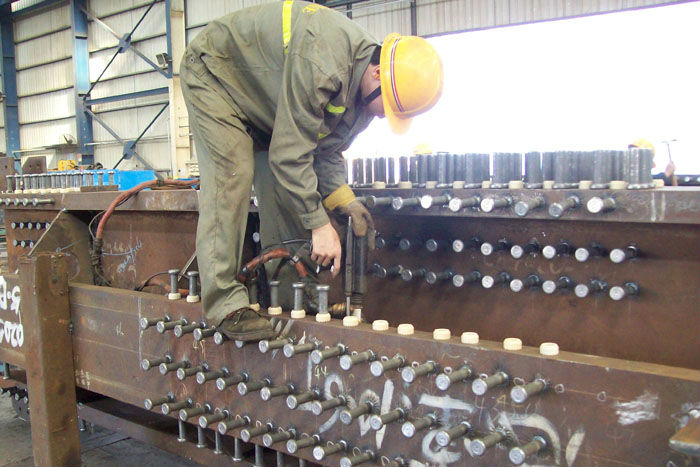

Shear connector(it is also named shear stud) are typically used in composite steel construction to tie the concrete to steel members and resist shear forces between the concrete slab and steel members. Plenty of steel construction(such as steel building, steel beam, steel bridges, etc.) uses shear connector widely. Butler shear connectors meet the following standards:

• ISO 13918: 2008: 2008 Welding - Studs for arc stud welding, type SD1
• GB/T 10433: 2002 Cheese Head Studs for Arc Stud Welding

• JIS B 1198-1995 Headed Studs
• AWS D1.5: 2002 Bridge Welding Code, type B
• AS/NZS 1552.2: 2003 Australian/New Zealand Standard - Structural Stud Welding
• BS 5400: 2005 Steel, Concrete, and Composite Bridges
• AWS D1.1: 2015 Structural Welding Code-Steel, type B

Product	Shear Connector
Brand	Butler
Material	Low Carbon Steel - SWRCH15A,ML15AL,ML15
Nominal Diameter (mm)	10, 13, 16, 19, 22, 25
Length Before Weld (mm)	50 - 255
Surface Treatment	Plain
Yield Strength (0.2% offset) (MPa)	240
Tensile Strength (MPa)	400~550
Elongation (A5) %	≥14
Origin	China

Chemical Component of Raw Material (%)
Material	C	Si	Mn	P	S	Al
SWRCH15A	0.13-0.18	≤0.10	0.30-0.60	≤0.035	≤0.035	≥0.020
SWRCH18A	0.15-0.20	≤0.10	0.60-0.90	≤0.030	≤0.035	≥0.020

Mechanical Properties of Shear Stud Connector
Standard	Tensile strength	Yield strength	Elongation
BS EN ISO13918:2008	≥450MPa	≥350MPa	≥15%
USA ANSI/AWS D1.1	≥450MPa	≥350MPa	≥15%
CHINA GB/T10433	≥400	≥320	≥14
