Product Description

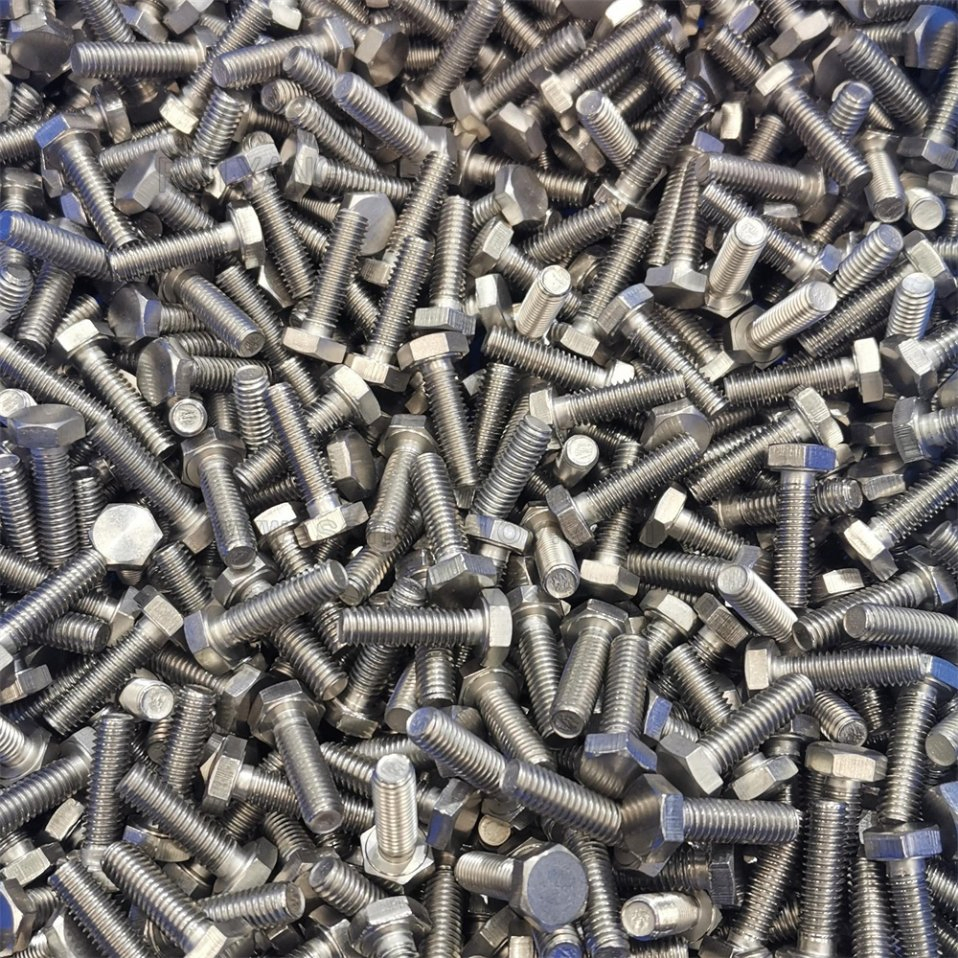

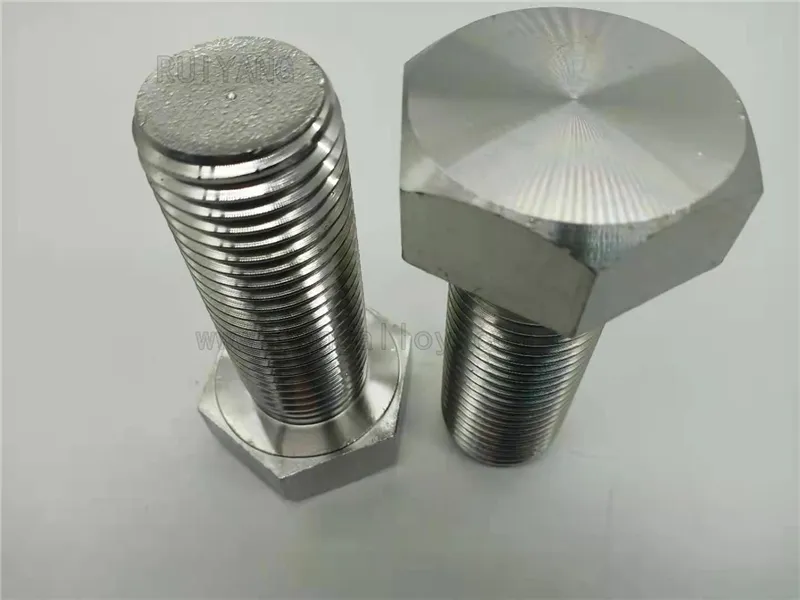

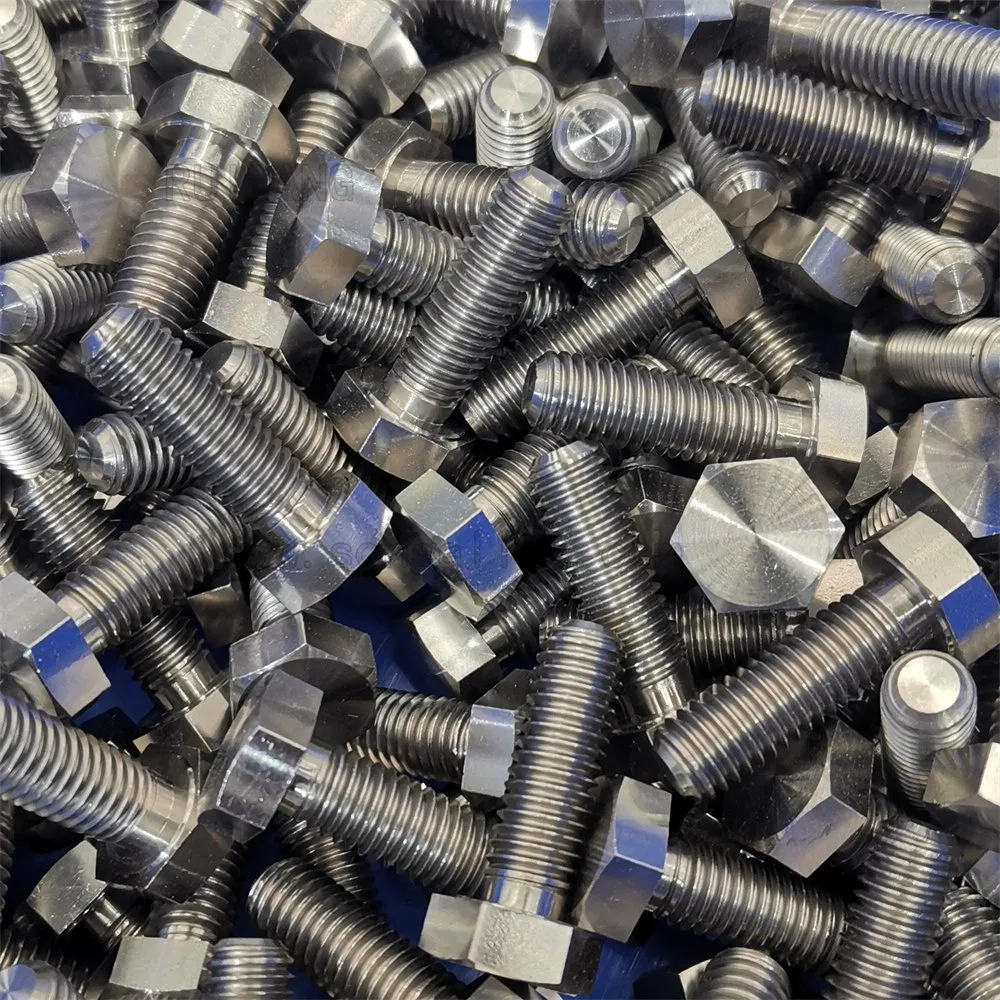

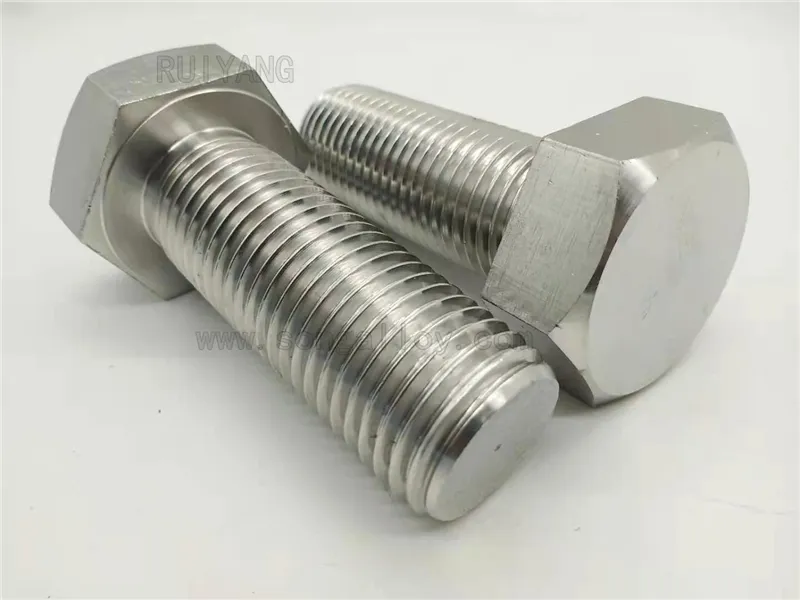

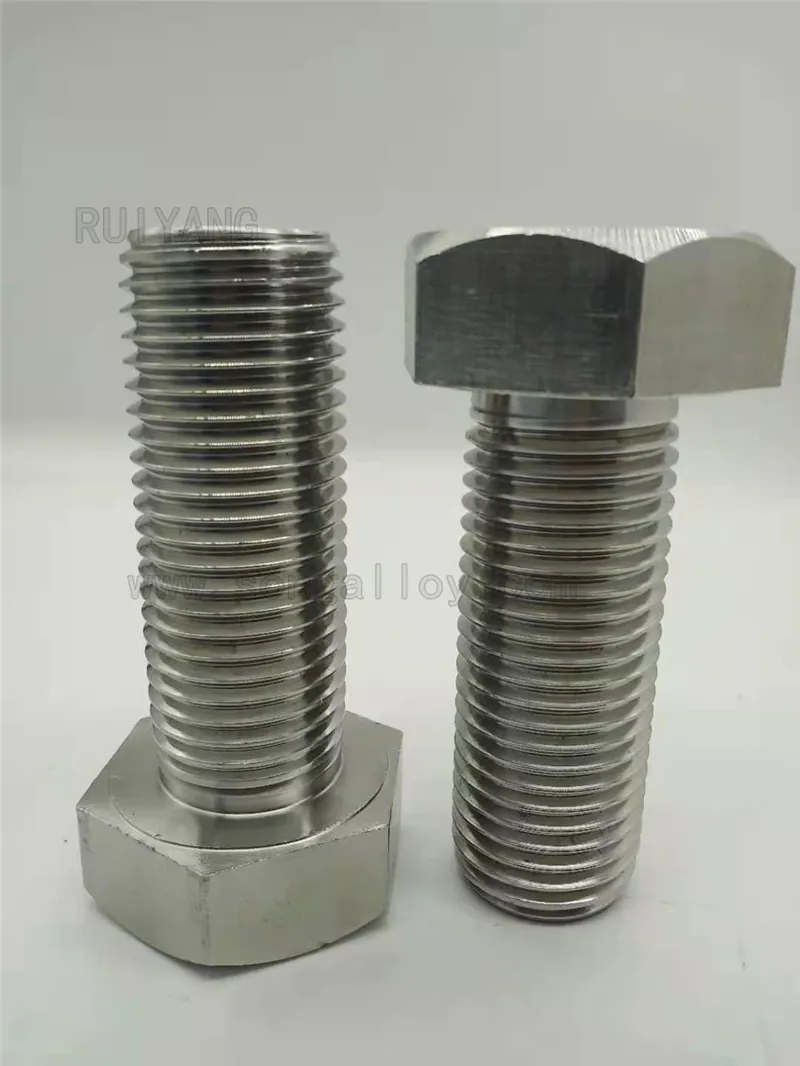

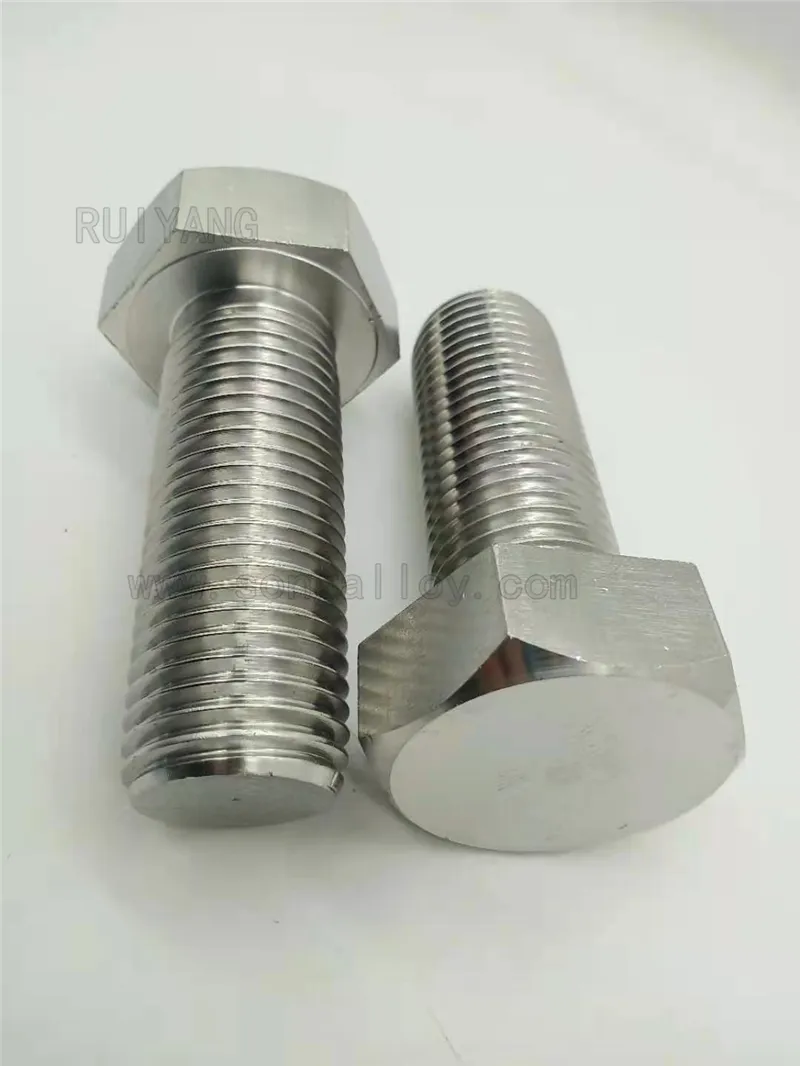

DIN933 hex bolts supply in stainless steel and Titanium alloy
Hex bolt is a form of threaded fastener with an external male thread.
Bolts are thus closely related to, and often confused with screws.
| Standard: | DIN933,ASTM/ANSI JIS EN ISO,AS,GB | |
| Sizes | M3-48 | |
| Material | Stainless Steel: | SS201, SS303, SS304, SS316,SS316L,SS904L,F593 |
| Steel Grade: | DIN: Gr.4.6,4.8,5.6,5.8,8.8,10.9,12.9; SAE: Gr.2,5,8; ASTM: 307A,307B,A325,A394,A490,A449, | |
| Titanium alloy: | GR1,GR2,GR5,GR7-GR23 | |
| NICKLE ALLOY | N4,N6,200,201 AND C276 | |
| Finishing | Original,polished Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide, Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated | |
| Process | cold forging M2-M24 | m24-100 Machining cnc customed |

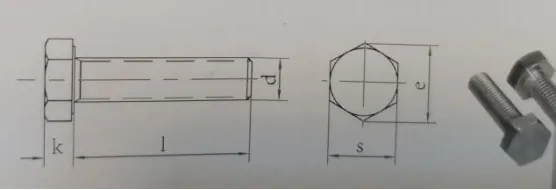

Size:
| d | k | e | s |
| M3 | 2 | 6.01 | 5.5 |
| M4 | 2.8 | 7.66 | 7 |
| M5 | 3.5 | 8.79 | 8 |
| M6 | 4 | 11.05 | 10 |
| M8 | 5.3 | 14.38 | 13 |
| M10 | 6.4 | 18.9 | 17 |
| M12 | 7.5 | 21.1 | 19 |
| M14 | 8.8 | 24.49 | 22 |
| M16 | 10 | 26.75 | 24 |
| M18 | 11.5 | 30.14 | 27 |
| M20 | 12.5 | 33.53 | 30 |
| M22 | 14 | 35.72 | 32 |
| M24 | 15 | 39.98 | 36 |
| M27 | 17 | 45.2 | 41 |
| M30 | 18.7 | 50.85 | 46 |
| M33 | 21 | 55.37 | 50 |
| M36 | 22.5 | 60.79 | 55 |
| M42 | 26 | 71.3 | 65 |
| M48 | 30 | 82.6 | 75 |

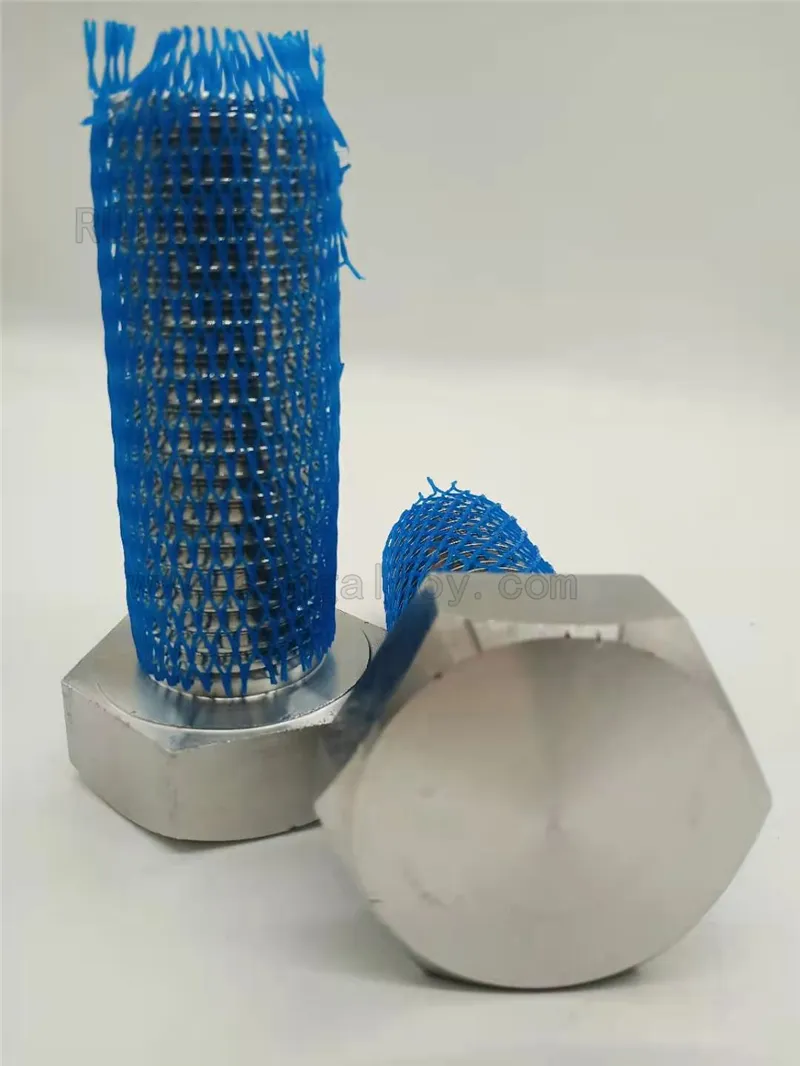

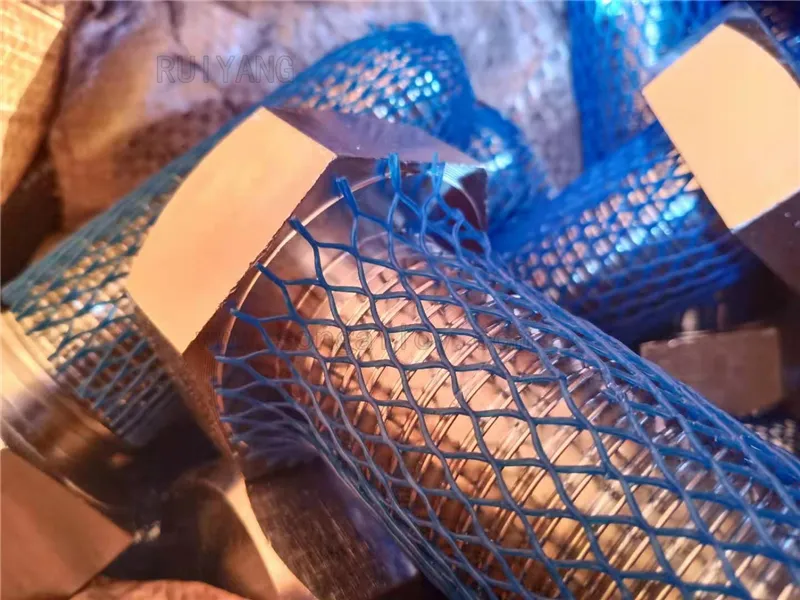

Package:

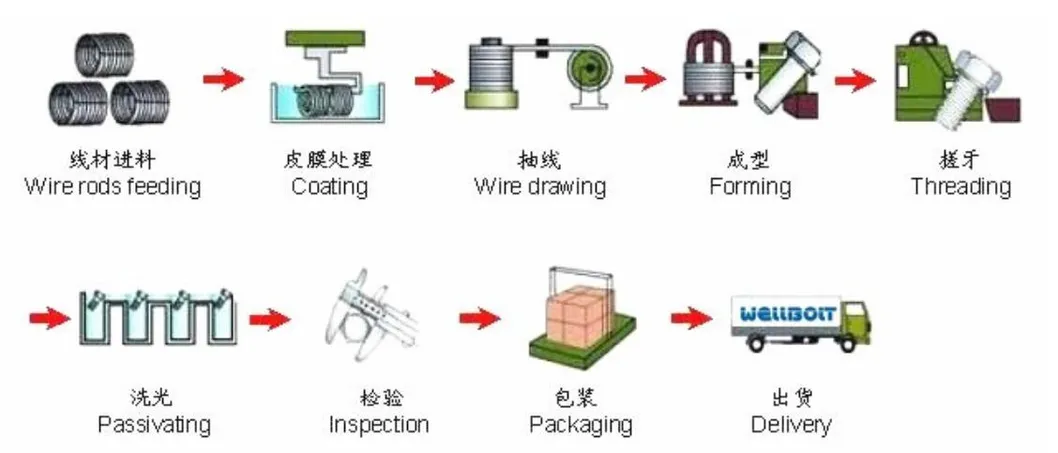

Production Lines
Delivery:DHL,FCL,LCL,BY Sea or by Air
Welcome contact us for stainless steel and Titanium hex bolt and nuts washers inquiry,Here will supply you one stop service fasteners
