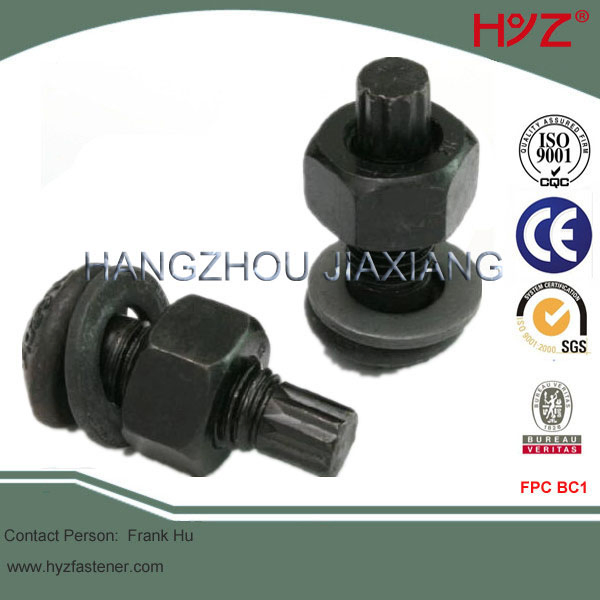

GB/T 3632 Torsional Shear Type High Strength Bolts
TOR-SHEAR HIGH STRENGTH BOLTProduct nameTorsion shear high strength boltsStandardGB/T 3632Available specs.ASTM F2280(A490TC), ASTM F1852(A325TC),JSS II09(S10T),ect.Grade 10.9Dia.M16-M36Length40-300MMMaterials:Alloy steel---40Cr / 35CrMo, 42CrMo,35VB, carbon steel: ML20MnTiBAvailable finishDacrome......
Send Inquiry
Product Description
TOR-SHEAR HIGH STRENGTH BOLT
Class of bolt, nut and washer
Mechanical properties of Bolt:
Erection drawing
We are professional in manufacturing high strength tension control bolts and heavy hex head bolts, shear studs for steel structures. All products can be manufacture as per international standard or customer drawing. for details, welcome for negotiation.
Per Batch goods will be together with 3.1 certificate or the 3rd party inspection report.
| Product name | Torsion shear high strength bolts |
| Standard | GB/T 3632 |
| Available specs. | ASTM F2280(A490TC), ASTM F1852(A325TC),JSS II09(S10T),ect. |
| Grade | 10.9 |
| Dia. | M16-M36 |
| Length | 40-300MM |
| Materials: | Alloy steel---40Cr / 35CrMo, 42CrMo,35VB, carbon steel: ML20MnTiB |
| Available finish | Dacromet, black oxide, phosphating, electronic galvanized,ect. |
| Bolt Set | set= one 10.9s bolt + one 10H Nut + one flat washer |
| Head marking | HYZ+10.9S or customers' brand + 10.9s |
| Packing | Carton and wooden pallet or wooden case; barrel+wooden pallet |
| Certification: | FPC BC1, SGS,BV,ISO, factory testing report. |
Class of bolt, nut and washer
| Components | Bolt | Nut | Washer |
| Class | 10.9S | 10H | - |
Mechanical properties of Bolt:
| bolt | nut | washer | |
| Hardness | 33~39HRC | 9HRB~32HRC | HRC35~45 |
| Tensile strength (Mpa) | Yield strength(Mpa) | Elongation% | Reduction of area % | Impact J(-20ºC) |
| 1040~1240 | ≥940 | ≥10 | 42 | 27 |

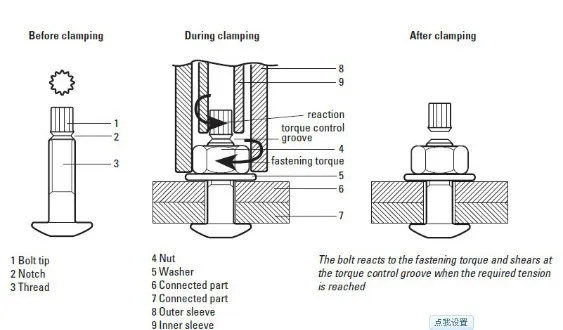

Erection drawing
We are professional in manufacturing high strength tension control bolts and heavy hex head bolts, shear studs for steel structures. All products can be manufacture as per international standard or customer drawing. for details, welcome for negotiation.
Per Batch goods will be together with 3.1 certificate or the 3rd party inspection report.
