Expansion Bolts Yzp Sleeve Anchor Hex Bolt
ProductExpansion Bolt M12 x 70mm Hex Nut Sleeve AnchorsKeywordhex anchor sleeveStructurebolt+sleeve+flat washer+taperMaterialQ235, 45#, AISI304(A2-70), AISI316(A4-80) etcSizeM6-M24 or non-standard as request & designGrade4.8, 6.8, 8.8, 10.9, 12.9Surfaceplain, galvanized,bule white, YZP etc.Usage......
Send Inquiry
Product Description
| Product | Expansion Bolt M12 x 70mm Hex Nut Sleeve Anchors |
| Keyword | hex anchor sleeve |

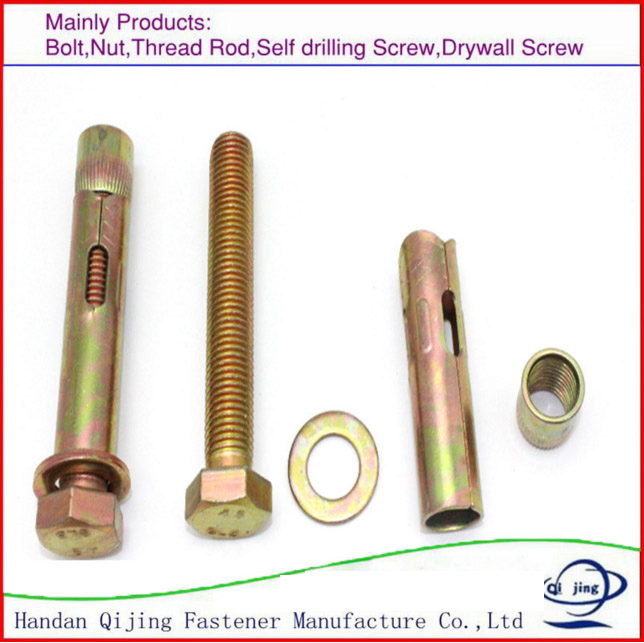

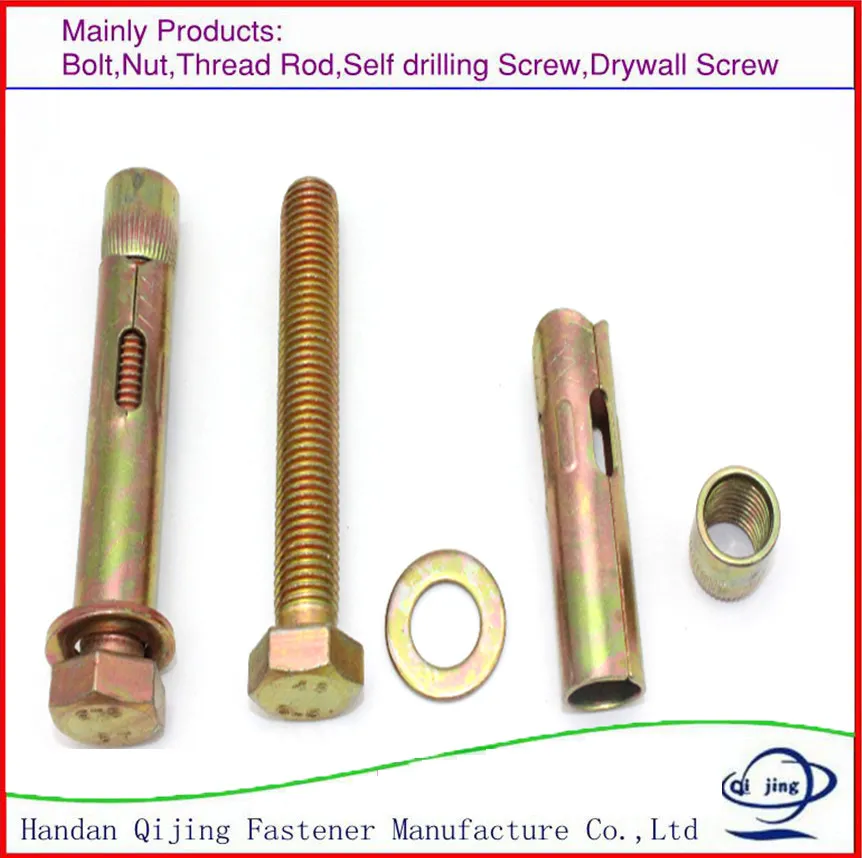

| Structure | bolt+sleeve+flat washer+taper |
| Material | Q235, 45#, AISI304(A2-70), AISI316(A4-80) etc |
| Size | M6-M24 or non-standard as request & design |
| Grade | 4.8, 6.8, 8.8, 10.9, 12.9 |
| Surface | plain, galvanized,bule white, YZP etc. |
| Usage | Metal structures, profiles, floor, bearing plates, brackets, railings, walls,machines, beams, etc |
| Type | wedge anchor,sleeve anchor flange nut,3pcs shield anchor,4pcs shield anchor,drop in anchors,metal frame anchors,tie waire anchors. |
| Sample | Free sample can be sent for test |
| Remark | OEM/ODM is available according to customer's drawing and samples. |

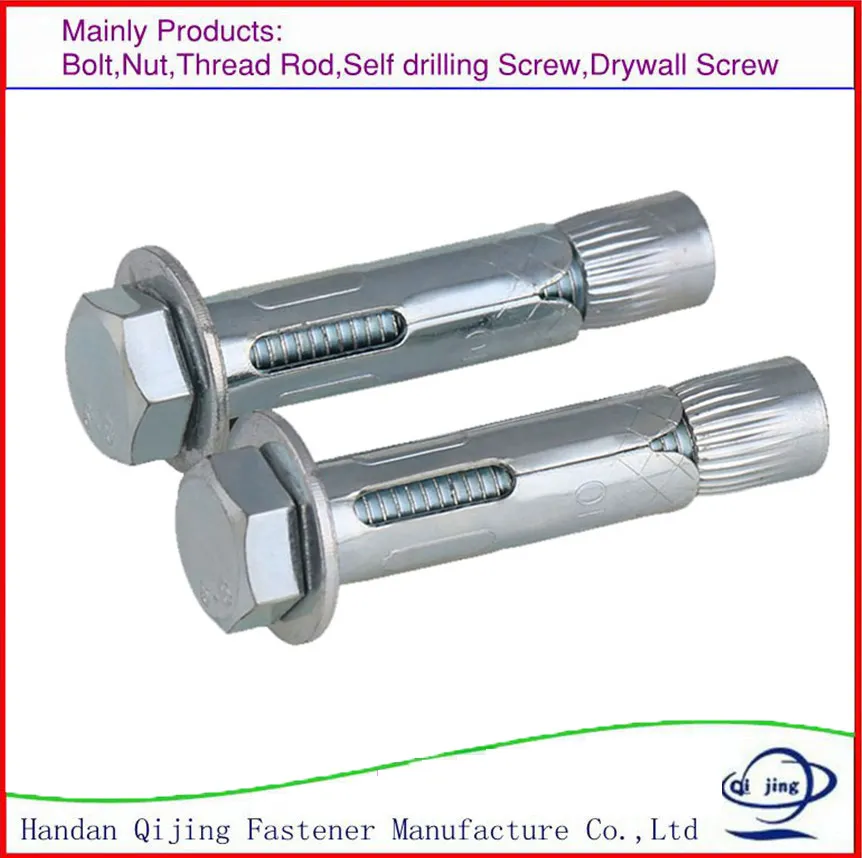

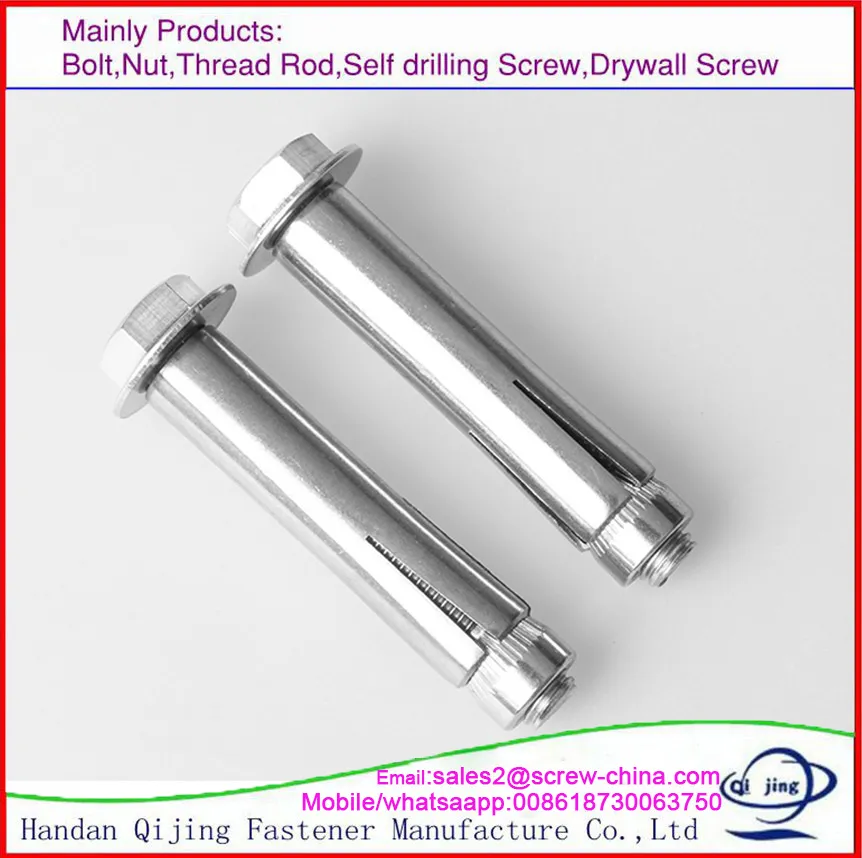

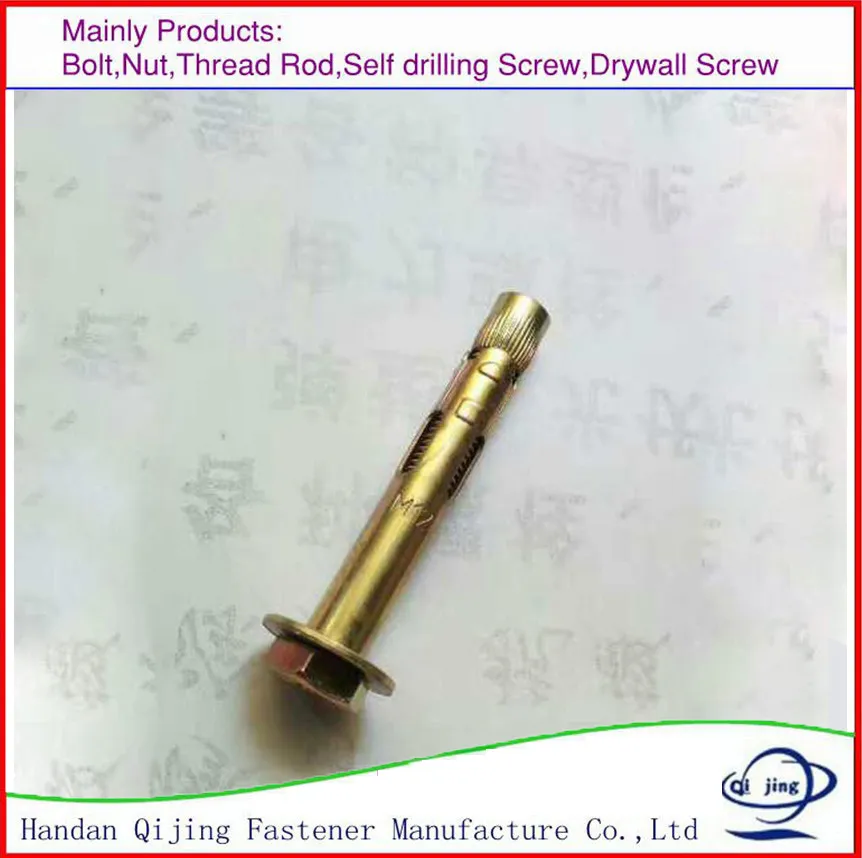

Hex Bolt Sleeve Anchor
| Item No | Sleeve |
M6(1/4)×50 | ∅10×35×1.0 |
M6(1/4)×70 | ∅10×50×1.0 |
M8(5/16)×60 | ∅12×40×1.2 |
M8(5/16)×70 | ∅12×50×1.2 |
M8(5/16)×80 | ∅12×60×1.2 |
| M10(3/8)×70 | ∅14×40×1.5 |
| M10(3/8)×80 | ∅14×50×1.5 |
| M10(3/8)×100 | ∅14×70×1.5 |
| M12(1/2)×80 | ∅16×50×1.7 |
| M12(1/2)×100 | ∅16×70×1.7 |
| M12(1/2)×120 | ∅16×90×1.7 |
| M12(1/2)×150 | ∅16×110×1.7 |
| M16(5/8)×100 | ∅20×60×2.0 |
| M16(5/8)×120 | ∅20×80×2.0 |
| M16(5/8)×150 | ∅20×110×2.0 |
Why Choose Us
We have more than 10 years experiences on fasteners. We are a typical China supplier.We are professionally exporting under the standards of DIN, JIS, GB, ANSI, and BS, as well as nonstandard fasteners. Now we have gained close cooperation with clients from Korea, Iran, Europe, India, and America, and won good comments from users. We appreciate your interest on our company very much and hope that our website will be helpful and informative to you. If you need more information, please contact our sales department
Kindly you please contact with me, If you're interested in our products.
