Button Head Square Neck Cap Screw

Product Description

No.	Product Name		Specification	Material	Surface	Standard
1	Fishtail Bolt		M8-M64	Q235,45#, 55#,etc	Zinc,Plain, Black Oil	UIC,AREMA,JIS,GB or according to your requests.
2	Screw Spike	Square Head Screw Spike	M16-M22 *145-200
		Hexagon Head Screw Spike
		Other Types
		Type	Specification	Weight/kg	Surface	Standard
3	Sleeper Screw	Ss 1/130	M22*130	0.451	Zinc,Plain, Black Oil	UIC,AREMA,JIS,GB or according to your requests.
		Ss 1/150	M22*150	0.478
		Ss 2/180	M22*180	0.595
		Ss 5/150	M24*150	0.545
		Ss 6/130	M26*130	0.658
		Ss 6/150	M26*150	0.702
		Ss 6/170	M26*170	0.385
		Ss 7/180	M24*180	0.636
		Ss 8/140	M24*140	0.528
		Ss 8/150	M24*150	0.548
		Ss 8/160	M24*160	0.568
		Ss 23/160	M23*160	0.645
		Ss 24/165	M24*165	0.59
		Ss 25/165	M25*165	0.625

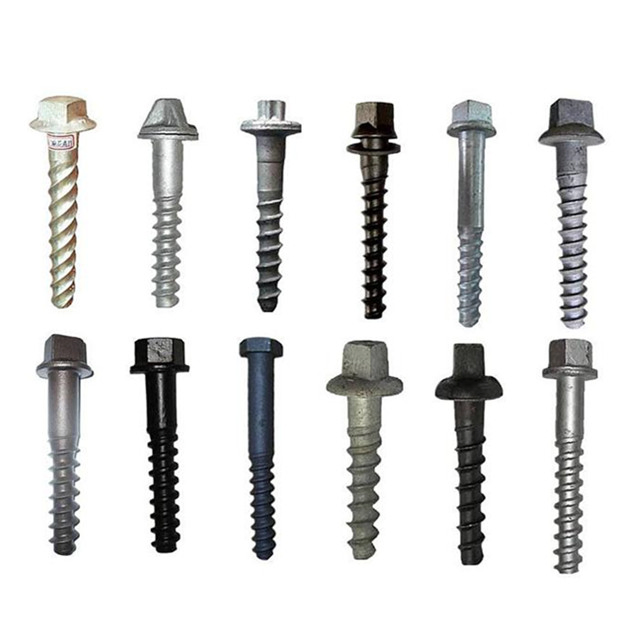

For meeting various needs of clients, we can offer coach screws, stud screw, railway sleeper screws and other coustom screw spike in railway.

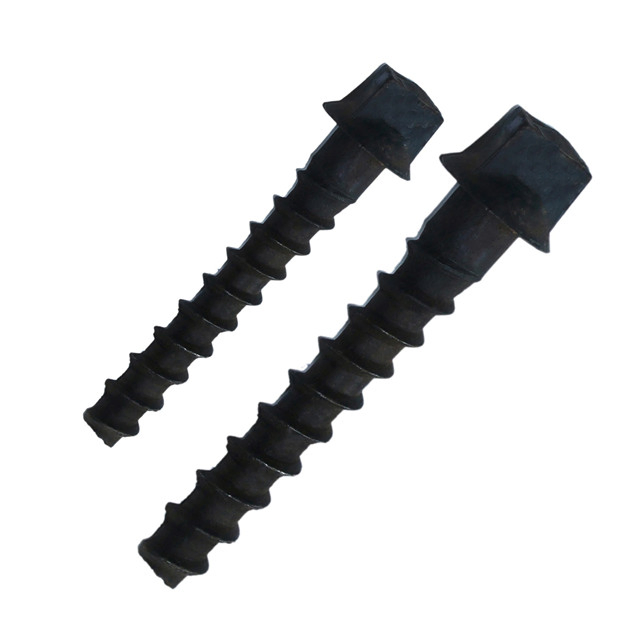

Ss series rail screw spike:

Ss series rail screw spike is designed according to the standard UIC864-1
Type    Dimension (mm)    Weight (Kg)
Ss5-150    M24×150    0.545
Ss8-140    M24×140    0.528
Ss8-150    M24×150    0.548
Ss8-160    M24×160    0.568
Ss23-160    M24×160    0.645
Ss25-165    M24×165    0.625
Ss35-161    M24×160    0.657

ASTMA66-87 screw spike:
We also supply the railway sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available. Common sizes include 3/4", 7/8", 15/16"

Screw spike with big disk:
Screw spike with big disk for Africa and South America
Rail screw spikes with big disk are mostly applied in South America and Africa
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm

3V sleeper screw:
The mechanical properties of 3V sleeper screw are in accordance with NF F 50006,
Tension strength: 700MPA (min),
Elongation: 12% (min),
Cold bending: 30 degree without crack.
Type    Dimension(mm)    Weight (Kg)
V20-135    M20×135    0.438
V23-115    M23×115    0.48
V23-135    M23×135    0.55
V23-155    M23×155    0.62
V23-215    M23×215    0.78
V26-115    M26×115    0.55

High tension screw spike:
High tension screw spike is also called as screw spike for wooden sleeper. Size: 15/16×6-1/2.
Tensile Strength    Yield Strength    Elongation    Reduction of Area    Hardness
120,000psi(min)    92,000psi(min)    14%(min)    35%(min)    HRC22-HRC3

Coach screw:
Coach screw is usually used for the mining industry in South Africa.
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235

DHS35 screw spike:
DHS35 rail sleeper screw spike can be used as a part of SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
T type screw spike :
T type screw spike with round thread, according to the standard NF-F 50014

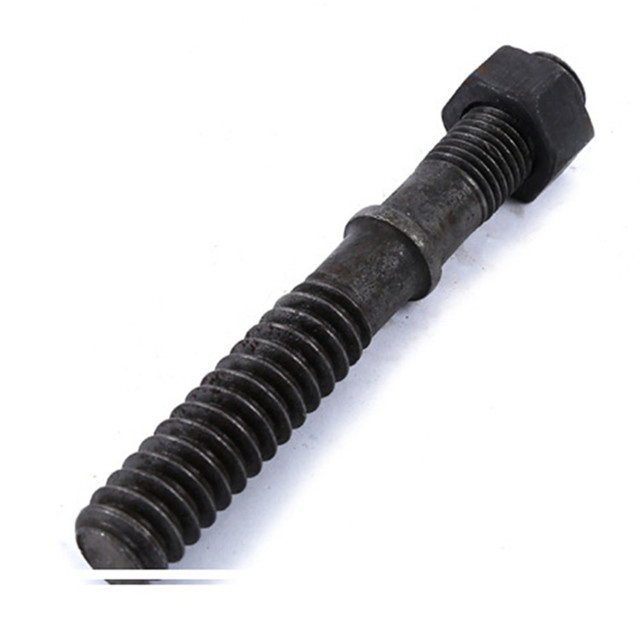

Double-head screw spike:
Railway sleeper screw spike with two ends is also called as double-head screw spike, usually used together with the Nabla clip system. It is very popular in Africa. For meeting with the bending test, we use special material TD16 to produce the sleeper screw, bending 30 degree and straightening it, without crack.
Size: 23×174
Material: TD16

Dive spike:
The dive spike has wide applications, including timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The dive spike has advantages of low cost of installation and maintenance. Meet with the standard ASTMA66-87, cold bending 90 degree without crack.
Main Size: 5/8×10 and 7/8×7
Material: 35#
Tensile Strength    Yield Strength    Elongation 2"
414Mpa    207Mpa    >18%

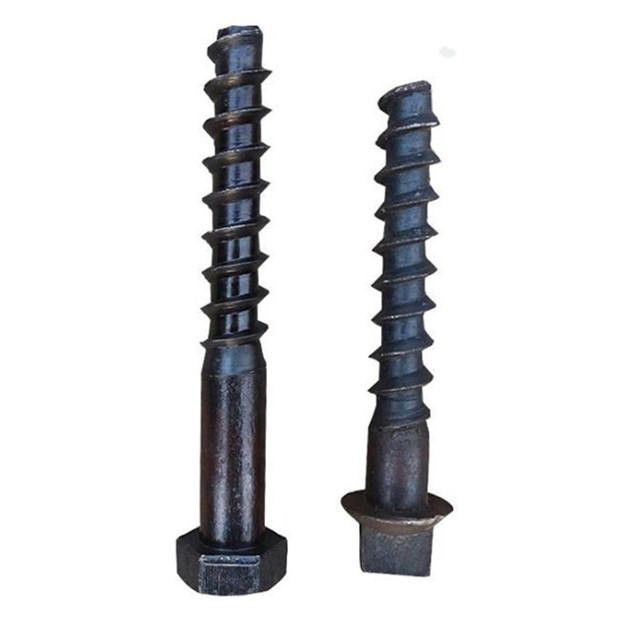

Hex head screw spike:
Screw spike with slotting head, as per UIC864-1
Size: 24×131 and 24×150
Any other type can be customized according to customers' drawings and grade.

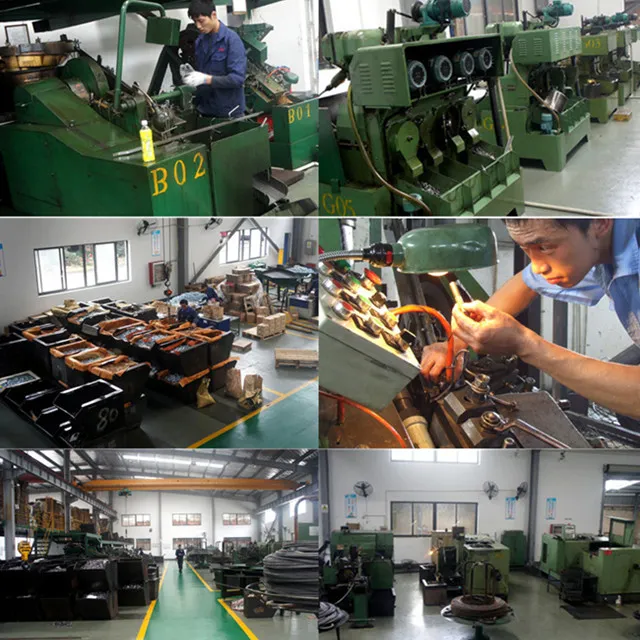

Production Processs:

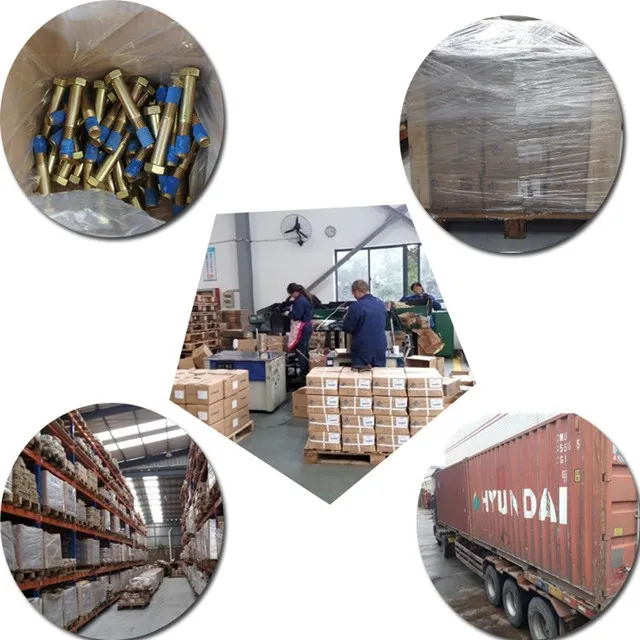

1. Raw material 2. Wire drawing 3. Wire drawing cutting 4. Head shaping 5. Edge cutting 6. Wire rolling 7. Heat treatment 8. Surface treatment 9. Final inspection 10. Packaging 11. Shipping

10b21 8.8grade Bolt and Nuts for Wood Connecting

Our Services:
Ruika produces and sells a variety of threaded rail screw spikes for wooden or cement sleepers, product specifications: Ss5, Ss8, Ss23, Ss25, Ss35, and 3V threaded spikes V20, V23, V26 and various trapezoidal thread bolts and so on. The grades are 4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 10.9, 12.9. Material grade: Q235, 35#, 45#, 60#, 40Cr, 20MnTiB, 35CrMo, 42CrMo. The surface can be treated with natural oiling, blackening, hot-dip galvanizing, electro-galvanizing, waxing, dacromet, etc. Ruika's rail screw spike production places great emphasis on quality control and management. The production of our rail screw spikes is fully controlled in accordance with the ISO9001-2008 quality system, and we have also obtained a railway product production license from the Ministry of Railways of China. We have a complete set of testing equipment to ensure the quality of all our rail screw spikes and meet customer requirements.

FAQ
Q1. What information should we Provide if we need price?
A: Drawing with all size; material; surface treatment; quantity.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: FOB, CRF, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
