ASTM A325 Tension Control Structural Bolts Manufacture (1 1/8- 7X2 L)
ASTM A325 Tension Control Structural Bolts Manufacture (1 1/8-7x2 L)T/C Bolt, Tension Control Bolt, Structural,Head Style:Button HeadGrade :A325Material:SteelFinish :BlackThread Size 1 1/8-7, Overall Length 2 3/4 In, Thread Length 2 In,Thread Type UNC,Thread Direction Right Hand,Head Dia. 2 3/8 In, ......
Send Inquiry
Product Description

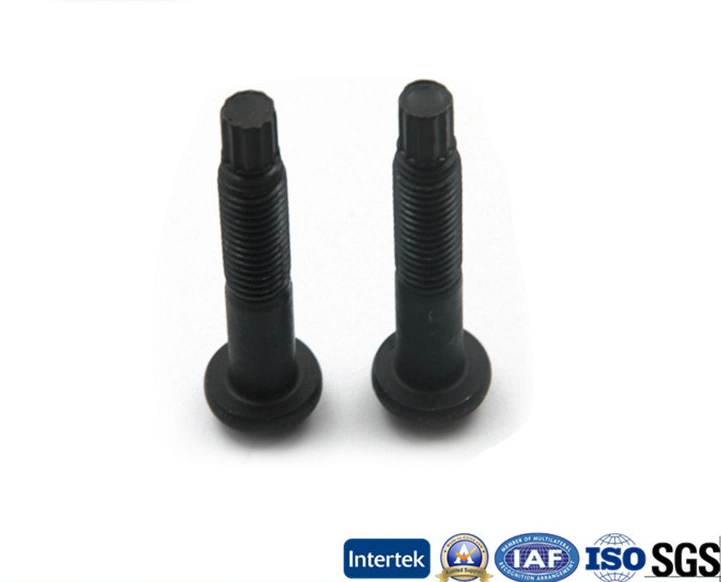

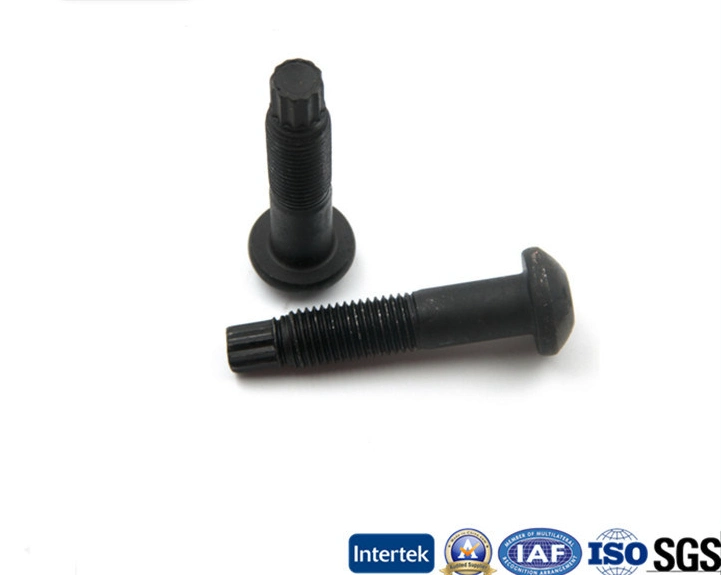

ASTM A325 Tension Control Structural Bolts Manufacture (1 1/8-7x2 L)
T/C Bolt, Tension Control Bolt, Structural,
Head Style:Button Head
Grade :A325
Material:Steel
Finish :Black
Thread Size 1 1/8-7, Overall Length 2 3/4 In, Thread Length 2 In,
Thread Type UNC,
Thread Direction Right Hand,
Head Dia. 2 3/8 In, Head Height 45/64 In,
Tensile Strength Min. 105, 000 PSI,
Rockwell Hardness HRC 19-30,
Meets/Exceeds ASTM F1852 Type 1,
Includes Grade DH, Heavy Hex Nut and F436 Washer,
Package Quantity 25
About us:
Jiaxing Goshen Hardware Co Limited, formerly Haina Fastener Co.,Ltd, established in China Mainland with the High-Quality strategy and marketing philosophy inherited from the holding company in the willing to supply better service for the domestic and overseas client.
Product;
BOLT : din933, din931, din419, din558, din7990, din6922, ASME/ANSI B 18.2.1 , ASME/ANSI B 18.2.3.1M,GB, BSW, ISO Hex bolt , carriage bolt, heavy hex bolt, flange head bolt, achor bolt ect
Rod : threaded rod din976, threaded bar din975 stud bolt, B7 stud bolt ect
Nut : din934, hex heavy hex nut, 2H nut, din555, flange bolt, cap nut, nylon nut, ect
Screw :hex screw, self drilling screw, self tapping screw, drywall screw, pan head screw, button head screw, machine screw, chipboard screw,furniture screw,wood screw, ect
washer :flat washer, spring washer, lock washer,square washer,spring lock washer, plain washer ect
Customized:
If you have drawing or samples, we can as your requirment to product. Welcome to your early reply.
Promise:
1. Hight quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. Best service
T/C Bolt, Tension Control Bolt, Structural,
Head Style:Button Head
Grade :A325
Material:Steel
Finish :Black
Thread Size 1 1/8-7, Overall Length 2 3/4 In, Thread Length 2 In,
Thread Type UNC,
Thread Direction Right Hand,
Head Dia. 2 3/8 In, Head Height 45/64 In,
Tensile Strength Min. 105, 000 PSI,
Rockwell Hardness HRC 19-30,
Meets/Exceeds ASTM F1852 Type 1,
Includes Grade DH, Heavy Hex Nut and F436 Washer,
Package Quantity 25
| Specification | Fastener Description | Material | Nominal Size Range In. | Mechanical Properties | |||
| Yield Strength | Tensile Strength | Elongation, in 4D, min, % | Reduction of Area, min, % | ||||
| Min (psi) | Min (psi) | ||||||
| ASTM A325 Type 1 | High Strength Structural Bolt | Medium Carbon Steel, Quenched and Tempered | 1/2 to 1 incl | 92, 000 | 120, 000 | 14 | 35 |
| Over 1 to 1-1? 2 | 81, 000 | 105, 000 | 14 | 35 ? | |||
| ASTM A325 Type 2 | Low Carbon Martensitic Steel, Quenched and Tempered | 1/2 to 1 incl | 92, 000 | 120, 000 | 14 | 35 | |
| ASTM A325 Type 3 | Atmospheric Corrosion Resisting Steel, Quenched and Tempered | 1/2 to 1 incl | 92, 000 | 120, 000 | 14 | 35 | |
| Over 1 to 1-1? 2 | 81, 000 | 105, 000 | 14 | 35 ? | |||
| Specification | Material | Nominal Size (In. ) | Proof Load Stress ksi A | Hardness Rockwell | Nut Type | ||
| Non-Zinc-Coated Nuts B | Zinc-Coated Nuts B | Min | Max | ||||
| ASTM A453 Grade DH | Medium Carbon Steel, Quenched and Tempered | 1/2 to 4 | 175 | 150 | C24 | C38 | Heavy hex nut UNC, 8UN, 6UN and Coarser Pitch Thread |
| Specification | Material | Nominal Size (In. ) | Hardness Rockwell | Hardness Rockwell | |||
| Non-Zinc-Coated | Zinc-Coated | ||||||
| Min | Max | Min | Max | ||||
| ASTM F436 Washer | Medium Carbon Steel, | 1/2 to 4 | C38 | C45 | C26 | C45 | |
