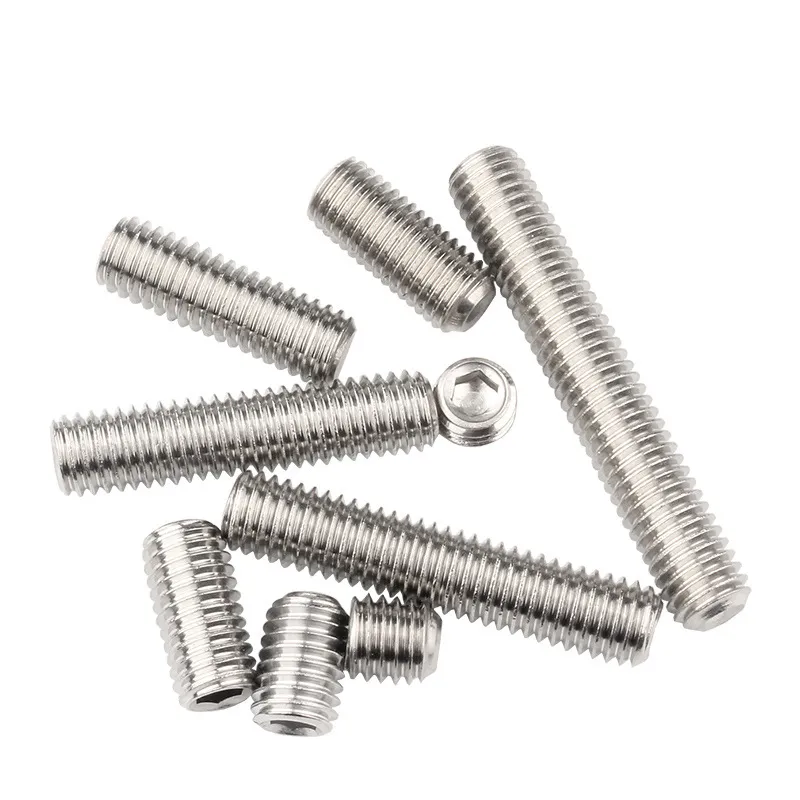

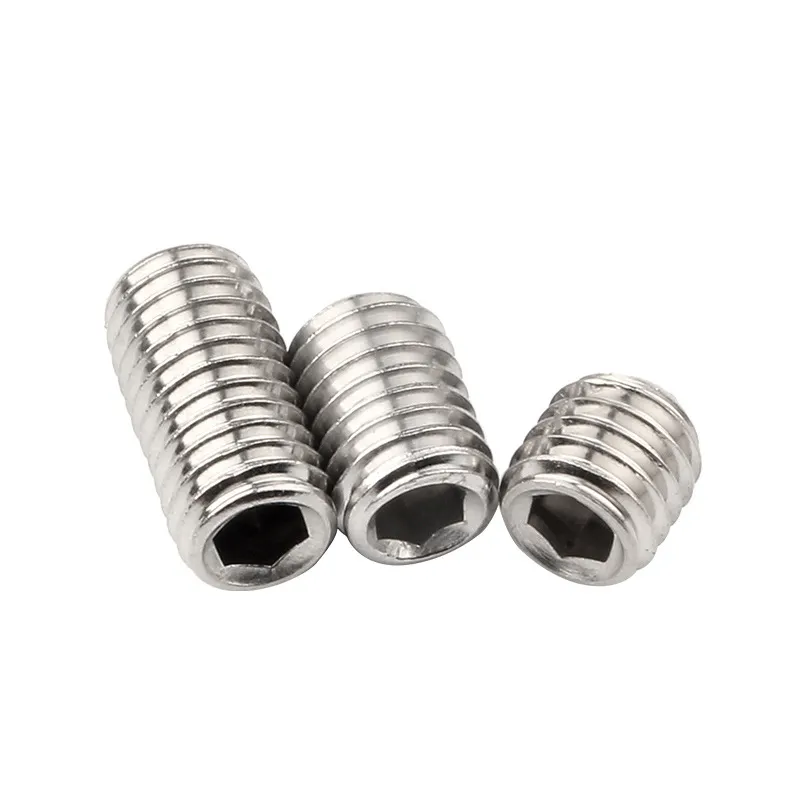

Stainless Steel 304 Hexagonal Socket Head Machine Meter Screw DIN916
Product Description Product NameHexagonal Socket Head Machine Meter ScrewMaterialsStainless Steel 304Neutral SizeM1.4 /M1.6 /M1.8 /M2 /M2.5 /M3 /M4 /M5 /M6 /M8 /M10 /M12 /M14 /M16 /M18 /M20International StandardDIN916OEM/ODM ServiceAvailableDIY Subpackage Service for Retails Owner Order (Like Amazon......
Send Inquiry
Product Description
| Product Name | Hexagonal Socket Head Machine Meter Screw |
| Materials | Stainless Steel 304 |
| Neutral Size | M1.4 /M1.6 /M1.8 /M2 /M2.5 /M3 /M4 /M5 /M6 /M8 /M10 /M12 /M14 /M16 /M18 /M20 |
| International Standard | DIN916 |
| OEM/ODM Service | Available |
| DIY Subpackage Service for Retails Owner Order (Like Amazon Seller) | Available |
| Lead Time for Production | Depends on your order contents |
| Payment Term | Negotiable |

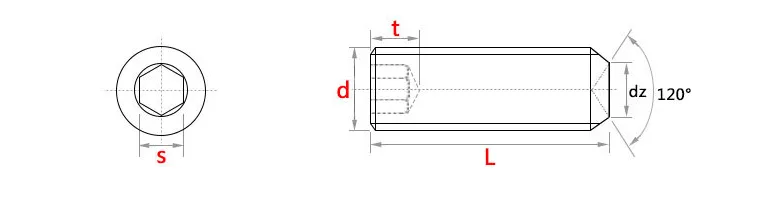

The drawing and datasheet of Stainless Steel 304 Hexagonal Socket Head Machine Meter Screw DIN916 as below:
We serve size from M1.6 to M20 to meet your particular requirements, Or your requirements is beyond our standard specifications. Send us your drawing to discuss more details to be sastified your enquiry then.
* Notes: Measurement by manual, different batch have a lot of difference in tolerance range. If precise value is critical factor based on your requirement. Feel free contact our sales rep. to Confirmed.
| Nominal diameter. (d) | Thread pitch of screw (p) | Hexagon Socket's opposite side (s) | Corresponds to Wrench | ||
| Nominal | Max | Min | |||
| M1.6 | 0.35 | 0.7 | 0.724 | 0.711 | 0.7 |
| M2 | 0.4 | 0.9 | 0.902 | 0.889 | 0.9 |
| M2.5 | 0.45 | 1.3 | 1.295 | 1.27 | 1.3 |
| M3 | 0.5 | 1.5 | 1.545 | 1.52 | 1.5 |
| M4 | 0.7 | 2 | 2.045 | 2.02 | 2 |
| M5 | 0.8 | 2.5 | 2.56 | 2.52 | 2.5 |
| M6 | 1 | 3 | 3.08 | 3.02 | 3 |
| M8 | 1.25 | 4 | 4.095 | 4.02 | 4 |
| M10 | 1.5 | 5 | 5.095 | 5.02 | 5 |
| M12 | 1.75 | 6 | 6.095 | 6.02 | 6 |
| M14 | 2 | ||||
| M16 | 8 | 8.115 | 8.025 | 8 | |
| M18 | 2.5 | 10 | 10.12 | 10.03 | 10 |
| M20 | |||||
| Unit: mm | |||||

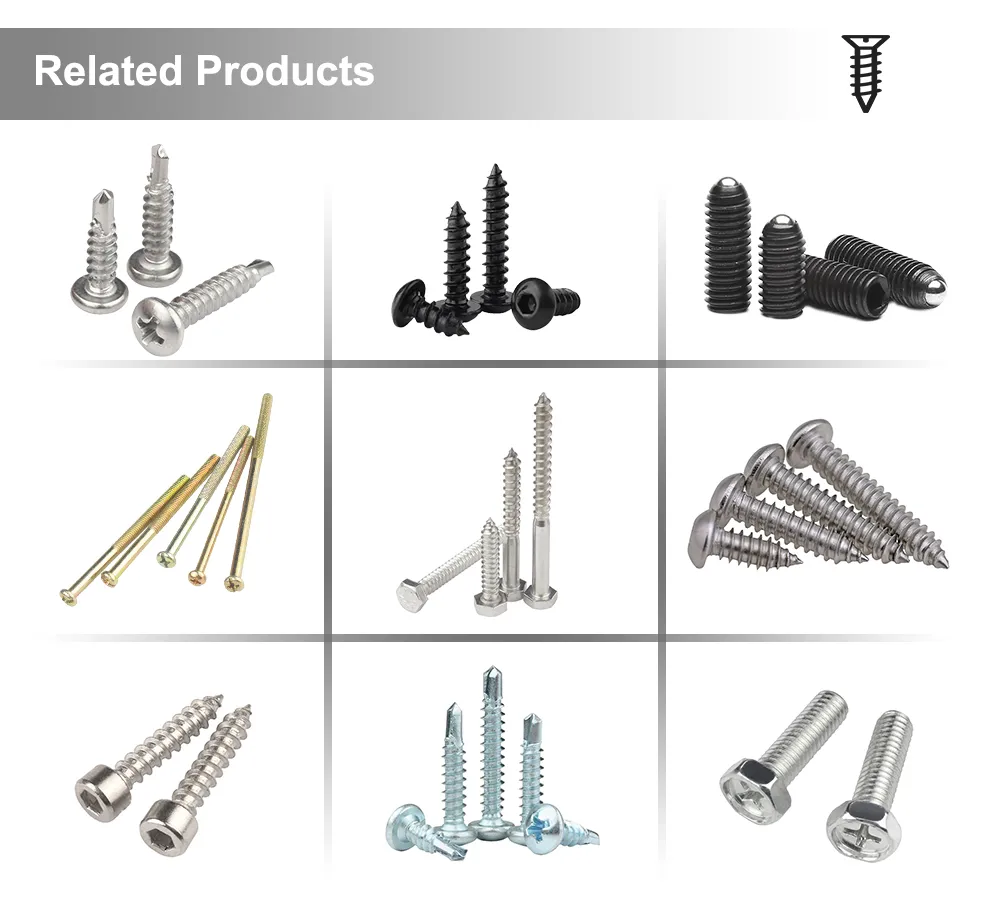

Except Stainless Steel 304 Hexagonal Socket Head Machine Meter Screw DIN916, We have another kinds of screw to serve all of you.
Welcome to send us your enquiry for specific products.

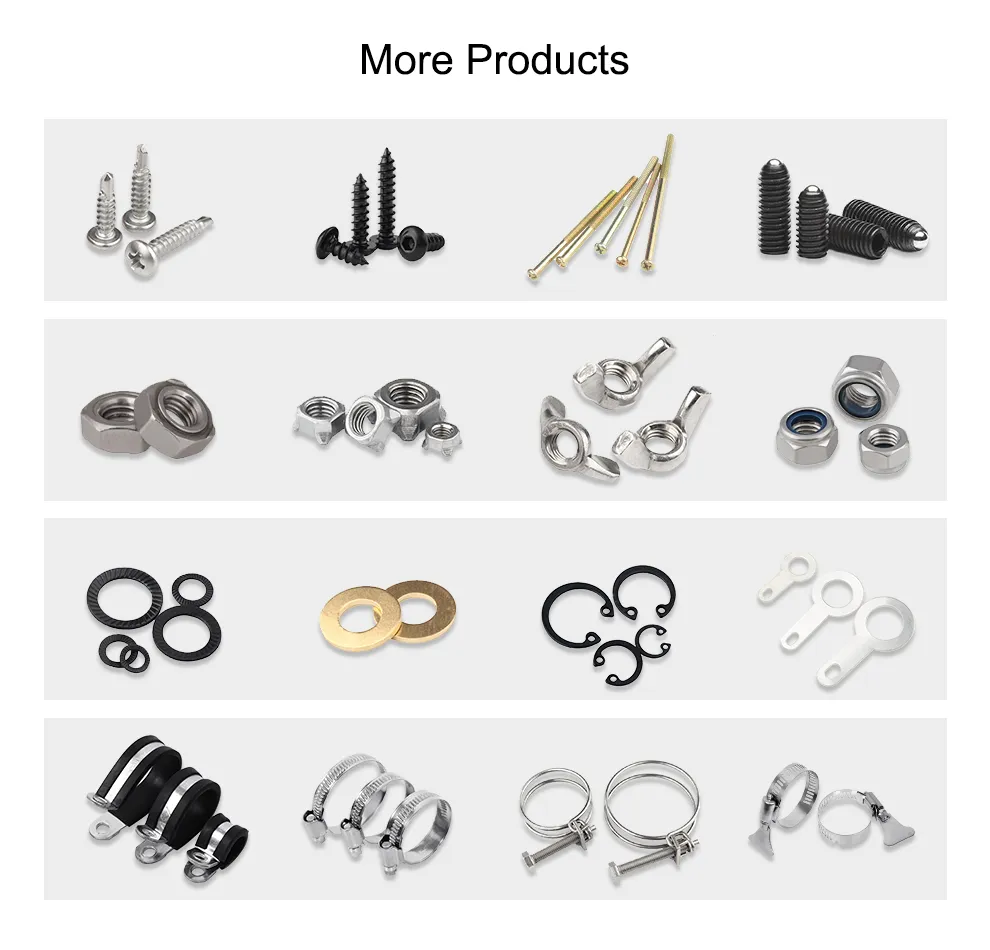

Except Screws, We provided Nuts/Nails, Washer/Gasket, Clamp and another hardware accessories etc. Neutral Size or OEM Service.

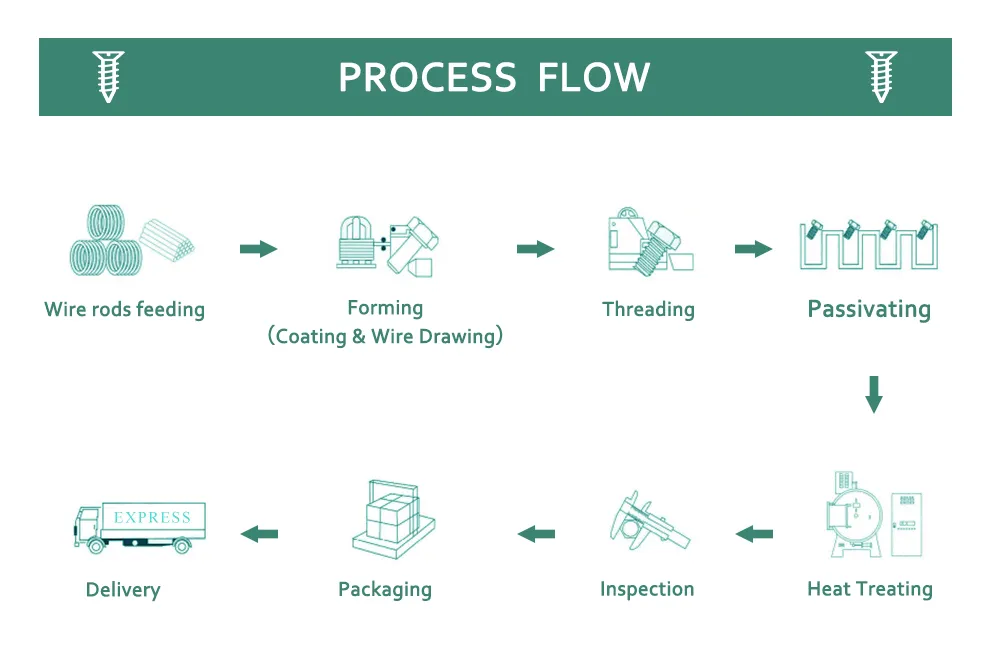

There is flowchart for Stainless Steel 304 Hexagonal Socket Head Machine Meter Screw DIN916.
Our oversea sales office is located in Shenzhen City, Guangdong & Haikou Hainan, and sourcing department & warehouse was located in Guangzhou City, Guangdong. All orders of yours would be shipped out from Warehouse in Guangzhou.
Direction of Googgle Map to Haikou Office: Room 1805-1, Floor 18th, Xinda Business Building, Guomao Avenue, Longhua District, Haikou Hainan, P.R.C.
Direction of Googgle Map to Guangzhou Office: Room 102, No. 7 10th Street Eastern Caier village, Donghuan Street, Panyu District, Guangzhou. P.R.C.
Now, for payment methods and shipment way what you concorned, check the postcast as below to figure it out. Or more details please allow us to introduce our sales representative Mr.Alvin Wong to all of you.
One more thing, Pay more attention to our main products: Screws, Nuts/Nails, Washer/Gasket, Clamp and another hardware accessories etc. please.
Thank you so much!
