Why Use a Square Taper Washer for Slot Section Instead of a Standard Flat Washer
2026-06-16

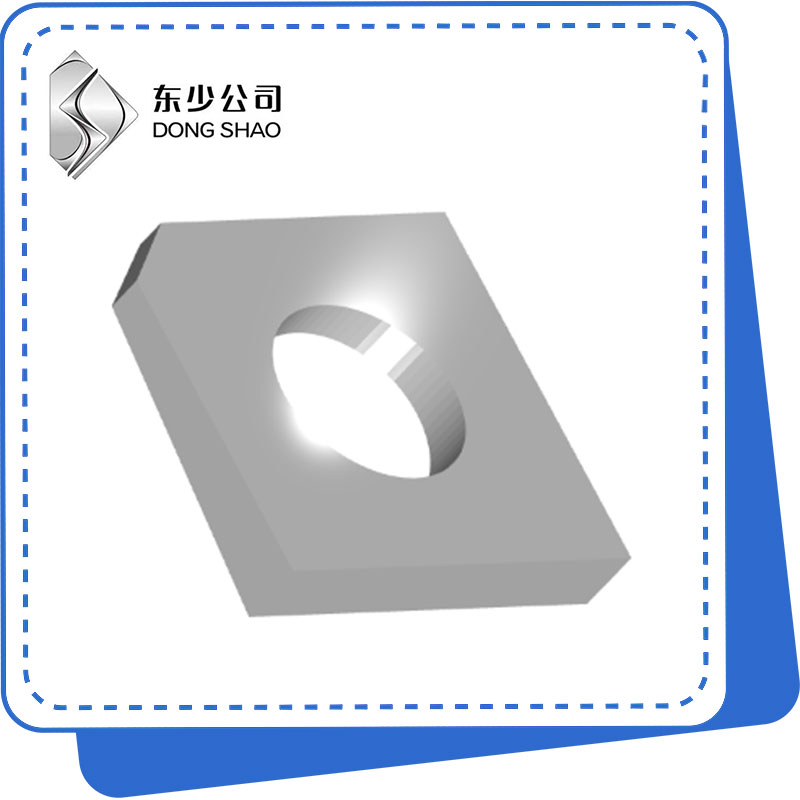

When assembling structures with slotted profiles or T-slot framing systems, many engineers default to standard flat washers. However, this choice often leads to bolt rotation, uneven load distribution, and premature joint failure. The engineered alternative—a Square Taper Washer for Slot Section from DONGSHAO—addresses these issues directly. Unlike round flat washers, this component locks into the slot, prevents spinning, and creates a perpendicular clamping surface. Below is a professional breakdown of why upgrading to this solution matters.
Key Functional Differences
| Feature | Standard Flat Washer | Square Taper Washer for Slot Section |
|---|---|---|
| Anti-rotation ability | None; spins freely in slot | Yes; square body locks into slot |
| Load surface angle | Flat; may misalign with tilted surfaces | Tapered; matches slot section geometry |
| Material thickness | 1.5–3 mm | 4–6 mm (higher shear strength) |
| Typical application | General bolting | Structural T-slot, conveyor frames, solar rails |
Three Engineering Advantages of DONGSHAO Square Taper Washer for Slot Section
1. Eliminates Bolt Head Rotation
In a slotted section, a standard flat washer offers no resistance against turning. As torque increases, the washer rotates and damages the slot edge. The square body of a Square Taper Washer for Slot Section fits precisely into the groove, providing positive locking.
2. Compensates for Slot Angle
Slotted profiles often have a slight internal draft angle. A flat washer contacts only the outer edge, reducing clamp area. The tapered design matches the slot’s geometry, distributing load across the full bearing surface.
3. Higher Preload Retention
Vibration loosens standard washers quickly. DONGSHAO’s version maintains preload because the square shape prevents backward rotation. This is critical for dynamic loads in automation or solar tracking systems.
Square Taper Washer for Slot Section FAQ
Q: What torque value should I apply when using a Square Taper Washer for Slot Section in an aluminum T-slot?
A: Recommended torque depends on bolt size and slot material. For an M8 bolt in 6063 aluminum, limit torque to 18–22 N·m. Exceeding this may deform the slot shoulder. For steel slots, up to 35 N·m is acceptable. Always test on a scrap piece first, because the square taper washer transfers force deeper into the slot wall than a flat washer does.
Q: Can I reuse a Square Taper Washer for Slot Section after disassembly?
A: Yes, but inspect the bottom taper face and square edges first. If the taper shows indentations or the square corners are rounded, the washer will not lock properly. DONGSHAO recommends replacing after three removal cycles in high-vibration environments. For static applications, five to six reuses are generally safe.
Q: Does a Square Taper Washer for Slot Section work with all slot profiles, including metric and inch series?
A: No. Slot widths vary: 8 mm, 10 mm, and 12 mm are common metric sizes; inch slots are typically 5/16″ or 3/8″. You must match the washer’s square body width to the nominal slot width. DONGSHAO offers separate part numbers for metric and inch systems. Using a metric washer in an inch slot will cause rocking or jamming.
Installation Best Practice – Table Format
| Step | Action | Why Important |
|---|---|---|
| 1 | Clean slot channel from debris | Prevents false seating of the square taper washer |
| 2 | Insert Square Taper Washer for Slot Section into slot end or drop-in location | Avoids damaging slot edge |
| 3 | Place bolt through washer, hand-tighten | Aligns taper to slot angle |
| 4 | Torque to specified value (see FAQ above) | Ensures clamp force without over-stress |
| 5 | Re-torque after 24 hours for dynamic loads | Compensates for initial embedment |
Final Recommendation
For any structural connection involving slotted sections, a standard flat washer is a compromise—not a solution. The Square Taper Washer for Slot Section from DONGSHAO delivers anti-rotation, matched taper geometry, and vibration resistance. Whether you are building machine guards, solar panel mounts, or conveyor supports, this component improves safety and joint longevity.
