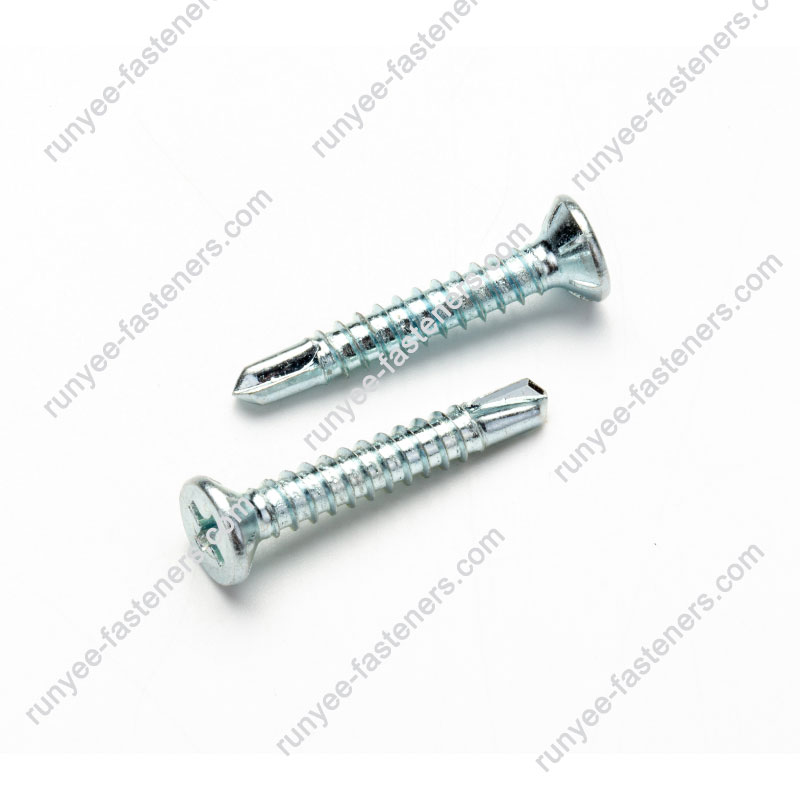

Why Choose a Phillips Flat Head PVC Window Self Drilling Screw Coarse Thread for Your Fenestration Projects?
2026-03-05
In the competitive world of window and door fabrication, the difference between a service call and a satisfied customer often comes down to the smallest components. When securing hardware to PVC profiles—particularly those reinforced with steel or aluminum—the choice of fastener is critical. A standard screw might seem adequate, but for applications demanding flush finishes, vibration-resistant holding power, and installation efficiency, one fastener stands out: the Phillips Flat Head PVC Window Self Drilling Screw Coarse Thread. This specialized component is engineered not just to attach, but to perform under the unique stresses of uPVC joinery.
The Anatomy of a High-Performance Window Screw
To understand why this screw is indispensable, we must look at its design. It is not a general-purpose fastener; it is a precision tool. The combination of its head style, thread configuration, and point type works in harmony to solve common fabrication challenges.
Here is a breakdown of the key design elements and their specific functions:
| Feature | Design Specification | Primary Function & Benefit |
|---|---|---|
| Head Style | Phillips Flat Head | Allows the screw to sit flush with or slightly below the PVC surface, ensuring that window hardware (like handles and hinges) mounts smoothly without interference. The Phillips recess provides excellent driver bit engagement to prevent cam-out during high-speed installation. |
| Thread Type | Coarse Thread | Designed specifically for PVC and light metals. The deeper, wider spacing between threads maximizes bite into the plastic and provides superior pull-out resistance compared to fine threads, which are better suited for sheet metal. |
| Point Type | Self-Drilling Point | Eliminates the need for pre-drilling. The drill-bit tip pierces through the PVC profile and the internal steel/aluminum reinforcement in one swift motion, saving significant time on the assembly line. |
| Material | Case-Hardened Steel | Provides the necessary strength to drill through metal reinforcements without breaking or deforming. |
The "Coarse" Advantage: Why Thread Design Matters
When working with PVC window profiles, the thread design is arguably the most critical factor for long-term performance. A Phillips Flat Head PVC Window Self Drilling Screw with Coarse Thread is specifically optimized for this material.
Unlike metal, PVC can deform and "flow" over time, especially under thermal stress. A coarse thread profile offers a larger flank area—the surface that contacts the plastic. This increased contact area distributes the load more evenly and resists the screw being pulled out when the window sash is operated repeatedly. Furthermore, when the screw penetrates the steel reinforcement inside the chamber, the coarse thread still engages effectively with the thinner metal, providing a dual-material grip that ensures the hardware remains tight for the lifespan of the window.
Achieving the Perfect Flush Finish
The aesthetic and functional requirement of modern window furniture demands a flush mount. The flat head design is engineered for countersinking. As the screw is driven home, the conical underside of the head creates a clean, recessed seat in the PVC. This ensures that the handle or hinge plate lies perfectly flat against the profile, preventing stress cracks in the plastic and ensuring a watertight seal around the hardware.
At Jiaxing Runyee Metal Technology Co., Ltd. , we understand that consistency is key in high-volume manufacturing. Our Phillips Flat Head PVC Window Self Drilling Screws are manufactured to tight tolerances, ensuring that every screw seats at the correct depth and provides the same reliable clamping force, unit after unit. This precision reduces assembly line stoppages and the frustration of dealing with poorly formed screw heads.
Importance in Modern Window Fabrication
The role of this specific fastener extends beyond simple attachment. It is a vital component for:
-
Structural Integrity: By securely fastening hardware to the steel core, the screw helps transfer operational stresses from the sash to the reinforcement, preventing the PVC from warping or sagging.
-
Installation Speed: The self-drilling point effectively combines three steps (drilling the PVC, drilling the steel, and tapping the threads) into one. This drastically reduces fabrication time.
-
Reliability: A screw that fails (by snapping, stripping, or loosening) leads to faulty windows. Using a high-quality screw from a reputable supplier minimizes warranty claims and reputational damage.
For fabricators looking to optimize their assembly process, choosing the right screw is a decision that pays dividends in efficiency and product quality. Whether you are attaching tilt-and-turn hinges or simple casement stays, the Phillips Flat Head PVC Window Self Drilling Screw Coarse Thread remains the industry standard for a reason.
Ready to enhance the durability and efficiency of your window fabrication line? Jiaxing Runyee Metal Technology Co., Ltd. specializes in manufacturing high-quality fasteners tailored to the fenestration industry. Our screws deliver consistent driving performance and long-term corrosion resistance. Please contact us today to discuss your bulk requirements or to request samples for your production trials.
