This guide explains how Male-Female Threaded Hex Standoffs work, where they are used, how to select appropriate dimensions and materials, and which installation and purchasing mistakes to avoid. It also provides a practical comparison table, an inspection checklist, and answers to common questions from engineers, purchasing teams, and industrial hardware distributors.
Who should read this guide? Product designers, mechanical engineers, electronics manufacturers, OEM purchasing managers, maintenance teams, and fastener distributors seeking dependable spacing and fastening solutions.

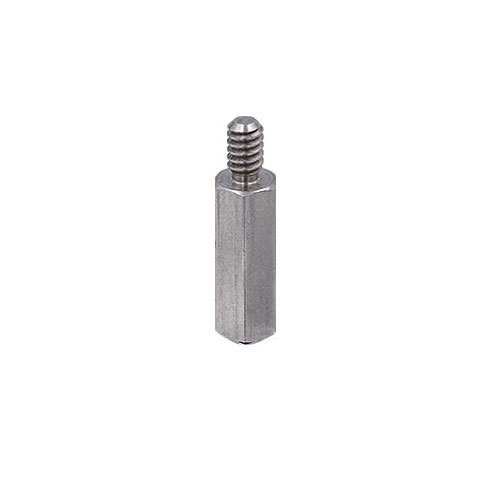

1. What Is a Male-Female Threaded Hex Standoff?
A Male-Female Threaded Hex Standoff is a precision fastening component designed to create a defined gap between two parts while providing threaded connection points. One end features an external male thread, while the opposite end contains an internal female thread. Between them is a hexagonal body that acts as a spacer and provides a gripping surface for installation tools.
The external thread can engage with a tapped hole or another compatible internally threaded component. The internal thread accepts a matching screw or threaded fastener. This arrangement makes it possible to mount a component on one side while leaving a convenient threaded attachment point on the other.
Understanding the Three Main Features
- Male thread: Provides the external connection to a compatible threaded hole or component.
- Female thread: Accepts a compatible screw or other externally threaded fastener.
- Hexagonal body: Establishes the spacing distance and provides flats for a wrench or suitable installation tool.
Compared with a simple unthreaded spacer, a threaded standoff can reduce the need for separate nuts and additional hardware. Compared with a conventional round standoff, the hexagonal profile can make controlled installation easier when tool access is available.
The actual benefits depend on the assembly design. Thread configuration, dimensions, material, and load requirements must all be compatible with the application.
2. How Does the Design Improve Assembly Efficiency?
The main advantage of a male-female configuration is that it provides two different threaded interfaces within a single component. Instead of assembling a spacer, a separate nut, and several additional fasteners, a designer may be able to connect components directly through the standoff.
Creates Consistent Spacing
Electronic boards, mounting plates, sensors, and enclosure components often require a defined distance from adjacent surfaces. A standoff with the correct body length helps establish this separation and supports repeatable positioning during assembly.
Consistent spacing can also help prevent unwanted contact between circuit boards and enclosure walls, provided that board dimensions, component heights, and the complete tolerance stack are properly evaluated.
Reduces Unnecessary Hardware
Integrating male and female threads into one component can simplify a bill of materials and reduce the number of loose parts that operators must handle. In high-volume production, fewer individual components can make assembly workflows more straightforward.
Supports Easier Maintenance
When equipment requires inspection or component replacement, accessible threaded connections can simplify disassembly and reassembly. This is especially useful in modular electronic devices, control panels, and industrial instruments.
Provides a Convenient Tool Interface
The hexagonal body offers opposing flat surfaces that can be gripped with a wrench. This helps installers position the standoff while controlling rotation during tightening or removal, subject to available clearance and the manufacturer's installation guidance.
3. Common Industrial Applications
Male-Female Threaded Hex Standoffs are used across industries wherever components need secure threaded attachment and controlled separation. The exact specification varies according to the assembly's mechanical, electrical, and environmental requirements.
Electronics and PCB Mounting
Printed circuit boards frequently require a controlled gap between the board and its supporting surface. Standoffs can help maintain that spacing, provide mounting points, and support stacked-board arrangements. Engineers should confirm board-hole dimensions, screw compatibility, insulation requirements, and clearance around nearby components.
Electrical Cabinets and Control Equipment
Control panels, monitoring systems, and electrical enclosures may use standoffs to mount plates, brackets, circuit assemblies, or small control modules. Material and finish selection should account for humidity, temperature, electrical grounding requirements, and possible exposure to cleaning chemicals.
Industrial Instrumentation
Sensors, measurement devices, and compact instruments may contain multiple layers of mounting hardware. A correctly specified standoff helps establish the intended geometry and provides an accessible connection point for serviceable components.
Automation and Mechanical Equipment
Automation systems sometimes use standoffs to position brackets, covers, control modules, and accessory components. In these applications, vibration, repeated maintenance, and mechanical loads should be assessed before a final specification is approved.
OEM Products and Custom Assemblies
Original equipment manufacturers often need fastening components that fit a particular housing or production process. Customized thread combinations, body lengths, hex widths, finishes, and packaging arrangements may be considered when standard catalogue dimensions do not meet the design requirements.
4. Essential Specifications to Check Before Ordering
One of the most common procurement problems is ordering a part that looks correct but does not fit the actual assembly. A complete specification helps prevent mismatched threads, incorrect mounting heights, insufficient engagement, and installation difficulties.
| Specification | What to Verify | Why It Matters |
|---|---|---|
| Male thread | Nominal diameter, pitch, thread standard, and tolerance | Ensures compatibility with the mating hole or threaded component. |
| Female thread | Nominal diameter, pitch, thread standard, and tolerance | Ensures the intended screw can engage correctly. |
| Body length | Distance between the specified bearing or support faces | Determines the intended spacing between assembled components. |
| Male thread length | Available external thread engagement | Helps prevent insufficient engagement or interference with surrounding parts. |
| Female thread depth | Total depth and usable engagement depth | Helps prevent screw bottoming and inadequate fastening. |
| Hex width | Width across opposite flats | Determines tool compatibility and installation clearance. |
| Material | Alloy, grade, mechanical properties, and conductivity | Influences strength, corrosion behavior, weight, and electrical performance. |
| Surface finish | Plating, passivation, coating, or specified surface condition | Can affect corrosion resistance, appearance, and interface compatibility. |
| Inspection requirements | Dimensional tolerances, thread gauges, and documentation | Supports consistent incoming quality and repeatable production. |
Metric and Imperial Threads Are Not Interchangeable by Appearance
Metric threads are generally identified by the letter M followed by a nominal diameter. For example, M3 × 0.5 indicates a nominal diameter of 3 mm and a pitch of 0.5 mm. Imperial threads use different identification systems, including Unified National Coarse (UNC) and Unified National Fine (UNF) designations.
Some thread diameters may appear similar across measurement systems, but their pitches and profiles can differ. Never assume that a fastener will fit because its diameter looks close. Specify the complete thread designation and standard for both ends.
Measure the Correct Length
Body length and total overall length are not necessarily the same. In many male-female standoff designs, body length refers to the hexagonal section between the supporting faces, while the projecting male thread is measured separately.
For example, a hypothetical standoff with a 10 mm body and a 6 mm projecting male thread has a different overall physical length from a standoff with a 10 mm total-length specification. Always use the dimension definitions shown on the approved drawing or catalogue.
For assemblies with tight clearances, also verify female thread depth, screw length, washer thickness, and the position of nearby components. These details help prevent the screw from bottoming out before the joint is properly clamped.
5. How to Select the Right Material
Material selection affects durability, weight, corrosion behavior, electrical conductivity, manufacturing cost, and the long-term performance of the fastening connection. The most appropriate material is the one that meets the actual operating conditions without adding unnecessary cost or complexity.
| Material | Potential Advantages | Important Considerations | Typical Uses |
|---|---|---|---|
| Brass | Good machinability, electrical conductivity, and a practical balance of properties | Grade, plating, strength requirements, and environmental compatibility | Electronics, instrumentation, electrical hardware |
| Stainless steel | Useful strength and corrosion resistance, depending on grade and environment | Specific alloy selection, galling risk, and contact with dissimilar metals | Industrial equipment, enclosures, exposed assemblies |
| Carbon steel | Can provide an economical solution with suitable strength | Protective finish and corrosion exposure require careful evaluation | General mechanical and industrial assemblies |
| Aluminum | Low weight and useful corrosion behavior in suitable environments | Lower stiffness and strength than many steels; thread durability needs assessment | Lightweight instruments, electronic equipment |
| Nylon or other engineering plastics | Electrical insulation and low weight in suitable designs | Temperature limits, creep, moisture absorption, and load capacity | Selected electronic and insulating applications |
Consider the Operating Environment
For indoor electronics, a suitable brass or aluminum standoff may provide an effective combination of weight, machinability, and assembly convenience. For environments with moisture or corrosive exposure, an appropriately selected stainless steel grade or protective finish may be more suitable.
However, stainless steel is not immune to every corrosive environment, and a plated component is not automatically suitable for outdoor or chemical exposure. The specific alloy, finish, contaminants, humidity, temperature, and maintenance conditions all matter.
Evaluate Electrical and Thermal Requirements
Metal standoffs can create electrical continuity between connected components, depending on their contact surfaces and assembly design. If electrical isolation is required, the engineer should assess insulating materials, insulating washers, and the complete mounting arrangement.
Similarly, a metal standoff may conduct heat between components. Thermal expansion can also influence the fit and loading of tightly constrained assemblies. These effects deserve attention in temperature-sensitive electronics and precision equipment.
Check Compatibility Between Dissimilar Metals
When different metals are in electrical contact in a conductive environment, galvanic corrosion may occur. The risk depends on the metal combination, electrolyte, surface condition, and design. Matching the standoff material and finish to the mating components can help reduce avoidable durability problems.
6. A Practical Selection Process for Engineers and Buyers
A repeatable selection process makes purchasing easier and reduces the risk of receiving components that cannot be used on the production line.
Step 1: Define Both Threaded Connections
Record the male and female thread sizes, pitches, thread standards, and required tolerances. Confirm whether both ends use the same thread specification or require different interfaces.
Step 2: Establish the Required Spacing
Measure the distance between the intended support surfaces. Include the thickness of mounting plates, washers, brackets, and other relevant parts. Account for tolerance accumulation when the assembly has strict alignment or clearance requirements.
Step 3: Confirm Thread Engagement
Check the available male thread length and the usable female thread depth. Ensure that the joint has adequate engagement for its intended loads and that the screw cannot bottom out prematurely.
Step 4: Select the Material and Finish
Evaluate mechanical loads, operating temperature, humidity, chemical exposure, electrical requirements, appearance, and budget. Specify the material grade and finish rather than relying on a general material name alone.
Step 5: Verify Tool Access and Clearance
Check the hex width against the available wrench or socket. Ensure that the body can be gripped and installed without damaging nearby components or obstructing adjacent fasteners.
Step 6: Approve a Drawing or Representative Sample
For critical or customized applications, review a dimensioned drawing and confirm all measurement conventions. Where appropriate, evaluate a sample in the real assembly before authorizing full production.
Step 7: Confirm Production and Inspection Requirements
Agree on applicable tolerances, thread inspection, finish requirements, packaging, lot identification, and documentation. These requirements are particularly important for repeat orders and multi-site manufacturing.
Example: Specifying a PCB Mounting Standoff
Imagine an engineer designing an electronic control unit that needs a board mounted above a metal support plate. The engineer must first identify the thread in the support plate and the screw interface on the board side. The required spacing is then determined from the board position, component clearance, and enclosure geometry.
Next, the engineer checks whether a metal standoff could create an unwanted electrical path, whether the selected thread depths accommodate the screws, and whether the hex body can be reached with the available tool. A sample assembly can then be inspected for fit, alignment, and fastening performance.
This process helps resolve compatibility issues before they become production delays or field-service problems.
7. Installation Best Practices for Consistent Results
Even a correctly specified Male-Female Threaded Hex Standoff can perform poorly if it is installed incorrectly. Good installation practices protect the threads, preserve the intended spacing, and reduce the likelihood of loosening or damage.
Inspect Before Assembly
- Check for damaged threads, burrs, contamination, and visible surface defects.
- Confirm the thread size and pitch of the mating components.
- Verify that the body length and projecting thread match the approved drawing.
- Ensure that the mounting surfaces are clean and suitable for contact.
Start Threads Carefully
Engage the threads by hand where practical before applying a tool. If resistance occurs unexpectedly, stop and investigate rather than forcing the connection. Cross-threading can damage the standoff and mating component, resulting in costly rework or replacement.
Use Appropriate Tools
Select a wrench or socket that fits the hex body properly. Avoid tools that round off the flats or apply uncontrolled force. If the assembly specification defines a tightening torque, follow the approved value and the applicable engineering procedure.
There is no universal torque value for every Male-Female Threaded Hex Standoff. The correct value depends on thread size, material, lubrication, mating components, and joint design. Excessive torque can strip internal threads or damage the connected parts.
Prevent Bottoming and Unwanted Interference
Confirm that the installed screw has sufficient engagement without reaching the bottom of a blind hole before the joint is properly clamped. Check for interference between the standoff, mounting plate, nearby components, and enclosure walls.
Consider Vibration and Repeated Service
Assemblies exposed to vibration may need additional joint-design measures, depending on the application. Thread-locking compounds, locking features, or other retention methods should only be used when compatible with the materials, service requirements, and maintenance procedures.
For equipment that is regularly disassembled, evaluate whether repeated installation could wear the threads or damage the surface finish. Establish suitable inspection and replacement criteria for critical connections.
8. Quality Control and Supplier Evaluation
For B2B buyers, consistent product quality is just as important as an attractive unit price. A minor dimensional difference can cause assembly interference, inconsistent spacing, or difficulty engaging a mating screw. Evaluating a supplier's ability to control dimensions and communicate specifications helps reduce these risks.
Dimensional Inspection
Relevant inspection points may include body length, hex width, male thread length, overall length, and female thread depth. The inspection plan should reflect the approved drawing, the critical dimensions, and the application's tolerance requirements.
Thread Verification
Appropriate thread gauges and inspection methods can help verify thread conformity. The required thread class and acceptance criteria should be agreed upon in advance, especially for mixed metric and imperial orders or assemblies with tight tolerances.
Material and Finish Verification
Buyers should clearly specify material grades and surface treatments. Where required by the application, request relevant material documentation, coating information, or test reports. For corrosive environments, define the applicable corrosion-test method and acceptance criteria instead of relying on vague claims such as "rustproof."
Batch Consistency and Traceability
Repeat orders should match the approved product specification. Consistent packaging, part identification, batch records, and change-control procedures can make it easier to manage inventory and investigate quality issues.
Questions to Ask a Potential Supplier
- Can the supplier manufacture the required male and female thread combination?
- Are customized body lengths, hex dimensions, materials, and finishes available?
- What dimensional and thread inspection procedures are used?
- Can the supplier review technical drawings before production?
- What are the minimum order quantity, sample lead time, and production lead time?
- Can the supplier provide agreed quality documentation and maintain consistency across repeat orders?
For buyers evaluating precision fastening partners, Ningbo Frienden Precision Components Co., Ltd is a relevant company to contact regarding precision component requirements. Buyers should confirm product availability, applicable specifications, and customization capabilities directly with the company before placing an order.
9. Common Purchasing and Engineering Mistakes
Mistake 1: Specifying Only the Nominal Thread Diameter
Two threads with similar diameters may differ in pitch, profile, or standard. Always identify both threaded ends completely and verify compatibility with the mating hardware.
Mistake 2: Confusing Body Length with Overall Length
Incorrect length interpretation can change the board height or prevent proper installation. Reference a dimensioned drawing and explicitly identify which length is required.
Mistake 3: Ignoring Female Thread Depth
A screw that is too long may bottom out or interfere with an internal feature. A screw that is too short may not achieve adequate engagement. Check the actual assembled geometry before approving the specification.
Mistake 4: Choosing Material Based Only on Price
A low-cost material may not provide the required corrosion resistance, stiffness, or thread durability. Consider the complete service environment and the cost of potential rework or premature failure.
Mistake 5: Overlooking Electrical Isolation
Metallic standoffs can create unintended conductive paths. Confirm grounding and insulation requirements as part of the assembly design rather than treating them as an afterthought.
Mistake 6: Failing to Validate Custom Parts
When using nonstandard dimensions or special finishes, verify the drawing, sample, and acceptance criteria before mass production. A small upfront validation effort can help avoid large quantities of unusable components.
Mistake 7: Comparing Suppliers on Unit Price Alone
Lead time, inspection quality, material consistency, packaging, technical communication, and repeat-order reliability also affect the total cost of procurement. A suitable supplier should support the requirements of the complete production process.
10. Frequently Asked Questions
Q1. What is a Male-Female Threaded Hex Standoff used for?
It creates a defined space between components while providing an external male thread on one end and an internal female thread on the other. Common uses include PCB mounting, electrical enclosures, instrumentation, control panels, and industrial assemblies.
Q2. What is the difference between a hex standoff and a round standoff?
A hex standoff has flat sides that can be gripped with a suitable wrench, while a round standoff has a cylindrical body. The hex profile can simplify controlled installation where tool access is available. The best option depends on clearance, installation method, and design requirements.
Q3. Which material is best for a Male-Female Threaded Hex Standoff?
There is no single best material for every application. Brass may be suitable for many electronic and electrical assemblies, stainless steel may be appropriate for certain demanding environments, aluminum can reduce weight, and engineering plastics can provide insulation in suitable conditions. Confirm the required properties and material grade before ordering.
Q4. Can a Male-Female Threaded Hex Standoff be customized?
Customization may include thread sizes, body length, male thread length, female thread depth, hex width, material, surface finish, and packaging. Availability depends on the manufacturer's production capabilities, tooling, tolerances, and order requirements.
Q5. How can I avoid thread mismatch during installation?
Specify the complete thread designation, including nominal diameter, pitch or threads per inch, and applicable thread standard. Verify both the male and female interfaces against the mating components. Do not force a connection that exhibits unexpected resistance.
Q6. How do I determine the correct standoff length?
Measure the required separation between the intended support surfaces and account for the thickness of all relevant components. Confirm whether the supplier's length dimension describes the body alone or the overall part, and review thread projection and engagement depth.
Q7. Are stainless steel standoffs always corrosion-proof?
No. Stainless steel grades differ in corrosion resistance, and performance depends on the environment, surface condition, contaminants, and contact with other materials. Select an appropriate grade and finish for the actual operating conditions.
Q8. What information should I provide when requesting a quotation?
Provide the male and female thread specifications, body length, male thread length, female thread depth, hex width, material, finish, quantity, drawing, inspection requirements, and intended application. Also state any special packaging or documentation needs.
Q9. How can I check the quality of a standoff shipment?
Inspect the received parts against the approved drawing and purchase specification. Check critical dimensions, thread condition, surface finish, quantity, and packaging. Use suitable gauges and documented acceptance criteria where required by the application.
Q10. What should I consider before ordering in bulk?
Confirm the production drawing, sample approval requirements, material and finish specifications, critical tolerances, inspection plan, lead time, packaging, and repeat-order controls. For custom parts, clarify how design changes will be reviewed and approved.
11. Conclusion: Make Every Connection Count
Selecting the right Male-Female Threaded Hex Standoff requires a clear understanding of the complete assembly. Thread compatibility, body length, engagement depth, hex dimensions, material, finish, and operating conditions all contribute to dependable performance.
For engineers, the priority is to translate functional requirements into a precise and verifiable component specification. For purchasing teams, the goal is to work with suppliers who understand those requirements and can provide consistent products, clear technical communication, and appropriate quality controls.
A well-chosen standoff can simplify assembly, maintain component spacing, reduce unnecessary hardware, and support easier maintenance. A poorly specified one can introduce avoidable fitting problems and production costs. Taking time to confirm dimensions and validate critical parts is therefore a practical investment in product quality.
