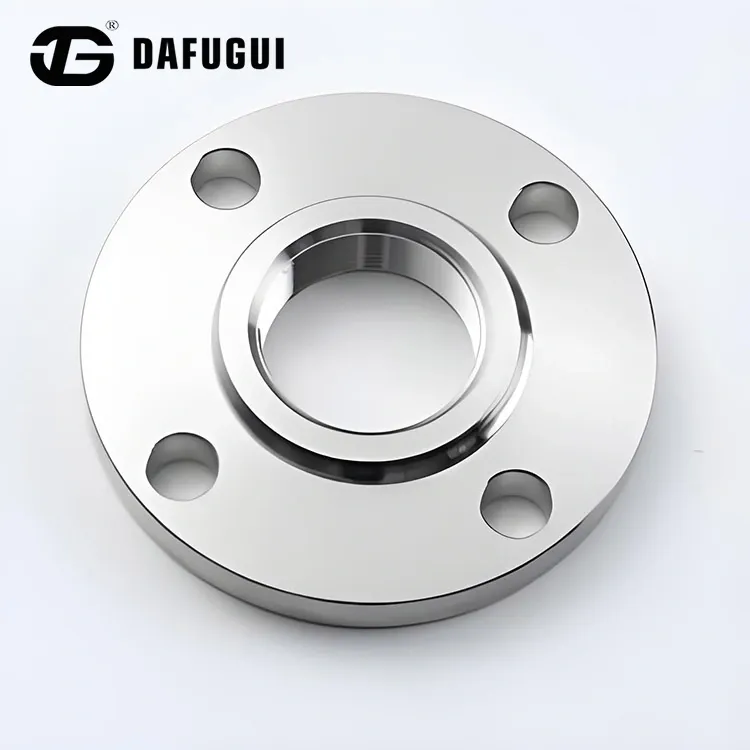

What Standards Govern Stainless Steel Socket Weld Flanges
2025-12-30
When specifying Stainless Steel Socket Weld Flanges for critical piping systems, understanding the governing standards is paramount for ensuring safety, performance, and regulatory compliance. These standards define everything from dimensions and pressure ratings to material chemistry and marking requirements. As a leader in precision-engineered piping components, Dafugui manufactures its flanges in strict adherence to these international benchmarks, guaranteeing reliability and interchangeability for our global clientele.
Key Standards for Stainless Steel Socket Weld Flanges
Compliance with recognized standards ensures that flanges from different manufacturers can work together seamlessly. The primary standards include:
-
ASME B16.5: This is the cornerstone standard covering pipe flanges and flanged fittings for sizes NPS 1/2 through NPS 24. It standardizes pressure-temperature ratings, dimensions, tolerances, marking, and materials.
-
ASME B16.34: This standard covers valves but is crucial as it provides the pressure-temperature ratings for the flanged ends, which must align with the flange ratings from B16.5.
-
ASTM Material Standards: These specify the chemical and mechanical properties of the stainless steel used.
-
ASTM A182: Standard for forged or rolled alloy and stainless steel pipe flanges.
-
ASTM A240: Standard for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels.
-
-
MSS SP-44: A standard for steel pipeline flanges, often compared and used alongside ASME B16.5.
-
ISO 7005-1: The international (ISO) counterpart, which aligns closely with ASME standards to facilitate global projects.
The table below summarizes the core focus of these key standards:
| Standard Code | Primary Focus | Relevance to Stainless Steel Socket Weld Flanges |
|---|---|---|
| ASME B16.5 | Dimensions, Ratings, Tolerances | Defines the critical face-to-face dimensions, pressure classes (150, 300, 600, etc.), and manufacturing tolerances. |
| ASTM A182 | Material Specification | Governs the quality, chemistry, and heat treatment of the forged stainless steel material (e.g., Grades F304, F316). |
| MSS SP-44 | Steel Pipeline Flanges | Often specified for larger diameter or pipeline applications, providing an alternative set of dimensions and ratings. |
Stainless Steel Socket Weld Flanges FAQ
What are the main advantages of choosing a socket weld flange over other types?
Socket weld flanges provide excellent flow characteristics, high structural integrity, and are ideal for small-diameter, high-pressure piping systems where frequent disassembly is not required. The fillet weld on the outside provides good fatigue strength.
How do I interpret the pressure rating markings on a flange?
The pressure class (e.g., Class 150, 300) marked on a flange is based on ASME B16.5 standards. It indicates the maximum allowable pressure at a given temperature. A Class 300 flange can withstand higher pressure than a Class 150 flange at the same temperature. Always consult the ASME pressure-temperature rating tables for precise values.
What is the proper gap required before welding a socket weld flange?
A critical installation detail is leaving a 1.6mm (1/16 inch) gap between the pipe end and the shoulder of the socket before welding. This gap allows for thermal expansion during the welding process, preventing residual stress and potential cracks in the weld root.
