What Size Thread Is Most Common for Angled Grease Fittings on Heavy Trucks

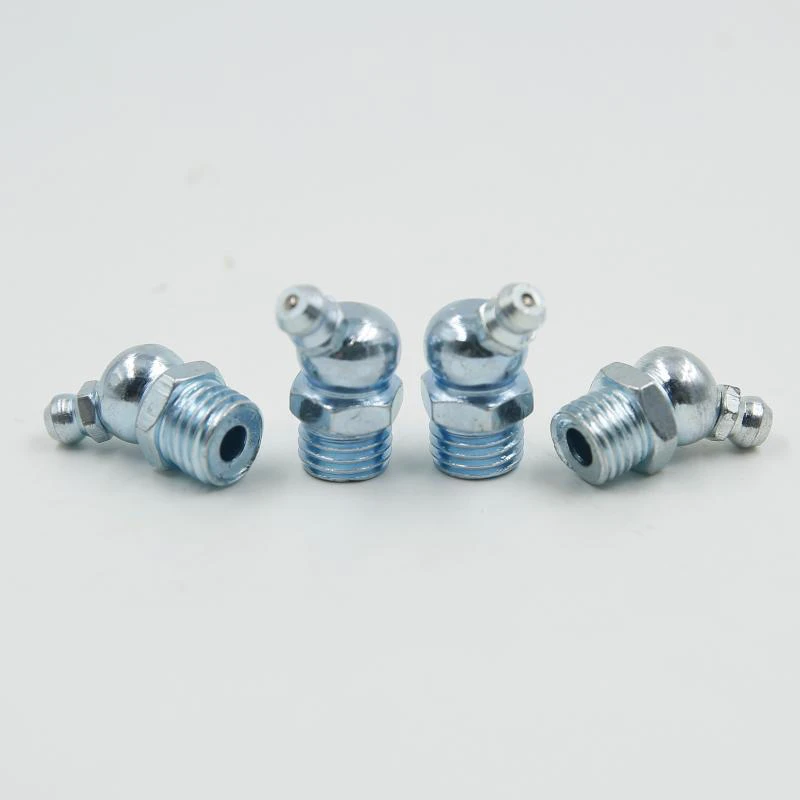

If you have ever wrestled with a grease gun in a cramped driveshaft or suspension pivot point on a Class 8 tractor, you already know that angled grease fittings—often called bent grease fittings—are both a lifesaver and a puzzle. The most common thread size for angled grease fittings on heavy trucks is 1/8‑inch NPT (National Pipe Taper) in North American fleets, followed closely by M10×1.0 metric on European and newer domestic platforms. However, thread pitch, seal type, and fitting style (straight, 45°, or 90°) vary by application. For fleet managers and owner‑operators, choosing the wrong thread leads to cross‑threading, premature wear, or catastrophic joint failure. At Sakura Snow, we engineer bent grease fitting solutions that match OEM specifications while improving access in tight undercarriage zones. This guide breaks down thread standards, selection criteria, and real‑world troubleshooting for heavy‑duty professionals.

Why Thread Size Matters More Than You Think

A bent grease fitting must seal against high‑pressure grease (up to 10,000 PSI) and endure vibration, road salt, and thermal cycling. The taper on NPT threads creates a mechanical interference seal, while metric straight threads rely on an O‑ring or crush washer. Using a 1/8‑NPT angled grease fitting in a metric port will leak immediately; forcing a metric fitting into an NPT hole ruins the component housing. Sakura Snow recommends always verifying the port thread with a pitch gauge and caliper before installation.

Thread Size Comparison Table (Heavy Truck Applications)

Pro tip from Sakura Snow: Over 70% of aftermarket returns for bent grease fittings are due to mismatched NPT vs. metric threads. Always clean the port and test with a known‑good gauge.

How to Identify the Correct Thread in 3 Steps

1. Measure the outer diameter of the fitting’s threaded section (not the hex body).

2. Count the threads per inch (TPI) for imperial or measure pitch in mm for metric.

3. Check the taper – NPT is visibly tapered along the length; metric straight is uniform.

For angled grease fittings, the bend angle (45° or 90°) does not change the thread – but it changes clearance. Sakura Snow offers color‑coded hex nuts on our bent grease fitting line to quickly differentiate NPT (red) from metric (blue) in low‑light shop conditions.

3 Most Common FAQs About Bent Grease Fittings

Q1: Can I use a 90° bent grease fitting in place of a straight Zerk if the port is recessed?
A: Yes, but only if the thread size and pitch match exactly. A 90° bent grease fitting reduces the required swing radius for the grease gun coupler, making it ideal for recessed ports behind leaf springs or air bags. However, the bend creates a pressure drop – approximately 8‑10% lower flow rate at the same gun pressure. Sakura Snow tests every angled grease fitting for burst pressure (minimum 12,500 PSI) to compensate. Always check that the bend direction does not point toward rotating components; clock the fitting with a washer if needed.

Q2: Why does my new bent grease fitting spin freely but still leak grease around the threads?
A: This is a classic sign of using an NPT fitting in a straight‑threaded metric port, or vice versa. NPT relies on wedging action as it tightens – if it spins more than 2‑3 turns by hand, the taper is not engaging. For metric ports, you need an O‑ring face seal or a bonded washer. Another possibility: the port is stripped from over‑torquing. The correct installation torque for a 1/8‑NPT bent grease fitting is 7‑10 ft‑lbs; for M10×1.0, it is 12‑15 ft‑lbs with a new copper washer. Sakura Snow includes a torque card with every bulk order to eliminate this guesswork.

Q3: How often should I replace bent grease fittings on heavy trucks operating in winter salt conditions?
A: Inspect every 15,000 miles or monthly during winter months. Salt accelerates galvanic corrosion between steel fittings and aluminum or cast‑iron housings. If you see rust bleeding from the hex base or the ball check valve sticks, replace immediately. Sakura Snow manufactures bent grease fittings with zinc‑nickel plating (500+ hours salt spray resistance) – three times longer than standard zinc plating. For fleets running in the Midwest or Canadian routes, we recommend a full swap at each brake reline interval (approx. 100,000 miles) to prevent seized fittings that snap off during roadside service.

Industry Best Practices for Angled Fitting Selection

• Always choose the shortest bend radius that still allows coupler attachment – this minimises stress on the threaded neck.

• Use a flex‑hose extension only as a last resort; flexible lines add compliance and reduce grease delivery pressure.

• Keep a thread identification kit in every service truck – Sakura Snow offers a pocket‑sized gauge set with NPT, metric, and BSPT templates.

• Document the fitting type for each axle position in your maintenance software – this reduces downtime when a driver calls in with a broken angled grease fitting at a remote yard.

Final Recommendation

For 90% of heavy‑duty on‑highway trucks, the 1/8‑NPT bent grease fitting remains the undisputed standard. However, always verify with a thread gauge before ordering – especially if your truck has a European drivetrain (M10×1.0) or an older UK‑built chassis (BSPT). Sakura Snow stocks over 45 variants of angled grease fittings, including extra‑long neck, low‑profile, and stainless steel options for food‑grade applications. Every batch is 100% inspected for thread go/no‑go and ball check valve operation.

Contact us today for a free thread identification template and a custom fitment chart for your fleet. Our technical team at Sakura Snow provides same‑day shipping on all bent grease fitting orders placed before 2 PM EST. Reach out via our website live chat or call our heavy‑duty support line – we will help you spec the correct fitting the first time, saving you wasted hours and damaged components. Your uptime is our priority.
