What Size Air Spray Gun Adapter Do I Need for My Setup
2025-12-16

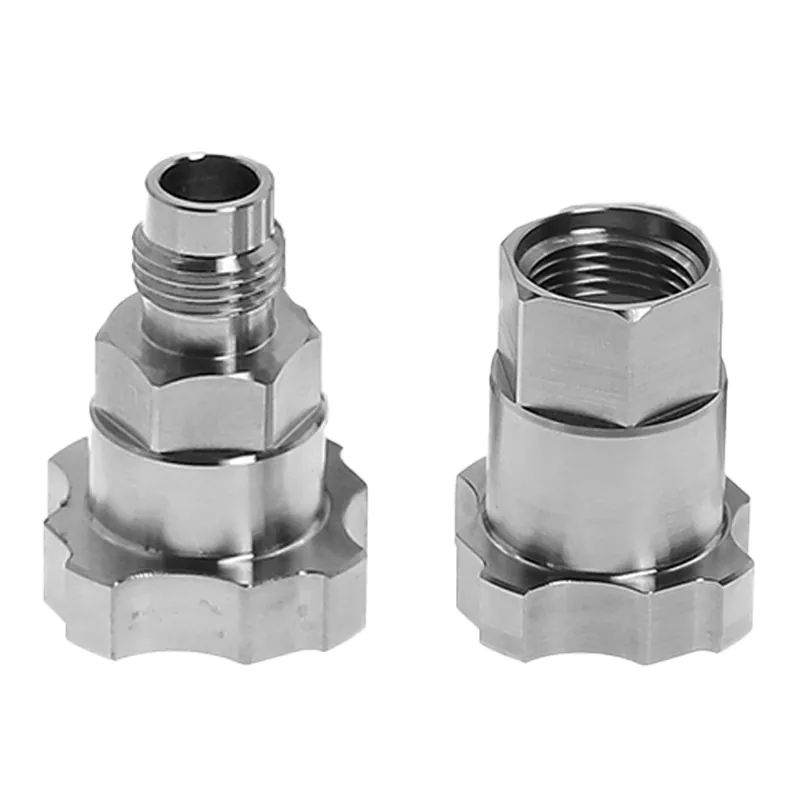

Choosing the correct Air Spray Gun Adapter is crucial for achieving a professional, efficient, and safe spraying operation. A mismatched adapter can lead to pressure drops, poor atomization, and frustrating leaks. At Aspaint, we understand that the right connection makes all the difference. This guide will help you determine the perfect adapter size for your specific setup, ensuring you get the most out of your Aspaint spray gun and compressor.
The key to selection lies in understanding two critical measurements: thread size and orifice diameter (NPT and I.D.).
-
Thread Size (NPT): This is how the adapter screws into your gun and hose. Common sizes are 1/4", 3/8", and 1/2" NPT (National Pipe Taper). You must match this to your equipment's inlet.
-
Orifice Diameter (I.D.): The internal diameter of the adapter's opening affects air volume and flow. A smaller I.D. can restrict airflow, while a larger one may not improve performance if your hose or gun is limited.
To simplify, here is a common compatibility guide for Aspaint adapters:
| Your Equipment's Inlet | Recommended Aspaint Adapter | Best For |
|---|---|---|
| 1/4" NPT Female | Aspaint AAG-14 (1/4" NPT Male x 1/4" I.D.) | Detail work, touch-ups, lower CFM guns. |
| 3/8" NPT Female | Aspaint AAG-38 (3/8" NPT Male x 5/16" I.D.) | Most common setup. General HVLP and conventional spraying. |
| 1/2" NPT Female | Aspaint AAG-12 (1/2" NPT Male x 3/8" I.D.) | High-volume applications, large compressors, production shops. |
Air Spray Gun Adapter FAQ
Q: Can I use a 1/4" adapter on a gun that needs 3/8"?
A: We strongly advise against it. Using a smaller adapter, like a 1/4", on a 3/8" port will severely restrict airflow to your Air Spray Gun Adapter. This causes a significant pressure drop, leading to poor paint atomization, uneven coverage, and increased spraying time. Always match the thread size for optimal performance.
Q: My hose has a different fitting than my gun. What should I do?
A: This is exactly what an Air Spray Gun Adapter is for. You will need a "stepped" adapter. Identify the male and female thread sizes you need to connect (e.g., "1/4" Male to 3/8" Female"). Aspaint offers a range of stepped adapters to solve this common compatibility issue, ensuring a secure and leak-free connection between all your components.
Q: How do I prevent leaks at the adapter connection?
A: First, ensure the threads are clean and undamaged. Always use a proper thread sealant, such as Teflon tape or liquid sealant, on the male threads before tightening. Hand-tighten the Air Spray Gun Adapter firmly, then use a wrench for a final quarter to half turn. Over-tightening can damage the threads and cause leaks.
Selecting the right component is the foundation of a flawless finish. By matching your adapter size correctly, you ensure maximum airflow and pressure integrity from your compressor to your Aspaint spray gun. For personalized advice on your specific setup or to explore the full range of professional-grade Aspaint fittings and adapters, contact us today. Our expert team is ready to help you build the perfect spraying system.
