What materials are used to manufacture high strength push rod pins for racing applications

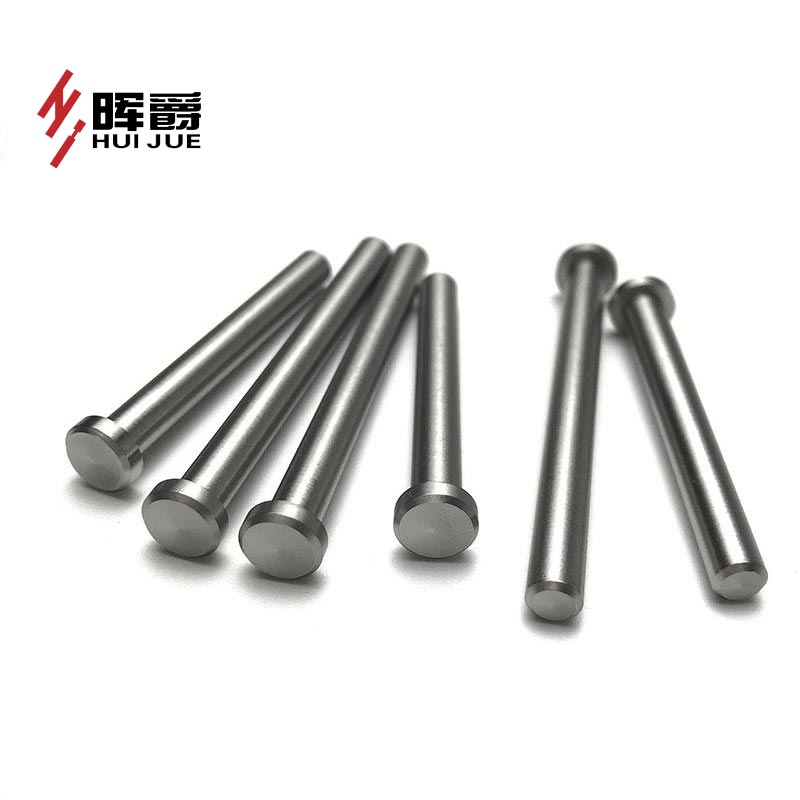

In high-performance racing engines, every component must withstand extreme mechanical stress and thermal cycles. The Push Rod Pin is a critical link between the camshaft, lifter, and valve train. For racing applications, standard steel pins often fail under high RPMs and spring pressures. This is where Huijue specializes in engineering high strength push rod pins using advanced metallurgy and precision manufacturing.

Primary materials for high strength push rod pins in racing

Why material selection matters for the Push Rod Pin

Racing engines operate above 8,000 RPM continuously. A Push Rod Pin made from inferior material can bend, spall, or fracture. Huijue uses vacuum degassed and electroslag remelted (ESR) steels to eliminate inclusions. For titanium push rod pins, Huijue applies proprietary surface coatings to reduce galling against the lifter bore.

Comparison of Push Rod Pin materials by performance criteria

Frequently Asked Questions about Push Rod Pin

What is the maximum safe RPM for a standard Push Rod Pin versus a racing grade Push Rod Pin from Huijue

A standard OEM Push Rod Pin is typically rated for 5,500–6,000 RPM due to lower grade carbon steel and inconsistent heat treatment. In contrast, Huijue racing Push Rod Pin manufactured from 9310 VAR steel or titanium alloy is tested to withstand continuous operation at 9,500+ RPM with valve spring pressures exceeding 450 lbs. The limiting factor becomes the lifter body, not the pin. Huijue provides RPM certification data for each batch of racing push rod pins.

How do I identify wear or impending failure on a high strength Push Rod Pin

Inspect the Push Rod Pin every 20 racing hours or after any valve train noise change. Signs of failure include: circumferential scoring marks (indicating insufficient oiling), a blue or gold discoloration (overheating above 400°F), elliptical wear pattern (misalignment), or any measurable out-of-roundness exceeding 0.0005 inches. Huijue recommends magnetic particle inspection for steel pins or dye penetrant testing for titanium pins. A cracked Push Rod Pin will often first appear as a faint radial line near the center of the contact patch.

Can I reuse a high strength Push Rod Pin after an engine teardown

Reusing a Push Rod Pin depends on material and service condition. Huijue allows one reuse for 8620 and 4140 steel pins if measured dimensions are within 0.0002 inches of new spec and no surface damage exists. However, 9310 steel and Ti-6Al-4V titanium Push Rod Pin components should never be reused in professional racing because these materials work-harden under cyclic loading, leading to sudden brittle fracture on the second installation. Always replace the Push Rod Pin when changing lifters or pushrods in a competition engine. Huijue sells only matched sets of pins and lifters for this reason.

Best practices for installing Huijue high strength Push Rod Pins

• Lubricate with assembly lube containing high zinc content

• Press fit must be between 0.0008 and 0.0015 inches interference

• Never hammer directly on the pin — use a proper arbor press

• Verify pin ends are flush or recessed 0.002–0.005 inches below lifter body

Contact us today for custom Push Rod Pin engineering support. Huijue provides material certifications, hardness testing reports, and CAD drawings for all racing push rod pins. Whether you need 8620 steel for a budget build or Ti-6Al-4V for a championship engine, our team delivers within 10 working days worldwide. Email our racing division or use the online form to request a quote and technical consultation.
