What Makes Triangular Spline Motor Shaft a Reliable Choice for Precision Transmission?

In modern mechanical transmission systems, precision, stability, and customization have become essential factors for improving equipment performance. A well-designed shaft component can directly influence power transfer efficiency, operating life, and overall reliability. The Triangular Spline Motor Shaft is a specialized transmission component designed with a triangular tooth profile, offering excellent centering performance, smooth rotation, and compact installation advantages. Ningbo Guanshuo Precision Hardware Co., Ltd. provides high-quality triangular spline shaft solutions with professional manufacturing capabilities and strong support for customized designs, helping customers achieve optimized solutions for different motor and mechanical applications.

What Is a Triangular Spline Motor Shaft?

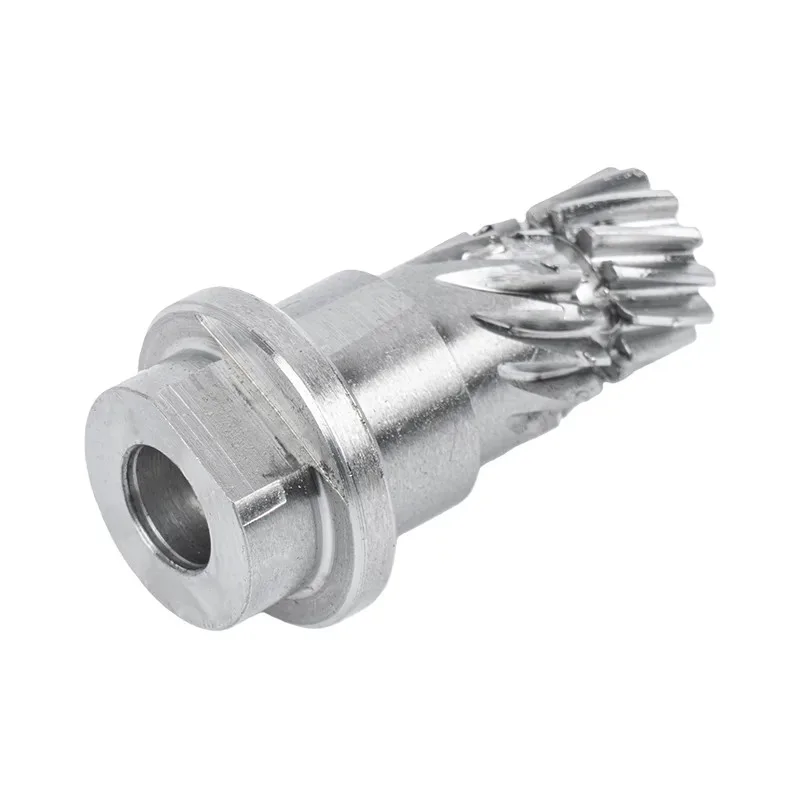

A Triangular Spline Motor Shaft is a precision-machined shaft featuring multiple triangular spline teeth distributed around the shaft surface. These teeth work together with matching spline components to transmit torque while maintaining accurate positioning and stable operation.

Compared with traditional shaft structures, the triangular spline design provides a compact tooth profile and efficient force distribution. It is especially suitable for applications where installation space is limited and smooth transmission performance is required. The simple geometry also contributes to easier processing, lower manufacturing costs, and reliable production consistency.

Ningbo Guanshuo Precision Hardware Co., Ltd. specializes in manufacturing precision hardware components and provides customized Triangular Spline Motor Shaft solutions according to customer drawings, samples, dimensions, material requirements, and application environments.

Why Is Triangular Spline Motor Shaft Important?

The motor shaft is a key connection element between the motor and driven mechanism. Any weakness in shaft design may cause vibration, energy loss, inaccurate movement, or premature equipment failure.

A high-quality Triangular Spline Motor Shaft helps solve common engineering challenges through:

For industries requiring continuous operation and precise motion control, selecting the right spline shaft can significantly improve productivity and equipment durability.

What Are the Main Advantages of Triangular Spline Motor Shaft?

1. Excellent Self-Centering Performance

One of the most important advantages of triangular spline structures is their effective centering capability. The contact between spline teeth helps maintain coaxial alignment during rotation, reducing unnecessary movement and improving transmission stability.

This feature makes the shaft suitable for equipment requiring smooth operation and controlled positioning, including motors, automation equipment, and precision mechanical systems.

2. Compact Structure and Space Efficiency

Many modern machines require smaller components without sacrificing performance. The triangular tooth profile allows the shaft to maintain effective torque transmission while reducing overall radial space requirements.

Compared with some traditional spline designs, triangular spline structures can provide advantages in compact mechanical assemblies where limited installation space is a major concern.

3. Cost-Effective Manufacturing

The relatively simple triangular profile allows efficient machining processes. This helps reduce production complexity while maintaining consistent quality.

Ningbo Guanshuo Precision Hardware Co., Ltd. combines advanced machining technology with strict quality control procedures to provide cost-effective solutions for both prototype development and large-volume production.

4. Strong Customization Capability for Different Applications

Every mechanical system has different requirements regarding shaft diameter, spline length, material selection, tolerance, and surface treatment. Standard products may not always meet specific engineering needs.

Therefore, Ningbo Guanshuo Precision Hardware Co., Ltd. highlights customized manufacturing as a core advantage. Customers can request tailor-made Triangular Spline Motor Shaft designs based on:

• Shaft diameter and length requirements

• Torque transmission needs

• Material specifications

• Surface treatment preferences

• Assembly conditions

• Special equipment structures

Whether customers need modifications for existing machines or completely new designs, professional engineering support can help develop suitable shaft solutions.

Triangular Spline Motor Shaft vs Traditional Shaft Designs

This comparison shows why spline-based motor shafts are increasingly preferred in applications requiring stable power transmission and accurate mechanical movement.

What Applications Use Triangular Spline Motor Shaft?

The Triangular Spline Motor Shaft can be applied in various industries where reliable transmission performance is required.

Common applications include:

• Small and medium electric motors

• Automation equipment

• Precision mechanical devices

• Industrial transmission systems

• Robotics and motion control equipment

• Customized machinery assemblies

Because different industries have unique operating conditions, customized shaft manufacturing becomes increasingly important. Ningbo Guanshuo Precision Hardware Co., Ltd. works closely with customers to provide suitable designs for different application scenarios.

How Does Ningbo Guanshuo Ensure Product Quality?

Producing a reliable spline motor shaft requires strict control throughout the manufacturing process. Ningbo Guanshuo Precision Hardware Co., Ltd. focuses on precision machining, dimensional accuracy, and consistent production quality.

The manufacturing process generally includes:

1. Raw material selection according to application requirements

2. Precision machining of shaft dimensions and spline profiles

3. Surface treatment to improve durability and performance

4. Quality inspection for size accuracy and assembly compatibility

5. Customized packaging and delivery solutions

Through professional manufacturing management, the company aims to provide customers with stable and dependable transmission components.

Why Choose Customized Triangular Spline Motor Shaft Solutions?

A customized shaft solution provides several advantages:

• Better compatibility with existing equipment

• Improved transmission efficiency

• Reduced installation problems

• Optimized production costs

• Longer service life

Instead of adjusting equipment designs to fit standard shafts, customers can work with Ningbo Guanshuo Precision Hardware Co., Ltd. to create shafts that match their exact requirements.

Conclusion

The Triangular Spline Motor Shaft is an important precision component that combines compact design, smooth transmission, reliable alignment, and flexible customization. Its unique triangular spline structure makes it suitable for applications requiring stable torque transfer and accurate mechanical performance.

With professional manufacturing experience and strong customized production capability, Ningbo Guanshuo Precision Hardware Co., Ltd. provides reliable spline shaft solutions for customers worldwide. From standard requirements to complex customized designs, the company is committed to delivering precision components that support efficient and durable mechanical systems.

For customized Triangular Spline Motor Shaft solutions, professional technical support, or quotation requests, contact us today. Ningbo Guanshuo Precision Hardware Co., Ltd. is ready to discuss your project requirements and provide the right precision shaft solution for your application.
