What Makes Fan Motor Shafts Reliable for High-Performance Fans?

A fan may look simple from the outside, but its rotating system depends on precise mechanical components working together. Among them, Fan Motor Shafts play a central role in transmitting rotational torque from the motor to the fan impeller or other rotating components. Their dimensional accuracy, material properties, surface condition, and structural design can directly influence vibration, noise, service life, and operating stability. For manufacturers and industrial buyers, selecting properly engineered Fan Motor Shafts is therefore an important part of building dependable fan equipment. Ningbo Huijue Machinery Manufacturing Co., Ltd. provides precision-machined shaft solutions designed around different motor structures, operating conditions, and customer specifications.

What Are Fan Motor Shafts?

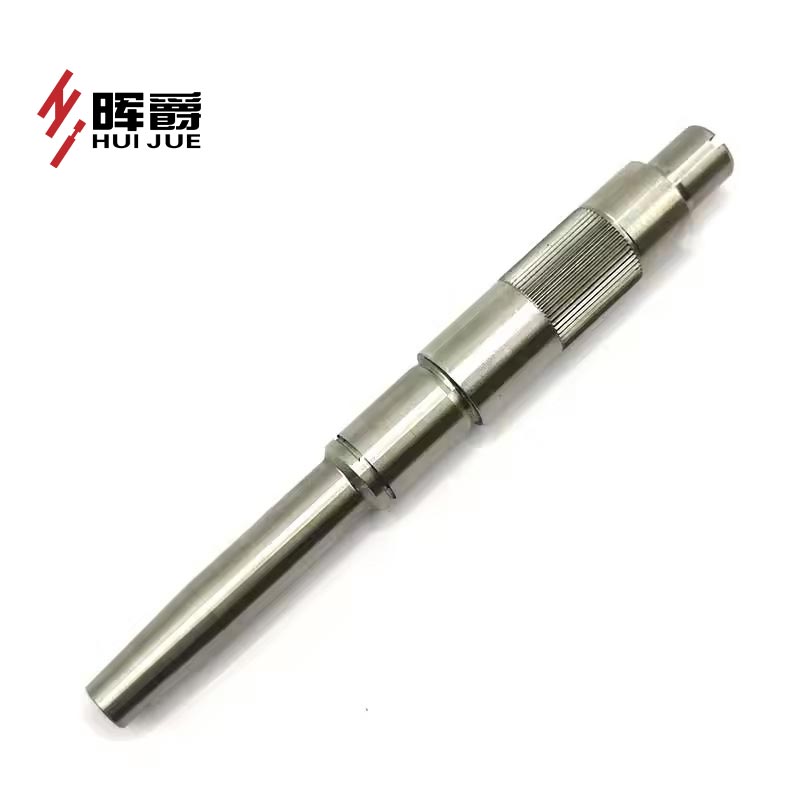

Fan Motor Shafts are rotating mechanical components that transfer the motor's torque to a fan blade, impeller, pulley, or other driven component. They are typically installed together with bearings and other transmission parts, forming an essential connection between the motor and the fan assembly.

A properly designed shaft needs to maintain stable rotation while handling torque, radial loads, vibration, and repeated operating cycles. Engineering considerations can include shaft diameter, concentricity, runout, surface finish, material strength, critical speed, and bearing interfaces.

For customized fan equipment, the shaft cannot simply be selected according to length and diameter. Its geometry should match the complete motor and fan assembly.

Why Are Fan Motor Shafts Important?

The shaft is directly involved in power transmission and rotational stability. Even a small dimensional deviation at a bearing seat, keyway, threaded section, or mating surface can affect assembly accuracy and operating performance.

The importance of precision Fan Motor Shafts can be understood through several functions:

• Torque transmission: Transfers rotational power from the motor to the fan assembly.
• Rotational stability: Helps maintain smooth and consistent rotation.
• Component connection: Provides mounting interfaces for bearings, impellers, pulleys, and other components.
• Load support: Handles mechanical loads generated during continuous operation.
• Service durability: Proper material selection and surface treatment can improve resistance to wear and fatigue.
• Noise and vibration control: Accurate concentricity and runout help reduce unwanted vibration during rotation.

For high-speed applications, shaft design may also need to consider critical speed and torsional stiffness to prevent undesirable resonance or excessive deformation.

How Do Precision Fan Motor Shafts Improve Fan Performance?

The use effect of precision-machined Fan Motor Shafts becomes particularly noticeable in demanding operating environments.

When the shaft dimensions and mating surfaces are properly controlled, the rotating components can maintain better alignment. This can contribute to smoother operation, reduced mechanical vibration, and more consistent power transmission.

For example, a shaft may incorporate different diameters, shoulders, threads, grooves, keyways, or bearing seats according to the motor's structure. CNC turning, milling, grinding, heat treatment, and other processes can be selected according to the required performance.

These factors make customized machining especially valuable when standard shaft dimensions cannot meet the requirements of a particular fan motor.

Which Materials Are Suitable for Fan Motor Shafts?

Material selection should be based on load, rotational speed, temperature, corrosion exposure, production requirements, and expected service life.

Common choices may include carbon steel, alloy steel, bearing steel, and stainless steel. Different grades provide different combinations of strength, hardness, machinability, corrosion resistance, and cost.

Ningbo Huijue Machinery Manufacturing Co., Ltd. can develop shaft manufacturing solutions according to customer drawings and technical specifications, allowing material and processing requirements to be considered together rather than treating them as separate decisions.

For general applications, economical steel grades may be sufficient, while high-speed, high-load, or corrosive environments can require more specialized material and surface-treatment solutions. Material selection should therefore be matched to the actual working conditions rather than simply choosing the highest-strength material.

What Manufacturing Processes Matter?

Precision manufacturing is an important factor in achieving consistent Fan Motor Shafts. A typical production route can include:

1. Raw material preparation – Select material according to the required mechanical properties.
2. Turning – Establish the primary shaft dimensions and stepped geometry.
3. Milling or secondary machining – Produce keyways, flats, slots, threads, or other special features.
4. Heat treatment – Improve hardness, strength, wear resistance, or fatigue performance when required.
5. Grinding and finishing – Refine critical mating surfaces and dimensional accuracy.
6. Quality inspection – Check dimensions, runout, surface condition, and other customer-defined requirements.

This process-based approach is particularly useful for OEM buyers who need repeatable dimensions across production batches.

How Can Customized Fan Motor Shafts Support Different Applications?

Different fan systems can place very different demands on their shafts. Household fans may prioritize compact dimensions and quiet operation, while industrial ventilation systems can require stronger shafts capable of continuous operation under greater loads.

Potential applications include:

• Industrial ventilation fans
• Cooling fans
• Ceiling fans
• Exhaust fans
• HVAC equipment
• Blower systems
• Motor-driven equipment
• Specialized customized fan assemblies

For OEM and ODM projects, customized dimensions can also simplify integration into existing motor housings and fan assemblies.

Why Choose Ningbo Huijue Machinery Manufacturing Co., Ltd.?

For buyers sourcing Fan Motor Shafts, manufacturing capability is only one part of the purchasing decision. Consistency, customization capability, communication, quality control, and delivery reliability are also important.

Ningbo Huijue Machinery Manufacturing Co., Ltd. focuses on precision shaft manufacturing and customized machining solutions. Its approach allows shaft geometry, material, machining requirements, and surface treatment to be considered according to the customer's application.

For engineering teams, this means a customized shaft can be developed around actual assembly requirements instead of forcing an existing standard product into a non-standard application.

Key Advantages

• Custom shaft dimensions and configurations
• Precision machining for critical components
• Multiple material options
• Heat-treatment and surface-treatment solutions
• Support for OEM requirements
• Application-oriented manufacturing
• Quality inspection according to technical specifications
• Suitable for different fan and motor applications

What Should Buyers Consider Before Ordering Fan Motor Shafts?

Before placing an order, buyers should prepare as much technical information as possible. A detailed drawing or sample can significantly improve communication between the engineering and manufacturing teams.

Important information may include:

• Shaft diameter and overall length
• Bearing-seat dimensions
• Thread specifications
• Keyway or slot dimensions
• Required material
• Heat-treatment requirements
• Surface finish
• Dimensional tolerances
• Expected rotational speed
• Operating temperature
• Load and torque requirements
• Quantity and production schedule

Providing these details helps the manufacturer evaluate the shaft as a complete mechanical component rather than as a simple cylindrical part.

Conclusion

Although they are relatively small compared with the complete fan system, Fan Motor Shafts have a major role in torque transmission, rotational stability, component integration, and long-term mechanical performance. Proper material selection, precision machining, heat treatment, surface finishing, and dimensional inspection can help create shafts that are better matched to specific fan applications.

For OEMs, equipment manufacturers, and industrial buyers looking for customized Fan Motor Shafts, Ningbo Huijue Machinery Manufacturing Co., Ltd. offers application-oriented manufacturing support for different shaft configurations and technical requirements. Whether you need a standard production component or a specially engineered shaft, contact us to discuss your drawings, materials, dimensions, and customization requirements and develop a suitable precision shaft solution for your fan motor application.
