What Are the Types of Hydraulic Cylinder Bushings
2025-11-18
Hydraulic cylinder bushings are critical components that guide the piston rod, absorb radial loads, and ensure smooth, precise operation. At Micro Precision, we engineer these components to the highest standards of durability and performance. Understanding the different types is essential for selecting the right bushing for your application and maximizing the life of your cylinder.
The primary Cylinder Bushing types are defined by their material composition, each offering distinct advantages:
-
Bronze Bushings: Known for their excellent wear resistance and compatibility with various fluids. They are often used in general industrial applications.
-

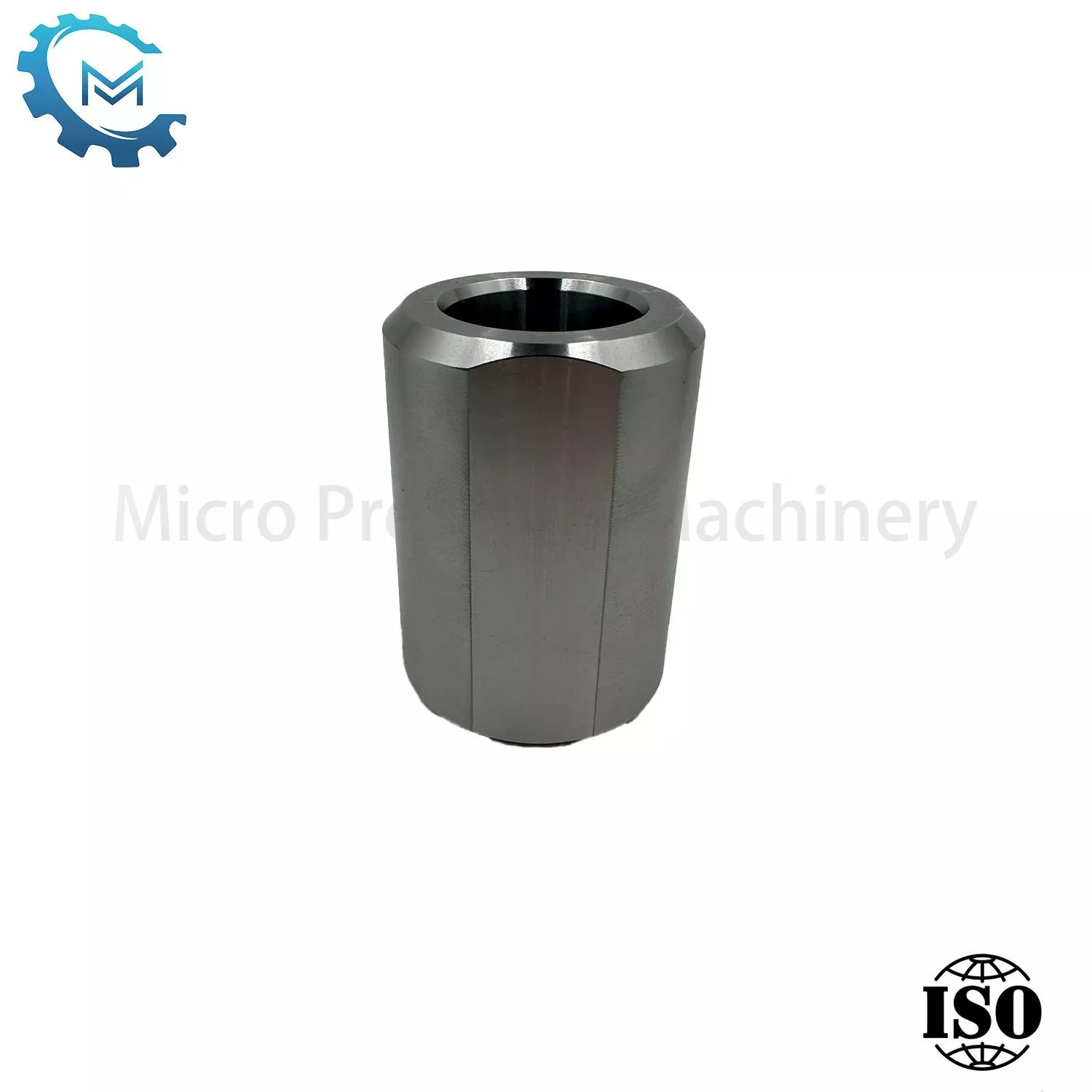

Steel Bushings: These provide superior strength and are typically hardened to withstand extreme pressures and heavy loads.
-
Polymer Composite Bushings: A modern solution offering self-lubricating properties, corrosion resistance, and reduced weight.
Micro Precision Cylinder Bushing Product Specifications
| Feature | Bronze Bushing | Steel Bushing | Polymer Composite Bushing |
|---|---|---|---|
| Material Standard | SAE 841 / C93200 | Case-Hardened Steel 1045 | Proprietary PTFE-Based Composite |
| Hardness | 60-80 HB | 55-62 HRC | 70-80 HRB |
| Max Pressure | 3,000 psi | 7,250 psi | 2,500 psi |
| Temperature Range | -50°F to 450°F | -40°F to 500°F | -100°F to 300°F |
| Coefficient of Friction | 0.15 - 0.25 | 0.10 - 0.20 | 0.03 - 0.10 |
| Key Advantage | Excellent Machinability | Extreme Load Capacity | Self-Lubricating, No Galling |
Cylinder Bushing FAQ
What are the signs of a failing cylinder bushing?
Excessive play or knocking noises from the cylinder, visible scoring on the piston rod, fluid leakage past the rod seal, and a general decrease in system efficiency are all common indicators that a Cylinder Bushing needs replacement.
How do I choose the right bushing material for my hydraulic cylinder?
The choice depends on your operating conditions. For high-load, high-shock applications, a hardened Steel Bushing from Micro Precision is ideal. For standard pressure and excellent all-around performance, Bronze is a reliable choice. If you require minimal maintenance and lubrication-free operation, our Polymer Composite bushings are the superior solution.
Can Micro Precision manufacture custom bushings?
Absolutely. We specialize in custom Cylinder Bushing solutions. We can work with you to create a bushing with non-standard dimensions, special material grades, or unique lubrication features to meet the specific demands of your machinery.
If you are looking for reliable, high-performance bushings that extend the operational life of your equipment, look no further than Micro Precision. Our expertise ensures you get the correct type and specification for your needs.
Contact us today for a personalized consultation and to request a quote for your project.
