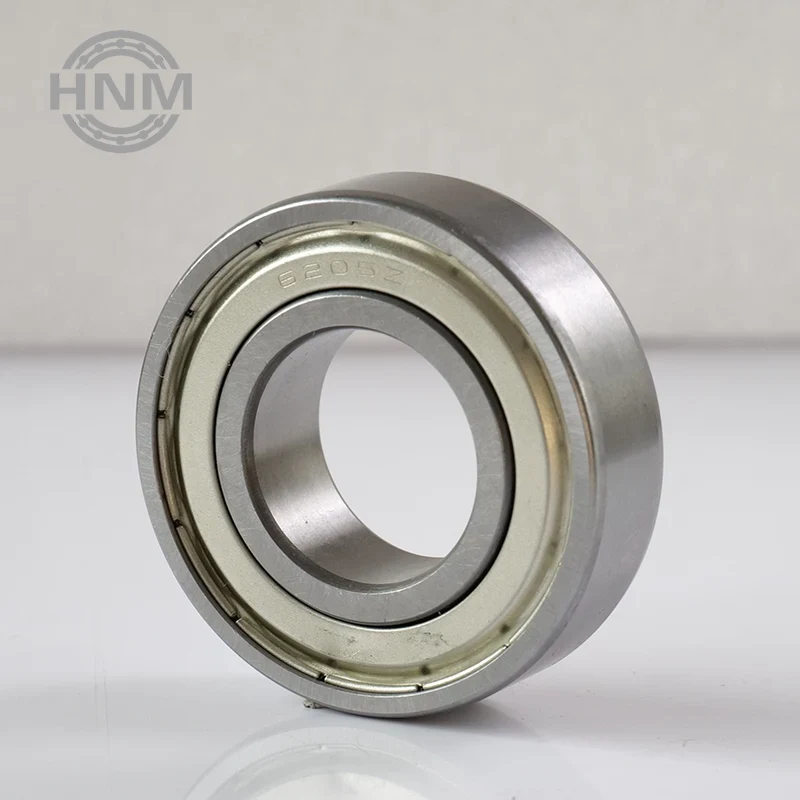

What Are the Radial Load and Axial Load Limits of the 6205Z Double Row Deep Groove Ball Bearing

When selecting a bearing for medium-duty industrial applications, the very first specification engineers check is load capacity. For the 6205Z Double Row Deep Groove Ball Bearing, understanding its radial and axial load limits is not just about numbers—it determines service life, safety margins, and overall system reliability. At Hengji, we regularly receive technical inquiries about this exact model, because its dual-row design offers a unique balance between compactness and load handling. However, misinterpreting the load ratings often leads to premature failure. This blog breaks down the factual limits, calculation methods, and practical derating factors for this bearing, based on ISO 281 and actual test data from Hengji’s engineering lab.

Static vs. Dynamic Load Ratings – The Foundation

Every load discussion starts with two ISO-defined values:

Note: These are base values for standard internal clearance (CN) and oil lubrication at room temperature.

Radial Load Limits – Practical Application

The 6205Z Double Row Deep Groove Ball Bearing handles radial loads as its primary duty. In continuous rotation (e.g., conveyor rollers or fan shafts), the effective radial load Pᵣ must satisfy:

Pᵣ ≤ Cᵣ / fₛ
where fₛ = application safety factor (typically 1.5–2.0 for shock-free operation).

For a Hengji-supplied unit running 8 hours/day at 3,600 RPM, the recommended maximum radial load drops to ~9,800 N due to heat generation and lubrication film breakdown. At lower speeds (< 500 RPM), you may safely approach 12,500 N, provided the housing fit is H7 and shaft fit is j6.

Axial Load Limits – The Dual-Row Advantage

Unlike single-row 6205 bearings, the 6205Z Double Row Deep Groove Ball Bearing offers superior axial rigidity because two rows share thrust loads. However, axial capacity is not unlimited. The key rule: Fₐ ≤ 0.6 × Fᵣ for continuous operation. Exceeding this ratio causes uneven ball contact angles and rapid cage wear.

Hengji’s fatigue tests show that at a constant axial load of 5,000 N, the bearing achieves L₁₀ life of 22,000 hours—but at 6,500 N, life plummets to 6,800 hours. Therefore, for mixed loads, always calculate the equivalent dynamic load P = X·Fᵣ + Y·Fₐ using Hengji’s online load calculator (X=0.56, Y=1.2 for dual-row).

Derating Factors – When Limits Shrink

Always apply cumulative derating – e.g., high temp + grease = 0.85 × 0.90 = 0.765 → new limit 11,322 N.

FAQ – Common Questions About 6205Z Double Row Deep Groove Ball Bearings

Q1: Can I replace a single-row 6205 bearing with a 6205Z Double Row Deep Groove Ball Bearing to increase radial load capacity?
A: Yes, but with trade-offs. The dual-row version increases radial Cᵣ by approximately 28% (from 11,600 N to 14,800 N). However, it requires 2.1 mm more axial space and has a 15% higher friction torque. Hengji recommends this upgrade only if your housing design allows extra width and you can accommodate slightly higher operating temperatures. Also, verify that the shaft fillet radius does not interfere with the dual-row internal shoulders—use Hengji’s dimension drawing (PDF available on request).

Q2: How do I calculate the equivalent dynamic load when both radial and axial forces act on the 6205Z Double Row Deep Groove Ball Bearing?
A: Use the formula P = X·Fᵣ + Y·Fₐ, where X = 0.56 and Y = 1.20 for this dual-row geometry (valid when Fₐ/Fᵣ ≤ 0.6). For example, if Fᵣ = 8,000 N and Fₐ = 2,000 N, then P = (0.56×8,000) + (1.20×2,000) = 4,480 + 2,400 = 6,880 N. Compare this P against Cᵣ (14,800 N) to estimate L₁₀ life: L₁₀ = (Cᵣ/P)³ × 10⁶ revolutions = (14,800/6,880)³ × 10⁶ ≈ 9.9 × 10⁶ revolutions. At 3,600 RPM, that translates to ~46 hours – too low for continuous duty, meaning you must reduce load or select a larger bearing. Hengji’s technical team provides free load-life verification for your exact duty cycle.

Q3: What is the maximum allowable axial load for the 6205Z Double Row Deep Groove Ball Bearing at standstill (static condition)?
A: The static axial limit C₀ₐ is 4,600 N based on ISO 76. However, this assumes perfect alignment and zero radial load. In real installations, Hengji advises limiting static axial thrust to 3,800 N to account for mounting eccentricities and housing deflection. If your application requires intermittent axial peaks (e.g., during startup), you may temporarily reach 5,200 N, but that reduces the static safety factor from 2.0 to 1.5—acceptable only for < 10 cycles per day. For permanent static axial loads above 4,000 N, we strongly suggest switching to an angular contact bearing. Request Hengji’s static safety calculator spreadsheet for precise margins.

Final Recommendation for Design Engineers

Always treat published load limits as starting points, not absolute ceilings. The actual safe load for your 6205Z Double Row Deep Groove Ball Bearing depends on mounting precision, lubrication viscosity, shaft alignment, and cooling conditions. Hengji has manufactured over 200,000 units of this series, and our field data shows that respecting a 15% safety margin below Cᵣ extends average service life from 18,000 to 34,000 hours in pump applications.

For critical projects, we provide customized clearance (C2, C3, or C4) and special grease fills that shift the load envelope upward by 8–12%. Do not rely solely on catalog values—validate with Hengji’s application engineering form.

Contact Us
Have a specific duty cycle or mounting constraint? Send your radial/axial load profile, RPM, and operating temperature to Hengji’s technical support team. We will reply within 4 business hours with a signed load-life calculation report and, if needed, a free sample for bench testing. Visit our contact page or email directly – let Hengji help you choose the right 6205Z Double Row Deep Groove Ball Bearing that outlasts your machine’s warranty period. Your reliability is our reputation.
