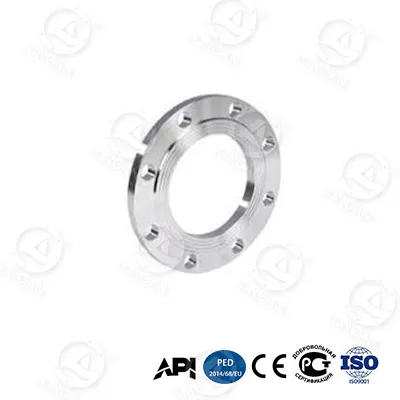

What Are the Maximum Pressure and Temperature Ratings for a Convex Flange

When engineers specify piping components for high-stakes industrial systems, the Convex Flange often emerges as a critical junction point. Unlike flat or raised-face alternatives, this profile offers a self-aligning advantage under thermal cycling. However, the single most frequent question field engineers ask revolves around its operational limits. At Longan, we have tested thousands of Convex Flange configurations across oil, gas, chemical, and power generation plants. The truth is that there is no single universal rating—the numbers depend on material grade, flange class, gasket type, and actual service environment.

Pressure-Temperature Ratings: The ASME B16.5 Foundation

Most commercial Convex Flange designs follow ASME B16.5 or ASME B16.47 standards. These tables provide maximum allowable working pressures (MAWP) at corresponding temperatures. Below is a representative excerpt for a standard Convex Flange in Class 150, Class 300, and Class 600, using common carbon steel (ASTM A105) and stainless steel (ASTM A182 F316).

Note: Values are for reference only. Always consult the latest ASME code and your Longan product data sheet for certified numbers.

Critical Factors That Derate Your Convex Flange

Even within the same class, three variables consistently reduce real-world ratings:

• Gasket contact stress – A softer gasket widens the sealing area but lowers maximum bolting load.

• Bolt material – B7 bolts handle higher temperatures than B8M bolts; mismatched bolting derates the entire Convex Flange assembly.

• Thermal transients – Rapid heating or cooling induces thermal shock, which can reduce the effective rating by up to 20% for cast materials.

At Longan, we always recommend performing a hydrostatic test at 1.5× the design pressure before commissioning any Convex Flange in a new service.

Temperature Ceilings: When Heat Becomes the Enemy

For carbon steel Convex Flange components, the practical upper limit is typically 800°F–850°F. Beyond that, creep rupture becomes a governing failure mode. For stainless steel grades (F304/F316), you can push to 1000°F–1100°F, but only if you account for reduced yield strength. Above 1200°F, even exotic alloys like Inconel 625 begin to lose their corrosion barrier. Longan supplies high-temperature Convex Flange solutions with full material traceability and NACE compliance for sour services.

Convex Flange FAQ – Common Professional Questions

Q1: Can I use a standard Convex Flange at its full pressure rating when the operating temperature fluctuates daily between 200°F and 800°F?

A1: No. Cyclic thermal loading causes flange rotation and bolt relaxation. For daily fluctuations exceeding 300°F, you must apply a fatigue derating factor. ASME Appendix S recommends reducing the allowable pressure by 12–15% for more than 1000 thermal cycles. Longan engineers often advise switching to a higher class (e.g., Class 600 instead of Class 300) or using belleville spring washers to maintain bolt preload. Always run a finite element analysis (FEA) if the cycle count exceeds 5000 per year.

Q2: How do I determine the maximum pressure for a Convex Flange when the gasket is not specified in the original design?

A2: The gasket is not a passive component—it actively defines the sealability. For a non-metallic gasket (e.g., compressed fiber or PTFE), the maximum pressure drops to approximately 60–70% of the flange’s bare-metal rating because the gasket can extrude or creep. For metallic spiral-wound or ring-joint gaskets, you can retain 95% of the rated pressure. At Longan, we provide a gasket-factor (m and y) calculator for every Convex Flange shipment, so you never have to guess. Always match the gasket’s temperature limit to the flange’s intended service.

Q3: What is the safest way to verify the actual pressure-temperature rating for an older Convex Flange with unknown material history?

A3: Destructive testing is not practical, but you can use three non-destructive approaches: (1) PMI (positive material identification) to confirm alloy grade, (2) hardness testing to estimate tensile strength, and (3) replicating the original mill certificate if available. Without any documentation, Longan recommends derating the Convex Flange to 75% of the lowest Class value and performing a proof test at 1.25× the maximum operating pressure. If the flange shows any visible deformation, replace it immediately.

Practical Sizing Rule for Engineers

A quick field rule: for every 50°F increase above ambient, reduce the maximum working pressure by roughly 2–3% for carbon steel and 1.5–2% for stainless steel. This linear approximation holds true between 100°F and 600°F. Beyond that, use the exact interpolation method from ASME B16.5 Table 2-1.1. Longan offers a free digital rating tool that outputs derated values in seconds for any Convex Flange combination.

Final Checklist Before Selection

• Confirm the design temperature (steady-state and peak transient).

• Define the design pressure including surge or water hammer.

• Select gasket type compatible with both fluid and flange face.

• Verify bolt torque values at the maximum expected temperature.

• Request material test certificates (MTC) with impact testing if below −20°F.

Contact Longan for Your Convex Flange Rating Report

Every system is unique, and generic tables only provide a starting point. Longan delivers custom Convex Flange solutions with project-specific pressure-temperature curves, full NDT reports, and 100% dimensional inspection. Whether you are upgrading a refinery unit or designing a subsea manifold, our technical team responds within 4 business hours with verified calculations. Contact us today via our website or email to receive a free rating verification sheet for your next purchase—and ensure your Convex Flange operates safely at every degree and every psi.
