Is the 87611-SAE Flange 6000 PSI Cone 62 Compatible with Stainless Steel Tube Fittings

When designing high-pressure hydraulic systems, component compatibility is not a suggestion—it is a requirement. The 87611-SAE Flange 6000 PSI Cone 62 is widely recognized as a heavy-duty connection solution, but engineers frequently ask whether this flange can be safely and effectively paired with stainless steel tube fittings. The short answer is yes—but the execution requires careful attention to material grades, pressure ratings, and assembly practices. At WayFong, we have supplied thousands of these flanges for stainless steel integration across offshore, chemical, and high-temperature applications. This blog provides a data-driven compatibility assessment to support your engineering decisions.

Material Match: Flange vs. Fitting

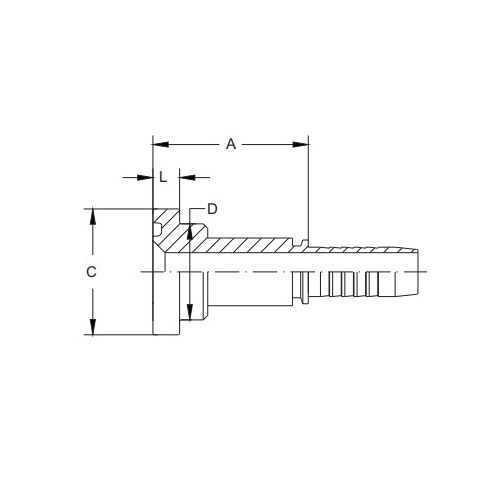

The 87611-SAE Flange 6000 PSI Cone 62 is typically manufactured from carbon steel or AISI 4130 alloy steel, often with zinc-plated or phosphate-coated finishes for corrosion resistance. Stainless steel tube fittings, on the other hand, are commonly made from 304, 316, or 316L grades. The fundamental compatibility concern is galvanic corrosion when dissimilar metals contact each other in the presence of an electrolyte (e.g., seawater or humid air).

However, the cone-sealing design of the 87611-SAE Flange 6000 PSI Cone 62 minimizes direct metal-to-metal shear contact at the thread root, as the seal is achieved via the 62-degree conical surface and an O-ring (or metal gasket). This reduces the risk of thread galling—a common issue with stainless steel fasteners. WayFong recommends using anti-seize compounds specified for stainless steel when assembling this flange to stainless fittings, and always verify that the flange’s protective coating is intact.

Critical Compatibility Parameters

To determine full compatibility, the following four factors must be evaluated:

Practical Assembly Best Practices

When connecting the 87611-SAE Flange 6000 PSI Cone 62 to stainless steel tube fittings, WayFong engineering team emphasizes the following:

• Torque control: Use a calibrated torque wrench. Stainless steel has lower thermal conductivity and higher friction coefficients, so reduce applied torque by 10–15% compared to carbon steel equivalents to avoid thread stripping.

• Gasket selection: For stainless fittings, opt for a 316L stainless steel spiral-wound gasket instead of a soft iron gasket to match the fitting’s corrosion resistance.

• Orientation: The cone angle (62°) must align perfectly with the mating fitting’s female cone. Misalignment of even 0.5° causes point-loading and premature seal failure.

Frequently Asked Questions (FAQ)

Q1: Can I directly weld a stainless steel tube fitting to the 87611-SAE Flange 6000 PSI Cone 62?
A1: No. The 87611-SAE Flange 6000 PSI Cone 62 is not designed as a weld-neck flange—it is a split-flange or threaded-flange type that clamps onto a tube end. Welding directly to the flange body will distort the precision-ground 62° cone surface, destroying the sealing geometry. Instead, weld a stainless steel stub end or adapter to your tube, then use the flange to clamp over that stub end. WayFong offers pre-machined adapter stubs in 316L that are pre-verified for cone concentricity.

Q2: Does the 87611-SAE Flange 6000 PSI Cone 62 require different bolts when used with stainless steel fittings?
A2: Yes—bolt material matters. Standard carbon steel bolts (Grade 8.8) are acceptable for dry indoor systems, but for stainless fittings in wet or chloride-rich environments, WayFong strongly recommends upgrading to ASTM A193 Grade B8M (316 stainless) bolts with Class 2A threads. These bolts eliminate galvanic coupling at the bolted joint. Additionally, use hardened stainless steel washers under the bolt heads to distribute clamp load evenly over the flange’s clamping ears. Do not reuse bolts after they have been torqued to yield—always install fresh fasteners per SAE J518 maintenance guidelines.

Q3: How do I pressure-test a system that combines the 87611-SAE Flange 6000 PSI Cone 62 with stainless steel tube fittings?
A3: Hydrostatic testing at 1.5× the working pressure (i.e., 9,000 PSI) is the industry standard. However, because stainless steel work-hardens under pressure cycling, WayFong advises a two-stage test: (1) hold at 9,000 PSI for 15 minutes to check for visible leakage at the cone interface, then (2) reduce to 6,000 PSI and perform a helium leak test (sensitivity ≤ 1×10⁻⁴ mbar·L/s) if the system handles gases or volatile fluids. Always install a new O-ring and gasket before testing—never reuse seals from a previous assembly, as the 62° cone relies on virgin deformation for primary sealing.

When Compatibility Fails – Common Root Causes

Even with correct material pairing, failures occur. Based on WayFong field failure analysis reports, the top three issues are:

1. Over-torquing stainless nuts → thread galling leading to clamp force loss.

2. Using incorrect O-ring durometer (70 Shore A instead of 90 Shore A for 6000 PSI).

3. Mixing Code 61 and Code 62 flanges—the 87611-SAE Flange 6000 PSI Cone 62 is Code 62 (higher pressure, larger bolt size); Code 61 fittings will not seal.

Summary Decision Matrix

Final Engineering Verdict

The 87611-SAE Flange 6000 PSI Cone 62 is fully compatible with stainless steel tube fittings provided that:

• The fitting’s pressure rating ≥ 6000 PSI,

• The cone angle matches (62° female counterpart),

• Fasteners and seals are upgraded for the service environment, and

• Assembly torque follows stainless-specific derating curves.

WayFong manufactures this flange with a certified 62° cone gauge and provides full material traceability (EN 10204 3.1) for every batch—ensuring your stainless integration is backed by documented quality.
