How To Install An Air Spray Gun Adapter On Your Spray Gun
2025-09-18
Installing an air spray gun adapter might seem challenging, but with the right guidance, it’s a straightforward process. As someone with years of experience in spray finishing systems, I’ll walk you through the steps to ensure a secure and efficient installation.
First, gather your tools: you’ll need Teflon tape or thread sealant and an adjustable wrench. Before starting, always depressurize your air system to ensure safety.

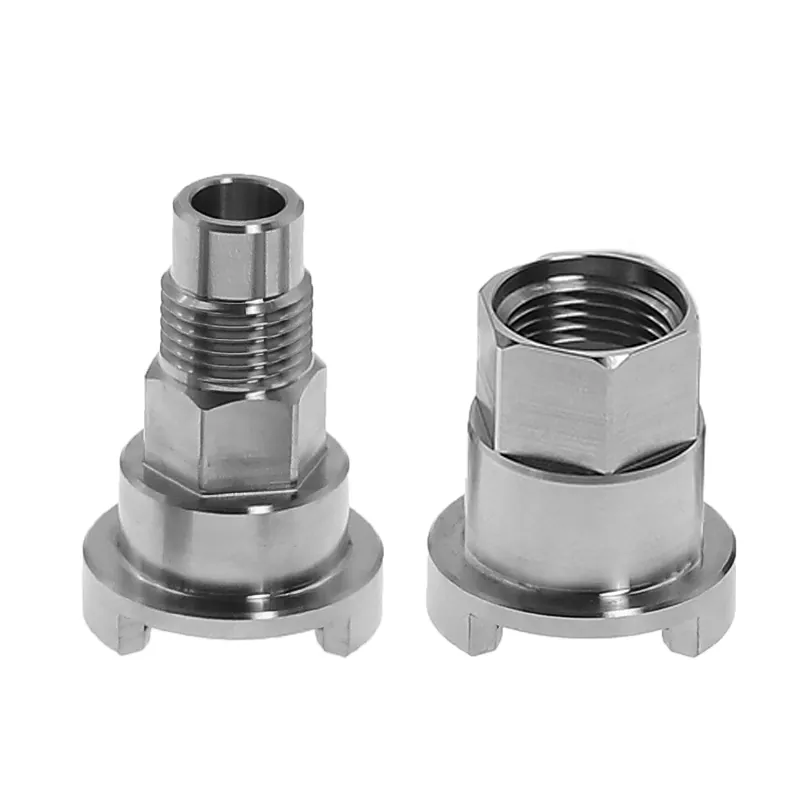

Begin by wrapping the male threads of the Air Spray Gun Adapter with Teflon tape. Use two to three layers, wrapping clockwise to prevent unraveling during installation. Alternatively, apply a moderate amount of thread sealant for a tighter seal.
Next, screw the adapter into the spray gun’s air inlet by hand until snug. Avoid cross-threading, as this can damage both the gun and the adapter. Once hand-tight, use an adjustable wrench to give it a final quarter-turn—do not overtighten, as this may crack the housing or deform seals.
Finally, connect your air hose to the adapter’s quick-disconnect end. Pressurize the system and check for leaks with a soapy water solution. If bubbles appear, slightly tighten the connection until the leak stops.
Here are the key specifications of the Aspaint Quick-Connect Adapter:
| Feature | Specification |
|---|---|
| Material | CNC-machined brass |
| Thread Type | 1/4" NPT male |
| Max Pressure | 250 PSI |
| Seal Material | High-temperature Viton O-rings |
| Compatibility | Fits HVLP, LVLP, and conventional guns |
FAQ
What if my spray gun has non-standard threads
The Aspaint Air Spray Gun Adapter includes a set of threaded reducers for compatibility with less common inlet sizes. Simply select the appropriate reducer and secure it with Teflon tape before installing the adapter.
Can I leave the adapter attached when cleaning the gun
Yes. The Aspaint adapter is designed to withstand common cleaning solvents. However, avoid immersing it in aggressive chemicals for extended periods to preserve the O-rings.
How often should I replace the O-rings in the adapter
With normal use, Viton O-rings can last over two years. If you notice air leaks or difficulty connecting, inspect and replace the rings. Aspaint provides replacement seals free of charge for two years.
Ready to enhance your spraying efficiency? The Aspaint Air Spray Gun Adapter offers durability and seamless performance. Contact us today for technical support or to explore our professional adapter series!
