How To Identify And Troubleshoot Leakage Issues In A Flat Flange Connection
2026-01-21
A leaking Flat Flange connection can lead to costly downtime, safety hazards, and product loss. As specialists in precision sealing solutions at Longan, we understand that systematic diagnosis is key to a lasting repair. This guide leverages industry best practices to help you efficiently identify and resolve leaks, ensuring your systems operate with integrity and reliability.

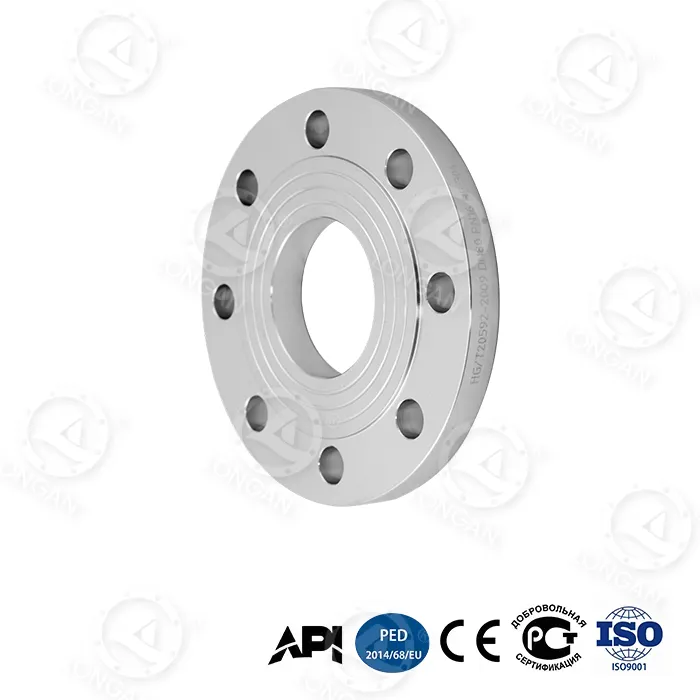

Step 1: Identification and Initial Assessment
Before disassembly, perform a safe visual and operational inspection.
-
Visual Signs: Look for traces of process fluid, corrosion deposits, or discoloration around the Flat Flange face and bolt holes.
-
Auditory/ Olfactory Cues: Listen for hissing sounds or use approved methods to detect odorants for gas lines.
-
Bolt Check: Use a calibrated torque wrench to verify if bolts have maintained proper preload. Loose bolts are a primary leak cause.
Step 2: Systematic Troubleshooting Procedure
Follow this logical sequence to pinpoint the root cause.
| Observed Symptom | Potential Root Cause | Corrective Action |
|---|---|---|
| Uniform leakage around the flange | Worn, damaged, or incorrect gasket | Replace with a gasket material suitable for the service (temp, pressure, media). |
| Leakage from a specific segment | Uneven bolt stress or Flat Flange face warping | Re-torque sequence correctly. Inspect flange face for flatness with a straight edge. |
| Leakage at bolt holes | Cracked flange or over-torqued bolts | Perform a detailed NDT inspection. Replace damaged components. |
Flat Flange FAQ 1
What is the correct bolt tightening sequence for a Flat Flange?
Always follow a cross-pattern or star-pattern sequence. This ensures even gasket compression across the entire Flat Flange face, preventing distortion and creating a uniform seal. Refer to ASME PCC-1 guidelines for best practices.
Flat Flange FAQ 2
Can I reuse a gasket in a Flat Flange connection?
It is generally not recommended. Gaskets compress and take a "set" during initial installation. Reusing them often leads to insufficient sealing force and subsequent leakage. Longan always advises using a new, certified gasket for every reassembly.
Flat Flange FAQ 3
How do I check if my Flat Flange face is damaged?
Clean the surface thoroughly and use a precision straight edge and feeler gauge. Place the straight edge across the face at several angles. If you can measure a gap exceeding the tolerances specified in standards like ASME B16.5, the flange may need to be re-machined or replaced.
Persistent leaks often point to deeper issues like material incompatibility, systemic vibration, or improper flange specification. For complex or recurring problems, expert analysis is crucial. Trust Longan's two decades of engineering expertise to provide not only superior sealing products but also actionable technical support. Contact us today for a consultation—let our specialists help you achieve leak-free performance and operational peace of mind.
