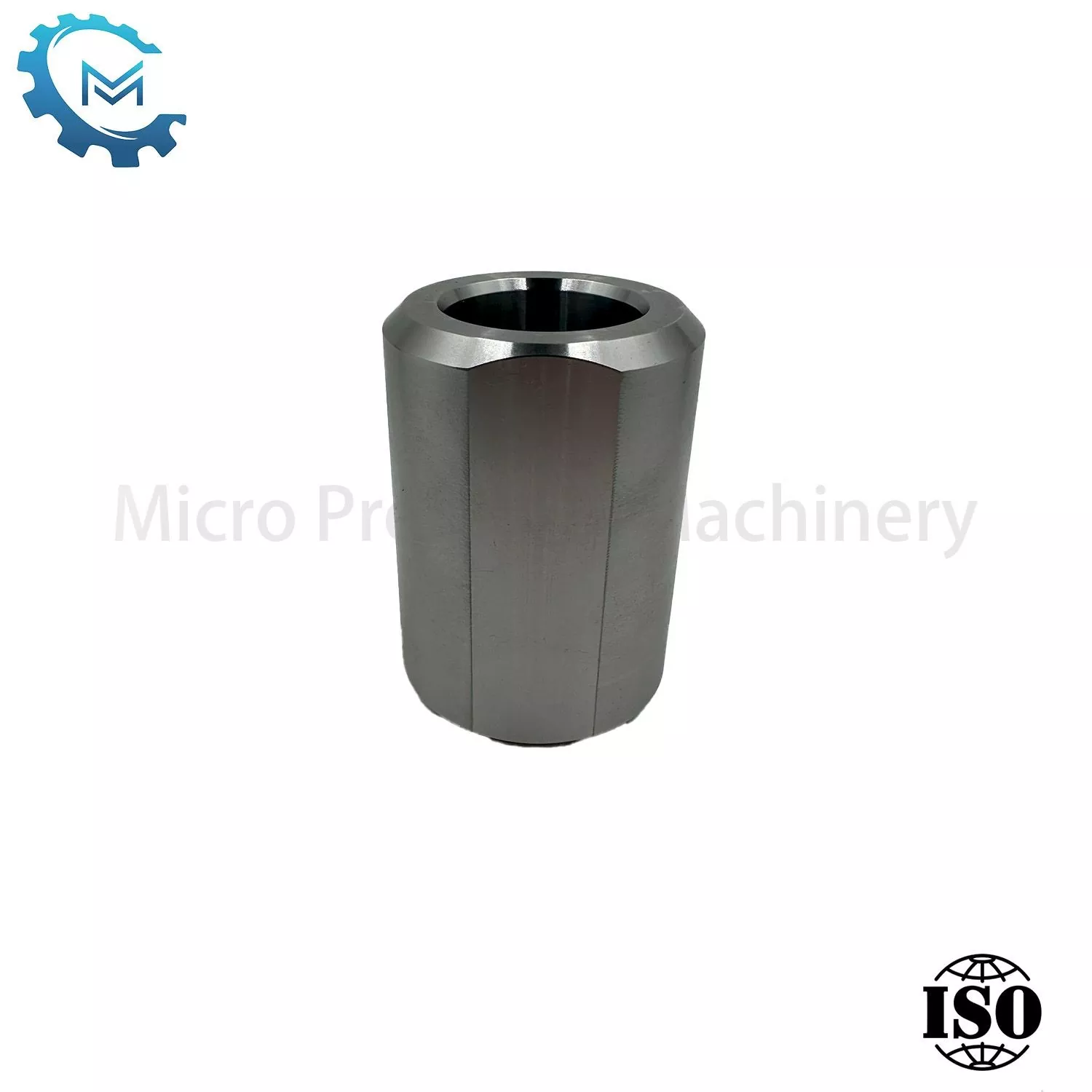

How To Choose The Right Cylinder Bushing For Your Machinery
2025-08-21
With over two decades of experience working alongside maintenance engineers and equipment designers, I understand that specifying components like a Cylinder Bushing often gets overlooked until a failure occurs. The wrong choice leads to downtime, costly repairs, and lost productivity. I’ve seen it too many times. The question isn't just about finding a part that fits; it's about finding the one that ensures your machinery runs smoother, longer, and more reliably. So, how do you navigate this critical selection process.
What Are The Key Performance Factors You Must Consider
Selecting the ideal Cylinder Bushing is a balancing act between your application's demands and the material's capabilities. The first step is always to move beyond mere dimensions and scrutinize the operating environment. Ask yourself about load magnitude and direction. Is it a high radial load or are there thrust loads present. What about rotational or oscillating speeds. Next, environmental factors are paramount. Will the Cylinder Bushing be exposed to extreme temperatures, moisture, abrasive contaminants, or chemical solvents. Answers to these questions immediately narrow down the suitable material choices, whether it's a robust bronze alloy, a durable polymer, or a self-lubricating composite. Ignoring these factors is the most common and costly mistake I’ve witnessed.
How Does Material Selection Directly Impact Bushing Longevity
The heart of a bushing's performance lies in its material. Each type offers a distinct advantage profile, making it suited for specific scenarios. At Micro Precision, we engineer our materials to meet precise operational challenges rather than offering one-size-fits-all solutions.
-
Bronze Alloys (e.g., SAE 841): Our powdered bronze blend is impregnated with a graphite plug, offering excellent load capacity and heat dissipation for high-load, low-speed applications. It’s a classic, reliable choice where traditional lubrication is possible.
-
High-Performance Polymers (e.g., PTFE composites): These materials are inherently corrosion-proof and provide a low-friction surface, ideal for applications where contamination from traditional lubricants is a concern. Our Micro Precision polymer-based Cylinder Bushing options excel in food processing or chemical environments.
-
Self-Lubricating Composites: For applications where lubrication is impossible or undesirable, our composite materials have lubricating elements embedded within their structure. This creates a consistent transfer film on the shaft, reducing wear and friction without maintenance.
Can A Simple Comparison Table Guide Your Final Decision
Absolutely. While material is king, seeing a direct comparison helps solidify the best choice for your budget and performance needs.
| Application Scenario | Recommended Material | Key Micro Precision Feature |
|---|---|---|
| High-Load, Low-Speed Rotational | Bronze Alloy | High thermal conductivity, excellent dynamic load capacity |
| Corrosive or Washdown Environments | Polymer | 100% corrosion-resistant, FDA-compliant options available |
| Maintenance-Free or Dry Operation | Self-Lubricating Composite | Embedded solid lubricants, minimal coefficient of friction |
| High-Speed Oscillation | Wrapped Bronze | Conformable design for better shaft alignment, good wear life |
This table isn't exhaustive, but it highlights how a targeted selection, not just a generic part, resolves the core pain points of failure and downtime.
What About Dimensional Tolerance and Installation
Even the best material will fail if the bushing is improperly sized or installed. The inner diameter (ID), outer diameter (OD), and length must be held to precise tolerances to ensure a correct press-fit into the housing and proper running clearance on the shaft. A bushing that is too tight can seize the shaft; one that is too loose will allow excessive movement and wear. Furthermore, proper installation is critical. I always recommend using the correct arbor press tools and mandrels to avoid damaging the bushing during assembly. Chamfered edges on our Micro Precision bushings aid in this process, making installation smoother and preventing galling.
Find The Exact Cylinder Bushing Your Machine Deserves
Choosing the right Cylinder Bushing is a technical decision that pays dividends in reliability and total cost of ownership. It’s about partnering with a supplier who provides not just a product, but the engineering expertise to ensure it performs.
The team at Micro Precision brings deep material science knowledge and manufacturing excellence to every component we produce. We are ready to help you analyze your application and specify the perfect bushing solution. Contact us today to discuss your requirements with our technical specialists and request product samples. Let us help you eliminate premature wear and achieve optimal performance.
