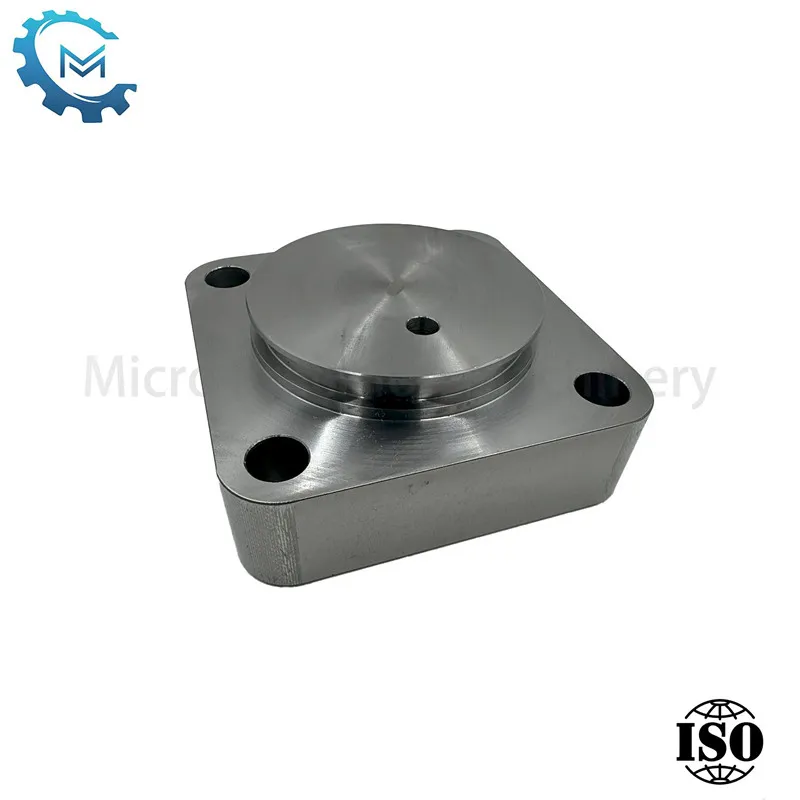

How to Choose the Right Cylinder Base for Your Application

Selecting the correct Cylinder Base is crucial for ensuring the longevity, stability, and precision of your pneumatic or hydraulic systems. A poorly chosen base can lead to misalignment, wear, and system failure. At Micro Precision, we specialize in manufacturing high-tolerance components, and this guide will help you understand the key parameters to consider when selecting a Cylinder Base for your specific needs.

To make an informed decision, you must evaluate several critical product specifications. Our Micro Precision Cylinder Base products are engineered to meet the most demanding requirements. Here are the essential parameters:

• Material Grade: The base material determines corrosion resistance and strength.

  • Anodized Aluminum: Ideal for most industrial applications, offering a great balance of strength and low weight with excellent corrosion resistance.

  • Stainless Steel: The best choice for harsh environments, such as food processing, marine, or chemical industries, due to its superior corrosion resistance.

• Mounting Style: This defines how the cylinder is secured.

  • Foot Mount: Provides excellent stability for medium to heavy-duty applications.

  • Flange Mount: Offers superior rigidity and is ideal for applications with high thrust loads.

• Dimensional Accuracy: Precise bore diameter, pilot diameter, and hole spacing are non-negotiable for perfect alignment. Micro Precision components are machined to tolerances within ±0.01mm to prevent side load and piston rod wear.

The following table summarizes the key selection criteria for our product line:

Cylinder Base FAQ大全

What is the main purpose of a Cylinder Base?
The primary purpose of a Cylinder Base is to provide a stable and perfectly aligned mounting platform for a pneumatic or hydraulic cylinder. It absorbs stress, prevents misalignment, and protects the cylinder from premature failure due to uneven forces and vibrations.

Can I use a universal Cylinder Base for any cylinder model?
While some bases are marketed as universal, it is highly recommended to use a base specifically designed for your cylinder model, especially from a precision manufacturer like Micro Precision. A custom-fit base ensures perfect hole alignment, correct pilot dimensions, and optimal load distribution, which generic bases cannot guarantee.

How do I know if my Cylinder Base is failing?
Signs of a failing Cylinder Base include visible cracks or deformation, loose mounting bolts despite proper torque, unusual noise from the cylinder during operation, and visible misalignment of the piston rod. Any of these symptoms warrant immediate inspection and replacement to avoid costly damage to the cylinder itself.

Choosing the right component is an investment in your machinery's reliability and performance. By focusing on these critical specifications, you can ensure a perfect fit and long service life. For personalized assistance in selecting the ideal Cylinder Base for your application, do not hesitate to reach out to our engineering support team at Micro Precision. Contact us today to request a quote or discuss your project requirements.
