How Thick Should Billet Wheel Adapters Be for Safe Use
2025-12-15
When upgrading your vehicle's stance or fitting aftermarket wheels, Billet Wheel Adapters are a critical component. Their thickness is not merely a dimension; it's a fundamental safety parameter that affects load capacity, structural integrity, and vehicle dynamics. At Youzhan, we engineer our adapters with precision, where every millimeter is calculated for maximum performance and security. Choosing the wrong thickness can lead to catastrophic failure, making it essential to understand the engineering behind this key specification.
For safe operation, the thickness of a billet wheel adapter is determined by two primary factors: the required bolt thread engagement and the necessary clearance for the vehicle's hub and studs. A general industry rule for safety is that the adapter must be thick enough to allow for full engagement of the wheel lug nuts on the adapter's own integrated studs. Typically, this requires a minimum thickness of 1 inch (25-27mm) for most passenger vehicles and light trucks. Thinner adapters may not provide sufficient thread engagement, posing a severe risk.
Youzhan Precision Billet Adapters: Engineered to Exceed Standards

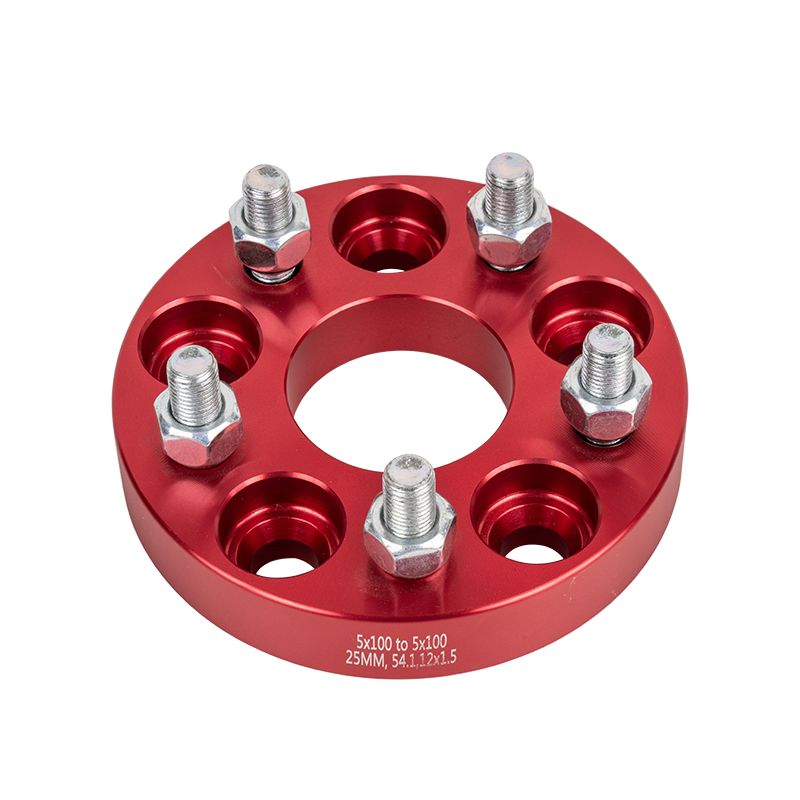

Our adapters are CNC-machined from certified 6061-T6 aircraft-grade aluminum billet, heat-treated for enhanced strength. We never compromise on thickness for the sake of mere appearance. Here are the key parameters that define our safe design:
-
Material: 6061-T6 High-Strength Aluminum Billet
-
Finish: CNC-Machined, Anodized for Corrosion Resistance
-
Critical Safety Feature: Hub-Centric Design for Perfect Fitment
For a clear overview, refer to our recommended thickness guide based on application:
| Vehicle Application | Minimum Recommended Thickness | Key Reason |
|---|---|---|
| Cars & Crossovers | 1" - 1.25" (25-32mm) | Ensures full lug nut engagement and proper clearance. |
| Light Trucks & SUVs | 1.25" - 1.5" (32-38mm) | Handles increased load and torque stress. |
| Performance & Off-Road | 1.5" - 2" (38mm+) | Provides maximum strength for high-stress environments. |
Billet Wheel Adapters FAQ
Q: Can I use a thinner adapter if it's made from strong material?
A: No. Material strength is only one factor. Thickness is crucial for achieving proper thread engagement length (the distance the lug nut screws onto the stud). Insufficient engagement, even on a strong adapter, can cause studs to shear under load. Youzhan adapters are designed with the optimal thickness-to-strength ratio for your safety.
Q: How does adapter thickness affect wheel bearings?
A: Increasing the track width with adapters creates more leverage (force) on the wheel bearings. While a correctly engineered thickness itself doesn't damage bearings, the increased offset does add stress. Using a high-quality, hub-centric adapter like those from Youzhan ensures the load is distributed correctly, mitigating undue wear.
Q: Are thicker billet wheel adapters always better and safer?
A: Not necessarily. While too thin is dangerous, excessively thick adapters may cause clearance issues with the wheel well or suspension components. The ideal thickness is the minimum safe thickness that provides full thread engagement and necessary clearance for your specific vehicle and wheel combination. Our team at Youzhan can help you determine this exact specification.
Your vehicle's safety hinges on the quality and correct specification of every component. Don't gamble with substandard parts. Youzhan's billet wheel adapters are the product of meticulous engineering, where safety-critical dimensions like thickness are never compromised. Contact us today for a personalized consultation to ensure you get the perfect, safe fitment for your build. Visit our website or email our support team to connect with a fitment expert.
