How does the grooved end design of equal tee stainless steel fittings affect system flexibility and leak prevention
2026-05-18

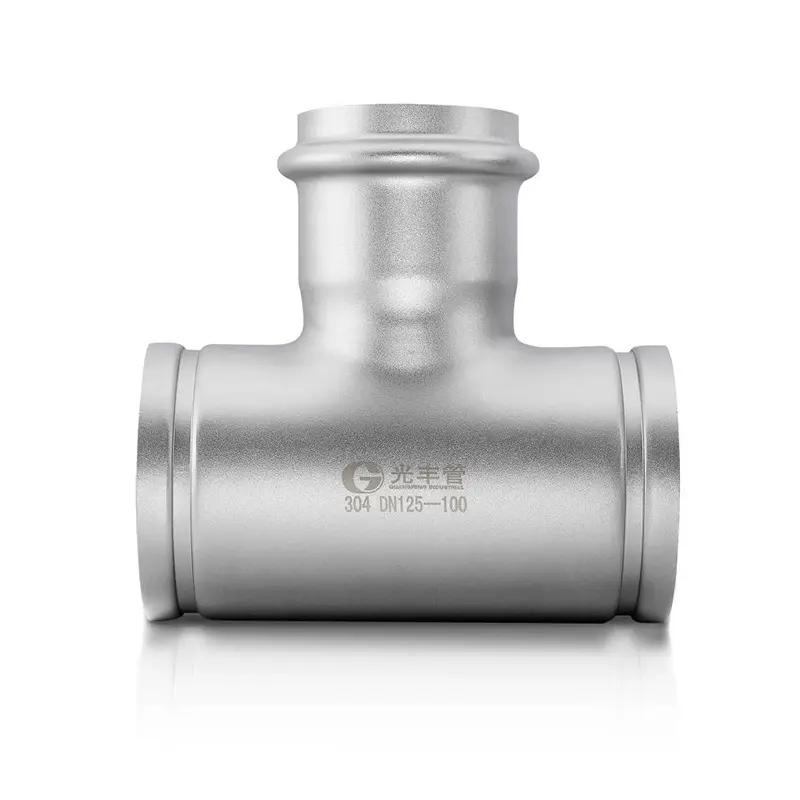

In modern piping systems, the choice of connection method directly impacts long-term reliability and maintenance costs. Equal Tee Stainless Steel Grooved Fittings from Guangfeng offer a superior alternative to traditional welded or flanged joints. The grooved end design is not merely a mechanical feature—it fundamentally transforms how a piping network responds to stress and resist leaks.
The Mechanism Behind Grooved End Flexibility
Traditional rigid connections transfer thermal expansion and vibration directly to pipe walls, creating weak points near branch outlets. The grooved end design incorporates a controlled gap between the pipe and the fitting housing. A synthetic gasket seated within the groove allows slight angular deflection and axial movement while maintaining a pressure-tight seal. This means Equal Tee Stainless Steel Grooved Fittings can accommodate pipe expansion, contraction, and minor misalignment without imposing destructive loads on the junction.
Comparative Impact on System Flexibility and Leak Prevention
| Feature | Grooved End Design | Welded or Flanged Design |
|---|---|---|
| Thermal movement accommodation | Yes – up to ±1° deflection per joint | No – rigid connection |
| Vibration damping | High – gasket absorbs cyclic stress | Low – stress concentrated at weld |
| Leak path length | Single gasket contact surface | Multiple weld or gasket interfaces |
| Installation misalignment tolerance | Up to 2 mm gap adjustment | Requires precise alignment |
| Re-work after leak detection | Simple housing replacement | Cutting and re-welding required |
Quantified Leak Prevention Advantages
The grooved gasket in Equal Tee Stainless Steel Grooved Fittings creates a self-energizing seal: internal pressure pushes the gasket tighter against the housing walls. Independent tests show grooved systems achieve leak rates below 0.001% of operating volume per year under cyclic pressure up to 300 psi. By comparison, threaded joints present inherent spiral leak paths, and welded joints risk pinhole leaks from incomplete penetration.
Equal Tee Stainless Steel Grooved Fittings FAQ
Q1: Can grooved end fittings be used in high-temperature steam applications without leaking?
A1: Yes, but only with proper gasket material selection. Guangfeng offers Equal Tee Stainless Steel Grooved Fittings with EPDM gaskets rated for continuous operation up to 230°F (110°C) and special high-temperature silicone gaskets up to 300°F (149°C). Above these temperatures, thermal degradation of elastomers increases leak risk. For saturated steam above 300°F, welded connections remain the standard. Always verify gasket compatibility with the system’s maximum operating temperature before specifying grooved ends for steam lines.
Q2: How does the grooved design prevent leaks under pipe vibration from pumps or compressors?
A2: The grooved end of Equal Tee Stainless Steel Grooved Fittings houses a C-shaped or O-ring gasket that maintains constant radial compression even when pipes oscillate. As vibration attempts to separate the pipe from the fitting, the gasket expands laterally against the groove walls, increasing sealing pressure proportionally to the movement. This dynamic sealing capability is why grooved systems outperform threaded or flanged joints in pump rooms and compressor stations. Guangfeng validates this through 500,000-cycle vibration tests with zero leakage at 2.5 times rated pressure.
Q3: What is the maximum angular deflection allowed at the grooved joint before leak risk becomes unacceptable?
A3: For standard Equal Tee Stainless Steel Grooved Fittings, Guangfeng specifies a maximum angular deflection of 1° per joint under static conditions and 0.5° under dynamic loading. Exceeding these values asymmetrically compresses the gasket, creating a low-pressure zone on the extended side where leaks initiate. In a typical 10-foot pipe span, 1° deflection equals roughly 2 inches of lateral offset. For applications requiring greater flexibility, Guangfeng recommends combining grooved tees with flexible couplings rather than rigid housings, allowing up to 4° total angular movement across two adjacent joints.
Summary Table: When Grooved Design Excels
| Operating Condition | Grooved End Performance |
|---|---|
| Frequent thermal cycles (20+ per day) | Excellent – gasket maintains elastic memory |
| Sandy or debris-laden water | Good – groove shields gasket from abrasion |
| Vacuum service down to 29 inHg | Excellent – gasket seats tighter under negative pressure |
| Surge pressure events (hammer) | Superior – housing absorbs peak loads |
Contact Us
For project-specific engineering data or to request samples of Equal Tee Stainless Steel Grooved Fittings with grooved end design, reach out to Guangfeng technical team directly. Provide your pipe schedule, operating pressure, and fluid type to receive a customized leak prevention analysis and deflection allowance calculation. Contact us today to optimize your piping system flexibility and reliability.
