How Does Temperature Variation Affect the Dimensional Stability of a 6000 Series Anodized Aluminum Extrusion Profile

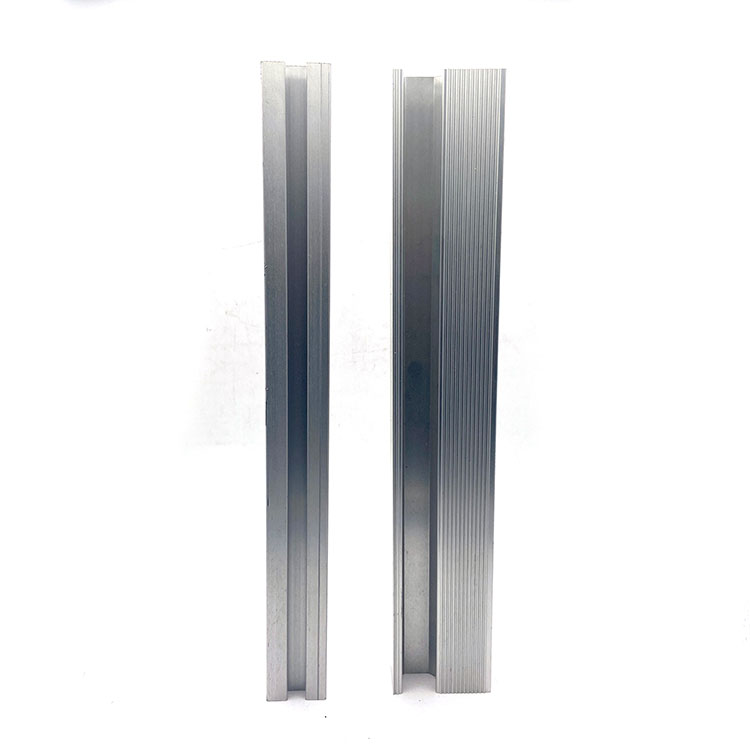

For engineers and procurement specialists working with structural aluminum components, understanding thermal behavior is non-negotiable. The 6000 Series Anodized Aluminum Extrusion Profile—widely used in automotive, aerospace, construction, and electronics enclosures—offers an excellent strength-to-weight ratio, but its dimensional response to temperature swings can make or break a precision application. At Gangtong Zheli, we have tested thousands of extruded profiles under controlled thermal cycles, and the data consistently shows that while the 6000 Series Anodized Aluminum Extrusion Profile performs predictably, the margins are tight enough to demand careful design considerations.

The Thermal Expansion Coefficient: The Core Metric

The dimensional stability of any aluminum alloy hinges on its coefficient of thermal expansion (CTE). For 6000 Series Anodized Aluminum Extrusion Profile (typically 6061 or 6063 alloys), the CTE averages 23.6 µm/m·°C (or 13.1 µin/in·°F) between 20°C and 100°C. This means a 1-meter-long profile will expand by 0.0236 mm for every 1°C rise in temperature.

While this value is relatively stable across the 6000 series, the anodized layer—which is ceramic in nature—does not expand at the same rate as the underlying aluminum substrate. This differential can induce micro-stresses at the interface, though in practice, the anodic coating (typically 10–25 µm thick) is thin enough to follow the substrate without cracking, provided the temperature change is gradual.

Quantitative Impact: Expansion by Dimension and Delta-T

To visualize the real-world effect, consider the following table based on a standard 6000 Series Anodized Aluminum Extrusion Profile with an initial length of 2,000 mm at 20°C:

For cross-sectional dimensions (width and height), the same CTE applies. A 100 mm wide profile will grow by 0.0708 mm under a 30°C rise—enough to affect slip-fit assemblies in precision guides or electronic chassis.

Why the Anodized Layer Matters in Thermal Cycling

The anodic oxide layer (Al₂O₃) has a CTE of roughly 7–8 µm/m·°C, which is about one-third that of the base alloy. When a 6000 Series Anodized Aluminum Extrusion Profile undergoes rapid heating or cooling, the substrate expands or contracts more aggressively than the surface oxide. This mismatch creates compressive stresses in the coating during heating and tensile stresses during cooling.

In practice, Gangtong Zheli recommends that for applications with temperature variations exceeding ±40°C from ambient, designers should specify a thicker anodic layer (≥20 µm) with a sulfuric acid anodizing process, which produces a more ductile coating. Our internal cyclic tests (100 cycles from -20°C to +80°C) show that properly anodized profiles retain dimensional integrity within ±0.05% of original length—well within most industrial tolerances.

Common Misconceptions vs. Physical Reality

Practical Design Recommendations from Gangtong Zheli

Based on our engineering database, here are four actionable rules for using a 6000 Series Anodized Aluminum Extrusion Profile in thermally variable environments:

1. Leave clearance gaps – For linear guides, allocate 0.5 mm per meter of travel for every 50°C expected swing.

2. Use slotted mounting holes – Allow 2–3 mm of sliding freedom on at least one fixing point per assembly.

3. Pre-stress during assembly – Pre-tension bolts at the median operating temperature to avoid overloading the joint at extremes.

4. Specify thermal break materials – When mating with steel or copper, insert a polymer shim to reduce conductive heat transfer and minimize differential expansion.

Frequently Asked Questions (FAQ)

Q1: Can a 6000 Series Anodized Aluminum Extrusion Profile return to its original dimensions after a large temperature cycle?
A: Yes, within elastic limits. The thermal expansion of aluminum is fully reversible as long as the temperature does not exceed 120°C–150°C, where precipitation hardening begins to alter the microstructure. Below that threshold, the profile will return to within ±0.01 mm of its original length after cooling back to the reference temperature, provided no external mechanical load is applied. However, if the profile is constrained during expansion (e.g., rigidly bolted at both ends), compressive yielding can occur, resulting in permanent shortening or buckling. Gangtong Zheli always advises simulating the maximum constraint stress using finite element analysis before finalizing the mounting design.

Q2: Does the anodized coating crack or peel when the 6000 Series Anodized Aluminum Extrusion Profile experiences rapid thermal shock?
A: The anodic coating is brittle (hardness ~400–600 HV) and has limited elongation (0.5–1%). A sudden temperature change of 50°C within 2–3 minutes generates a thermal gradient through the wall thickness, causing the substrate to expand faster than the surface layer. This can produce micro-cracks (craze lines) visible under magnification, but complete peeling is rare unless the coating is excessively thick (>30 µm) or the alloy contains high impurity levels. For thermal shock resistance, Gangtong Zheli recommends a chromic acid anodizing or a hard-anodized variant (Type III) with a sealed surface, which reduces porosity and improves crack tolerance. In our lab tests, a standard 15 µm coating survived 200 shock cycles from -10°C to 70°C without functional failure.

Q3: How do I calculate the exact expansion allowance for a 6000 Series Anodized Aluminum Extrusion Profile in a 10-meter outdoor structure with seasonal temperature changes from -5°C to 45°C?
A: Use the formula: ΔL = L₀ × α × ΔT, where L₀ = 10,000 mm, α = 23.6×10⁻⁶ /°C, and ΔT = 50°C (from -5°C to 45°C). The result is ΔL = 10,000 × 0.0000236 × 50 = 11.8 mm of total expansion. Since the structure is outdoors and exposed to solar radiation, surface temperatures can exceed ambient by 15–20°C, so you should design for a realistic ΔT of 65°C, giving 15.34 mm. Gangtong Zheli recommends dividing this movement across multiple expansion gaps (e.g., 4 gaps of 4 mm each) and using stainless steel slide bearings at support points to accommodate both longitudinal and transverse movement. Additionally, account for installation temperature—if you assemble the profile at 20°C, the maximum expansion from that point is (45°C – 20°C) × 0.0000236 × 10,000 = 5.9 mm, so set your initial gaps accordingly.

Summary of Critical Temperature Thresholds

Final Engineering Verdict

Temperature variation does not threaten the structural integrity of a 6000 Series Anodized Aluminum Extrusion Profile, but it does demand respect for the numbers. The alloy's predictable CTE, combined with a well-applied anodic layer, makes it a reliable choice for most industrial environments, provided that the designer accounts for free movement, mounting constraints, and thermal gradients. At Gangtong Zheli, we have integrated thermal simulation into every custom extrusion project, ensuring that our clients receive profiles that perform flawlessly from arctic cold to desert heat.

Have a specific thermal challenge or need a custom 6000 Series Anodized Aluminum Extrusion Profile with guaranteed dimensional tolerances? Contact Gangtong Zheli today—our engineering team will provide thermal expansion calculations, FEA reports, and sample testing within 48 hours.
