How Does a Spring Washer Improve Mechanical Performance?

When engineers and manufacturers look for small yet vital components that guarantee the reliability of machines, the spring washer often becomes the unsung hero. At first glance, it appears to be nothing more than a split or curved piece of metal. Yet, this subtle design delivers a powerful function: preventing loosening of fasteners under vibration, thermal expansion, and dynamic loads.

A spring washer, sometimes called a disc spring or lock washer depending on its type, is designed to apply a constant load or tension on a bolted joint. Unlike a flat washer, which merely distributes the load, a spring washer actively maintains tension. This prevents nuts, bolts, and screws from shifting or coming undone when subjected to repetitive stress.

The significance of spring washers lies in three primary functions:

1. Vibration Resistance – They absorb shock and prevent bolts from backing off.

2. Load Distribution with Elasticity – They spread load evenly while maintaining compressive force.

3. Safety and Longevity – They extend equipment life by reducing the risk of mechanical failure.

Industries such as automotive, aerospace, railway, heavy machinery, and construction all rely heavily on spring washers. Without them, the integrity of mechanical joints would be compromised, leading to downtime, higher maintenance costs, or even dangerous accidents.

But how does a spring washer actually achieve this performance? The answer lies in its design and material science.

How Spring Washer Design and Materials Influence Performance

Spring washers come in various designs, each tailored for a specific mechanical environment. Their geometry and materials determine how effectively they perform under stress. Below is a structured breakdown of key parameters.

Common Types of Spring Washers:

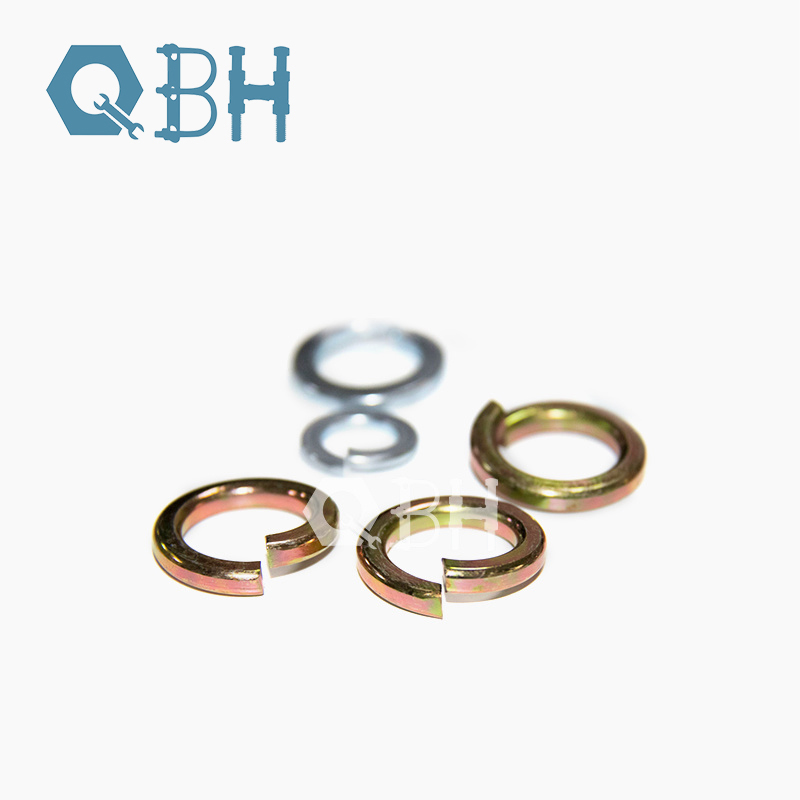

• Split Lock Washer – A helical coil cut at one point and bent slightly to exert spring force.

• Belleville Washer (Disc Spring) – A conical-shaped washer that provides high load capacity in a compact size.

• Wave Washer – Features a wavy profile that allows flexibility and cushioning.

• Curved Washer – Offers low load capacity with gentle resilience.

Technical Parameters of Spring Washers

A Belleville spring washer, for instance, can bear immense loads in a compact design, making it indispensable in power plants and aerospace applications. A wave washer, on the other hand, is ideal for lightweight assemblies such as electronic devices, where vibration damping is critical but extreme loads are not expected.

The right material is equally important. Stainless steel spring washers are ideal for marine environments where corrosion is a concern, while carbon steel washers are widely used in automotive assemblies for their balance of strength and affordability.

How to Select the Right Spring Washer for Your Application

Choosing the correct spring washer is more than a simple purchasing decision; it is a crucial engineering choice that determines the long-term stability of your assemblies. The wrong washer can lead to bolt loosening, reduced efficiency, or catastrophic equipment failure.

Here’s a practical guide to selecting the best spring washer:

1. Identify Load Requirements

   • High static loads → Choose Belleville washers.

   • Dynamic loads with vibration → Go with split lock or wave washers.

2. Consider Environmental Conditions

   • Exposure to moisture, chemicals, or saltwater → Stainless steel or phosphor bronze.

   • High-temperature environments → Alloy steels with heat-resistant coatings.

3. Match Washer Size to Bolt Size

   • Always align the inner diameter with the bolt shank for proper seating.

   • Ensure outer diameter provides adequate surface coverage without interfering with nearby components.

4. Factor in Installation Space

   • Limited axial space → Use Belleville washers for compact strength.

   • Need flexibility with minimal thickness → Wave washers perform well.

5. Check for Industry Standards

   • Look for compliance with DIN, ISO, or ANSI standards to ensure global compatibility and reliability.

When properly chosen, spring washers reduce maintenance downtime, protect joints against vibration, and extend the life of your equipment.

FAQ Section

Q1: How does a spring washer prevent loosening of bolts?
A spring washer exerts continuous pressure against the fastener head and the mating surface. Its spring action increases friction between the nut and bolt threads, preventing rotational loosening caused by vibration or thermal cycling.

Q2: How should I install a spring washer correctly?
Always place the spring washer between the fastener head (or nut) and the flat surface of the component. Ensure the split or wave portion faces outward, allowing it to compress when tightened. Over-tightening should be avoided as it can flatten the washer and reduce effectiveness.

How Spring Washers Shape Reliability Across Industries

From the railroads of Europe to the automotive factories of Asia and aerospace plants in North America, spring washers serve as the invisible safeguard behind millions of machines. Their ability to maintain consistent pressure ensures uninterrupted operations in environments where failure is not an option.

In wind turbines, spring washers resist loosening caused by constant rotational movement and extreme weather exposure. In heavy construction equipment, they absorb the impact forces that would otherwise compromise safety. Even in consumer electronics, tiny wave washers guarantee that internal components remain securely positioned despite frequent use.

Ultimately, the role of a spring washer is simple yet indispensable: it transforms fastener assemblies from temporary connections into durable, vibration-resistant, and long-lasting joints.

At QBH, we specialize in manufacturing high-quality spring washers that meet international standards and diverse application needs. Our catalog includes split lock, Belleville, wave, and curved washers crafted from premium materials with superior surface treatments. Whether your project requires bulk industrial supply or precision components for specialized equipment, our technical expertise ensures the right solution for every challenge.

To learn more about our spring washer range, customization services, and global supply capabilities, we invite you to contact us today. Partnering with QBH means securing the integrity of your assemblies with proven reliability.
