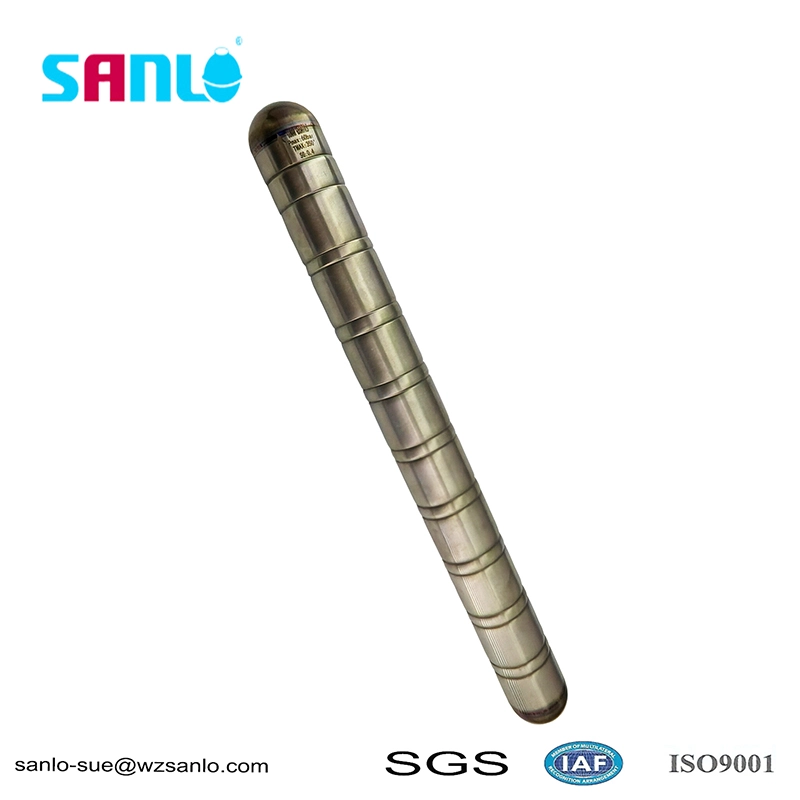

How Does a High-Performance Magnetic Flap Level Gauge Float Ensure Operational Safety and Precision?

In harsh industrial processing environments, accurate liquid level monitoring is essential to maintain operational safety, regulatory compliance, and overall system efficiency. At the heart of visual level indication technology sits the Magnetic Flap Level Gauge Float. Acting as the functional driver inside the bypass chamber, this specialized component rises and falls with liquid density changes, utilizing a precision 360° magnetic assembly to actuate external bi-color indicators without direct contact with hazardous fluids.

Importance and Functional Role of the Magnetic Flap Level Gauge Float

The primary function of a Magnetic Flap Level Gauge Float is to translate fluid position into clear, non-contact visual or electronic signals. Because process fluids often involve high pressures, toxic chemicals, or volatile hydrocarbons, traditional glass sight gauges pose significant leakage and breakage risks.

• Hermetic Fluid Isolation: The float operates inside a completely sealed non-magnetic chamber, eliminating dynamic seals and potential leakage paths.

• Continuous Signal Transmission: High-strength permanent magnets inside the float reliably actuate external bi-color visual indicators, continuous transmitters, and magnetic alarm switches.

• Buoyancy Stability: Precision wall thickness engineering ensures consistent displacement and linear tracking across varying process pressures and temperatures.

Operational Performance and Field Efficiency

Integrating a high-spec Magnetic Flap Level Gauge Float provides clear, tangible performance benefits across industrial processing facilities:

Why Customization Matters: Tailored Float Solutions by Wenzhou Sanlo

No two industrial applications are identical. Variations in liquid density, process pressure, operating temperature, and corrosive media demand tailored float designs to maintain proper buoyancy and accurate measurement.

At Wenzhou Sanlo International Trade Co., Ltd., we specialize in high-precision stainless steel and titanium float manufacturing. Our standout operational advantage is complete custom drawing and specification support. Whether your application requires unique outer diameters, precise wall thicknesses, custom magnetic orientations, or targeted buoyancy adjustments, our engineering team manufactures customized floats engineered exactly to your operational parameters.

Key Customization Capabilities:

• Material Selection: High-grade SS304, SS316L, Titanium, and Hastelloy for aggressive chemical environments.

• Density Matching: Precision buoyancy tuning engineered for low specific gravity fluids down to 0.45 g/cm³.

• Pressure Rating: Custom wall thickness designs engineered to handle extreme working pressure cycles without collapsing.

• Magnetic Alignment: Customized internal magnet configurations tailored to drive specific external indicator types and sensors.

Technical Specifications and Selection Matrix

Choosing the right Magnetic Flap Level Gauge Float requires evaluating key operational parameters:

• Medium Specific Gravity: Float mass and volume must be calculated to match fluid displacement accurately.

• Operating Temperature & Pressure: Determines chamber material selection, weld integrity requirements, and float wall thickness.

• Corrosion Resistance Requirements: Guides material selection (such as SS316L versus Titanium) for aggressive media.

• Magnetic Field Strength: Ensures complete actuation of external indicators and limit switches across the chamber wall thickness.

To upgrade your liquid level measurement reliability or request custom float designs engineered for your specific process conditions, contact us today. The engineering and technical team at Wenzhou Sanlo International Trade Co., Ltd. is ready to deliver high-quality, tailored float solutions for your application.
