How Do Wind Turbine Flange Connections Impact Overall System Reliability

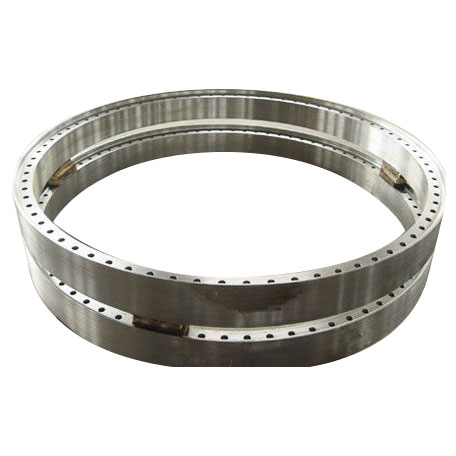

When engineers discuss wind turbine reliability, the focus is often on blades, generators, or gearboxes. However, the structural integrity of the entire tower hinges on a critical, yet frequently overlooked component: the Wind Power Flange. These massive steel rings are the linchpins, connecting tower sections, nacelles, and blades to the foundation. A single flaw in a flange connection can lead to catastrophic failure, unplanned downtime, and immense financial loss. This is why precision engineering and uncompromising quality in these forged components are non-negotiable. At Jiangyin Huaxi Flange Pipe Fittings Co., Ltd, we specialize in manufacturing the high-performance flanges that form the reliable backbone of wind energy systems worldwide.

The reliability impact of a flange is determined by its core parameters. Our flanges are engineered to exceed the stringent demands of global wind projects.

Key Product Parameters for Maximum Reliability:

• Material & Standards: Forged from superior grades like ASTM A350 LF2, ASTM A694 F60, or comparable EN standards, ensuring optimal strength and toughness in low-temperature, high-stress environments.

• Precision Machining: Bolt hole pitch circle diameter (PCD) is machined with extreme accuracy (tolerances within ±0.5mm) to guarantee perfect alignment and even load distribution across all bolts.

• Surface Treatment: Specialized anti-corrosion coatings, such as hot-dip galvanizing or long-life paint systems, protect against harsh offshore and onshore weather, preventing degradation.

• Non-Destructive Testing (NDT): Every flange undergoes 100% UT (Ultrasonic Testing) and MT (Magnetic Particle Testing) to eliminate internal and surface defects, a critical step for fatigue resistance.

Typical Flange Specification Table for a 3MW Turbine:

Wind Power Flange FAQ

Q: What is the most critical factor in preventing wind turbine flange failure?
A: The most critical factor is material integrity and proper heat treatment. Flanges must have a homogeneous microstructure with no inclusions or defects to withstand cyclic loading over 20+ years. At Jiangyin Huaxi Flange, we control the forging and quenching process meticulously to achieve the required mechanical properties, preventing crack initiation.

Q: How often should flange connections be inspected?
A: Major inspections are typically aligned with turbine service schedules, every 4-6 years. However, visual checks for bolt tension, corrosion, and surface cracks should be part of routine annual maintenance. Using flanges with permanent marking (like our laser-etched batch number) allows for precise tracking and maintenance history.

Q: Can you supply flanges for both onshore and offshore turbines?
A: Absolutely. While the core manufacturing precision is similar, offshore wind power flanges demand significantly higher corrosion protection, often requiring duplex stainless steel or enhanced coating systems. Jiangyin Huaxi Flange provides tailored solutions for both environments, with offshore flanges built to resist saltwater spray and constant humidity.

In the quest for higher capacity factors and lower cost of energy, every component must perform flawlessly. Don’t let a subpar connection be the weakest link in your wind turbine’s chain. Choosing a trusted manufacturer is an investment in long-term system reliability and operational safety.

Contact us today at Jiangyin Huaxi Flange Pipe Fittings Co., Ltd to request a detailed quote or technical datasheet for your specific wind power flange requirements. Let our expertise forge the foundation of your turbine’s success.
