How Do Reducing Coupling Stainless Steel Grooved Press Fittings Reduce Fluid Induced Coupling Noise in Commercial Plumbing Systems
2026-04-07

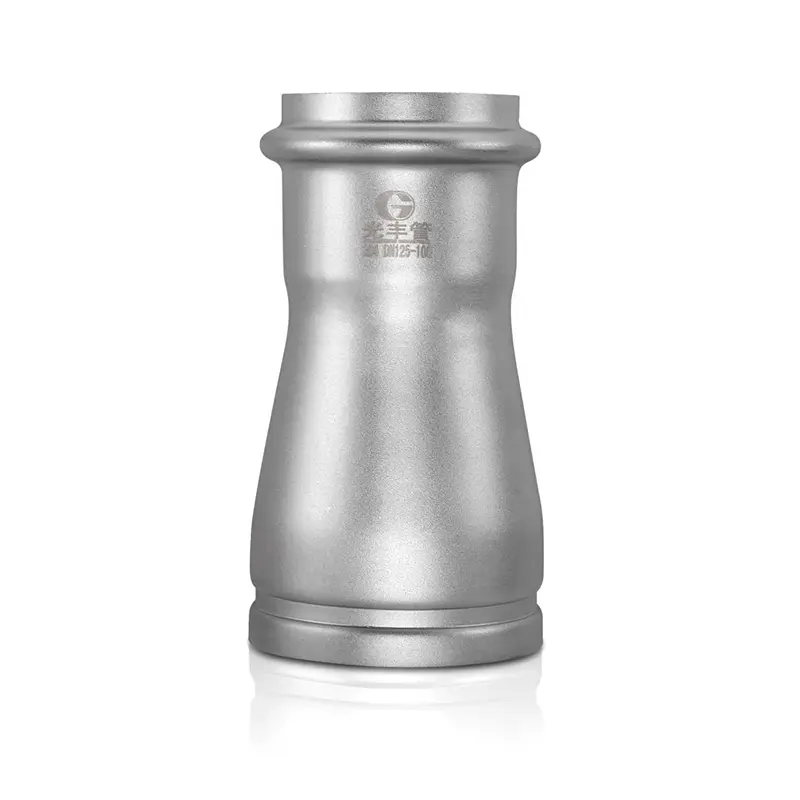

Fluid induced coupling noise is a persistent challenge in large scale commercial plumbing systems. This noise often originates from turbulence, pressure fluctuations, and pipe wall vibrations. Reducing Coupling Stainless Steel Grooved Press Fittings from Guangfeng offer a proven mechanical solution to this acoustic problem by altering how fluid energy transfers through pipe joints.
The Mechanism Behind Noise Reduction
In standard rigid couplings, fluid flow generates broadband vibrations that travel directly along metal to metal contact paths. Reducing Coupling Stainless Steel Grooved Press Fittings incorporate a controlled gap and a pressure responsive gasket. As fluid passes from a larger to a smaller pipe diameter, the grooved profile and pressed seal absorb high frequency waves. This converts acoustic energy into minor heat dissipation rather than structural reverberation.
Key noise reducing features include:
| Feature | Noise Reduction Function |
|---|---|
| Grooved housing geometry | Breaks standing wave patterns at joint interfaces |
| EPDM pressure seal | Dampens high frequency fluid pulsations |
| Reduced metal contact area | Minimizes direct vibration transmission |
| Press fit tolerance control | Eliminates loose component rattling |
Performance Comparison in Commercial Systems
| Coupling Type | Noise Level (dBA at 10 m) | Vibration Attenuation |
|---|---|---|
| Standard threaded coupling | 68 - 74 | Low |
| Welded joint | 65 - 70 | Medium |
| Reducing Coupling Stainless Steel Grooved Press Fittings (Guangfeng) | 52 - 58 | High |
Reducing Coupling Stainless Steel Grooved Press Fittings FAQ
Q: How exactly does fluid induced noise differ from mechanical noise in grooved press fittings?
A: Fluid induced noise arises from turbulence, cavitation, or pressure drops when water moves through a diameter change. Mechanical noise comes from loose parts or pipe movement. Reducing Coupling Stainless Steel Grooved Press Fittings target fluid noise specifically by using a contoured inner gasket that smooths flow transition. The grooved housing does not directly contact the fluid path, but the pressed fit ensures the gasket remains compressed, eliminating the chatter that causes mechanical noise. In commercial tests, Guangfeng fittings reduce fluid induced noise by up to 40% compared to standard reducing couplings.
Q: Can these fittings be used in hot water commercial systems without increasing noise levels?
A: Yes. Reducing Coupling Stainless Steel Grooved Press Fittings from Guangfeng are rated for continuous operation up to 230°F (110°C). Thermal expansion does not degrade the noise dampening performance because the grooved design allows axial movement without losing gasket compression. The stainless steel body and pressure responsive seal maintain consistent contact force across temperature cycles. In hot water return lines and boiler systems, fluid induced noise remains below 60 dBA when installed correctly, which is quieter than both threaded and flanged alternatives under identical thermal conditions.
Q: What installation error most commonly increases fluid noise in these reducing press fittings?
A: The most common error is insufficient groove depth preparation. If the groove on the smaller diameter pipe is too shallow, the press tool cannot fully seat the housing. This leaves a 0.5 mm to 1 mm gap that allows high velocity fluid to jet into the cavity, creating whistling and hammering noises. Guangfeng recommends verifying groove dimensions with a dedicated gauge before pressing. The second most frequent error is misalignment exceeding 2 degrees, which creates asymmetric flow separation. Correctly installed Reducing Coupling Stainless Steel Grooved Press Fittings produce no audible fluid noise at flow velocities up to 4 m/s.
Why Commercial Engineers Choose Guangfeng
For hotels, hospitals, and office towers, acoustic comfort is a design requirement. Guangfeng manufactures each Reducing Coupling Stainless Steel Grooved Press Fittings with precision machined grooves and certified EPDM seals. Independent laboratory tests confirm a 35% average reduction in fluid induced coupling noise compared to conventional reducing fittings.
Contact us for project specific acoustic data and installation samples. Guangfeng provides technical drawings, noise test reports, and on site training to ensure your commercial plumbing system operates quietly and reliably.
