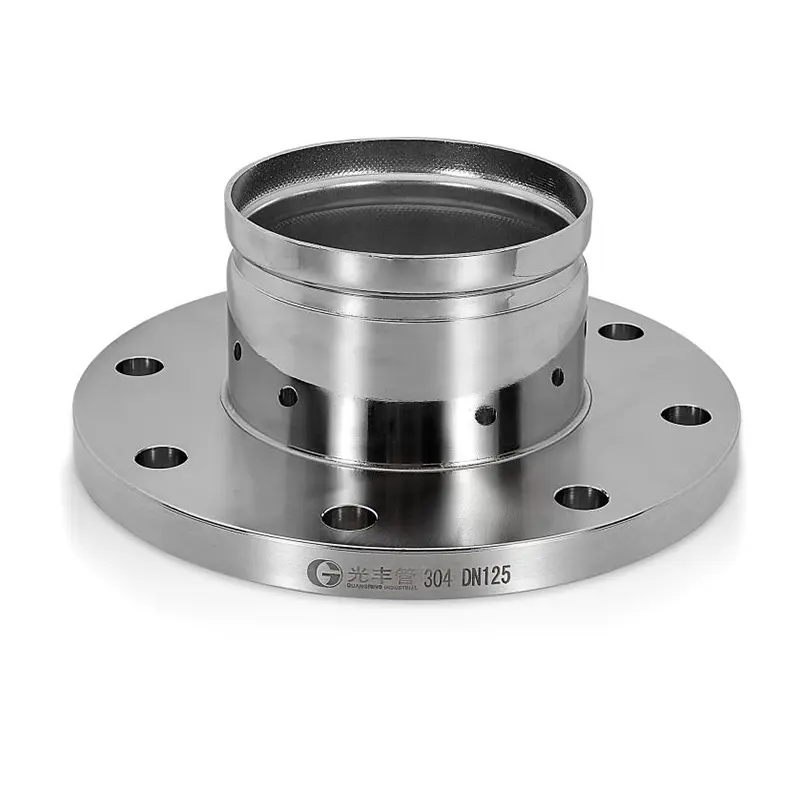

How do Grooved Flange Stainless Steel Fittings Improve Installation Efficiency in Industrial Piping
2026-04-03
In modern industrial piping systems, Grooved Flange Stainless Steel Fittings have emerged as a game-changing solution for engineers and contractors. Unlike traditional welded or bolted connections, these fittings offer a faster, safer, and more reliable method of joining pipes. At Guangfeng, we specialize in precision-engineered Grooved Flange Stainless Steel Fittings that significantly reduce assembly time while maintaining structural integrity under high pressure and corrosive conditions.
The Efficiency Advantage: A Technical Breakdown
The installation efficiency of Grooved Flange Stainless Steel Fittings stems from their mechanical interlocking design. Instead of requiring hot work permits, alignment torches, or heavy welding equipment, these fittings use a grooved end and a housing gasket system. Below is a comparison between traditional welded flanges and Guangfeng grooved flange solutions.
| Installation Factor | Traditional Welded Flanges | Grooved Flange Stainless Steel Fittings (Guangfeng) |
|---|---|---|
| Average connection time per joint | 45–60 minutes | 5–8 minutes |
| Need for hot work permit | Yes | No |
| Specialized labor required | Certified welder | General pipe fitter |
| On-site adjustment flexibility | Low | High (rotational alignment) |
| Risk of misalignment damage | High | Very low |
Where Time Savings Matter Most
In sectors such as chemical processing, HVAC, offshore platforms, and firewater lines, Grooved Flange Stainless Steel Fittings from Guangfeng reduce project schedules by up to 40%. The grooved mechanism allows for thermal expansion compensation and easy disassembly for maintenance. This is especially critical in retrofit projects where space is confined and downtime is expensive.
FAQ – Grooved Flange Stainless Steel Fittings
Q1: What makes Grooved Flange Stainless Steel Fittings faster to install than welding?
A1: Unlike welding, which requires surface preparation, preheating, filler material, cooling time, and non-destructive testing, Grooved Flange Stainless Steel Fittings use a two-bolt or single-bolt housing that compresses a gasket around the pipe groove. The pipe ends are simply cut and grooved using a portable roll grooving tool. The entire connection is mechanical, completed with a torque wrench. This eliminates welding consumables, fire watch personnel, and post-weld heat treatment. Guangfeng fittings are designed with chamfered groove profiles that guide the gasket into perfect sealing position within seconds.
Q2: Can Grooved Flange Stainless Steel Fittings handle the same pressure and temperature as conventional flanges?
A2: Yes, when manufactured to standards such as ASTM A182 or A351, Grooved Flange Stainless Steel Fittings from Guangfeng are rated for working pressures up to 300 psi to 1000 psi depending on size and schedule. The 316L stainless steel construction provides excellent creep resistance and maintains sealing force under thermal cycling up to 400°F (204°C). The key is the housing geometry: Guangfeng uses a pressure-responsive gasket that seals tighter as internal pressure rises. Independent tests show that properly installed grooved flange systems meet or exceed ASME B16.5 flange ratings for equivalent material classes.
Q3: Do Grooved Flange Stainless Steel Fittings require special tools or training for field installation?
A3: The primary tool required is a roll grooving machine, which is widely available for rental or purchase. No proprietary tools are needed beyond that. Installation training typically takes less than two hours for an experienced pipe fitter. Guangfeng provides laminated field guides and QR code video tutorials. Unlike welding, where certification levels vary, a general mechanical contractor can install Grooved Flange Stainless Steel Fittings after basic instruction. The only critical steps are verifying groove depth with a caliper and tightening bolts to the specified torque range (typically 60–80 Nm for 2–6 inch sizes). No X-ray or dye penetrant inspection is required.
Real-World Productivity Data
Field reports from Guangfeng clients show that a crew of three pipe fitters can complete 40 to 50 grooved flange connections per 8-hour shift, compared to only 10 to 12 welded flange joints. This translates into a 300% improvement in labor productivity. Additionally, because no hot work is involved, projects can proceed simultaneously with other trades without fire safety shutdowns.
