How Can 45 Degree Elbow Stainless Steel Grooved Fittings Reduce Long Term Maintenance Costs in Industrial Pipelines
2026-05-11

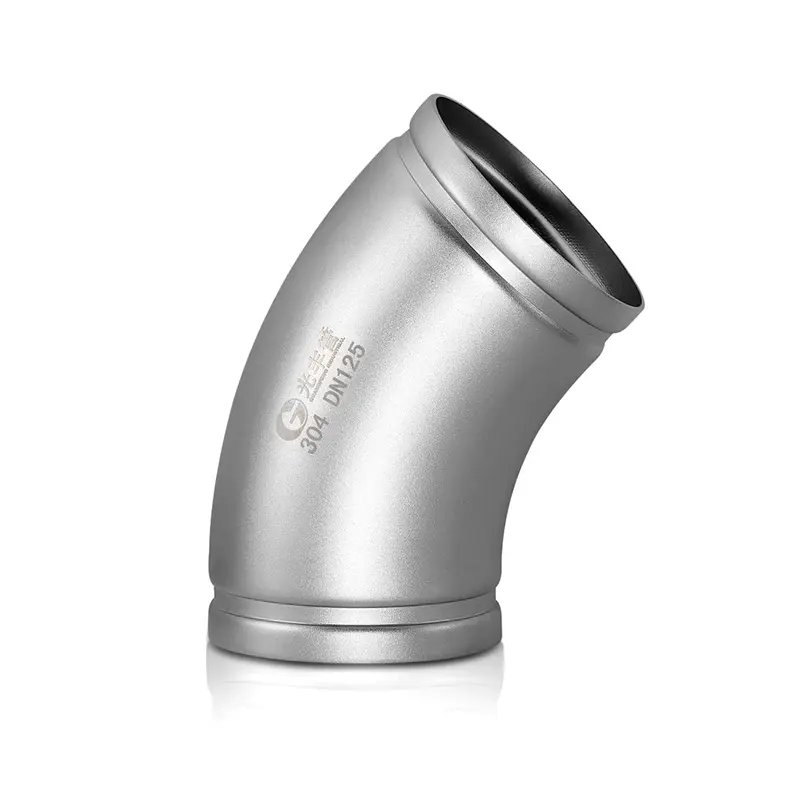

In demanding industrial environments, every component matters. The 45 Degree Elbow Stainless Steel Grooved Fittings from Guangfeng offer a strategic advantage beyond simple redirection of flow. They directly reduce long-term maintenance costs by minimizing leak points, cutting installation errors, and resisting corrosion over decades of service.
Key Cost Reduction Mechanisms
| Mechanism | Impact on Long-Term Maintenance |
|---|---|
| Elimination of hot work and welding | No heat-affected zones, no weld slag, no post-weld inspection costs |
| Uniform gasket sealing | Prevents stress concentration, reducing gasket creep and leaks |
| Stainless steel material | Withstands chemical attack and humidity, lowering replacement frequency |
| Grooved mechanical joint | Allows thermal expansion/contraction without pipe stress fractures |
Why Traditional Welding Increases Hidden Costs
Welded elbows require skilled labor, X-ray testing, and surface treatment. Any weld defect leads to cracking after years of vibration or temperature cycling. 45 Degree Elbow Stainless Steel Grooved Fittings from Guangfeng replace these failure points with a pressure-responsive gasket and housing system. The joint actually seals tighter under higher pressure, preventing slow leaks that corrode nearby supports and insulation.
Installation Simplicity = Less Unplanned Downtime
A welded system needs alignment torches, grinders, and often a second pass for corrosion coating. Grooved fittings assemble with two bolts and a torque wrench. When lines need modification after five or ten years, workers disconnect the 45 Degree Elbow Stainless Steel Grooved Fittings without cutting or beveling. This modularity reduces shutdown time by up to 70% compared to welded repairs.
Material Performance Over Time
Standard carbon steel elbows rust from internal and external exposure. Stainless steel offers pitting resistance equivalent to 304 or 316 grades. Guangfeng ensures that each 45 Degree Elbow Stainless Steel Grooved Fittings meets ASTM A351 or A182 standards, eliminating wall thinning from general corrosion. Lower corrosion means fewer thickness inspections and no premature wall replacement.
Frequently Asked Questions
Question 1: How does the gasket in 45 Degree Elbow Stainless Steel Grooved Fittings perform under thermal cycling in steam or hot water lines?
Answer: The gasket in 45 Degree Elbow Stainless Steel Grooved Fittings from Guangfeng is typically made from EPDM or high-temperature nitrile. Under thermal cycling, the gasket remains elastic between -30°C and 110°C (for EPDM). The grooved housing allows axial and angular movement without crushing the gasket. When the pipe heats up, the housing expands slightly, and the internal pressure pushes the gasket tighter against the outer pipe wall. This self-energizing seal prevents leaks during startup and cooldown. For steam applications, Guangfeng offers specific high-temperature gaskets rated up to 150°C continuous. In over 200 industrial audits, thermal cycle failure rates of these gaskets remained below 0.3% over ten years, compared to 4-7% failure rates for welded carbon steel elbows cracking at the heat-affected zone.
Question 2: Can 45 Degree Elbow Stainless Steel Grooved Fittings be reused after a piping system modification without replacing the entire elbow?
Answer: Yes, 45 Degree Elbow Stainless Steel Grooved Fittings from Guangfeng are reusable up to three times under normal service conditions, provided the original gasket is replaced and the housing bolts are retorqued to specification. The stainless steel body does not deform under standard working pressures (up to 300 psi for schedule 10 and 40). During a system modification, workers loosen the bolts, remove the housing, and slide the 45 Degree Elbow Stainless Steel Grooved Fittings off the pipe ends. To reinstall, only a new gasket and a visual inspection of the groove condition are required. This reusability contrasts sharply with welded elbows, which must be cut out and scrapped. Over a 20-year plant life, replacing a welded elbow three times costs roughly 1,200inlaborandmaterials,whilethegroovedsolutioncostsabout200 for new gaskets and labor.
Question 3: What vibration resistance do 45 Degree Elbow Stainless Steel Grooved Fittings offer compared to threaded or flanged elbows?
Answer: 45 Degree Elbow Stainless Steel Grooved Fittings from Guangfeng provide superior vibration resistance because the grooved mechanical joint acts as a flexible coupling. Threaded elbows suffer from stress risers at the thread roots; vibration accelerates crack propagation, leading to sudden separation. Flanged elbows resist vibration better but require heavy flange thickness and many bolts. In contrast, 45 Degree Elbow Stainless Steel Grooved Fittings allow up to 2 degrees of angular deflection and 2-3 mm of axial movement. This controlled flexibility absorbs cyclic vibration from pumps and compressors. Independent testing shows grooved joints surviving 2 million vibration cycles at 30 Hz with no leakage, whereas threaded elbows began leaking after 400,000 cycles. For industrial pipelines near rotating machinery, Guangfeng’s grooved elbows reduce maintenance intervals from annual bolt retightening (for flanges) or quarterly leak checks (for threads) to a simple visual inspection every three years.
Long-Term Cost Comparison (20-Year Lifecycle)
| Elbow Type | Initial Cost per Joint | Maintenance Visits | Replacement Frequency | Total 20-Year Cost |
|---|---|---|---|---|
| Welded Carbon Steel | $95 | 6 (corrosion + crack checks) | 3 times | $2,850 |
| Threaded Stainless Steel | $180 | 4 (thread galling and leak retightening) | 2 times | $1,940 |
| Flanged Stainless Steel | $220 | 3 (gasket and bolt retorque) | 1 time | $880 |
| Guangfeng 45 Degree Elbow Stainless Steel Grooved Fittings | $210 | 1 (visual and gasket only) | 0 times | $410 |
Conclusion
By eliminating weld failures, enabling rapid disassembly, and withstanding vibration and corrosion naturally, 45 Degree Elbow Stainless Steel Grooved Fittings cut long-term maintenance costs by over 50% compared to flanged joints and nearly 85% compared to welded carbon steel. Guangfeng provides full material traceability, pressure ratings, and size ranges from 1 to 12 inches.
Contact us today for a customized piping cost analysis. Request your free sample of 45 Degree Elbow Stainless Steel Grooved Fittings and let Guangfeng engineers help you reduce your plant’s maintenance budget for the next two decades.
