How Are PPR Pipes Connected And Installed Securely
2025-09-12
As a plumbing specialist with over two decades of experience, I often emphasize that the superior performance of any PPR Pipe system hinges on one critical step: proper installation. A Besta PPR Pipe is designed for longevity, but its true potential is only unlocked with correct connection techniques. The secret to a leak-proof, durable system lies in the heat fusion method, which permanently bonds pipes and fittings into a single, monolithic unit.
What Tools Are Essential for a Secure PPR Connection
Achieving a perfect joint requires precision tools. For a professional-grade installation, you will need:
-
A PPR Pipe cutter to ensure perfectly square, clean cuts.
-
A socket fusion welder with temperature control, ideally between 260°C ± 10°C.
-
Cleaning pads specifically designed for polypropylene material.
-
Depth and alignment markers to prevent inaccurate insertion.
Using high-quality tools like those recommended for Besta systems ensures consistent heat application, which is the foundation of a secure connection.
What Are the Critical Steps in the Fusion Process
The procedure is straightforward but demands attention to detail. Follow these steps for a flawless seal:
-
Cut: Use the sharp cutter to cut the pipe squarely. Deburr the end.
-
Clean: Wipe both the pipe end and the fitting socket with a clean, dry cloth to remove any dust or moisture.
-
Mark: Use the marker to indicate the exact insertion depth on the pipe.
-
Heat: Simultaneously attach the pipe and fitting to the heated dies of the welder. Heat them for the duration specified in the Besta technical chart (based on pipe diameter).
-
Connect: Quickly remove the parts from the welder and push the pipe into the fitting up to the depth mark, holding it steady without twisting.
-
Cool: Allow the joint to cool naturally under ambient conditions. Avoid any stress or movement during this critical cooling period.
This process creates a fusion zone that is as strong as the pipe itself, ensuring a completely homogeneous connection.

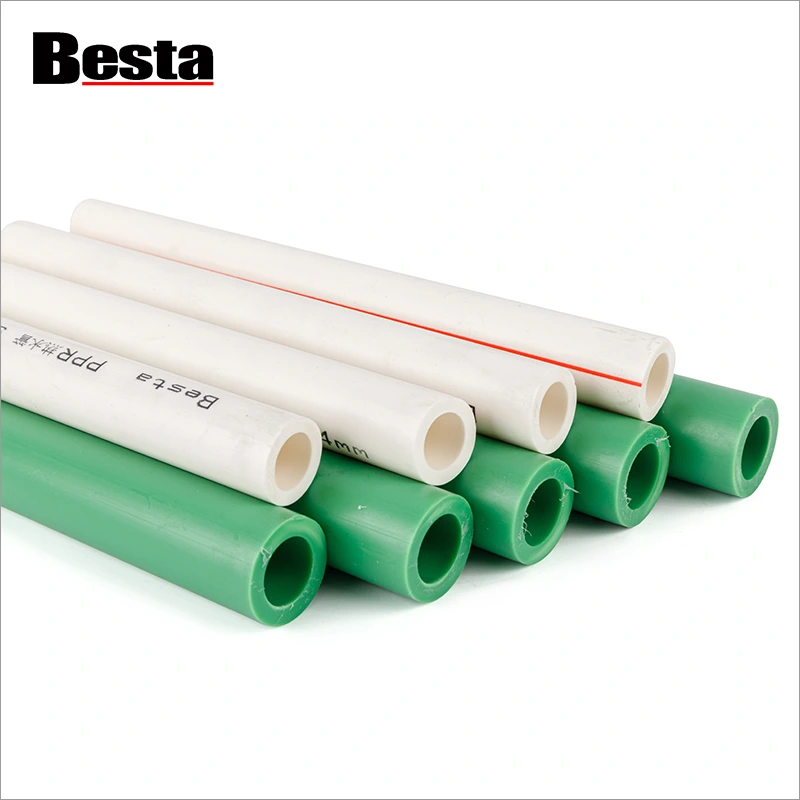

How Do Besta PPR Specifications Ensure Reliability
Besta PPR Pipe systems are manufactured to exacting standards, which directly contribute to installation success and system longevity. Key parameters include:
| Feature | Besta PPR Specification | Benefit for Installation |
|---|---|---|
| Standard Dimension Ratio (SDR) | SDR 6, SDR 7.4 | Provides optimal wall thickness for pressure rating and easy fusion. |
| Pressure Rating (PN) | PN 20, PN 25 | Withstands high system pressures when installed correctly. |
| Melting Point | ~170°C | Perfect for standard fusion welder temperatures, ensuring a stable melt. |
| Thermal Expansion Coefficient | 0.15 mm/m°C | Allows planners to accurately account for expansion in hot water lines. |
Adhering to these specifications guarantees that your installed system will perform reliably for decades.
PPR Pipe FAQ Common Questions
What is the most common mistake during PPR installation
The most frequent error is under or over-heating the parts during fusion. Under-heating prevents a full molecular bond, leading to weak joints that may fail under pressure. Over-heating can cause an excessive bead inside the pipe, restricting water flow. Always follow the Besta heating time chart based on the ambient temperature and pipe diameter.
Can I reconnect or adjust a fused joint if I make a mistake
No, the heat fusion process is permanent and irreversible. Once the polypropylene molecules have intertwined and cooled, the joint cannot be disassembled. If an error is made, the entire section must be cut out and replaced with new pipe and fittings. This highlights the importance of careful measurement and dry-fitting before applying heat.
How do I handle PPR pipe installation in cold weather
Cold ambient temperatures can cause the pipe to cool too quickly after fusion, potentially compromising the joint integrity. Always store pipes and fittings in a warm environment before installation. If working in cold conditions (below 5°C), consider using a temporary shelter or tent and slightly increase the heating time as specified in the manual to compensate for heat loss.
A secure PPR Pipe installation is a blend of quality materials, precise tools, and skilled technique. By trusting Besta products and following these proven methods, you ensure a plumbing system built to last.
