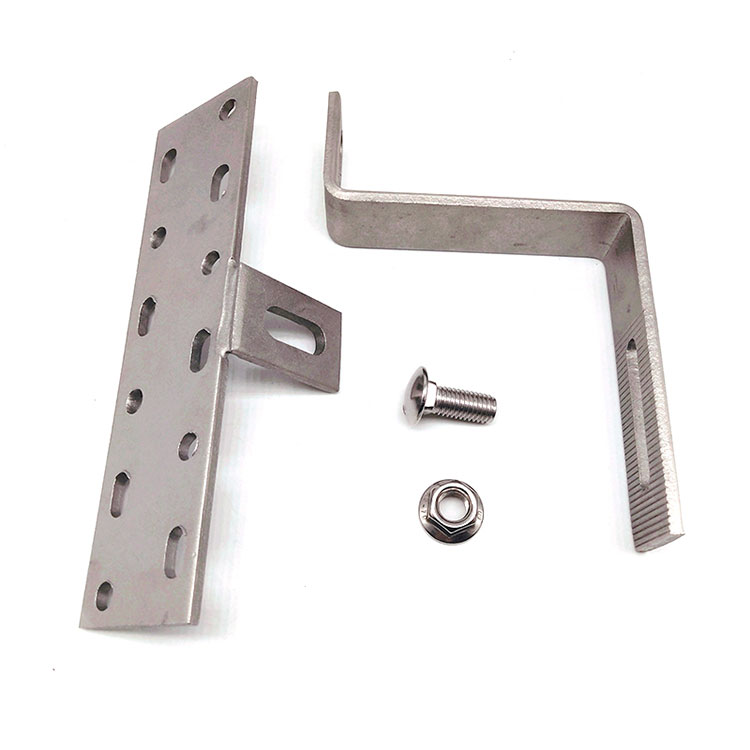

How Are Accessories Like Mid‑Clamps and End‑Clamps Used with Solar Brackets?

2026-10-21

An installation crew leader is preparing the bill of materials for a 500 kW rooftop project. The Solar Bracket layout has 20 modules per row and 12 rows. The crew leader orders mid-clamps and end-clamps based on the previous project, which had 22 modules per row. On site, the crew runs out of mid-clamps before the last two rows are complete. The end-clamps are also short. The crew leader realizes that the clamp quantity depends on the module count per row and the number of rows, not on the total module count alone. This guide explains how mid-clamps and end-clamps are used with solar brackets and how to calculate the correct quantities.

1. What Is the Difference Between a Mid-Clamp and an End-Clamp?

A mid-clamp is used between two adjacent modules. It holds the frames of both modules simultaneously. An end-clamp is used at the outer edge of the array. It holds the frame of a single module. The mid-clamp is symmetrical and can be used on either side of a module. The end-clamp is asymmetrical and has a specific orientation. The table below compares the two accessories.

Feature	Mid-clamp	End-clamp
Position	Between two modules	At the array edge
Modules held	2	1
Symmetry	Symmetrical	Asymmetrical (left or right)
Typical quantity per row	(N – 1) per row	2 per row
Material	Aluminum 6005-T5 or 6063-T6	Aluminum 6005-T5 or 6063-T6

In our factory, we manufacture mid-clamps and end-clamps from aluminum 6005-T5 and 6063-T6. The clamps are anodized to resist corrosion. The mid-clamp has a symmetrical profile that allows it to be flipped for different module heights. The end-clamp has a hook that engages the module frame and a flat surface that presses against the rail. Ningbo Gangtong Zheli Fasteners Co.,Ltd. has been manufacturing solar bracket accessories for over 10 years.

2. How Do You Calculate the Number of Mid-Clamps and End-Clamps for a Solar Bracket Layout?

The number of clamps depends on the module arrangement. For a single row of N modules, the number of mid-clamps is N – 1, and the number of end-clamps is 2. For a layout with R rows, each with N modules, the total number of mid-clamps is R × (N – 1), and the total number of end-clamps is R × 2. The table below shows the calculation for different layouts.

Layout	Modules per row (N)	Number of rows (R)	Mid-clamps required	End-clamps required
Small rooftop	10	4	36	8
Medium rooftop	15	8	112	16
Large rooftop	20	12	228	24
Ground mount	25	20	480	40

Installation crew leader's note: The most common mistake is to order clamps based on the total module count divided by two. This underestimates the mid-clamps because each row has two end-clamps that hold only one module each. For a layout with many short rows, the end-clamp quantity is proportionally higher. For a layout with a few long rows, the mid-clamp quantity is proportionally higher. Always calculate per row, then multiply by the number of rows. Add 5 percent for breakage and loss. In our factory, we provide a bill of materials calculator that takes the row length and the number of rows as inputs and outputs the exact clamp quantities.

3. What Are the Installation Requirements for Mid-Clamps and End-Clamps?

The clamps must be installed with the correct torque and the correct orientation. The torque depends on the bolt size and the clamp material. Over-tightening can deform the module frame or crack the clamp. Under-tightening can allow the module to move under wind load. The table below shows the recommended torque for common clamp bolts.

Bolt size	Clamp material	Recommended torque	Maximum torque
M8 (stainless steel A2-70)	Aluminum 6005-T5	16 – 18 Nm	20 Nm
M8 (stainless steel A4-70)	Aluminum 6005-T5	16 – 18 Nm	20 Nm
M10 (stainless steel A2-70)	Aluminum 6005-T5	30 – 35 Nm	40 Nm
M8 (stainless steel A2-70)	Aluminum 6063-T6	14 – 16 Nm	18 Nm

The orientation of the end-clamp is also important. The hook must engage the module frame, and the flat surface must press against the rail. If the end-clamp is installed backwards, it will not hold the module securely. In our factory, we mark the end-clamp with an arrow that indicates the direction of installation. We also provide a torque wrench and a installation guide with every Solar Bracket order. Ningbo Gangtong Zheli Fasteners Co.,Ltd. recommends that the installation crew use a calibrated torque wrench and check the torque on 10 percent of the clamps after installation.

4. What Are the Common Mistakes in Clamp Selection and Installation?

There are four common mistakes in clamp selection and installation. The first is using the wrong clamp height. The clamp height must match the module frame height. If the clamp is too tall, it will not grip the frame. If it is too short, it will bottom out on the rail before gripping the frame. The second is using the wrong clamp length. The clamp length must match the rail width. If the clamp is too short, it will not reach the rail. The third is mixing mid-clamps and end-clamps. The two types are not interchangeable. The fourth is using the wrong bolt material. The bolt must be stainless steel to resist corrosion. The table below shows the common mistakes and their consequences.

Mistake	Consequence	Prevention
Wrong clamp height	Module not secured; risk of wind damage	Verify frame height before ordering
Wrong clamp length	Clamp does not reach rail; loose connection	Verify rail width before ordering
Mid-clamp used as end-clamp	Module edge not secured; risk of slippage	Color-code or label the clamps
Wrong bolt material	Corrosion; bolt failure over time	Use A2-70 or A4-70 stainless steel

In our factory, we provide a clamp selection guide that lists the compatible module frame heights and rail widths for each clamp model. We also offer a sample kit that includes one mid-clamp and one end-clamp of each size so that the installation crew can verify the fit before ordering. Ningbo Gangtong Zheli Fasteners Co.,Ltd. provides full technical support for clamp selection and installation.

Frequently Asked Questions About Mid-Clamps and End-Clamps for Solar Brackets

Question 1: Can mid-clamps be used at the end of a row if end-clamps are not available?

Answer: No, a mid-clamp should not be used at the end of a row. The mid-clamp is designed to hold two module frames. At the end of a row, there is only one module frame. The mid-clamp would have one side pressing against the module frame and the other side pressing against nothing. This creates an uneven load and can damage the module frame or the clamp. The end-clamp is designed with a hook that engages the module frame and a flat surface that presses against the rail. It provides a secure hold for a single module. In our factory, we recommend that the installation crew keep a small stock of end-clamps on site to avoid the temptation of using mid-clamps at the row ends. We also offer a combined kit that includes both mid-clamps and end-clamps in the correct ratio for common layouts.

Question 2: How does the module frame thickness affect the clamp selection?

Answer: The module frame thickness determines the clamp height and the grip range. A clamp with a grip range of 30 to 40 mm will fit a module frame with a thickness of 30 to 40 mm. If the frame is thinner than the minimum grip range, the clamp will not tighten securely. If the frame is thicker than the maximum grip range, the clamp will not close. In our factory, we offer clamps with grip ranges of 30 to 35 mm, 35 to 40 mm, and 40 to 45 mm. The most common frame thickness for standard modules is 35 mm. We recommend that the installation crew measure the frame thickness on a sample module before ordering the clamps. We also provide a clamp gauge that the crew can use to verify the grip range on site.

Question 3: What is the recommended spacing between clamps along a rail?

Answer: The clamp spacing is determined by the module size and the wind load. For a standard 2 meter module, the clamps are typically placed at one-third points along the module length, which is approximately 660 mm from each end. For a 1.6 meter module, the clamps are placed at 530 mm from each end. The spacing must comply with the module manufacturer's installation manual. In our factory, we provide a clamp layout drawing with every Solar Bracket order. The drawing shows the recommended clamp positions for the module size and the wind zone. We also recommend that the installation crew use a template or a measuring tape to mark the clamp positions before installation. This ensures that the clamps are evenly spaced and that the module is properly supported.

Summary for Installation Crew Leaders

Mid-clamps and end-clamps are essential accessories for a Solar Bracket installation. The mid-clamp holds two adjacent modules, and the end-clamp holds a single module at the array edge. The quantity of each depends on the number of modules per row and the number of rows. The most common mistake is to underestimate the end-clamp quantity. The clamps must be installed with the correct torque and orientation. The clamp height and length must match the module frame and the rail. By calculating the quantities per row and verifying the fit before installation, crew leaders can avoid shortages and ensure a secure installation. Ningbo Gangtong Zheli Fasteners Co.,Ltd. has been manufacturing solar bracket accessories for over 10 years and provides full technical support for our customers.

Ningbo Gangtong Zheli Fasteners Co.,Ltd. manufactures mid-clamps and end-clamps for Solar Bracket systems in aluminum 6005-T5 and 6063-T6, with grip ranges from 30 to 45 mm. We provide bill of materials calculators, clamp layout drawings, and sample kits for all of our products.

Need help calculating the right clamp quantities for your solar bracket project? Contact Ningbo Gangtong Zheli Fasteners Co.,Ltd. for a free consultation. We will review your layout and provide a complete bill of materials.
