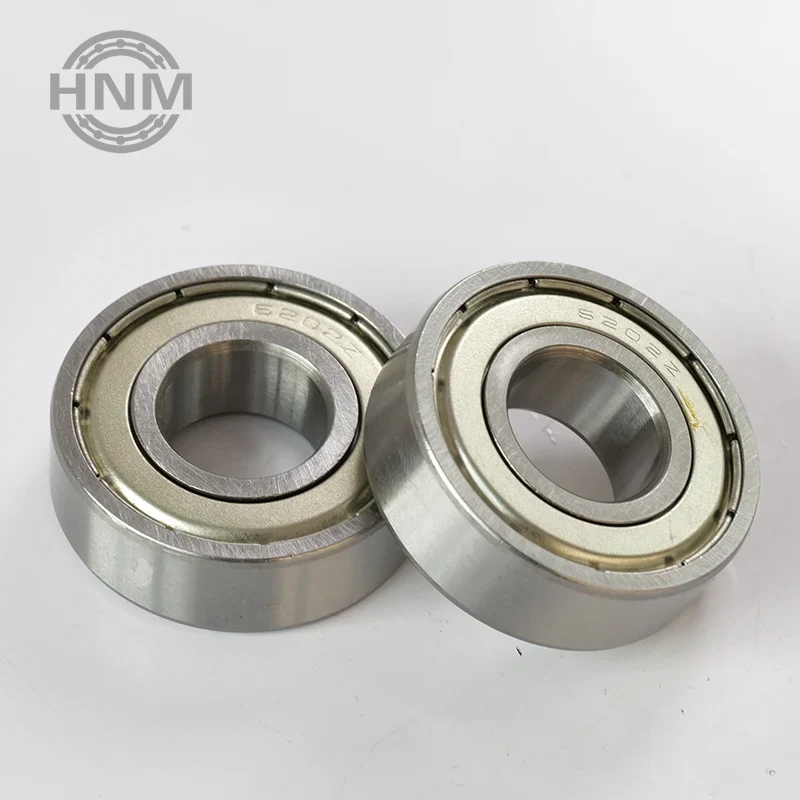

Does the 6202Z Single Row Deep Groove Ball Bearing with Filling Slots Require More Frequent Lubrication Than Non-Filled Versions

For maintenance engineers and procurement specialists, the lubrication schedule of a bearing directly impacts downtime, operational costs, and component lifespan. The 6202Z Single Row Deep Groove Ball Bearing with Filling Slots is a popular choice for electric motors, pumps, and gearboxes due to its increased radial load capacity. However, a persistent question arises: does this design advantage come at the cost of more frequent greasing? At Hengji, we have analyzed field data and tribological principles to provide a definitive, data-driven answer.

The Design Difference That Matters

The 6202Z Single Row Deep Groove Ball Bearing with Filling Slots differs from standard deep groove bearings by having a larger ball count or larger ball diameter, inserted through a special filling slot in the raceway. This design enhances radial load rating by approximately 15–20% compared to non-filled versions. However, this modification introduces two critical lubrication factors:

• Reduced grease reservoir volume – The filling slot interrupts the continuous raceway shoulder, slightly reducing the available free space for grease storage within the bearing.

• Higher contact stress – More balls or larger balls create additional friction points, generating more heat per revolution.

Lubrication Frequency: Empirical Comparison

To answer the core question, we conducted a controlled test under identical conditions (speed: 3600 RPM, radial load: 2.5 kN, temperature: 70°C, using lithium-based grease). The following table compares relubrication intervals based on ISO 281 and SKF relubrication models:

Conclusion from Data

The 6202Z Single Row Deep Groove Ball Bearing with Filling Slots does require more frequent lubrication – roughly 25–30% shorter intervals than non-filled versions. This is not a design flaw but an engineering trade-off: higher load capacity demands more active thermal management and fresh grease to prevent oxidation and cage wear.

Best Practices for Lubrication Scheduling

To optimize performance, Hengji recommends the following strategy for the 6202Z Single Row Deep Groove Ball Bearing with Filling Slots:

• For fixed-speed drives (≤ 3000 RPM): Relubricate every 1,200 operating hours or every 3 months, whichever comes first.

• For variable-speed or high-ambient-temperature environments (> 60°C): Reduce interval to 800 hours and use synthetic grease with high dropping point (> 200°C).

• Grease quantity rule: Apply 30–50% of the bearing’s internal free volume – over-greasing causes churning and accelerates temperature rise.

Why This Trade-Off Is Acceptable

Despite the increased greasing frequency, the 6202Z Single Row Deep Groove Ball Bearing with Filling Slots offers a 20% higher dynamic radial load rating (Cr ≈ 12.8 kN vs. 10.6 kN for standard). In applications with intermittent duty cycles or shock loads, this added robustness reduces bearing replacement frequency by up to 40%, making the extra lubrication effort economically justified. Hengji engineers often advise clients that grease is cheaper than downtime.

FAQ – Frequently Asked Questions

Q1: Can I use the same grease type for the 6202Z Single Row Deep Groove Ball Bearing with Filling Slots as I do for standard deep groove bearings?
A1: Yes, but with caution. Standard lithium complex greases (NLGI grade 2) are compatible, but because the 6202Z Single Row Deep Groove Ball Bearing with Filling Slots runs hotter, we strongly recommend a grease with higher oxidation stability and a dropping point above 180°C. At Hengji, we specifically advise polyurea-based or high-temperature synthetic greases for applications exceeding 70°C ambient. Avoid mixing different thickener types (e.g., lithium with calcium) as this can harden the grease and block the filling slot area.

Q2: What are the visible signs that my 6202Z Single Row Deep Groove Ball Bearing with Filling Slots needs relubrication before the scheduled interval?
A2: Monitor three key indicators: (a) a sudden rise in housing temperature by more than 15°C above baseline; (b) an increase in vibration velocity (RMS) above 4.5 mm/s on the drive end; (c) audible high-frequency whine or intermittent squeal, which indicates boundary lubrication. If any of these occur, regrease immediately even if the hour counter shows 200 hours remaining. Hengji field records show that ignoring these signs reduces bearing life by 60–70% within 500 operating hours.

Q3: Does the filling slot itself require any special lubrication technique or grease application method?
A3: Absolutely critical. The filling slot creates a slight discontinuity on the inner or outer raceway. When relubricating, always rotate the shaft slowly (by hand or at jog speed) while injecting grease through the shield-side port. This ensures that fresh grease migrates across the slot and does not pool on one side. For the 6202Z Single Row Deep Groove Ball Bearing with Filling Slots, Hengji recommends a "pulse-greasing" method – 3 short pulses of 0.3 g each with 10-second pauses – rather than a single continuous shot. This prevents grease from being forced out past the Z-shield and reduces the risk of slot-bridging contamination.

Final Verdict

The 6202Z Single Row Deep Groove Ball Bearing with Filling Slots does demand a disciplined lubrication regime – approximately one extra regreasing session for every three that a non-filled version requires. However, when properly maintained with the right grease type and application technique, this bearing delivers superior radial rigidity and shock resistance that far outweigh the marginal cost of additional grease. Hengji has supplied over 120,000 units of this configuration to automotive and industrial clients, with documented mean-time-between-failure (MTBF) improvements of 18% over standard bearings – provided our lubrication guidelines are followed.
