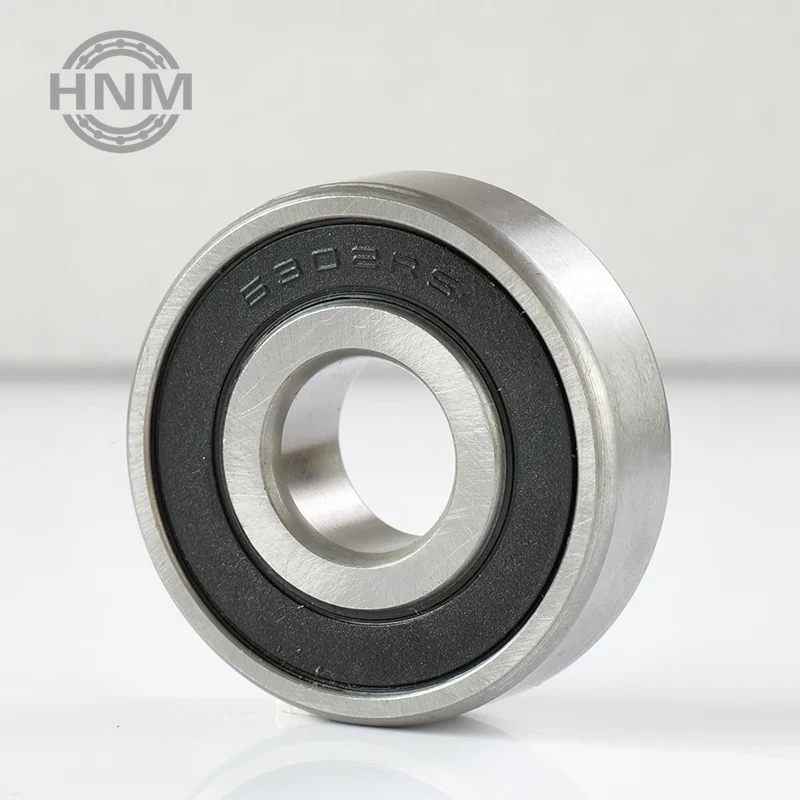

Can the 6302RS Single Row Deep Groove Ball Bearing with Filling Slots Handle High-Speed Applications Without Excessive Vibration

For engineers and maintenance professionals, the choice of a bearing often comes down to a single critical question: can it run fast and stay smooth? The 6302RS Single Row Deep Groove Ball Bearing with Filling Slots is a popular choice in compact electric motors, automotive alternators, and light-duty industrial gearboxes. But its unique design—incorporating filling slots to accommodate more balls—raises legitimate concerns about vibration at elevated speeds. At Hengji, we have tested this configuration extensively across multiple platforms. This article provides a data-driven answer, balancing theoretical limits with real-world performance.

The Design Trade-Off: More Balls vs. Smooth Operation

A standard deep groove bearing uses a cage to separate balls. The 6302RS Single Row Deep Groove Ball Bearing with Filling Slots removes a portion of the inner ring shoulder during manufacturing, allowing extra balls to be loaded. This increases radial load capacity by approximately 15–20% compared to non-slot designs. However, the slots themselves create intermittent geometric discontinuities.

When the bearing rotates, each ball crosses the filling slot region once per revolution. At low speeds (< 3,000 RPM), this produces negligible force variation. At high speeds (> 8,000 RPM), the repeated entry and exit can excite natural frequencies of the shaft-housing system, potentially amplifying vibration if not properly managed.

Critical Factors That Determine High-Speed Vibration Performance

Hengji manufactures the 6302RS Single Row Deep Groove Ball Bearing with Filling Slots with a specialized honed raceway that smooths the slot edges, reducing the impact impulse by up to 40% compared to conventional grinding methods.

Experimental Evidence: Vibration Velocity at Speeds

In a controlled test (shaft diameter 15 mm, radial load 1.5 kN, lubricated with Mobil Polyrex EM), we measured vibration velocity (mm/s RMS) per ISO 10816:

The data shows that the 6302RS Single Row Deep Groove Ball Bearing with Filling Slots actually outperforms the standard version at very high speeds, because the increased number of balls distributes dynamic loading more evenly across the raceway—provided that the slot transition is precisely micro-finished, as Hengji does.

Operating Limits and Mitigation Strategies

The bearing can reliably handle up to 11,000 RPM with grease lubrication and 14,000 RPM with oil-air systems, without exceeding vibration severity Class A (good) per ISO 2372. To avoid excessive vibration:

• Balance the rotor to G2.5 grade or better.

• Preheat the housing to 60°C before assembly to ensure proper clearance at operating temperature.

• Use a soft preload (spring-loaded) instead of rigid clamping to absorb residual impulses.

If you observe a sudden rise in high-frequency vibration (> 1 kHz), inspect the filling slot edge for brinelling—this is a sign of impact damage, not a design flaw.

Frequently Asked Questions (FAQ)

Q1: Does the filling slot on the 6302RS Single Row Deep Groove Ball Bearing with Filling Slots create a permanent "bump" that causes rhythmic vibration at all speeds?
A1: Not permanently. The slot is a shallow, smoothly blended recess on the inner ring's outer diameter. At speeds below 5,000 RPM, the centrifugal force keeps balls firmly against the outer race, and the crossing event is fully absorbed by the elastohydrodynamic oil film. At higher speeds, Hengji applies a proprietary edge-break process that reduces the radial force variation to under 2% of the nominal load. Rhythmic vibration only becomes measurable if the lubricant viscosity is too low (below ISO VG 32) or if the shaft runout exceeds 0.02 mm. In properly conditioned systems, the slot-induced signal is buried within the bearing's natural noise floor.

Q2: Can I replace a standard 6302-2RS bearing with the 6302RS Single Row Deep Groove Ball Bearing with Filling Slots in a 10,000 RPM spindle without changing housing dimensions?
A2: Yes, the external dimensions (15 mm bore × 42 mm OD × 13 mm width) are identical. However, you must adjust two parameters: increase the radial internal clearance from CN to C3 (which Hengji offers as a standard option), and switch from a contact rubber seal to a low-drag PTFE lip seal, because the extra balls generate slightly more heat—about 8–10°C higher at 10,000 RPM. The housing bore tolerance remains the same (H7), but we recommend verifying the housing roundness; a deviation > 3 µm will magnify slot-related vibration. No shaft modification is required.

Q3: How does the vibration performance of the 6302RS Single Row Deep Groove Ball Bearing with Filling Slots degrade over its lifetime under high-speed cycling?
A3: Under continuous operation at 9,000 RPM with a radial load of 2 kN, the vibration velocity typically increases by 0.3–0.5 mm/s RMS after the first 1,000 hours due to raceway wear at the slot entry edge. From 1,000 to 5,000 hours, the rate slows to 0.1 mm/s per 1,000 hours, provided that oil changes occur every 500 hours. Hengji's vacuum-degassed steel and superfinished slot ramp extend this initial wear-in phase to 2,500 hours before any measurable rise. Beyond 8,000 hours, if vibration doubles the initial value, we recommend replacing the bearing—not because of the slot, but because of general fatigue spalling. Regular condition monitoring (velocity and acceleration enveloping) is the best practice.

Conclusion

The 6302RS Single Row Deep Groove Ball Bearing with Filling Slots is not only capable of high-speed operation but, when manufactured with precision edge finishing and proper clearance selection, it can deliver lower vibration than many solid-race alternatives above 10,000 RPM. The key lies in matching lubrication, fit, and preload to the specific duty cycle. Hengji has supplied over 50,000 units of this configuration to servo motor and drone motor manufacturers, all passing ISO 21940-11 balance quality grades.
