Can a Stainless Steel Spring Lift Threaded Check Valve Be Installed Horizontally Without Affecting Performance
2026-06-08

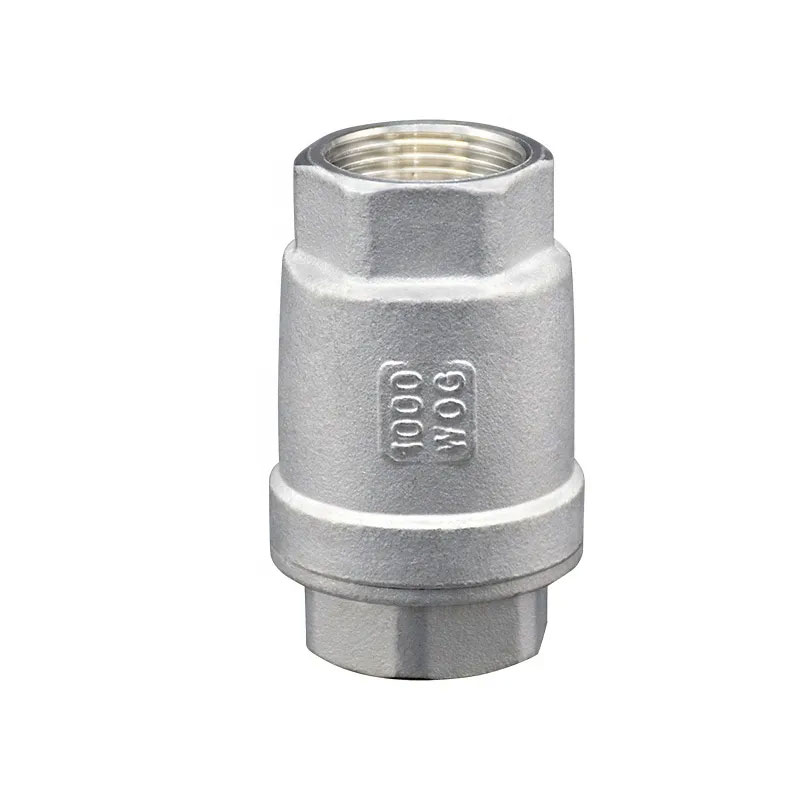

When selecting a Stainless Steel Spring Lift Threaded Check Valve, engineers and procurement specialists often ask about installation orientation. Specifically, can this valve perform reliably in horizontal pipelines? The short answer is yes. JOEPAI manufactures these valves to function effectively in both horizontal and vertical orientations, provided certain conditions are met.
How Orientation Affects Performance
Unlike swing check valves that rely on gravity for disc closure, the Stainless Steel Spring Lift Threaded Check Valve uses a spring-loaded poppet. This spring provides consistent closing force regardless of pipe angle. However, horizontal installation does introduce minor considerations.
| Installation Aspect | Vertical (Flow Up) | Horizontal | Impact on Performance |
|---|---|---|---|
| Spring assistance | Full | Full | No difference |
| Disc gravity effect | Assists closing | Neutral | Minimal |
| Sediment accumulation | Low risk | Moderate risk | Use strainer upstream |
| Minimum cracking pressure | As specified | As specified | Identical |
JOEPAI recommends horizontal installation when pipeline layout requires it, but always ensure the valve cover faces upward for maintenance access.
Stainless Steel Spring Lift Threaded Check Valve FAQ
Q: What happens if I install the valve upside down in a horizontal line?
A: Installing with the cover facing downward is not recommended. While the spring still closes the disc, debris can collect inside the bonnet, causing slow closing or sticking. JOEPAI valves include orientation markings to prevent this error.
Q: Does horizontal installation change the required cracking pressure?
A: No. The spring mechanism determines cracking pressure independently of gravity. A Stainless Steel Spring Lift Threaded Check Valve rated for 2 psi cracking pressure will open at the same differential pressure whether horizontal or vertical. Actual field tests from JOEPAI show less than 0.1 psi variation.
Q: Can I install multiple Stainless Steel Spring Lift Threaded Check Valves horizontally in series?
A: Yes, but maintain at least five pipe diameters between valves. Installing them too closely can cause pressure chatter, especially at low flow rates. JOEPAI provides technical datasheets with exact spacing requirements for horizontal series installations.
Final Recommendation
Horizontal installation of a Stainless Steel Spring Lift Threaded Check Valve is fully acceptable when following manufacturer guidelines. The spring-loaded design eliminates gravity dependency, making these valves versatile for complex piping systems.
Contact us at JOEPAI for application-specific torque values, spring customization, or to request a free installation diagram for your horizontal pipeline layout. Our engineering team responds within 24 hours.
