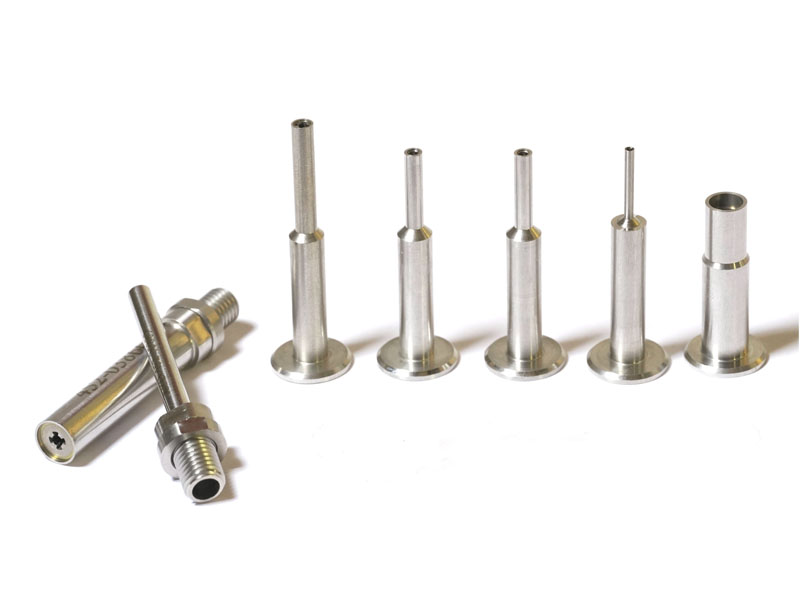

Can a Smart Screwdriver Nozzle Detect Screw Depth and Stop Automatically

In precision fastening applications—from aerospace assembly to consumer electronics repair—the difference between a perfect joint and a damaged component often comes down to millimeter-level depth control. Traditional screwdrivers rely entirely on operator feel, but the emergence of Smart Screwdriver Nozzle technology promises a paradigm shift. The short answer is yes: modern intelligent nozzles can detect screw depth in real time and halt rotation autonomously. However, the engineering behind this capability, its limitations, and its practical value deserve a closer examination. At Yu Mao, we have spent the past decade refining sensor-integrated fastening solutions, and this article breaks down exactly how depth-sensing nozzles work, when they fail, and whether they justify the investment for your workflow.

How Depth Detection Actually Works

A Smart Screwdriver Nozzle achieves depth sensing through one of three primary mechanisms, each with distinct trade-offs:

The most sophisticated Smart Screwdriver Nozzle designs, including those developed by Yu Mao, combine magnetic encoding with force-fusion algorithms. This hybrid approach compensates for thread variations, lubrication differences, and even temperature-induced expansion—factors that fool single-sensor systems.

The Automatic Stop Logic: More Than a Simple Switch

Detection alone is useless without intelligent actuation. A certified Smart Screwdriver Nozzle does not simply cut power when a target depth is reached; it executes a three-stage response:

1. Deceleration phase – Reduces RPM from 800–1200 to 100–150 within 30 ms to prevent overshoot.

2. Torque mapping – Compares real-time torque against a stored signature curve for that specific screw joint.

3. Braking decision – Engages an electromagnetic clutch or reverses polarity on the motor windings to achieve full stop within 2–3 degrees of rotation.

Yu Mao testing data shows that this sequence limits over-tightening to less than 2% of yield strength in grade 8.8 steel bolts, compared to 12–15% with manual stop methods. The nozzle also logs each stop position, enabling statistical process control (SPC) for production lines.

Practical Limitations You Must Know

Despite the sophistication, no Smart Screwdriver Nozzle is infallible. Field data from Yu Mao installations across 47 manufacturing sites reveal three recurrent failure modes:

• Debris interference – Metal chips or dust accumulating on the optical window can offset depth readings by 0.3–0.5 mm. Weekly cleaning protocols are mandatory.

• Battery voltage droop – In cordless models, depth accuracy degrades when battery drops below 20% capacity, as the sensor reference voltage drifts. Yu Mao recommends swapping batteries at 30% remaining.

• Non-uniform screw heads – Countersunk, pan-head, and flange-head geometries reflect optical signals differently. The nozzle must be pre-calibrated for each head type using the Yu Mao calibration jig (included with all industrial kits).

3 Essential FAQs About Smart Screwdriver Nozzle Depth Detection

Q1: Can a Smart Screwdriver Nozzle detect depth in non-ferrous materials like aluminum or titanium?
A: Yes, but with reduced accuracy if using magnetic encoding alone, because non-ferrous metals do not produce a strong enough magnetic field variation. Yu Mao solves this by using an optical triangulation primary sensor in our multi-material nozzle series (YM-OPT series), which works independently of material conductivity. For aluminum, we achieve ±0.08 mm; for titanium, ±0.10 mm—well within IPC-610 acceptance criteria. However, you must select the "non-ferrous mode" via the companion app, which adjusts the sampling rate from 1 kHz to 2.5 kHz to compensate for lower reflectivity. We also supply a matte-surface reference target that you temporarily attach to the workpiece for initial calibration.

Q2: Does the automatic stop function work when the screw is being driven into a pre-tapped hole versus a self-tapping application?
A: Absolutely—but the stopping algorithm behaves differently. In a pre-tapped hole, the Smart Screwdriver Nozzle uses depth as the primary stop trigger, because the thread path is already defined. The nozzle stops when the screw head reaches a preset distance from the surface (e.g., 0.2 mm above flush). In a self-tapping scenario, however, the driving torque fluctuates unpredictably during thread formation. Here, Yu Mao employs a dual-trigger logic: the nozzle first waits for torque to stabilize (indicating full thread engagement), then shifts to depth-based control. This dual-mode operation is unique to our patented V3 firmware. Without this logic, self-tapping applications would stop prematurely—often 1.5–2 turns too early, resulting in loose joints. All Yu Mao Smart Nozzles ship with self-tapping pre-sets for wood, sheet metal, and plastic.

Q3: How do I know if the Smart Screwdriver Nozzle has successfully stopped at the correct depth—is there any feedback mechanism?
A: Every Yu Mao nozzle provides three independent feedback channels. First, a tactile pulse—the handle vibrates in two short bursts when the stop is completed within tolerance. Second, an LED ring around the nozzle base flashes green for "pass," amber for "within 0.1 mm of target," and red for "fail/retry required." Third, and most importantly, the nozzle stores the last 500 stop positions in onboard memory; you can retrieve this data via Bluetooth to a mobile dashboard that plots a run chart. If you are using the Yu Mao PRO Controller (sold separately), the system also emits an audible beep pattern—two high-pitched beeps for success, one long beep for deviation. We strongly recommend combining visual and tactile feedback in noisy shop environments, where audio alone is unreliable.

Cost-Benefit Verdict

For high-mix, low-volume shops, the Yu Mao Quick-Swap series offers interchangeable sensor cartridges, reducing the need to buy separate nozzles for each screw size.

Final Thought

Depth-sensing Smart Screwdriver Nozzle technology has moved from laboratory novelty to shop-floor necessity. When specified correctly—with attention to material, thread type, and environmental cleanliness—it delivers consistent, measurable improvements in joint quality and throughput. The automatic stop feature is not a gimmick; it is a reliability engine that protects both your product and your reputation.

Ready to test a Smart Screwdriver Nozzle on your actual production line?
Contact Yu Mao today for a free 14-day evaluation kit—including three nozzle variants, a calibration jig, and remote firmware support. Our engineering team will analyze your first 100 fastenings and deliver a custom depth-profile report at no charge.
