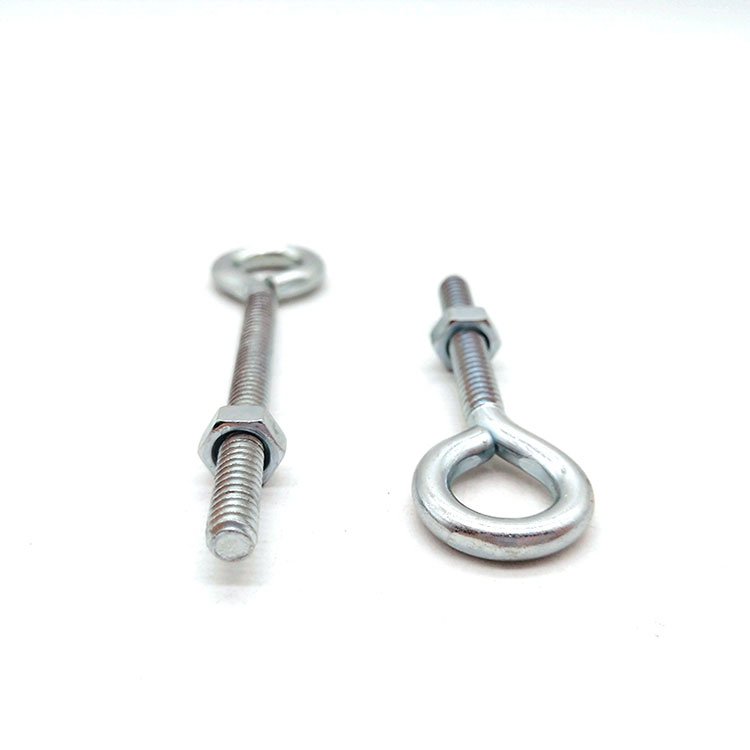

Can a Carbon Steel Zinc Plated Tapping Eye Hook Screw with Machine Thread Be Used Outdoors

When selecting hardware for outdoor applications, corrosion resistance and mechanical strength are the two decisive factors. The Carbon Steel Zinc Plated Tapping Eye Hook Screw with Machine Thread is a popular choice for indoor rigging and light-duty suspension, but its performance in open-air environments requires careful examination. At Gangtong Zheli, we routinely test our fasteners under real-world conditions, and the answer is not a simple "yes" or "no"—it depends on the environment, the coating quality, and the mechanical load.

Outdoor Suitability: The Short Answer

The zinc plating provides sacrificial anodic protection—it corrodes before the base carbon steel does. However, outdoor exposure accelerates this process. Standard electroplated zinc (5–8 microns) typically offers 50–150 hours of salt spray resistance (ASTM B117). For permanent outdoor installation, Gangtong Zheli recommends upgrading to hot-dip galvanized or stainless steel variants.

Why the Machine Thread Matters Outdoors

The machine thread on this eye hook screw is precision-rolled for consistent fit with nuts or tapped holes. Unlike wood-thread tapping screws, this design relies on a pre-tapped female thread. Outdoors, thread engagement becomes critical:

• Water ingress through threads accelerates galvanic corrosion between the screw and the mating nut.

• Vibration from wind or machinery can loosen the connection if thread-locking compounds are not used.

• Thermal expansion (steel: ~12 µm/m·°C) can alter clamping force over seasons.

For permanent outdoor use, Gangtong Zheli advises applying anti-seize lubricant on the threads and using a nylon-insert lock nut to maintain tension.

Load Capacity Degradation Outdoors

Corrosion does not just affect appearance—it reduces effective cross-sectional area. A 1/4"-20 Carbon Steel Zinc Plated Tapping Eye Hook Screw with Machine Thread with an initial tensile strength of 150,000 psi may lose 15–25% of its load rating after 2 years of outdoor exposure in non-coastal areas. In coastal zones, the loss can exceed 40% within 12 months.

Always derate the load when using this product outdoors. Gangtong Zheli provides full torque and load charts for every batch to help you make an informed decision.

FAQ – Common Questions About Outdoor Use

Q1: Can I paint or powder-coat the Carbon Steel Zinc Plated Tapping Eye Hook Screw with Machine Thread to protect it outdoors?

A: Yes, but with important caveats. Powder-coating or epoxy painting adds a barrier layer that significantly extends outdoor life—up to 5–7 years in moderate climates. However, you must completely degrease the zinc-plated surface first (use a mild alkaline cleaner) and apply a zinc-compatible primer. Do not sandblast, as that removes the zinc layer and exposes bare steel. The eye and thread areas must be masked to avoid coating build-up that alters thread fit. For maximum durability, Gangtong Zheli offers a pre-painted OEM service with 200+ hours of salt spray test approval.

Q2: How can I tell if my Carbon Steel Zinc Plated Tapping Eye Hook Screw with Machine Thread is failing outdoors before it breaks?

A: Visual inspection alone is insufficient—white rust (zinc oxide) appears early and is cosmetic, but red rust (iron oxide) indicates active corrosion of the base steel. The three reliable early-warning signs are:

1. Thread binding – increased resistance when threading a nut indicates corrosion products building up.

2. Pitting – visible small craters on the eye or shank surface, measured with a depth gauge (≥0.2 mm pits reduce strength by ~30%).

3. Reduced torque – if the screw loosens repeatedly under the same load, the thread flanks have eroded.

Perform a monthly proof-load test at 1.5× the working load for outdoor installations. Gangtong Zheli recommends replacing any unit showing red rust immediately, regardless of service time.

Q3: Is there a specific grade of zinc plating that makes the Carbon Steel Zinc Plated Tapping Eye Hook Screw with Machine Thread more outdoor-suitable?

A: Yes—the plating thickness and post-treatment are critical. Standard commercial zinc (Type I, clear trivalent chromate) offers minimal outdoor resistance. For outdoor use, specify Type III zinc with yellow dichromate (12–15 microns) or zinc-nickel alloy plating (which provides 3× the salt spray resistance of pure zinc). Additionally, a sealer coat (water-based acrylic) can double the protection. At Gangtong Zheli, we classify our products into three outdoor grades:

• Grade A – 8 µm zinc + clear passivation (indoor only)

• Grade B – 12 µm zinc + yellow chromate (sheltered outdoor)

• Grade C – 15 µm zinc-nickel + organic sealer (direct outdoor, up to 500h salt spray)

Always request the grade certificate before purchasing for exterior projects.

Best Practices for Outdoor Installation

If you decide to use this fastener outdoors despite the limitations, follow these professional guidelines from Gangtong Zheli:

1. Orient the eye vertically – prevents water pooling in the eye opening.

2. Use a rubber or neoprene washer under the nut to block capillary water entry along the thread.

3. Apply a medium-strength threadlocker (e.g., LOCTITE 243) – it also seals gaps.

4. Inspect every 90 days – clean with a wire brush and re-apply corrosion inhibitor.

5. Replace the screw after any visible impact or bending, as cold-worked zinc loses ductility.

When to Choose an Alternative

For permanent outdoor rigging, marine environments, or food-processing areas, Gangtong Zheli strongly recommends switching to hot-dip galvanized or 316 stainless steel eye hooks. The upfront cost is 2–3× higher, but the lifecycle cost is lower because replacement and labor are eliminated. Our engineering team provides free material selection consultations for large-scale projects.

Conclusion

The Carbon Steel Zinc Plated Tapping Eye Hook Screw with Machine Thread can be used outdoors only in sheltered, low-moisture conditions with regular maintenance and a derated load. For exposed or coastal environments, it is a temporary solution at best. Proper plating grade selection, anti-corrosion coatings, and periodic inspection are non-negotiable.

Gangtong Zheli manufactures this product in ISO 9001-certified facilities, with full traceability from steel coil to final plating. We offer customized coating solutions and thread sizes to match your outdoor application requirements.
