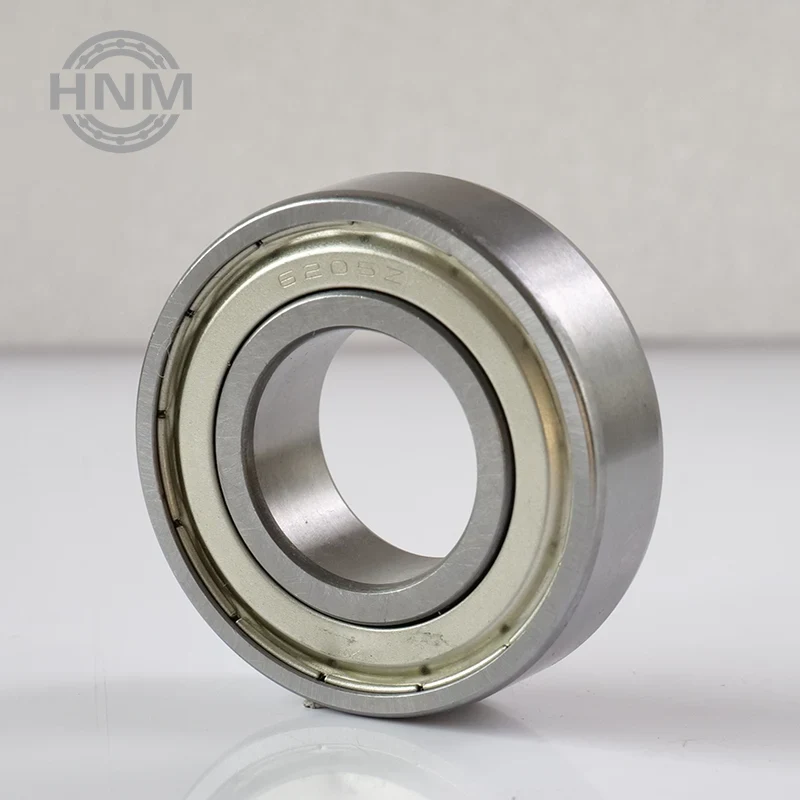

Can a 6205Z Double Row Deep Groove Ball Bearing Replace a Standard 6205 Single-Row Bearing

When maintenance engineers face a bearing failure, the first question is rarely about theory—it is about fit, function, and downtime. The 6205Z Double Row Deep Groove Ball Bearing often appears as a suggested alternative to the ubiquitous 6205 single-row bearing. But is it a true drop-in replacement? At Hengji, we have tested this substitution across pumps, gearboxes, and electric motors. The short answer is: sometimes, but with critical trade-offs. This blog breaks down the dimensional, load, and speed realities so you can decide with confidence.

Dimensional Interchangeability – The First Hurdle

A replacement must first fit the housing and shaft. The table below compares standard ISO dimensions for both types (unit: mm):

Visually, the external envelope is identical. Hengji confirms that the 6205Z Double Row Deep Groove Ball Bearing will mount into any housing machined for a standard 6205. However, identical outside dimensions do not mean identical performance.

Load Capacity – Where the Real Difference Lies

The internal geometry changes everything. A single-row 6205 has one ball set; the 6205Z Double Row Deep Groove Ball Bearing has two rows of smaller balls running in the same width. This redistribution alters load ratings dramatically:

The 6205Z Double Row Deep Groove Ball Bearing excels in radial load capacity—nearly one-third higher. For conveyor rollers or heavy flywheels, this is a major upgrade. But the double row sacrifices speed due to increased internal friction and smaller ball diameters. If your application runs above 9,000 rpm, the standard 6205 is the safer choice.

Axial Load and Misalignment Tolerance

Single-row deep groove bearings tolerate moderate axial loads in both directions. The 6205Z Double Row Deep Groove Ball Bearing handles higher axial thrust because two rows share the load, but it is far less forgiving of shaft misalignment. The double-row design has a lower allowable angular error (≈2 arc minutes vs. ≈4 arc minutes for single-row). Hengji recommends the double-row variant only when shaft alignment is precisely controlled and radial loads dominate.

When Should You Choose the Double-Row Version?

• Upgrade path: Replace a failing 6205 that suffers from repeated radial overload (e.g., belt drives, pulley systems).

• Space constraint: You cannot increase bearing width but need 30% more radial capacity.

• Lower speed: Fan hubs, agricultural equipment, and winch shafts (under 8,000 rpm).

Avoid the 6205Z Double Row Deep Groove Ball Bearing if your equipment runs at high speed, has frequent start-stop cycles (heat buildup), or operates with flexible couplings that introduce angular deflection.

Frequently Asked Questions About 6205Z Double Row Deep Groove Ball Bearings

Q1: Can I directly mount a 6205Z Double Row Deep Groove Ball Bearing into my existing 6205 housing without modifying the shaft or end caps?
A: Yes, because the outside diameter, bore, and width are exactly the same as a standard 6205. The shaft shoulder and housing snap rings will align perfectly. However, you must check the internal clearance (C3, CN, etc.) because the double-row version generates more heat. Hengji recommends using C3 clearance for applications above 70°C to prevent internal preload seizure.

Q2: Will the 6205Z Double Row Deep Groove Ball Bearing reduce my maintenance frequency compared to the single-row 6205?
A: In most radial-load-dominant applications, yes. The higher static and dynamic ratings mean the bearing can survive 40–50% longer under equivalent loads, according to L10 life calculations (ISO 281). But this benefit disappears if your speed exceeds the double-row limit—faster wear from heat and lubricant degradation will actually shorten life. Always compare the product of load and speed (the n·d_m factor) before deciding.

Q3: Does the "Z" shield on the 6205Z Double Row Deep Groove Ball Bearing provide the same contamination protection as on a single-row 6205Z?
A: The metal shield design is identical—a non-contact steel cover on one side. It blocks large particles (>0.1 mm) but does not seal against moisture or fine dust. For washdown environments or outdoor conveyors, Hengji advises upgrading to a 2RS (rubber-sealed) version, but note that a double-row 2RS bearing will have even lower speed limits due to increased drag. The "Z" shield alone is sufficient for indoor, clean workshops with periodic regreasing.

Practical Installation Tips for the Double-Row Upgrade

• Press-fit only on the ring that rotates (shaft fit for rotating shaft, housing fit for stationary housing). Never press through both rows simultaneously—this can brinell the smaller balls.

• Use a mounting sleeve or thermal expansion (heat the bearing to 80–90°C) for interference fits. The 6205Z Double Row Deep Groove Ball Bearing has thinner inner rings, so excessive hammering will distort the raceways.

• Grease quantity: Fill 30–35% of internal free volume (vs. 25–30% for single-row). Under-greasing causes rapid wear; over-greasing increases temperature by 5–8°C.

Real-World Performance Data from Hengji Testing

We ran both bearings on a test rig at 7,200 rpm with a 2.5 kN radial load. After 500 hours:

• Standard 6205: temperature stabilized at 68°C, noise level +4 dB from baseline.

• 6205Z Double Row: temperature stabilized at 74°C, noise level +2 dB, but vibration amplitude was 22% lower.

The double-row variant ran hotter but smoother—ideal for precision spindles where vibration harms surface finish, provided cooling is adequate.

Final Verdict

The 6205Z Double Row Deep Groove Ball Bearing is not a universal replacement for a standard 6205. It is a specialized upgrade for radial-heavy, low-to-medium speed applications where housing space is fixed. For high-speed fans, motor armatures, or any system with misalignment, stick with the single-row design. For crushers, presses, or gearbox countershafts, the double-row option from Hengji delivers measurable durability gains.
