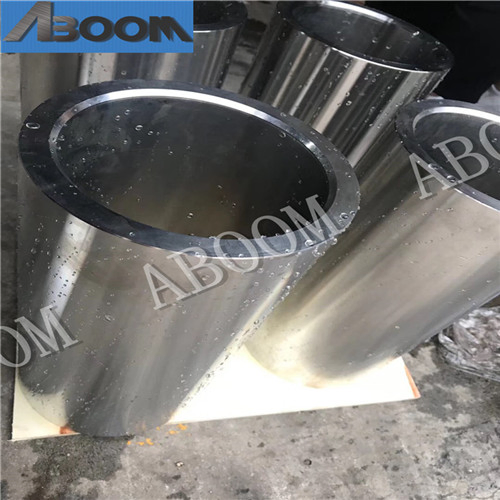

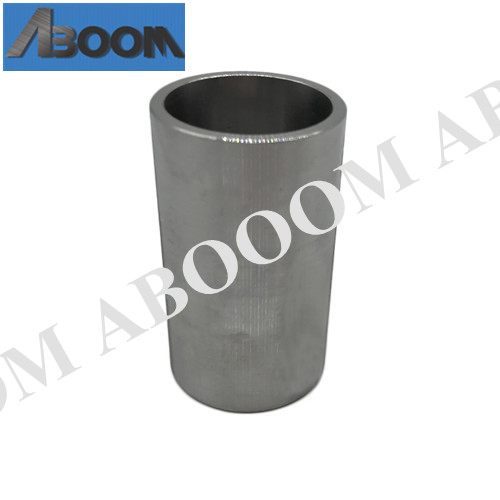

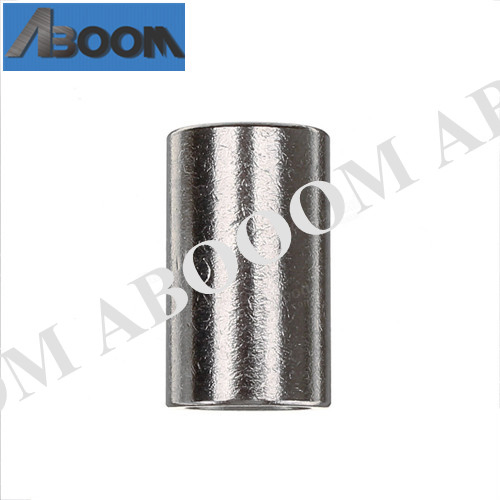

SA182 F60 Reinforced 2205 Duplex Stainless Steel Sleeve

Product Description

1.Specification:

SA182 F60 Reinforced 2205 Duplex Stainless Steel Sleeve

Product Details
Product name	SA182 F60 Reinforced 2205 Duplex Stainless Steel Sleeve
Brand name	ABOOM
Standard	ASTM A312, ASTM A554, ASTM A790, EN10216-5, EN10217-7, JIS G3468, JIS G3459 ANSI B16.5, ANSI B16.47
Material	300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330, 400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446, 600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D, Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L Others: 254SMo,253Ma,F15,Invar36,1J22,N4,N6 etc Alloy : Alloy 20,Alloy 28,Alloy 31; Hastelloy: Hastelloy B / B-2,Hastelloy B-3,Hatelloy C22,Hastelloy C-4,Hastelloy S, Hastelloy C276,Hastelloy C-2000,Hastelloy G-35,Hastelloy G-30,Hastelloy X, Hastelloy N; Haynes: Haynes 230,Haynes 556,Haynes 188; Inconel: Inconel 600,Inconel 601,Inconel 602CA,Inconel 617,Inconel 625,Inconel 718,Inconel X-750,Carpenter 20; Incoloy: Incoloy 800 / 800H / 800HT,Incoloy 825,Incoloy 925,Incoloy 926 GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 Monel: Monel 400,Monel K500 Nitronic: Nitronic 40,Nitronic 50,Nitronic 60; Nimonic: Nimonic 75,Nimonic 80A,Nimonic 90 ;
Outer Diameter	1/2"-80", DN6-DN2400
Pressure	CLASS 150LB -CLASS 3000LB
Application	Pipeline and valves connection
Technology	Forged flange

Product type: reinforced sleeve

Product specifications: 1/2"-24"

Special functions: easy welding, good toughness, corrosion resistance

Surface treatment: Precision turning

Executive standards: SA182 / ASMEB16.5 / 16.7

Type content: according to customer requirements (LOGO + standard + material + size + pressure + furnace number, etc.)

Non-standard customization: samples can be customized according to customer requirements

General attributes:

Duplex stainless steel has an α + γ dual-phase structure, so its performance characteristics are built of austenitic stainless steel and ferritic stainless steel. It is a type of stainless steel with high strength and best corrosion resistance. Generally, in the case of low C content, the Cr content is 18% to 28%, and the Ni content is 3% to 10%. Some steels also contain alloying elements such as Mo, Cu, Nb, Ti, and N.

Performance characteristics:
1. Excellent resistance to general corrosion and local corrosion, especially stress corrosion resistance, pitting corrosion resistance, crevice corrosion resistance, corrosion fatigue resistance and wear resistance etc.
2. Good solderability
3. Good comprehensive mechanical properties
4. Good resistance to intergranular corrosion
5. High cost performance and long service life

Application fields are:

2205 duplex stainless steel pipe is defined as smelting and manufacturing of stainless steel in which the ferrite phase and austenite are 50% each in comparison with the solidified structure. The actual comparative example is that ferrite accounts for 45-55%, and the corresponding austenite accounts for 55-45%. The excellent performance of 2205 duplex stainless steel is ensured by a proper proportion of the two-phase structure.

2205 duplex stainless steel pipe has excellent mechanical properties and corrosion resistance, as well as good weldability, and has a wide range of uses in the oil and gas industry, marine engineering, chemical industry and other industries. The oil and gas industry uses duplex stainless steel materials to lay oil and gas pipelines with a length of more than 850Km, most of which are 2205 duplex stainless steel seamless steel pipes (also some are S31803 duplex stainless steel pipes and 2507 duplex stainless steel pipes); Due to the strong corrosiveness of the natural gas medium, the high-pressure pipelines are made of 2205 duplex stainless steel.

2.

Chemical Composition(%)
Grade	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu
201	≤0.15	≤0.75	5.5~7.5	≤0.060	≤0.03	16.00~18.00	3.5~5.5	-	-	0.08	1.5
202	≤0.15	≤1.00	7.5~10.00	≤0.060	≤0.03	17.00~19.00	4.0~6.0	-	≤0.25
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	6.00~8.00	-
302	≤0.15	≤1.00	≤2.00	≤0.035	≤0.03	17.00~19.00	8.00~10.00	-
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	8.00~10.50	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	9.00~13.00	-
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	24.00~26.00	19.00~22.00	-
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	10.00~14.00	2.00~3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	12.00~15.00	2.00~3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	17.00~19.00	9.00~13.00	-
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.03	16.00~18.00		-
2205	≤0.03	≤1.00	≤2.00	≤0.030	≤0.015	22.00~23.00	4.5~6.5	2.5~3.5
2507	≤0.03	≤0.08	≤1.20	≤0.035	≤0.015	24.00~26.00	6.00~8.00	3.0~5.0
904L	≤0.02	≤1.00	≤2.00	≤0.045	≤0.035	19.00~23.00	23.00~28.00	4.0~5.0		1.0~2.0
INCONEL 028	≤0.03	≤1.00	≤2.50	≤0.030	≤0.030	≤28.0	≤34.0	≤4.0		≤1.4
MONEL 400	≤0.30	≤0.5	≤2.00	-	≤0.024	-	≥63.0	-		≤34.0
INCONEL 800	≤0.10	≤1.00	≤1.50	-	≤0.015	≤23.0	≤35	4.0~5.0	-	≤0.75	Ti≤0.6 Al≤0.6

Packaging & Shipping

Packaging Detail	In bundles with waterproof material, in wooden cases
Delivery Time	20 days

-- FAQ --

Q1:Are you factory or trading company?
A:We are professional manufacturer .

Q2:What are the advantages of your company?
A: We have many professional technical personnel.And we have more competitive prices and better after-sales service than trading companies.

Q3:How do you control the quality?
A:Our company is certificated to ISO9001:2008.We have many inspectors and every product will have been tested for 4-5 processes.
We welcome customers or the third party inspection agencies to come to our factory for inspection.

Q4:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis
of the quality assurance.Usually the delivery time is within 10-20 days after we recieved your desipot.
