P250gh Forging Flanges, C22.8, P245gh A105 Flanges, DIN Flanges, Dn10-Dn2000; , DIN: Pn6-Pn100;

Product Description

About Our Din2633 Welding Neck Flanges:
DIN Welding Neck
DIN Plate
DIN Slip-On

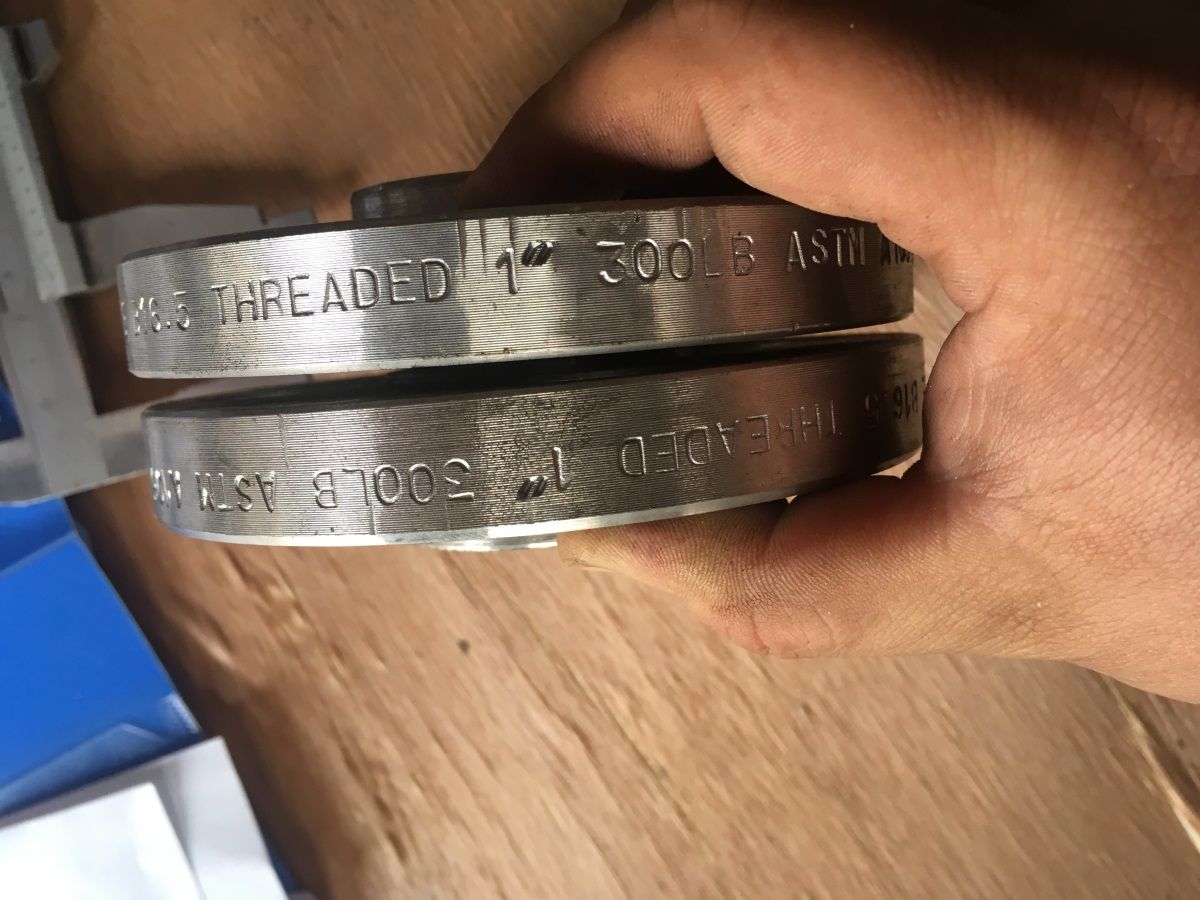

DIN Threaded
DIN Blin

Material	Carbon steel: S235JRG2 C22.8 P245GH
	Alloy stell: 1.5415 16MO3
	Stainless steel: 1.4571 1.4301 1.4306 1.4404 1.4435
Standard	DIN 2527 2566 2573 2576 2630 2631 2632 2633 2634 2635 2636 2637 86030
Surface	Rust-proof oil, Black, Yellow, Galvanized
Type	Welding Neck/Plate/Blind/Slip-on/Theaded
Flange facing	Raised face , Flat face, Ring Joint face,etc
Size	DN10-DN2000
Process	Free forging, plate cutting
Pressure	DIN:PN6-PN100
Connection	Welding
Technical	Forged
Package	Wooden case,Cartons, Pallets or crates according to buyer's requirements.
Delivery	It depend on demand quantity
Certificate	TUV, PED, ISO9001
Applications	Steam, air, gas and oil pipes or for many other fluids

We have manufactured flanges for over 20 years. C&N specializes in supplying specialty flanges to the
world's most demanding industries - Oil and Gas Exploration and Production, Oil Refining and
Processing, Petrochemical, Chemical, Plumbing and HVAC.

Materials	Flange Specifications	Types of Flange
Carbon steel Stainless steel Alloy steel Special steel Others as specified	ANSI B16.5 JIS MSS SP 44 API 605 DIN BS EN 1092-2007 Many other specs	Weldneck Socket weld Blind Threaded Slip on and special types

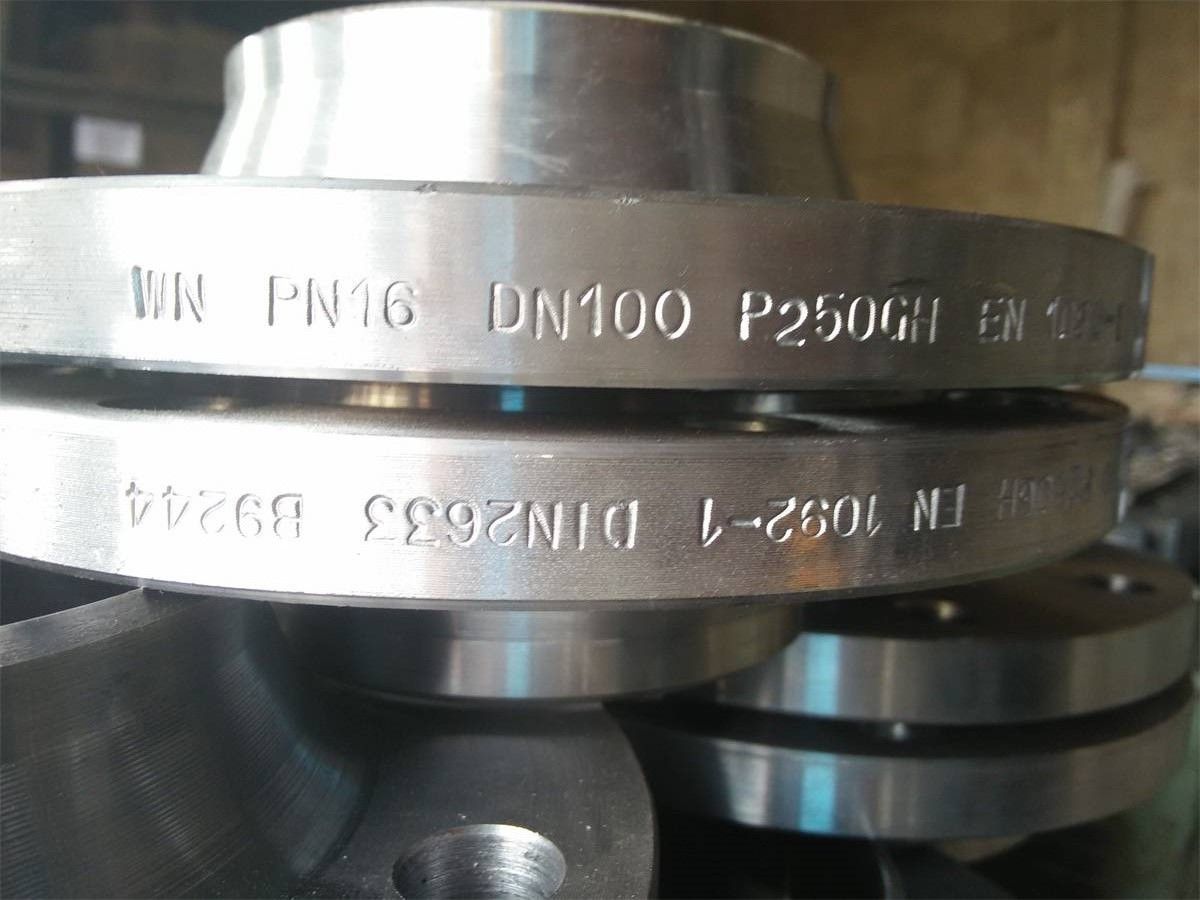

DIN2632, DIN2633, DIN2634, DIN2635,welding neck flanges

name	Welding-neck flange
Size	1/2"- 48"
Standard	DIN2632,DIN2633,DIN2634,DIN2635,ASME16.5JPI-15,HG20595,
Material	A105,A105M,ST37,ST35.8,SS400 SB410,Q235,
Sealing face	FF,RF MFM ,TG,RJ
Pressure rating	10-40 BAR,CLASS 150-CLASS 900,PN1.0-PN 25,PN0.6-PN10.0

Material	Carbon steel: A105 Alloy steel: A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22 Stainless steel: A182 304-304H-304L-304N-304LN 316-316H-316L -316N-316LN 321-321H 347-347H Low temperature steel: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8 High performance steel: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70 Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6 High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Surface treatment	Transparent oil, rust-proof black oil or hot galvanized
Flange Facing Types	American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ) European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove)
Industries Served	Electrical power, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy
Packing	wooden case, pallet or as customers' requirement

Flange:
Type: Welding neck (WN), Slip-on (SO), Socket welding (SW), Lap-joint (LJ), Blind (BL), Thread (TH). Plate (PL)
Pressure Ratings:class 150 300 400 600 900 1500 and 2500
Pressure Ratings:PN6 PN10 PN16 PN25 PN40 and PN64...
Materials: Carbon steel(A105 C22.8 ST37.2 A694 F42-F70...),Stainless steel(A182 304 321 316 316Ti..) and Alloy steel etc.
Standards:ANSI B16.5 B16.47 A B API BS DIN UNI JIS AS and Mss SP etc.
Size:1/2"--64"(DN15mm--DN1600mm)on the basis of equality and mutual benefit and to establish long-term and stable bussiness relationships.
