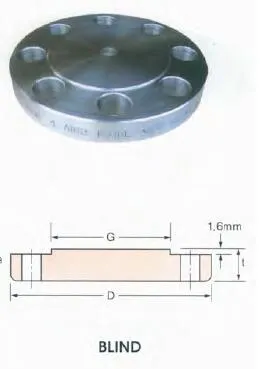

JIS B2220 Gr 3 Titanium Blind Flange
Product DetailsJIS B2220 Gr 3 Titanium Blank Flange Brand Name:C&N Type:Titanium FlangePackage:Standard Exported Wooden Cases or Other Requirment Specification:Customized Origin:ChinaSize:1/2"-120 " Surface:Machined SurfaceUsage:Chemical Industry etc. Place of Origin:ChinaApplication:I......
Send Inquiry
Product Description
Product Details
JIS B2220 Gr 3 Titanium Blank Flange
Brand Name:C&N
Type:Titanium Flange
Package:Standard Exported Wooden Cases or Other Requirment
Specification:Customized
Origin:China
Size:1/2"-120 "
Surface:Machined Surface
Usage:Chemical Industry etc.
Place of Origin:China
Application:Industrial
Technique:Forged
Grade:GR3
Shape:Round
HS Code:810890
Production Capacity:10000 PCS Per Month
Product Description
JIS B2220 Gr 3 Titanium Blank Flange
Products Introduction
| Material Grade | Gr1, Gr2,Gr7, Gr9, Gr23, TI-6Al4v, |
| Certification | ISO9001:2008 BV |
| Standard | ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
| size | 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
| Pressure Clase | PN0.25~32Mpa |
| (DIN) PN6,PN10,PN16,PN25 though PN250 | |
| 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB | |
| Technique | Forged and CNC Machined |
| type | WNRF , SORF , BLIND ,SW, PL |
| Flange surface | FF,RF,TG,RJ etc |
| Applicationproducts | used in cars, glasses,medical equipment , electronics , petrochemical equ ipment |
| Advantage | 1. Long service life |
| 2. corrosion -resistant | |
| 3.hign yeiled strenth and tensile strength. |
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Titanium Wires Dimension Tolerance
Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm | 2.0-6.0mm |
Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 | +/-0.10 |
Length | 200-500mm | 500-1000mm | 1000-2000mm | &2000mm |
Tolerance | +/-1.0 | +/-1.5 | +/-2.0 | +/-2.5 |
Tensile Requirements
Grade | Tensile Strength (min) | Yield strength 0.2%Offset | Elongation in 2in.Or 50mm % (min) | |||||
Min | ||||||||
Ksi | Mpa | Ksi | Mpa | |||||
Gr1 | 35 | 240 | 20 | 138 | 20 | |||
Gr2 | 50 | 345 | 40 | 275 | 18 | |||
Gr3 | 65 | 450 | 55 | 380 | 18 | |||
Gr5 | 130 | 895 | 120 | 828 | 10 | |||
Gr7 | 50 | 345 | 40 | 275 | 18 | |||
Gr12 | 70 | 483 | 50 | 345 | 18 | |||
Packaging
as your request.
Transportation
Shipping goods by TNT, DHL, Fedex, UPS, EMS etc. or by air or by sea depends on the purchasing quantity.
